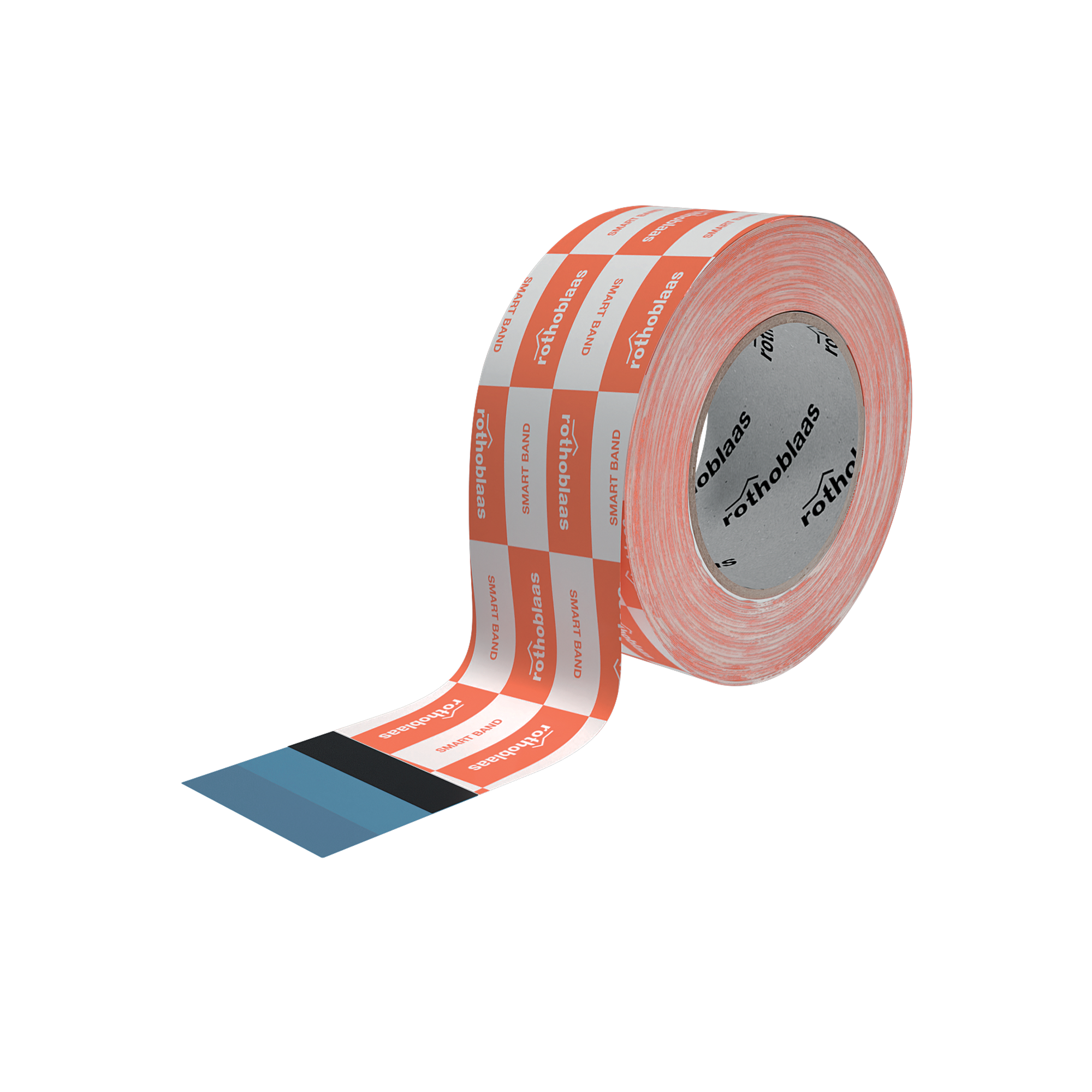

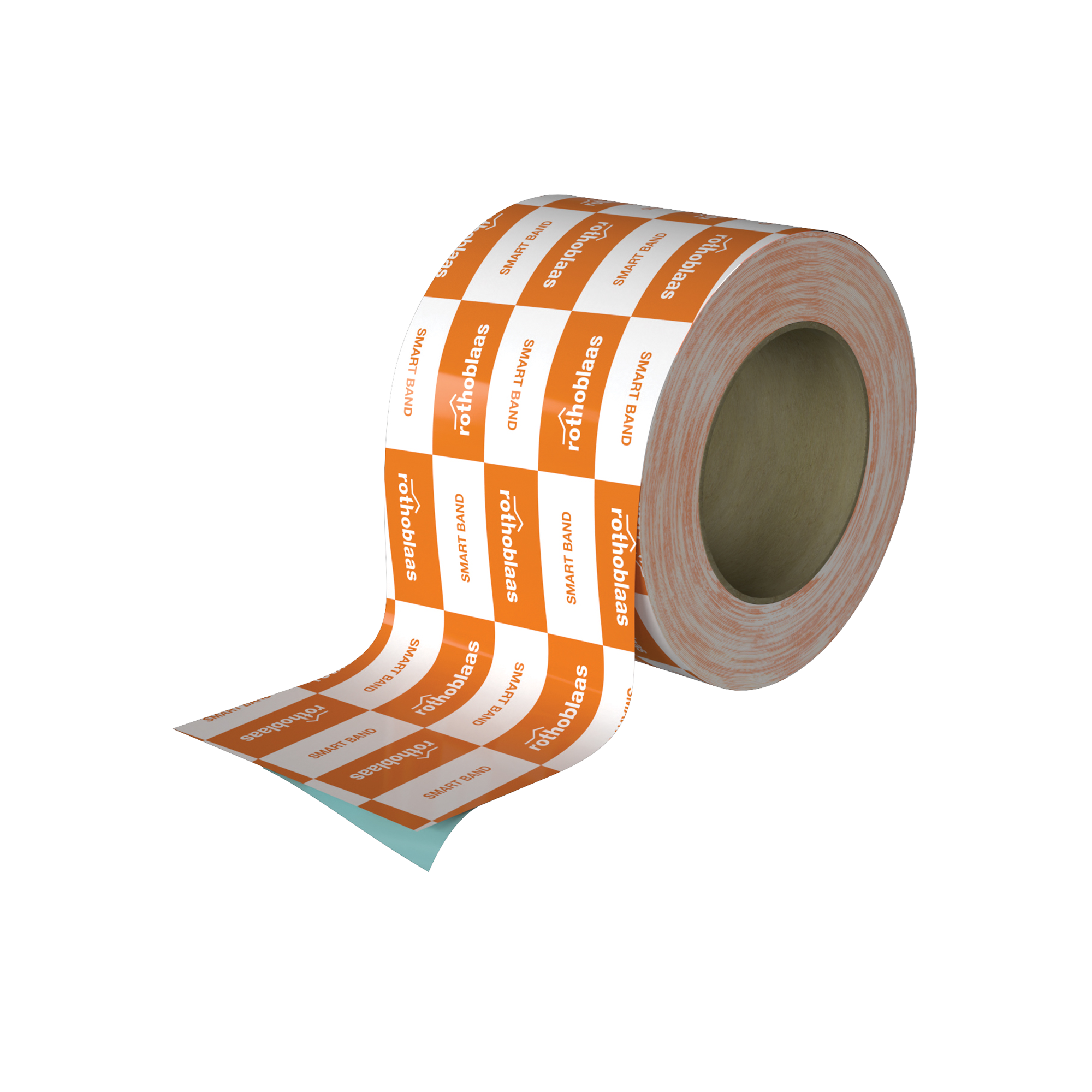

UNIVERSAL SINGLE-SIDED TAPE WITH SEPARABLE LINER
SMART BAND

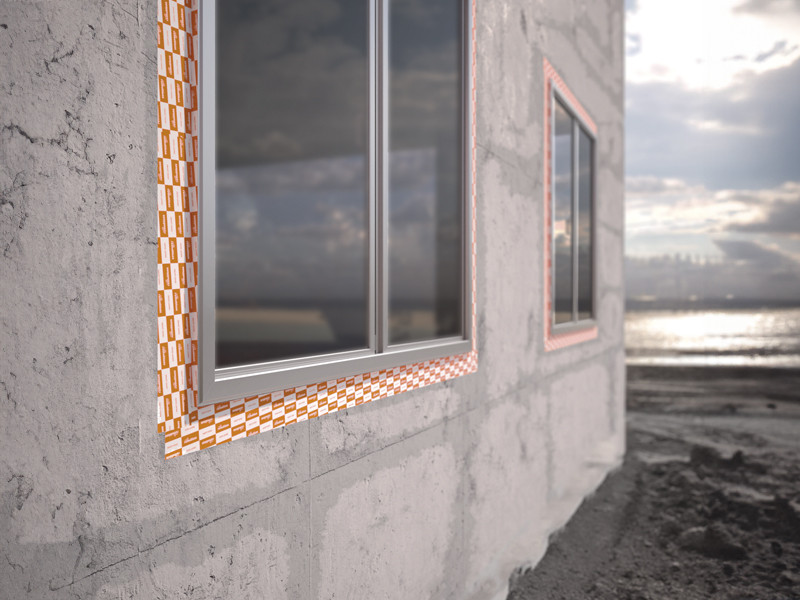

SMART BAND universal tape with separable liner meets all the requirements to be classified as a tape for sealing external doors or windows, ensuring maximum safety even in case of stagnating water.

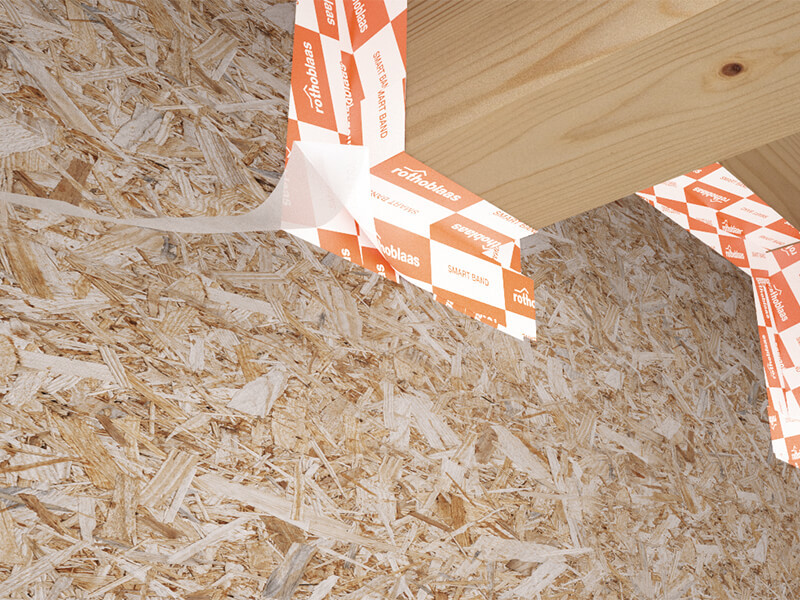

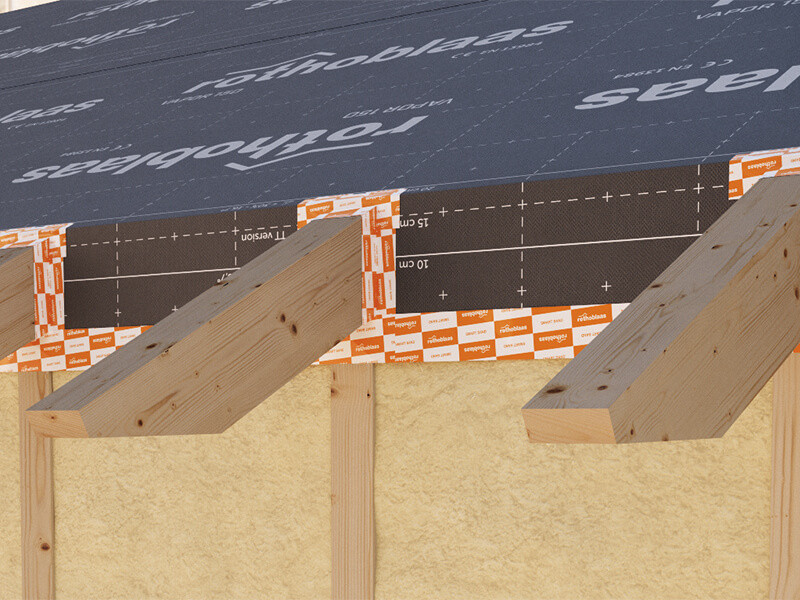

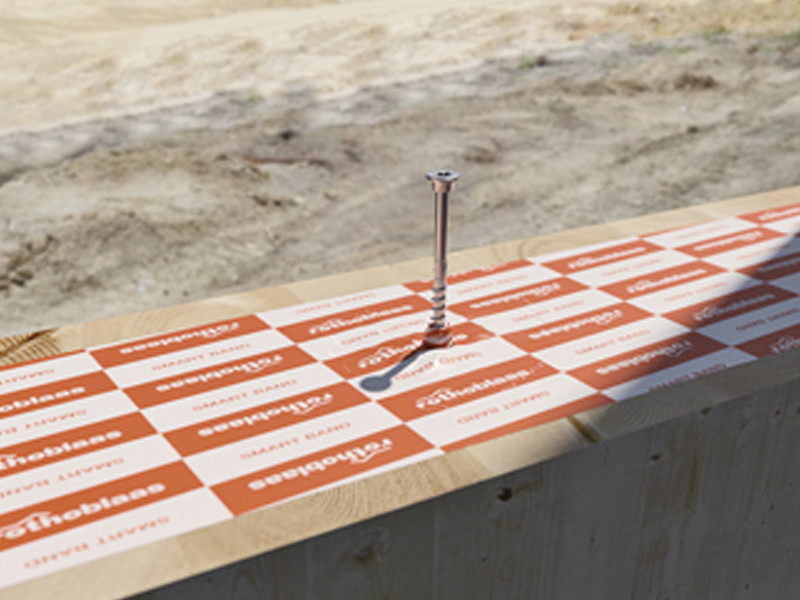

Extremely versatile, it can be used for a wide range of applications.
Videos
SMART BAND, THE HIGHLY DEFORMABLE UNIVERSAL TAPE WITH EASY SPLITTING LINER
The SMART BAND universal single-sided tape has a unique separating film which, thanks to a special treatment, can be divided at any point without pre-cutting, thus adapting to any installation requirement.
The special composition of the support makes the tape particularly resistant to tearing and mechanical stress, thanks to its high deformability.
Storage is made easier thanks to the easy splitting liner, which means that only a few sizes can be stored to meet any construction requirement.
Documents
Technical data sheets
|
|---|
SMART BAND
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|

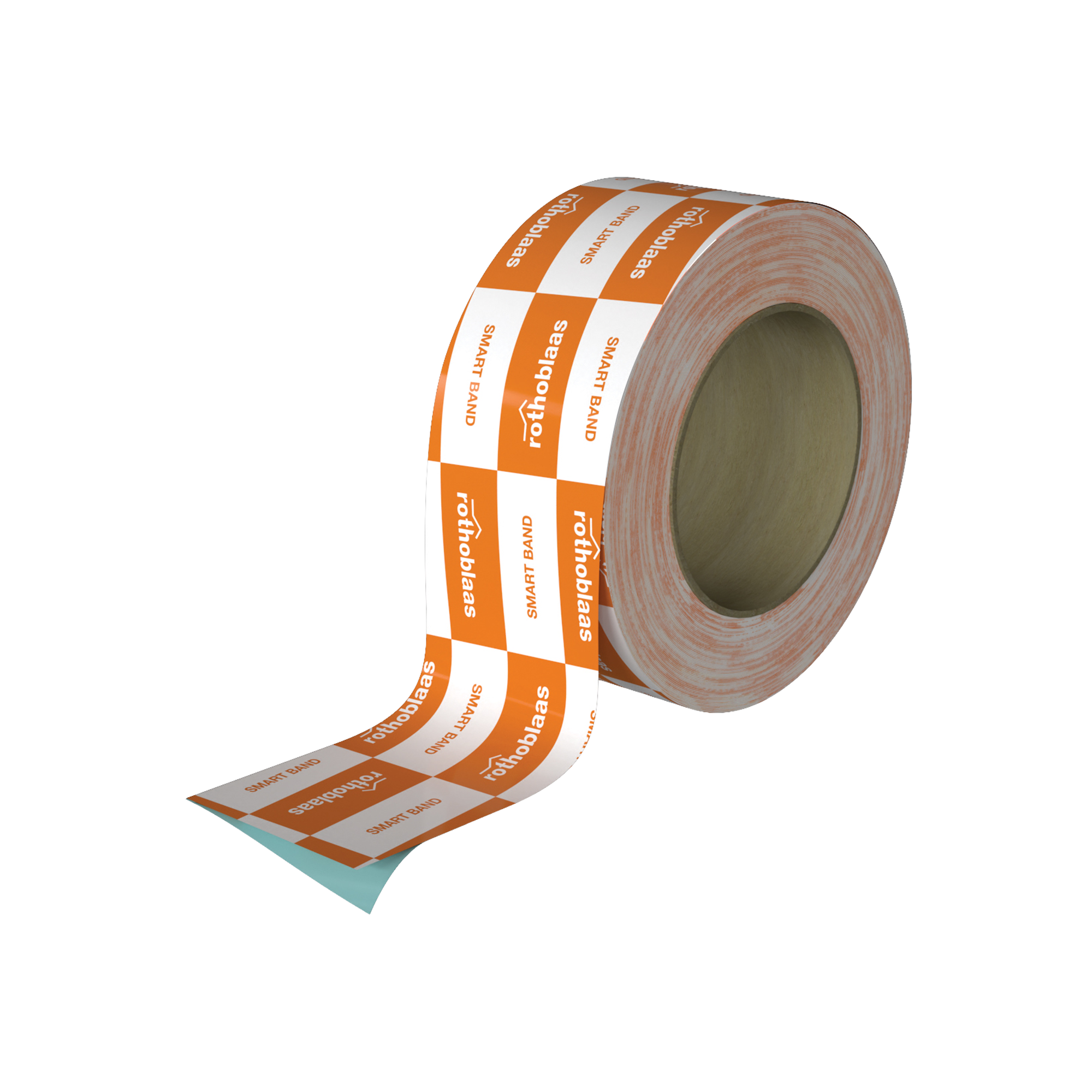

| SMART60 | 60 | 25 | 2.4 | 82 | 10 |

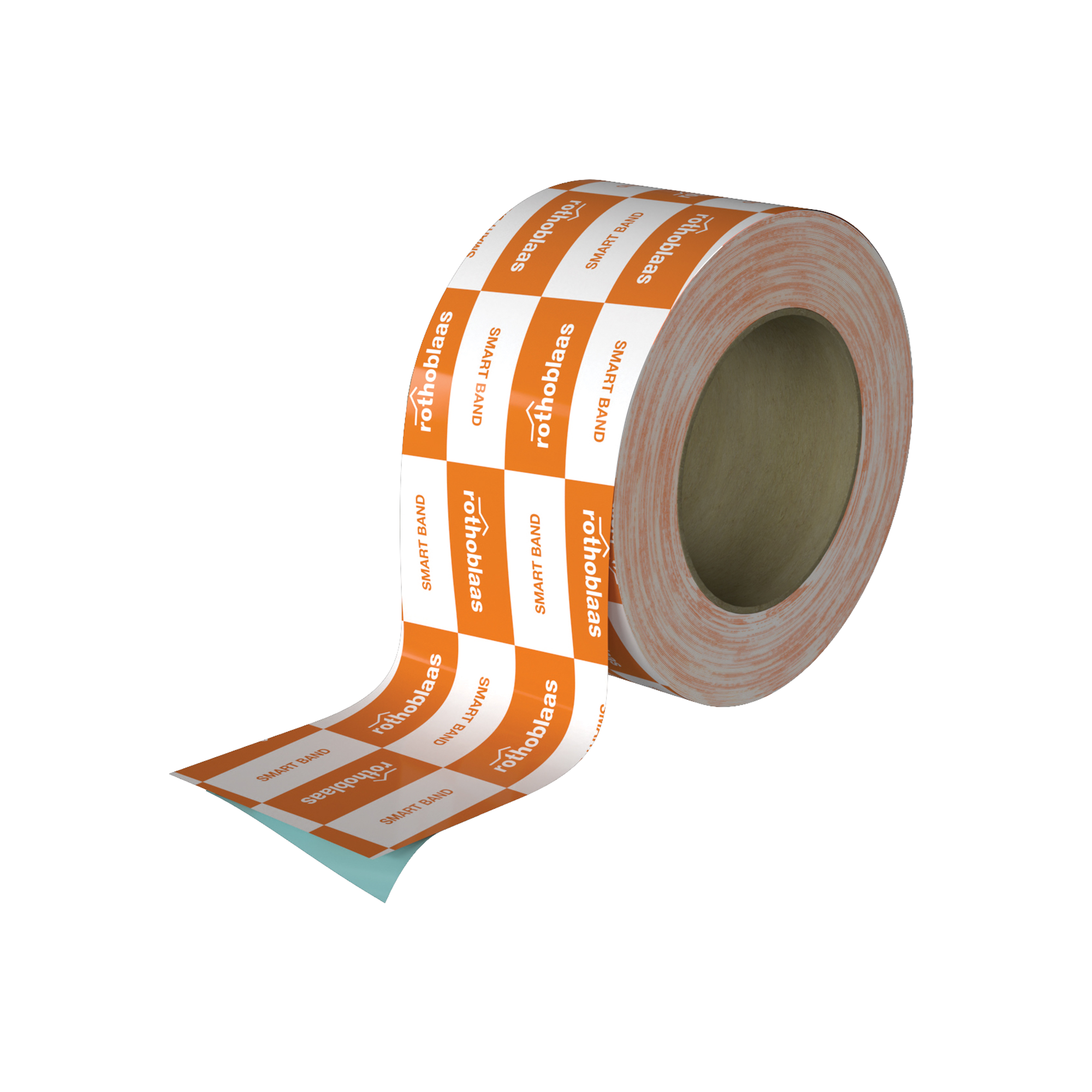

| SMART75 | 75 | 25 | 3 | 82 | 8 |
| SMART100 | 100 | 25 | 3.9 | 82 | 6 |

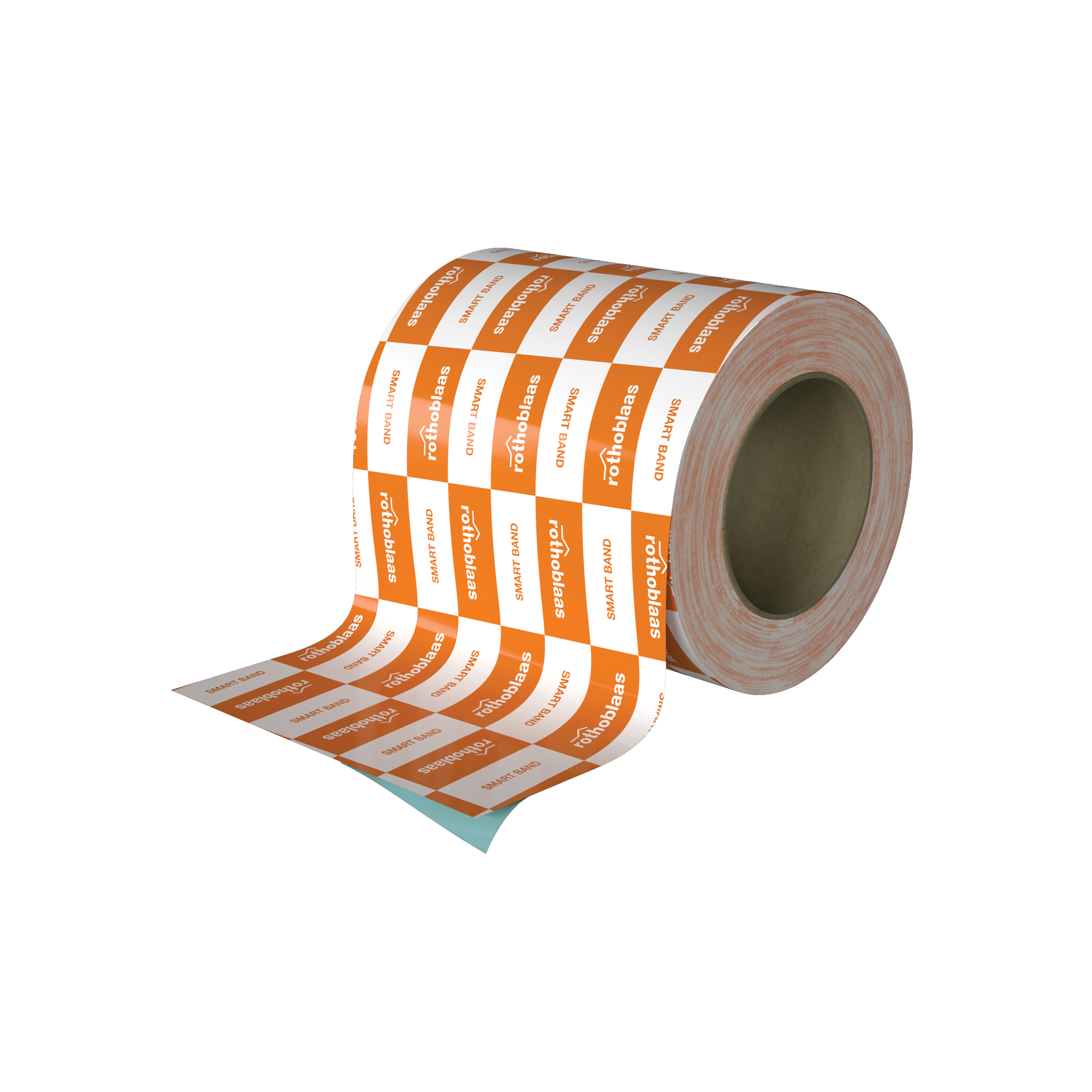

| SMART150 | 150 | 25 | 5.9 | 82 | 4 |
| SMART225 | 225 | 25 | 8.9 | 82 | 2 |
| SMART300 | 300 | 25 | 11.8 | 82 | 2 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | - | 0,24 mm | 9 mil |
| Tensile strength | ASTM D1000 | 30 N/10mm | 17.13 lbf/in |
| Elongation at failure | ASTM D1000 | ≥ 400 % | - |
| Resistance to heavy rain | - | compliant | - |
| Application temperature | - | -10 / 40 °C | 14 / 104 °F |
| Resistance to temperature | - | -30 / 80 °C | -22 / 176 °F |
| Storage temperature | - | 5 / 30 °C | 41 / 86 °F |
| Adhesion strength on steel at 90° | AFERA 5001 | ≥ 12 N/25mm | ≥ 2.74 lbf/in |
| Resistance to heavy rain | TU Berlin | npd | - |
| Solvents | - | no | - |
| Adhesion strength on OSB at 180° after 10 minutes | EN ISO 29862 | 7 N/10mm | 4 lbf/in |
| Adhesion strength on OSB at 90° after 10 minutes | EN ISO 29862 | 3,5 N/10mm | 2 lbf/in |
| Adhesion strength (average) on membrane in PP after 24 hours | EN 12316-2 | 26 N/50mm | 3 lbf/in |
| Shear adhesion strength of the joint on membrane in PP after 24 hours (1) | EN 12317-2 | 55 N/50mm | 6.3 lbf/in |
| Watertightness | - | compliant | - |
| Exposure to weather | - | 12 month | - |
Composition
| SUPPORT | PE special film |
|---|---|
| SUPPORT | UV-stabilised PE film |
| GLUE | solvent-free UV-crosslinked acrylic |
| RELEASE LINER | PP film with easy splitting |
