SELF-EXPANDING SEALING TAPE FOR WINDOWS/DOORS
FRAME BAND

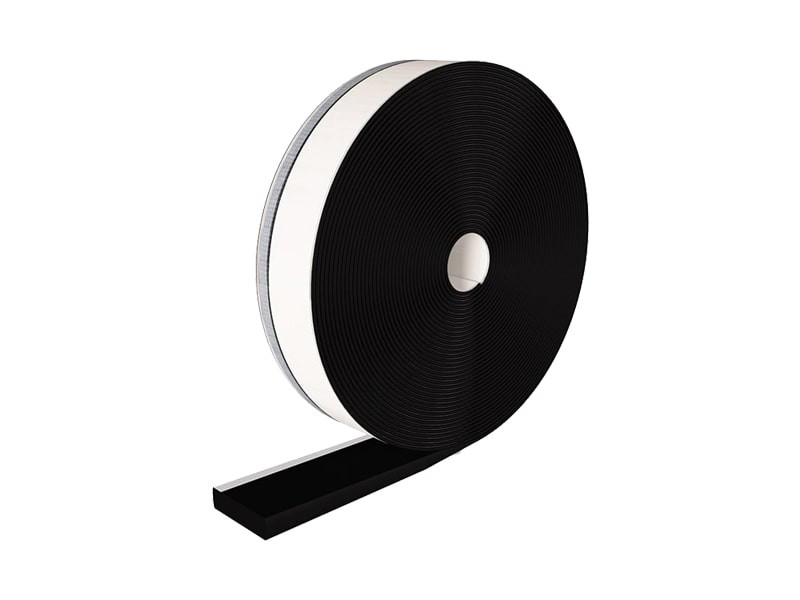

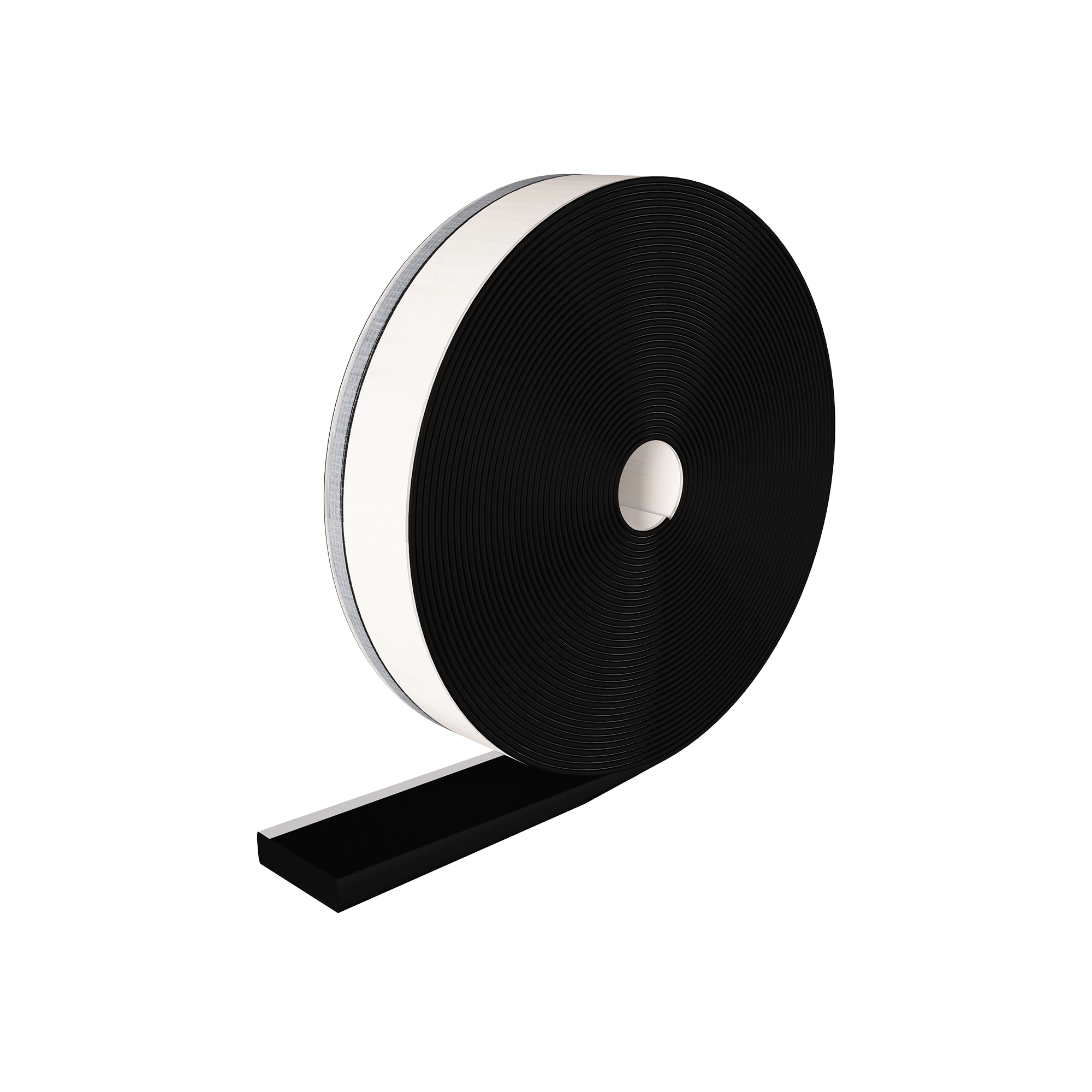

FRAME BAND is the self-expanding tape for doors and windows that effectively seals any type of crack between 2 and 10 mm, resisting heavy rain.
Thanks to the adhesive strip, application is easy and precise without the need for further glue.
FRAME BAND self-expanding tape for window/door frames, air and water protection and thermal-acoustic insulation.

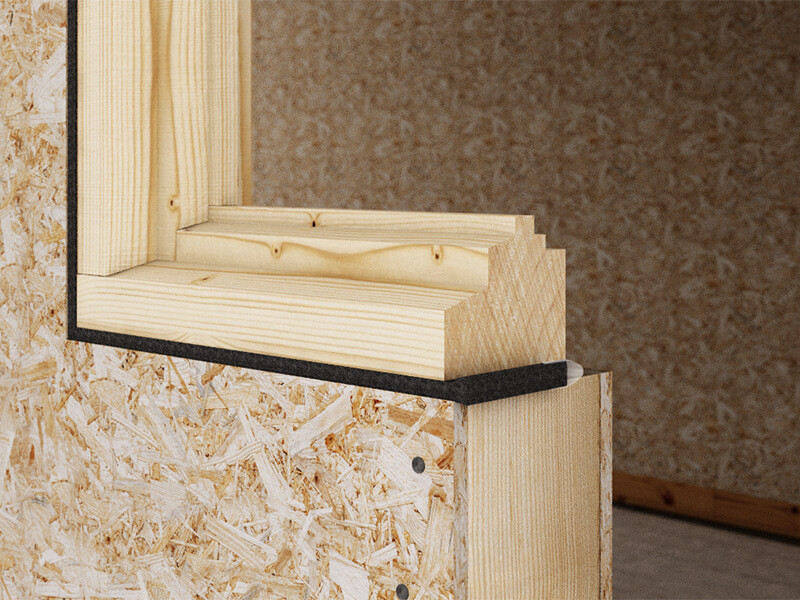

FRAME BAND window/door expanding tape is airtight: it is impermeable to air and water and interrupts possible acoustic bridges in the junction between structure and window/door.
Compliant with EnEV and RAL requirements, also guarantees a high level of thermal and acoustic insulation.
Documents
Technical data sheets
|
|---|
FRAME BAND
| CODE | B
[mm]
|
measures
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|
| FRAME2054 | 54 | s: 2-12 | 30 | 2.1 | 98 | 7 |
| FRAME2074 | 74 | s: 2-12 | 30 | 2.9 | 98 | 5 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Classification (1) | DIN 18542 | BG1 | - |
| Airtightness | DIN 18542 | conforme ai requisiti BG1 | - |
| Air permeability (α) | EN 12114 | 0 m³/(h·m·daPa⅔) | - |
| Thermal conductivity (λ) | EN 12667 | 0,048 W/(m·K) | 0.028 BTU/(h·ft²·°F) |
| Water vapour transmission (Sd) | DIN 18542 | conforme ai requisiti BG1 | - |
| Water vapour transmission (Sd) | EN ISO 12572 | 25 m | 0.14 US perm |
| Water vapour transmission (Sd) | EN ISO 12572 | 0,5 m | 6.993 US perm |
| Tightness in heavy rain | EN 1027 | ≥ 1050 Pa | - |
| Compatibility with adjacent construction materials | DIN 18542 | conforme ai requisiti BG1 | - |
| Light and humidity resistance | DIN 18542 | conforme ai requisiti BG1 | - |
| Reaction to fire | DIN 18542 | conforme ai requisiti BG1 | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Acoustic insulation of joints RS,w 18 mm | EN ISO 10140-1 EN ISO 10140-2 EN ISO 717-1 | ≥ 63 dB | - |
| Thermal resistance | - | -30 / 80 °C | -22 / 176 °F |
| Application temperature | - | ≥ 5 °C | ≥ 41 °F |
| Storage temperature (2) | - | 5 / 20 °C | 41 / 68 °F |
| Emicode | procedura di prova GEV | EC1 plus | - |
1.
2. Store the product in a dry, covered place for no more than 12 months from the date of manufacturing.
