RESILIENT SOUNDPROOFING PROFILE
ALADIN
ALADIN is the resilient profile for wall and ceiling soundproofing. It’s an excellent compromise between cost and performance.
ALADIN offers an effective reduction of noise from footsteps, verified and approved in accordance with the standard EN ISO 10848 both by the certification body Holzforschung Austria, and by the Industrial Research Centre of the University of Bologna.

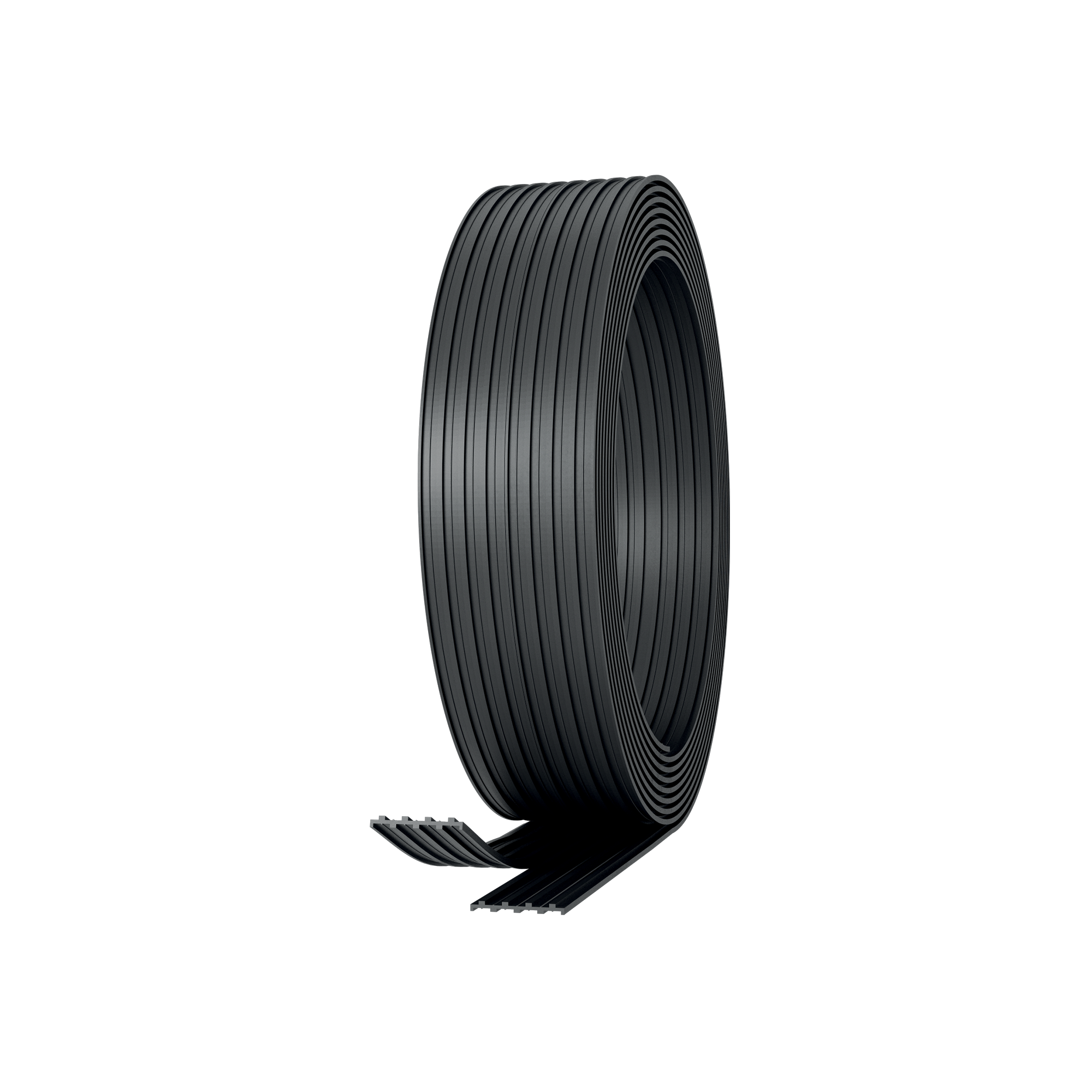

It is precut to obtain four different widths with only two versions: ALADIN SOFT in compact extruded EPDM and ALADIN EXTRA SOFT in expanded EPDM.
The product has been also tested for fire performance, achieving class E.
APPLICATIONS
- With its innovative extruded and expanded EPDM compound, it is an effective soundproofing material for ceilings and walls in general
- Perfect for optimising noise reduction in relation to typical loads in timber structures
CHARACTERISTICS
- Although it has a useable thickness of only 3 to 5 mm, the ALADIN wall and ceiling soundproofing profile offers effective impact sound reduction
- Soundproofing up to 4 dB in accordance with EN ISO 140-7, thanks to the innovative composition of the mixture; reduced application thickness.
- It’s precut to obtain 4 different widths with only two versions.
- Quick installation takes place dry by mechanical fastening
MEASUREMENTS ON SITE
In order to know the behaviour of its products inside buildings, we have measured ALADIN's performance on site. The effectiveness of ALADIN has resulted in highly satisfactory impact noise levels:
L’nT,w = 34 dB
NIRS ASTM = 75
For experimental data on the static performance of a timber-to-steel connection with ALADIN interposed.
Features
| Material | EPDM extruded and expanded |
|---|---|
| Thickness | 5,0 and 7,0 mm |
| Dimensions | strisce da 95 e 115 mm dividibili grazie al pretaglio |
| Applicable linear load | from 2,0 to 30 kN/m |
| Acoustic performance | ★ ★ ★ ☆ ☆ |
| Stability over time | ★ ★ ☆ ☆ ☆ |
Documents
Technical data sheets
|
|
|---|---|
Soundproofing solutions - technical manual
|
|
Item specification
|

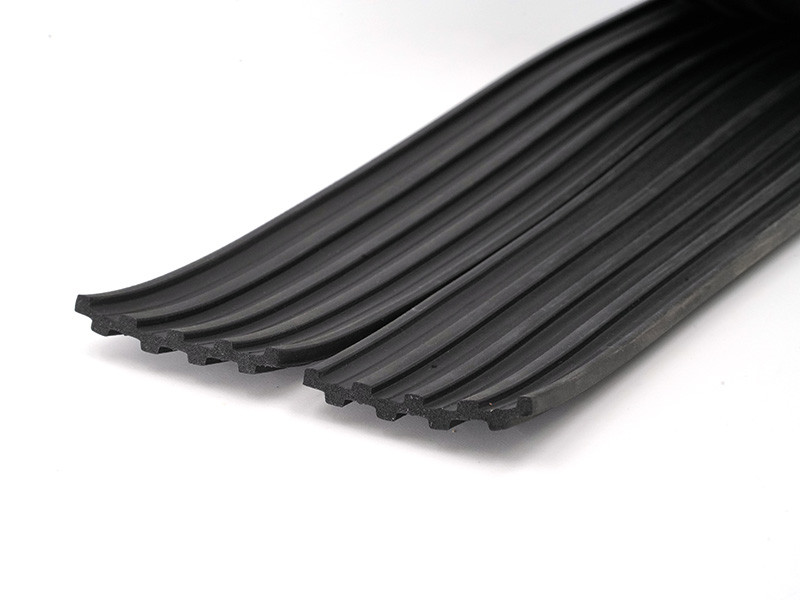

ALADIN EXTRA SOFT
| CODE | version | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| ALADIN115 | EXTRA SOFT | 115 | 50 | 7 | 1 |

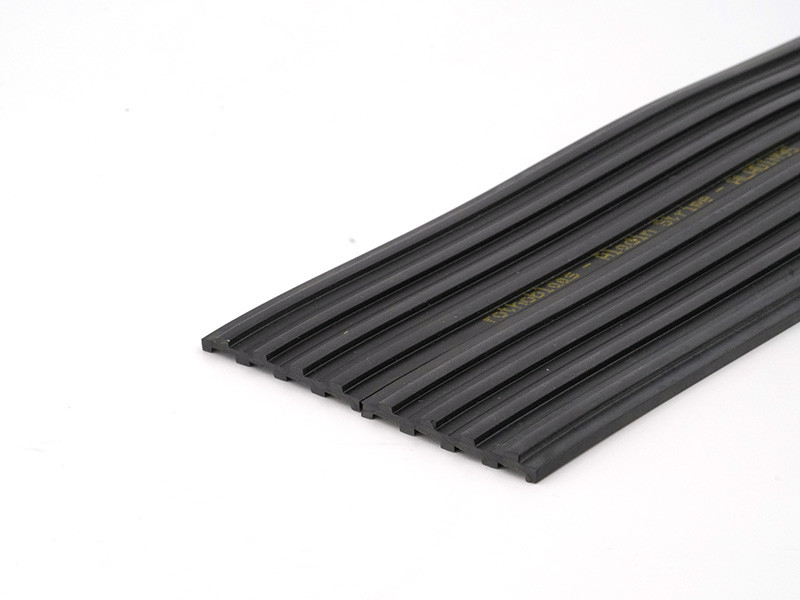

ALADIN SOFT
| CODE | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| ALADIN95 | 95 | 50 | 5 | 1 |
Specifications
ALADIN STRIPE SOFT
Supply and installation of resilient soundproofing profile, type ALADIN STRIPE Soft
Composition:
- Compound in extruded EPDM tested and certified by the Industrial Research Center of the University of Bologna
Properties:
- Dynamic stiffness s’ [MN/m³] : condizione ermetica = 221 condizione non ermetica = 115
- Compression deformation [%] : 100°C, ≥ 50

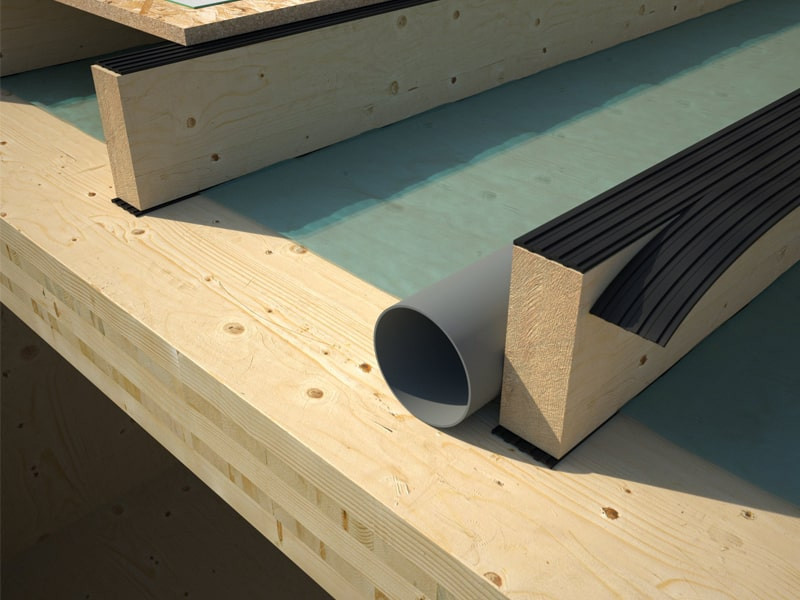

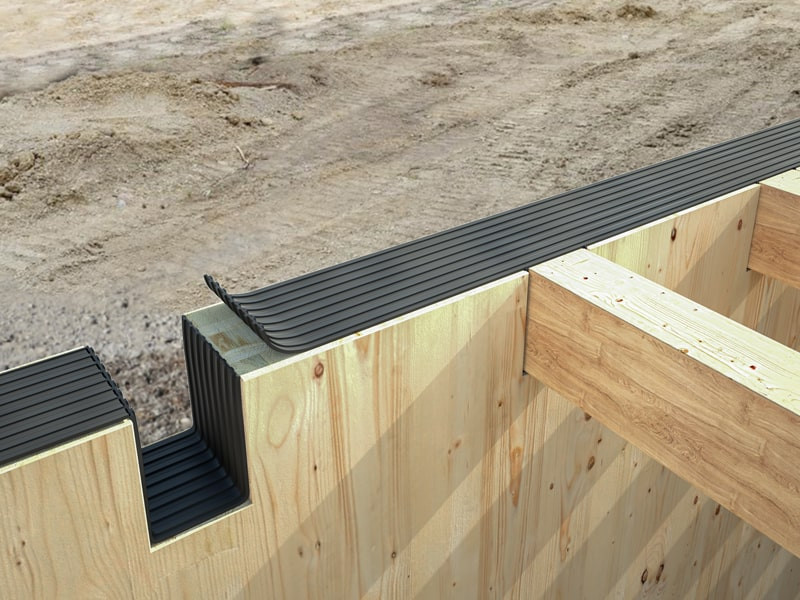

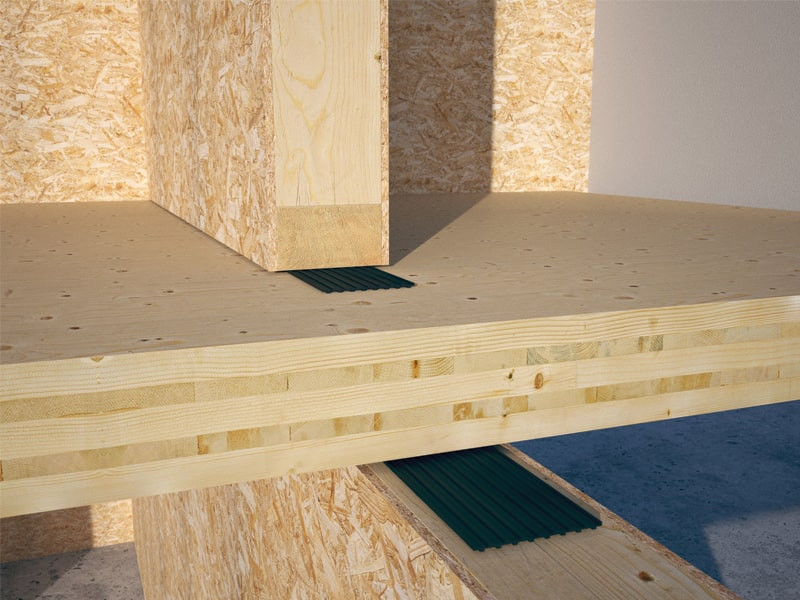

Suitable for timber-to-timber installation to create a physical and mechanical separation between the two elements, thus avoiding the transmission of vibrations caused by impact sound. To increase the vibration absorption capacity, it is advisable to install the profile both below and above the timber floor. Install the profile on the upper section of the wall and fix it mechanically with staples every 40/60 cm. Then install the horizontal panel of the floor and repeat the operation.
ALADIN STRIPE EXTRA SOFT
Supply and installation of resilient soundproofing profile, type ALADIN STRIPE Extra Soft
Composition:
- Compound in expanded EPDM tested and certified by the Industrial Research Center of the University of Bologna
Properties:
- Dynamic stiffness s’ [MN/m³] : condizione ermetica = 76 condizione non ermetica = 23
- Compression deformation [%] : 23°C, ≥ 25 40°C, ≥ 35
Suitable for timber-to-timber installation to create a physical and mechanical separation between the two elements, thus avoiding the transmission of vibrations caused by impact sound. To increase the vibration absorption capacity, it is advisable to install the profile both below and above the timber floor. Install the profile on the upper section of the wall and fix it mechanically with staples every 40/60 cm. Then install the horizontal panel of the floor and repeat the operation.
