TIMBER ANGLE BRACKETS: WKR DOUBLE - OPTIMISED SOLUTIONS FOR PREFABRICATED WALLS

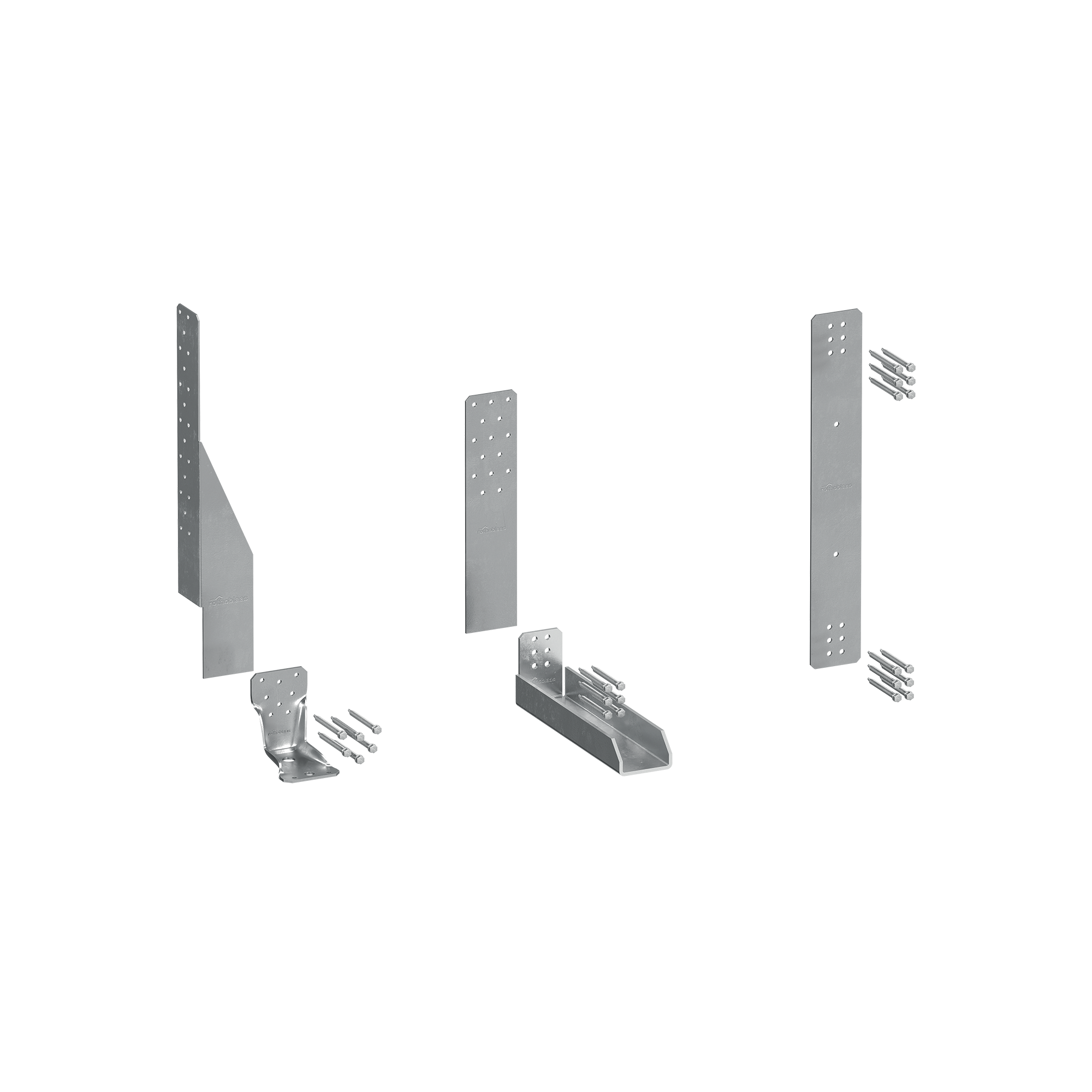

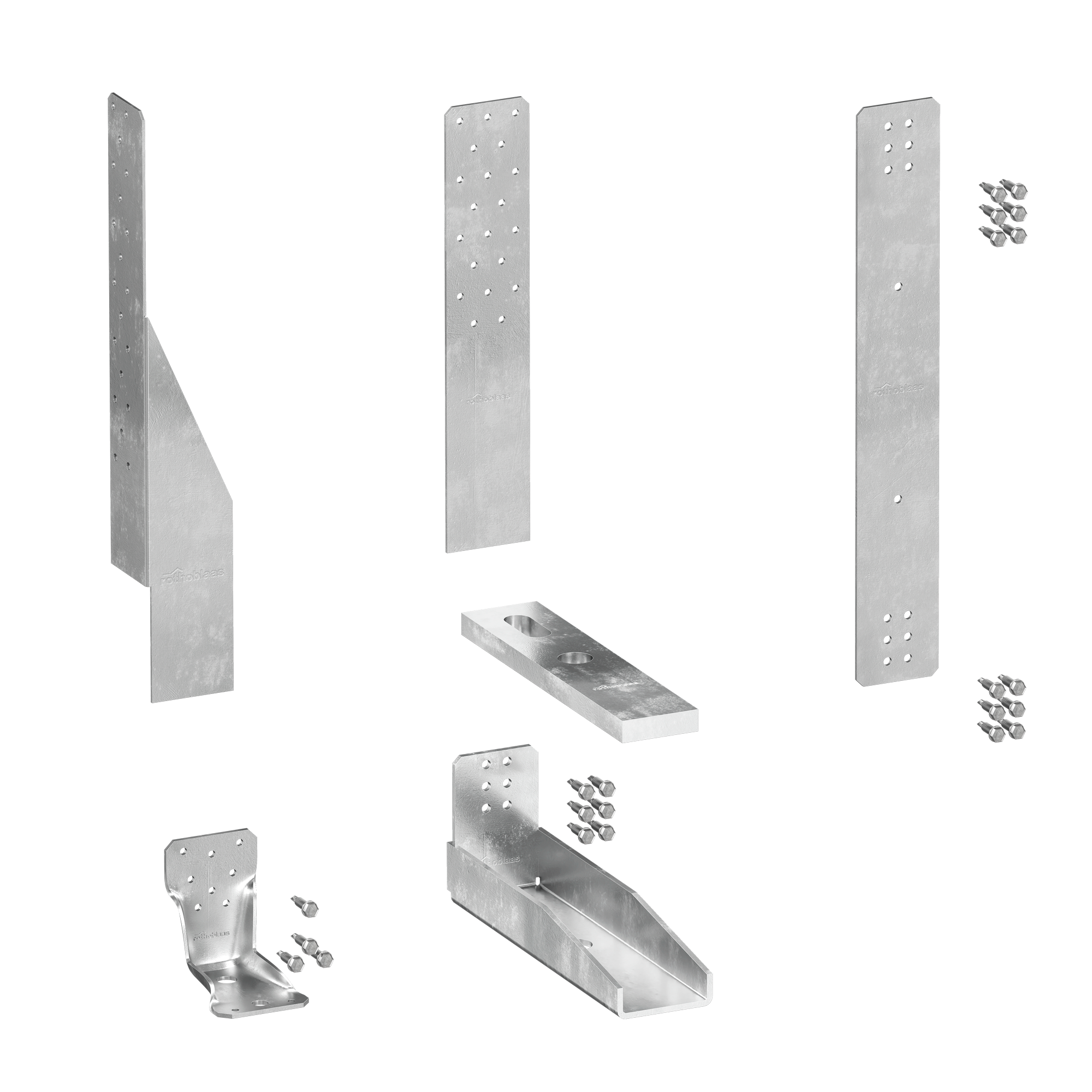

WKR DOUBLE
Our timber wall angle brackets are slim and fast, with incredible strength for small to medium-sized constructions.
On site, handling is quick and easy as installation is facilitated by slotted holes for anchor installation.
WKR, available in different sizes, is the angle bracket that allows pre-assembly in the factory with the possibility of prefabrication of the finishes as well.
Easy management on site
The versatility of the WKR DOUBLE system also simplifies handling on site. The models of the base angle bracket allow the wall to be installed on different supports such as a grout, a root beam or a reinforced concrete kerb.
TIMBER ANGLE BRACKETS: TOLERANCES AND EFFICIENT PRE-INSTALLATION

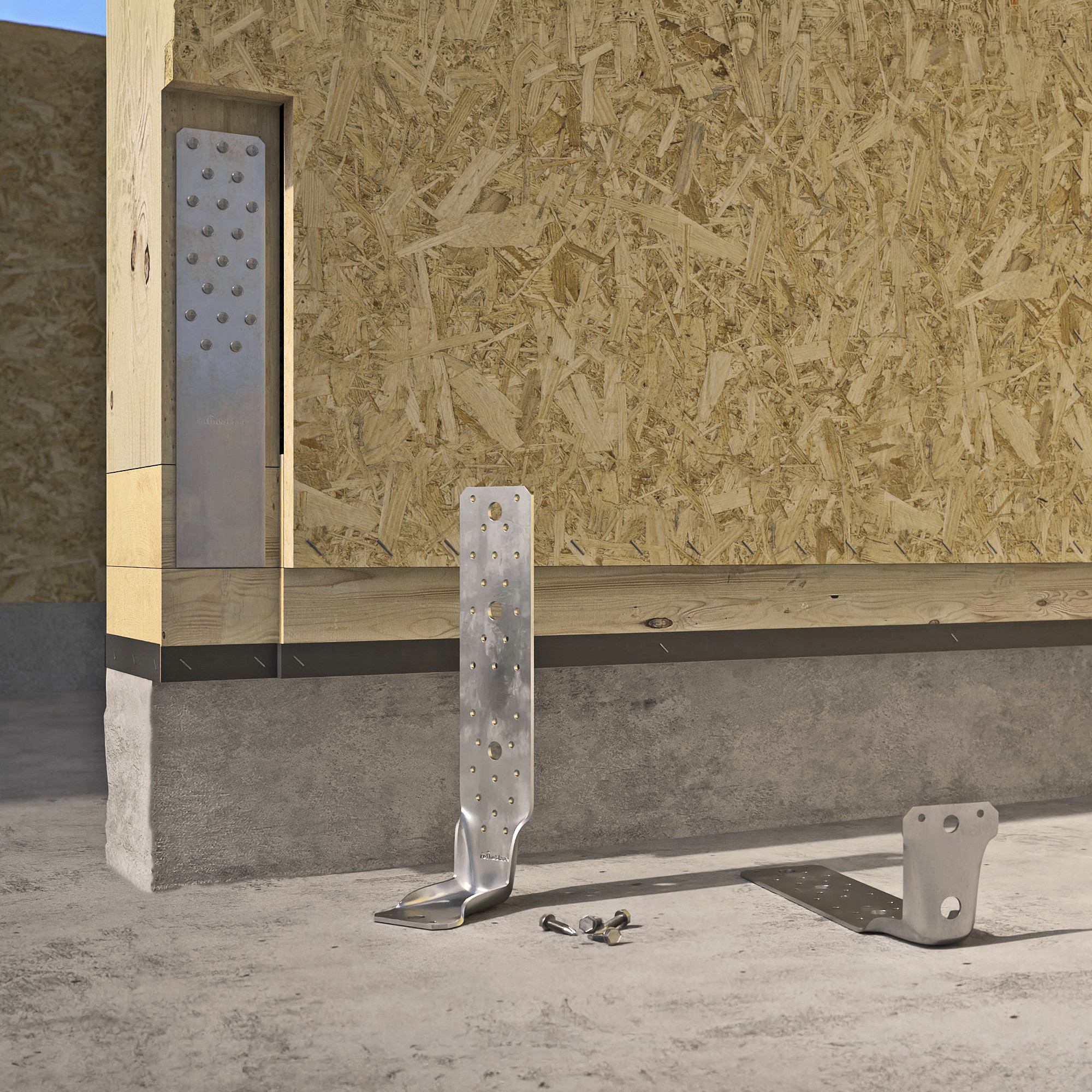

With the possibility of pre-installing the base angle brackets on the reinforced concrete foundation, WKR DOUBLE enables efficient preparation during prefabrication. Slotted holes for the installation of anchors allow precise management of installation tolerances.
WKR DOUBLE angle brackets allow precise tolerance management for both timber-to-concrete and timber-to-timber connections. Slotted holes for anchor installation allow for accurate installation, ensuring a high quality end result.

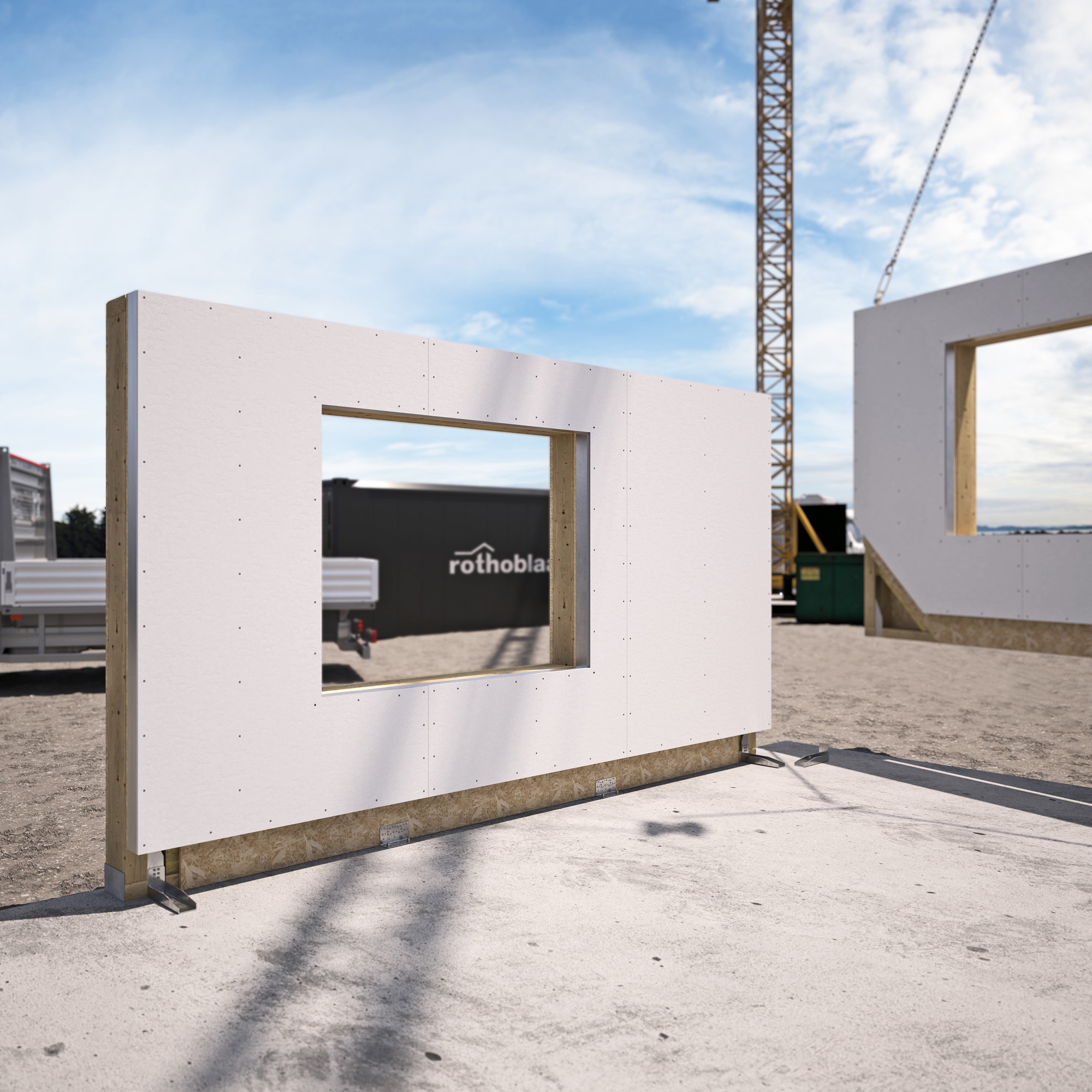

Ideal for a wide range of applications, including tensile joints for prefabricated walls and fastening of frame walls, they offer configurations suitable for both timber-to-timber and timber-to-concrete connections, and are compatible with various types of materials, including solid timber and glulam, timber frame walls, CLT panels and LVL panels.
Optimise your prefabrication process and optimise construction phases on site with WKR DOUBLE angle brackets.
Documents
| Technical data sheets |
|---|
WALL PLATE
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| WKRD40 | New | 40 | - | 275 | 2 | 10 |
| WKRD60 | New | 60 | - | 265 | 2.5 | 10 |
| WKRD60L | New | 62 | 55 | 403 | 2 | 10 |
| WKRD60R | New | 62 | 55 | 403 | 2 | 10 |
INTER-STOREY PLATE
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. | |
|---|---|---|---|---|---|
| WKRD60T | New | 60 | 410 | 2.5 | 10 |
BASE ANGLE BRACKET
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| WKRD80C | New | 62 | 255 | 80 | 4 | 10 |
| WKRD180C | New | 62 | 255 | 180 | 4 | 10 |
WKR
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| WKR9530 | 95 | 25 |
| WKR13535 | 135 | 25 |
| WKR21535 | 215 | 25 |
| WKR28535 | 287 | 25 |
