MONOLITHIC BREATHABLE MEMBRANE

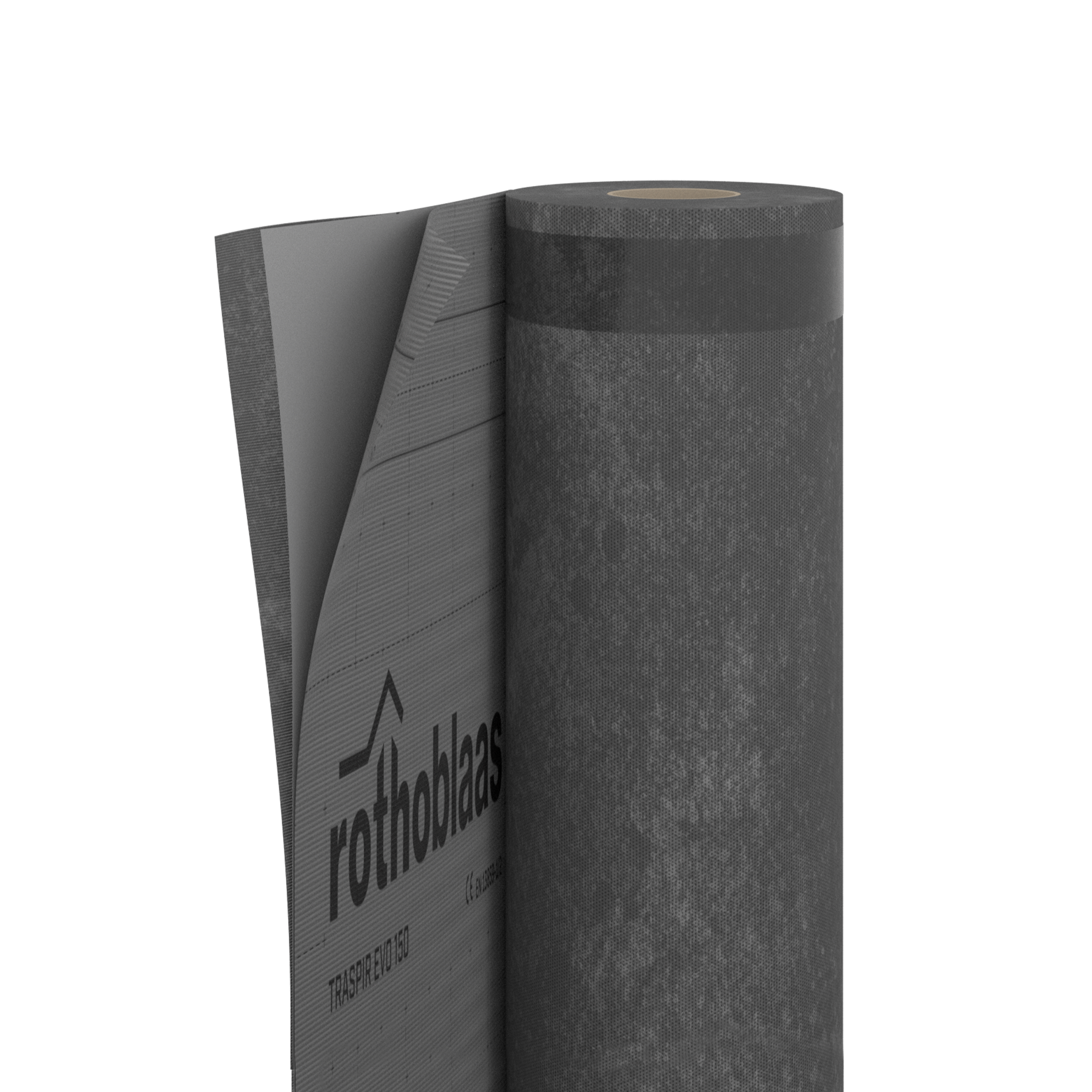

TRASPIR EVO 150
TRASPIR EVO 150 is the monolithic breathable membrane designed to guarantee wind tightness, also acting as a temporary protective layer during construction work.
Thanks to the special polymers used, the monolithic structure of the membrane ensures excellent durability over time, and the version with integrated double tape, with increased width, offers the highest possible protection from rain.
TRASPIR EVO 150, the monolithic breathable membrane that is not affected by heavy rain.
The monolithic functional membrane ensures breathability thanks to a chemical reaction, rather than through a micro perforation process, as in microporous products, therefore, the continuous and homogeneous layer provides a complete barrier against the passage of water. The surface layer offers excellent sliding resistance thanks to the polypropylene non-woven fabric.
Documents
Technical data sheets
|
|---|
TRASPIR EVO 150
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TEVO150 | TRASPIR EVO 150 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
| TTTEVO150 | TRASPIR EVO 150 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 30 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 150 g/m² | 0.49 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,1 m | 34.965 PERM |
| Tensile strength MD/CD | EN 12311-1 | 270 / 210 N/50mm | 31 / 24 lb/in |
| Elongation MD/CD | EN 12311-1 | 50 / 50 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 200 / 220 N | 45 / 49 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,4 W/(m·K) | 2.77 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | 300 kg/m³ | - |
| Water vapour resistance factor (μ) | - | 200 | - |
| VOC content | - | 0 % | - |
| UV stability | EN 13859-2 | 4 months | - |
| Exposure to weather | - | 4 weeks | - |
| Water column | ISO 811 | > 500 cm | > 196.8504 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | - | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 250 / 185 N/50mm | 29 / 21 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 50 / 50 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
| Driving rain test | TU Berlin | passed | - |
