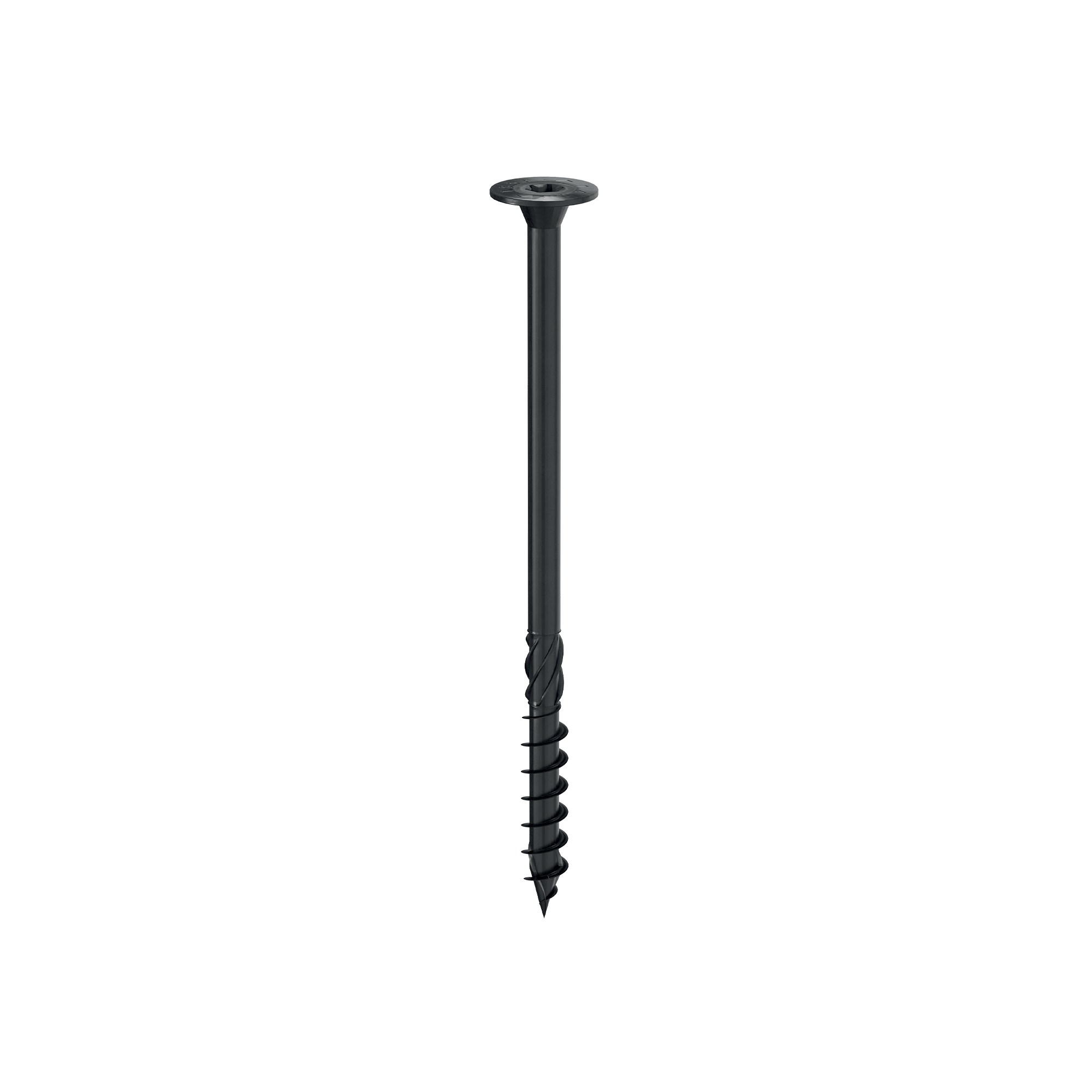

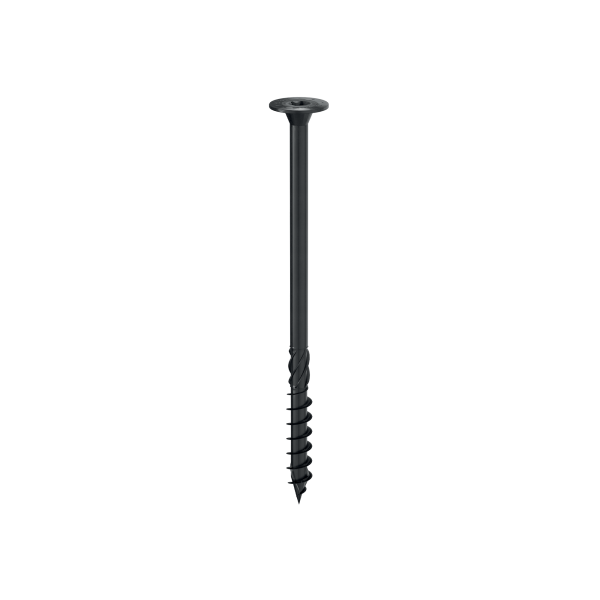

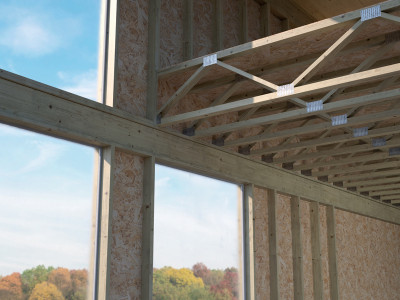

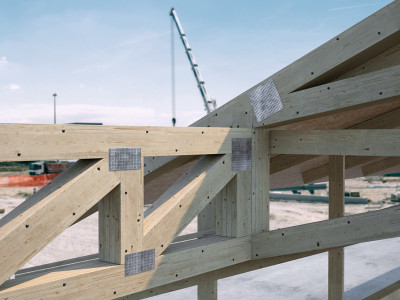

FLAT FLANGE HEAD SCREW
TBS FRAME
New
The flange head ensures excellent tightening capacity of the joint; the flat shape allows a joint without additional thickness on the wooden surface, thus enabling the fixing of plates on the same element without interference.
The short, fixed-length thread at 1 1/3" (34 mm) is optimised for fastening multi-layer elements (Multi-ply) for lightweight frame construction.
Coated with black E-coating for easy recognition on site and increased corrosion resistance.
TBSF is easily installed without pre-drilling hole. More screws can be used in less space and larger screws in smaller elements.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
TBS FRAME
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| TBSF873 | - | 8 | 73 | 34 | 0.32 | 2 7/8'' | 1 5/16'' | TX40 | 50 |
| TBSF886 | - | 8 | 86 | 34 | 0.32 | 3 3/8'' | 1 5/16'' | TX40 | 50 |
| TBSF898 | - | 8 | 98 | 34 | 0.32 | 3 7/8'' | 1 5/16'' | TX40 | 50 |
| TBSF8111 | - | 8 | 111 | 34 | 0.32 | 4 3/8'' | 1 5/16'' | TX40 | 50 |
| TBSF8130 | - | 8 | 130 | 34 | 0.32 | 5 1/8'' | 1 5/16'' | TX40 | 50 |
| TBSF8149 | - | 8 | 149 | 34 | 0.32 | 5 7/8'' | 1 5/16'' | TX40 | 50 |
| TBSF8175 | - | 8 | 175 | 34 | 0.32 | 6 7/8'' | 1 5/16'' | TX40 | 50 |
