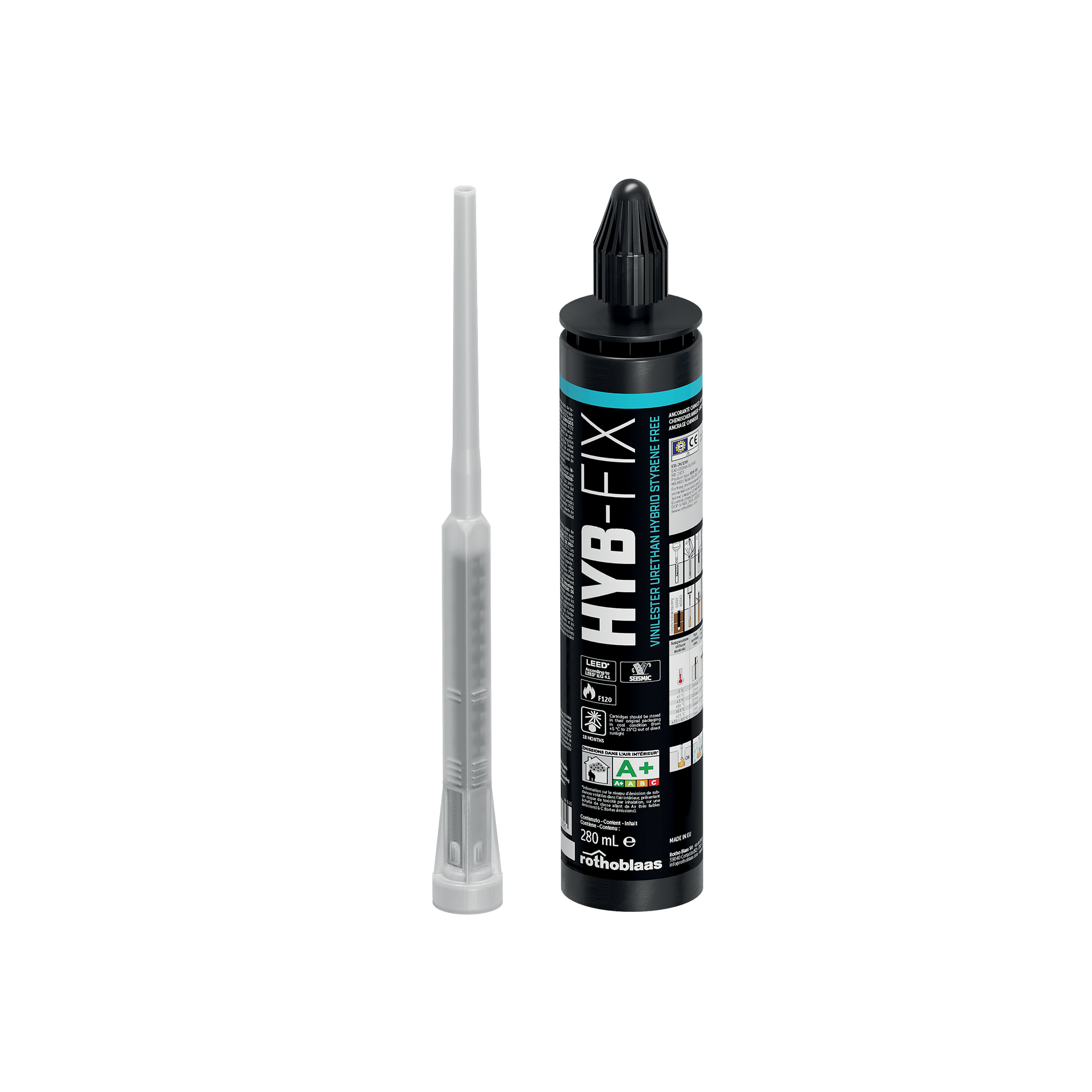

HIGH-PERFORMANCE HYBRID CHEMICAL ANCHOR
HYB-FIX
HYB-FIX is the high-performance hybrid chemical anchor ideal for extra-heavy anchor systems and for recasting with reinforcing bars.
The urethane-methacrylate resin is certified for fire resistance F120 and is CE marked option 1 for cracked and non-cracked concrete. It is also effective on wet concrete and concrete with submerged holes and is certified in seismic performance category C2 (M12-M24).
HYB-FIX is the hybrid chemical anchor ideal for extra-heavy anchor systems and for recasting with reinforcing bars.
Videos
The HYB-FIX hybrid chemical anchor has excellent long-term viscous behaviour.
Installation is certified with hollow drill bit; application from below (above the head) is permitted. Without styrene, the chemical anchor HYB-FIX is A+ classified for emission of volatile organic compounds (VOC) in living environments. Comply with LEED ®, IEQ Credit 4.1.
Documents
Technical data sheets
|
|
|---|---|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Resin Quantity Calculation
|
HYB-FIX
| CODE | content
[ml]
|
pcs. |
|---|---|---|
| HYB280 | 280 | 12 |
| HYB420 | 420 | 12 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|
| STINGEXT | extension tube for nozzle | 1 |
| BRUHAND | wire brush handle and extension | 1 |
IR
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| IRM880 | M12 | 80 | 10 |
| IRM1080 | M16 | 80 | 10 |
| IRM12125 | M20 | 125 | 10 |
| IRM16170 | M24 | 170 | 5 |
PLU
| CODE | d₁
[mm]
|
pcs. |
|---|---|---|
| PL14 | 14 | 20 |
| PL18 | 18 | 20 |
| PL24 | 24 | 20 |
| PL28 | 28 | 20 |
| PL32 | 32 | 20 |
| PL35 | 35 | 20 |
FILL
| CODE | d₁
[mm]
|
pcs. |
|---|---|---|
| FILL8 | int Ø9 | ext Ø23 | 20 |
| FILL10 | int Ø12 | ext Ø26 | 20 |
| FILL12 | int Ø14| ext Ø28 | 20 |
| FILL16 | int Ø17 | ext Ø34 | 10 |
| FILL20 | int Ø21 | ext Ø41 | 10 |
| FILL24 | int Ø25 | ext Ø48 | 4 |
BRUH
| CODE | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|
| BRUH10 | 10 | 150 | - | 0.4 | 6'' | - | 1 |
| BRUH12 | 12 | 150 | - | 0.48 | 6'' | - | 1 |
| BRUH14 | 14 | 150 | - | 0.56 | 6'' | - | 1 |
| BRUH18 | 18 | 150 | - | 0.71 | 6'' | - | 1 |
| BRUH22 | 22 | 150 | - | 0.87 | 6'' | - | 1 |
| BRUH28 | 28 | 150 | - | 1.11 | 6'' | - | 1 |
| BRUH30 | 30 | 150 | - | 1.19 | 6'' | - | 1 |
| BRUH35 | 35 | 150 | - | 1.38 | 6'' | - | 1 |
