ROOF FALL PROTECTION SYSTEMS
H-RAIL + TOWER | TOWER A2 | TOWER XL
Conventional fall protection systems can be aesthetically unattractive or excessively restrict safe movement within the work area. The H-RAIL rail system is a safe and adaptable solution with minimal visual impact. Thanks to its design, it requires only a few fastening points and allows for the creation of rigid anchor lines in different configurations. H-RAIL is the ideal roof fall protection system for working at height, in restraint.

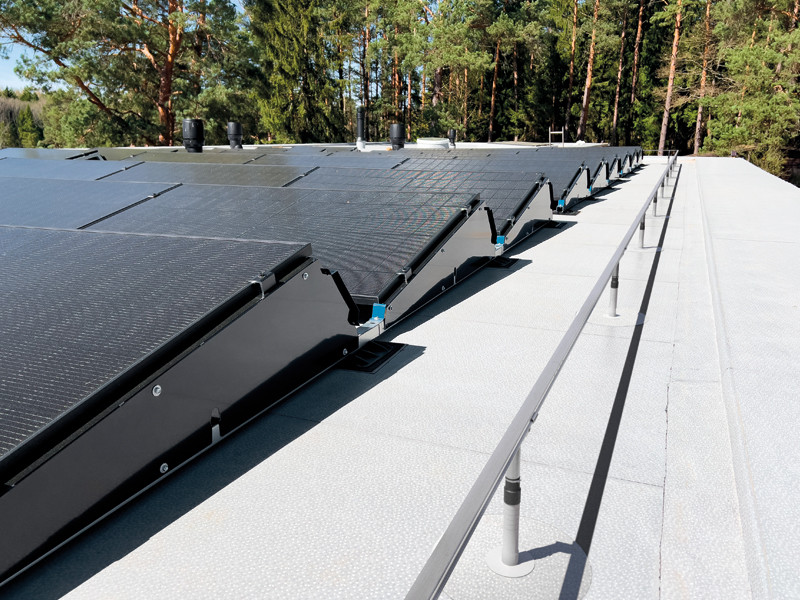

The combination of H-RAIL with TOWER, TOWER A2 and TOWER XL supports raises the rail to overcome obstacles in the roof. The rail is simply mounted on the brackets using the dedicated plate.
The H-RAIL + TOWER roof fall arresters
The H-RAIL system has been carefully designed to be used in conjunction with a sliding unit, equipped with four wheels, making it the ideal choice as a rigid rail-mounted fall protection lifeline.

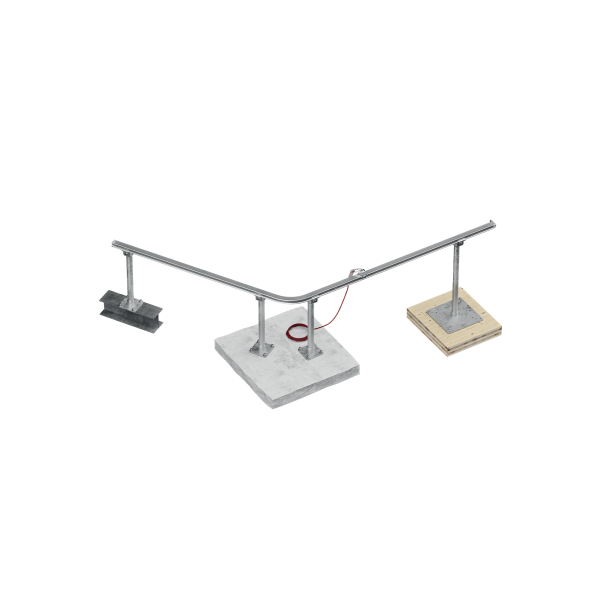

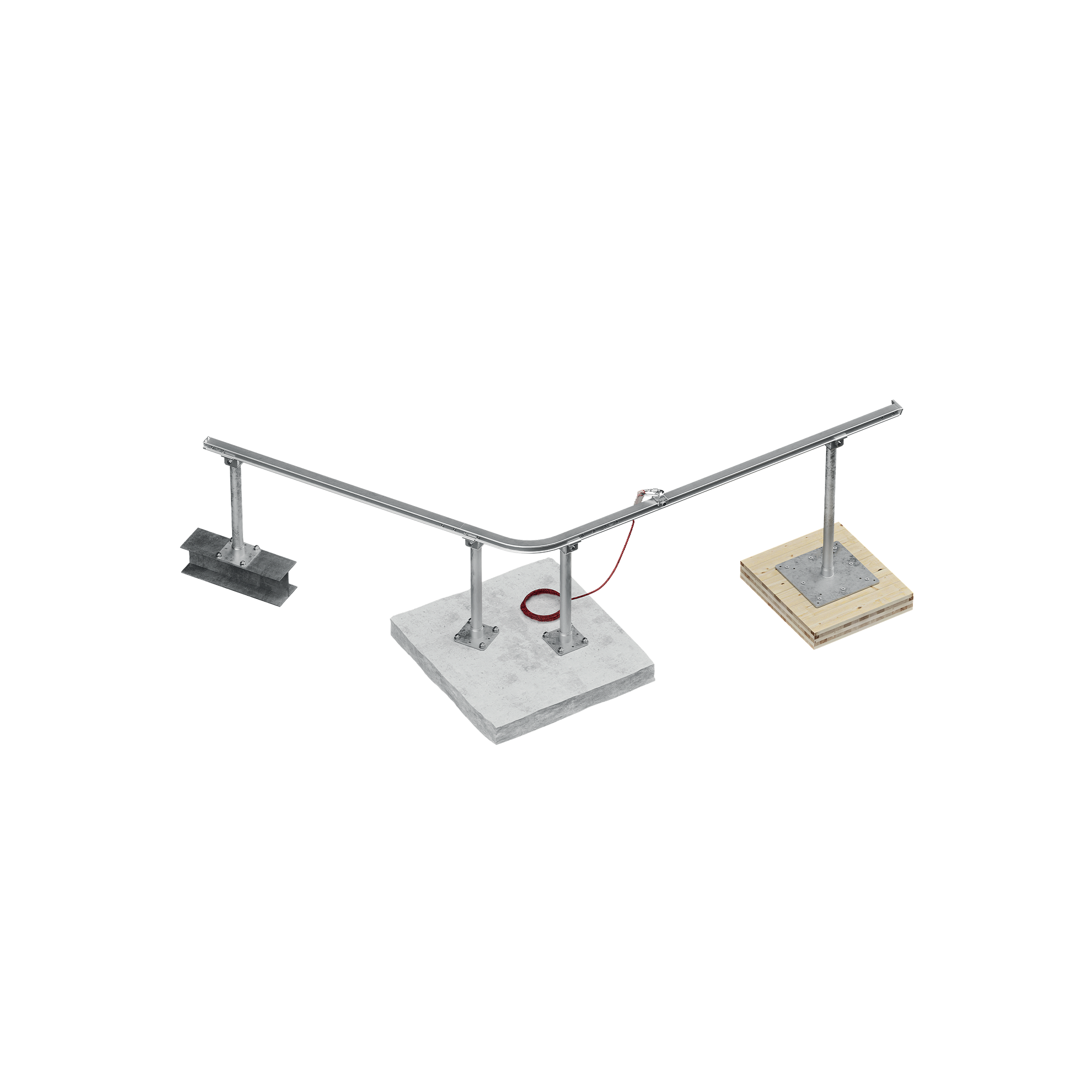

The versatility of the H-RAIL fall protection system allows it to be mounted on various types of structures, including timber, concrete and steel, adapting impeccably to any installation requirement. H-RAIL + TOWER is typically installed on roofs, thus in its H-RAIL ON FLOOR version. TOWER supports allow the rail to be raised. Other versions allow other types of installation, such as H-RAIL OVERHEAD, which is positioned below the supporting structure, H-RAIL ON WALL, to be installed directly on the wall.
With the possibility of up to 6 metres between supports, the assembly process requires only a few fastening points, greatly simplifying the installation of H-RAIL.
Safety first
Securing the most suitable support is of paramount importance. In addition to the advantage of being able to be installed above any roof obstacles, a rigid system such as the H-RAIL + TOWER rail system avoids the formation of falling cambers and the need to take this into account when calculating the vertical clearance, unlike a flexible fall protection lifeline.
H-RAIL + TOWER by Rothoblaas represents the pinnacle of safety for work at height and roof maintenance. Designed with the main objective of providing maximum protection for operators, this innovative anchoring system offers a reliable and durable solution for any type of structure. Its installation is extremely simple and does not require complex masonry work, guaranteeing exceptional installation efficiency. The ergonomic and compact design blends harmoniously with the surrounding architecture, keeping the aesthetics of the location intact.
Made from the highest quality and most durable materials, H-RAIL provides long-lasting protection, offering peace of mind and safety to both operators and users of the facilities involved. Its versatility and reliability make it the ideal choice for a wide range of applications, from industrial maintenance to work on residential buildings, helping to raise safety standards and protecting the lives of those working at height.
Documents
Technical data sheets
|
|
|---|---|
Declaration of conformity
|
|
Safety regulations, instructions for installation and use
|
|
File BIM.ifc
|
|
File BIM.rfa
|
|
Declaration of Installation and inspection
|
Installation manual
| Installation manual |
|---|
RAIL
| CODE | description | pcs. |
|---|---|---|
| RAIL3000 | 3m aluminium rail | 1 |
| RAILC90 | 90° aluminium bend for rail | 1 |
| RAILC120 | 120° aluminium bend for rail | 1 |
| RAILC135 | 135° aluminium bend for rail | 1 |
| RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
| CODE | description | pcs. |
|---|---|---|
| RAILBRAT | support element for rail | 1 |
| RAILBRAT16 | M16 plate for RAILBRAT | 1 |
TERMINAL ELEMENT
| CODE | description | pcs. |
|---|---|---|
| RAILEND | rail end-stop without exit | 1 |
| RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
| CODE | description | pcs. |
|---|---|---|
| RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
| CODE | description | pcs. |
|---|---|---|
| RAILSLIDE | sliding device | 1 |
| RAILSLIDEWALL | slide for wall application | 1 |
TOOL
| CODE | description | pcs. |
|---|---|---|
| RAILJUNTOOL | template for rail junction holes | 1 |
| RAILPLATE | Rail system ID plate | 1 |
FASTENING
| CODE | description | pcs. |
|---|---|---|
| RAILOCKSCREW | Lock screw | 250 |
| RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
