SCREWS FOR FAÇADES
FAS A4 | AISI316
New

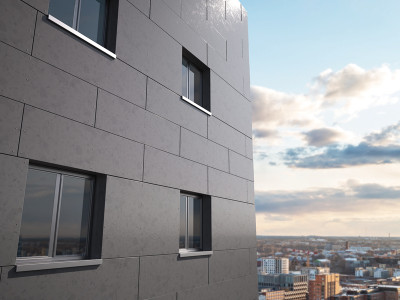

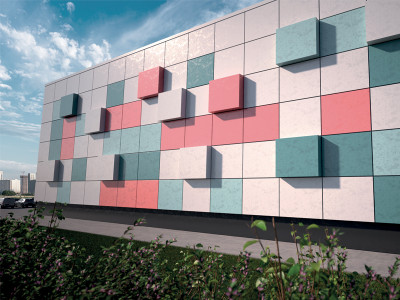

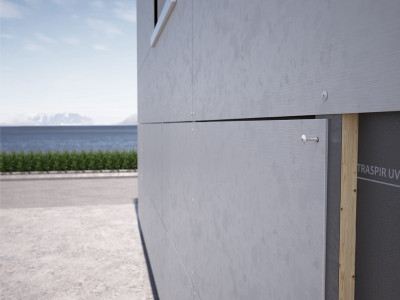

Thanks to its flange head, partially threaded body and self-drilling tip, it is the appropriate screw for fastening façade panels (HPL, fibre cement sheets, etc.) on timber battens.
A4 | AISI316 austenitic stainless steel for high corrosion resistance. Ideal for environments adjacent to the sea in corrosivity class C5 and for insertion on the most aggressive timbers in class T5.

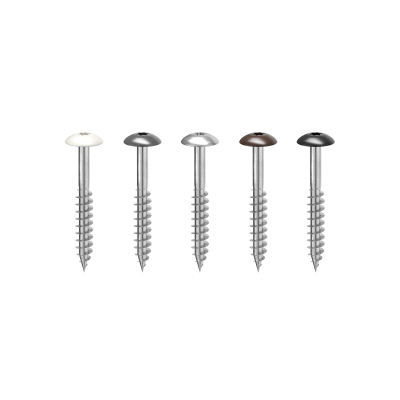

Available in white, grey or black for perfect colour uniformity with the panel. The colour of the head can be customised on request.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
File CAD
|
FAS A4 | AISI316
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| FAS4825 | - | 4.8 | 25 | 17 | 0.19 | 1'' | 11/16'' | TX20 | 200 |
| FAS4838 | - | 4.8 | 38 | 23 | 0.19 | 1 1/2'' | 7/8'' | TX20 | 200 |
FAS W: RAL 9010
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| FASW4825 | - | 4.8 | 25 | 17 | 0.19 | 1'' | 11/16'' | TX20 | 200 |
| FASW4838 | - | 4.8 | 38 | 23 | 0.19 | 1 1/2'' | 7/8'' | TX20 | 200 |
FAS N: RAL 9005
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| FASN4825 | - | 4.8 | 25 | 17 | 0.19 | 1'' | 11/16'' | TX20 | 200 |
| FASN4838 | - | 4.8 | 38 | 23 | 0.19 | 1 1/2'' | 7/8'' | TX20 | 200 |
FAS G: RAL 7016
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| FASG4825 | - | 4.8 | 25 | 17 | 0.19 | 1'' | 11/16'' | TX20 | 200 |
| FASG4838 | - | 4.8 | 38 | 23 | 0.19 | 1 1/2'' | 7/8'' | TX20 | 200 |
