MEMBRANE WITH VARIABLE VAPOUR DIFFUSION

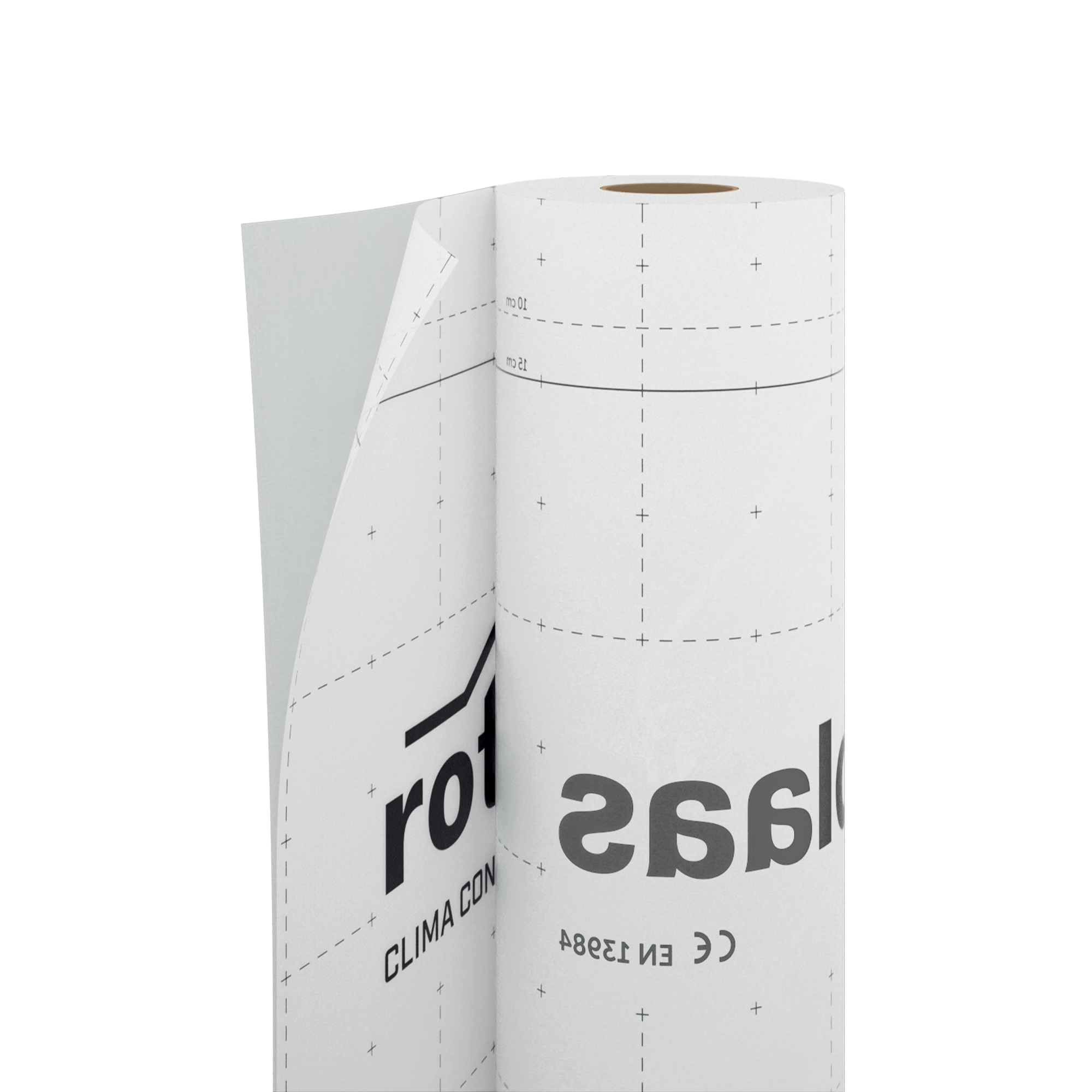

CLIMA CONTROL 105
CLIMA CONTROL 105 is the variable diffusion membrane with a highly variable vapour diffusion resistance (0.1 - 20 m), which gives the product the ability to adapt to the hygrometric conditions of the structure, depending on the interstitial relative humidity: in the case of high amounts of moisture, it behaves like a more breathable membrane, facilitating the structure drying.
CLIMA CONTROL 105, the membrane that prevents the accumulation of moisture within the building component thanks to its ability to dry.
The special PA film ensures maximum protection for walls and excellent security insulation, guaranteeing great reliability. Due to its transparency, the membrane is immediately installed on the substructure for a smooth and easy application.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |

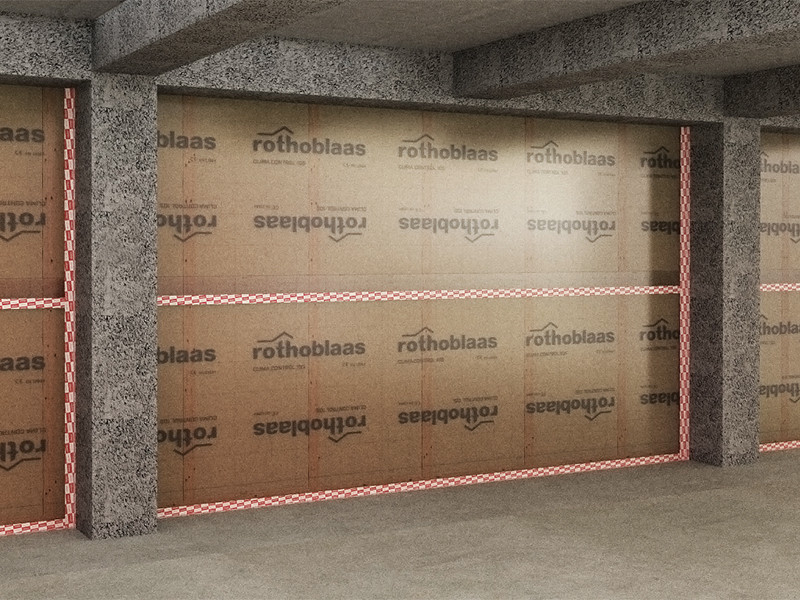

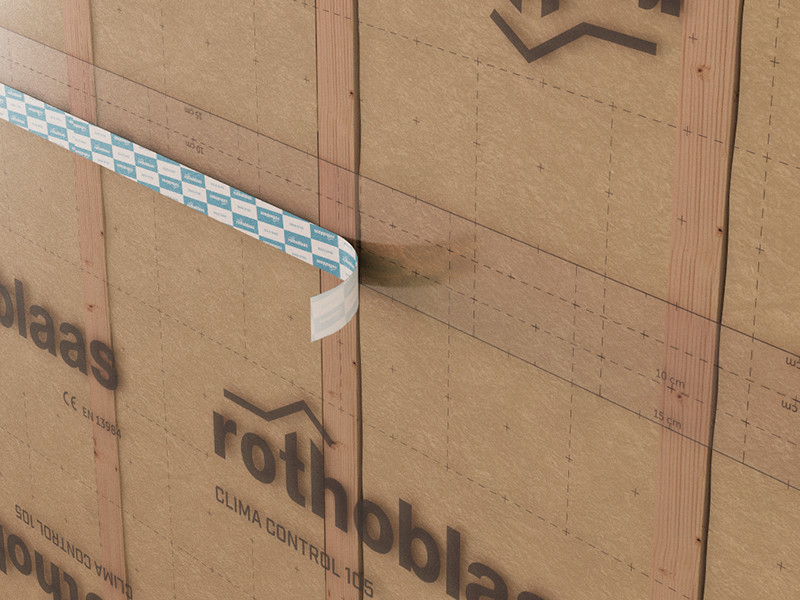

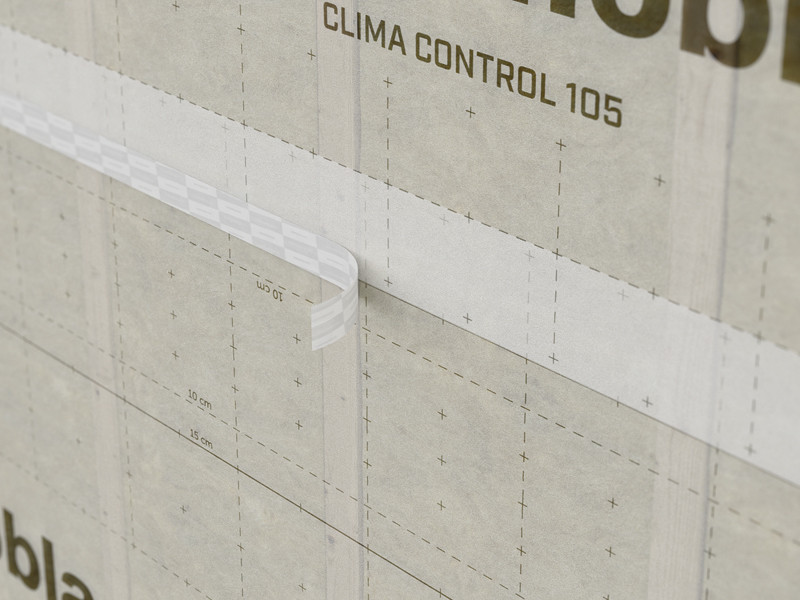

Recommendations for installation
|
CLIMA CONTROL 105
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| CLIMA105 | CLIMA CONTROL 105 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 36 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 105 g/m² | 0.34 oz/ft² |
| Thickness | EN 1849-2 | 0,4 mm | 16 mil |
| Variable water vapour transmission (Sd) | EN 12572 | 0,1 / 20 m | 34.965 / 0.175 PERM |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 0.28 PERM | - |
| Water vapour transmission (dry cup) | ASTM E96/ E96M | 16 ng/(s·m²·Pa) | - |
| Tensile strength MD/CD | EN 12311-2 | > 175 / 150 N/50mm | > 20 / 17 lb/in |
| Elongation MD/CD | EN 12311-2 | > 60 / 60 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | > 140 / 150 N | > 31 / 34 lbf |
| Watertightness | EN 1928 | npd | - |
| Thermal resistance | - | -40 / 80 °C | -40 / 176 °F |
| Reaction to fire | EN 13501-1 | class E | - |
| Resistance to penetration of air | EN 12114 | 0 m³/(m²·h·50Pa) | 0 cfm/ft² at 50Pa |
| Water vapour resistance - after artificial ageing | EN 1296 / EN 1931 | compliant | - |
| Water vapour resistance - in the presence of alkalis | EN 1847 / EN 12311-2 | npd | - |
| Thermal conductivity (λ) | - | 0,2 W/(m·K) | 1.39 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1700 J/(kg·K) | - |
| Density | - | ca. 263 kg/m³ | - |
| Variable water vapour resistance factor (μ) | - | 250 / 50000 | - |
| VOC content | - | 0 % | - |
| Indirect exposure to UV rays | - | 2 weeks | - |
| Vapour permeability after artificial ageing | CAN/CGSB-51.33-M89 8.3.2 | 12.5 ng/(s·m²·Pa) | - |
| Vapour permeability after artificial ageing | CAN/CGSB-51.33-M89 8.3.2 | 0.218 US perm | - |
Composition
| TOP LAYER | PA functional film |
|---|---|
| BOTTOM LAYER | non-woven PP fabric |
