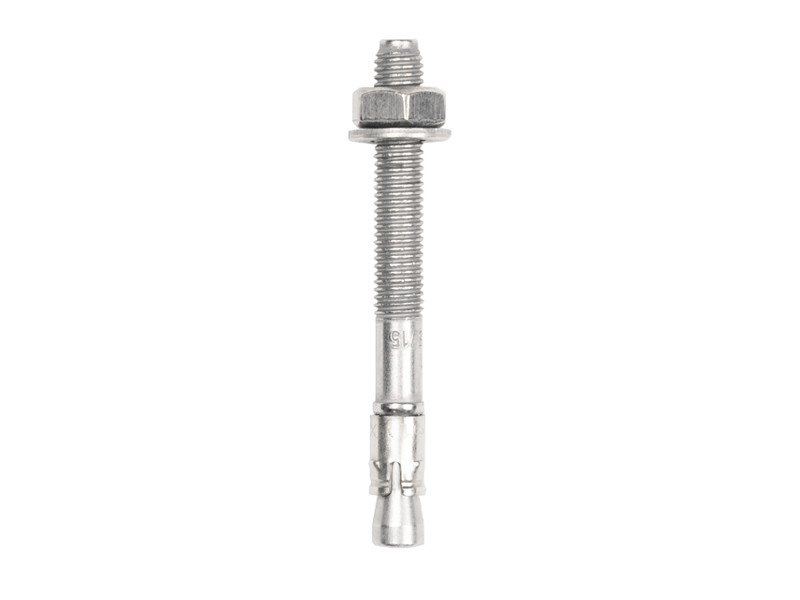

ABE A4 CE1 HEAVY DUTY EXPANSION ANCHOR FOR SAFE FASTENING IN CORROSIVE ENVIRONMENTS
ABE A4
ABE A4 is the CE1 expansion anchor designed to meet the most extreme requirements.
Made of A4 | AISI316 austenitic stainless steel, it covers all service classes (SC1, SC2, SC3, SC4) and is the heavy duty anchor that withstands the highest levels of atmospheric corrosivity, including class C5.
ABE A4 boasts a performance class for seismic actions C1 and C2, with sizes available for M8, M10, M12 and M16. Its R120 fire resistance makes it ideal for applications where safety is a priority.
MAIN FEATURES OF ABE A4 EXPANSION ANCHOR CE1
Complete with assembled nut and washer, the ABE A4heavy-duty anchor simplifies the installation process, ensuring a secure and durable hold. Suitable for cracked and non-cracked concrete, ABE A4 offers controlled expansion by means of torque control, ensuring long-lasting stability.
Choose ABE A4 for secure and reliable fastening in every situation, ensuring the stability and security of your projects.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
ABE A4
| CODE | d
[mm]
|
L
[mm]
|
SW | pcs. |
|---|---|---|---|---|
| ABE895A4 | 8 | 95 | SW13 | 100 |
| ABE8115A4 | 8 | 115 | SW13 | 100 |
| ABE1095A4 | 10 | 95 | SW17 | 100 |
| ABE10140A4 | 10 | 140 | SW17 | 50 |
| ABE12110A4 | 12 | 110 | SW19 | 50 |
| ABE16145A4 | 16 | 145 | SW24 | 25 |
