TWIST DRILL BITS FOR HARDWOOD, MELAMINE-FACED BOARDS AND OTHER MATERIALS

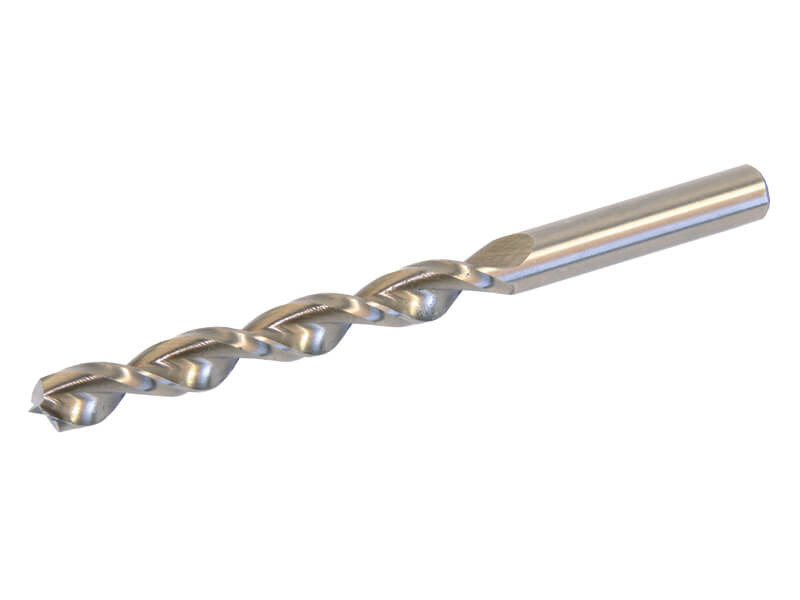

SNAIL HSS
Industrial cnc grinding. Very high quality polished drill bits, with 2 main cutting edges and 2 roughing teeth.
Special twist with smoothed flute for more efficient chip evacuation.
Documents
Technical data sheets
|
|---|
SNAIL HSS
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| F1594020 | 2 | 49 | 1 |
| F1594030 | 3 | 60 | 1 |
| F1594040 | 4 | 75 | 1 |
| F1594050 | 5 | 85 | 1 |
| F1594060 | 6 | 92 | 1 |
| F1594080 | 8 | 115 | 1 |
| F1594090 | 9 | 125 | 1 |
| F1594100 | 10 | 130 | 1 |
| F1594110 | 11 | 140 | 1 |
| F1594120 | 12 | 150 | 1 |
| F1599205 | 5 | 250 | 1 |
| F1599206 | 6 | 250 | 1 |
| F1599207 | 7 | 250 | 1 |
| F1599208 | 8 | 250 | 1 |
| F1599209 | 9 | 250 | 1 |
| F1599210 | 10 | 250 | 1 |
| F1599212 | 12 | 250 | 1 |
| F1599214 | 14 | 250 | 1 |
| F1599216 | 16 | 250 | 1 |
| F1599605 | 5 | 460 | 1 |
| F1599606 | 6 | 460 | 1 |
| F1599607 | 7 | 460 | 1 |
| F1599608 | 8 | 460 | 1 |
| F1599609 | 9 | 460 | 1 |
| F1599610 | 10 | 460 | 1 |
| F1599612 | 12 | 460 | 1 |
| F1599614 | 14 | 460 | 1 |
| F1599616 | 16 | 460 | 1 |

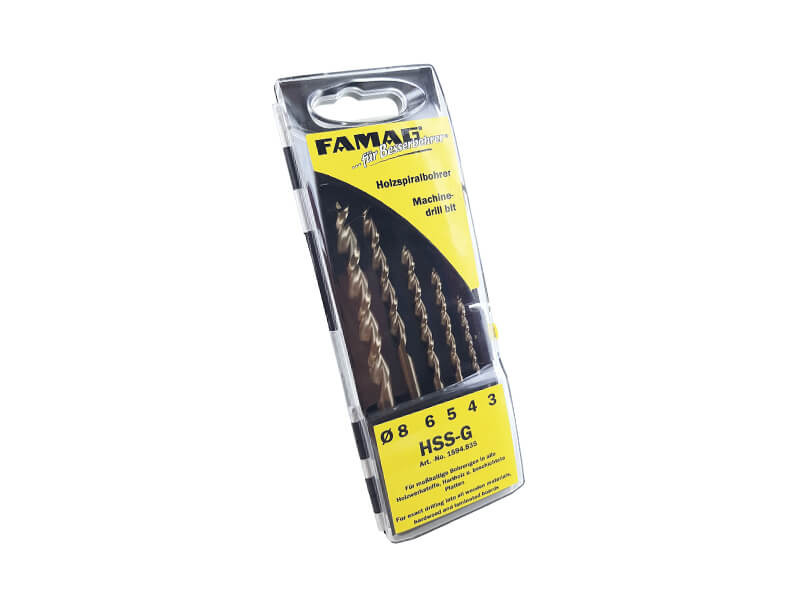

SNAIL HSS - SET
| CODE | version | pcs. |
|---|---|---|
| F1594835 | Ø3, 4, 5, 6, 8 mm | 1 |
| F1594510 | Ø3, 4, 5, 6, 8, 10, 12, 13, 14, 16 mm | 1 |
