HIGHLY BREATHABLE MONOLITHIC MEMBRANE
TRASPIR EVO 300

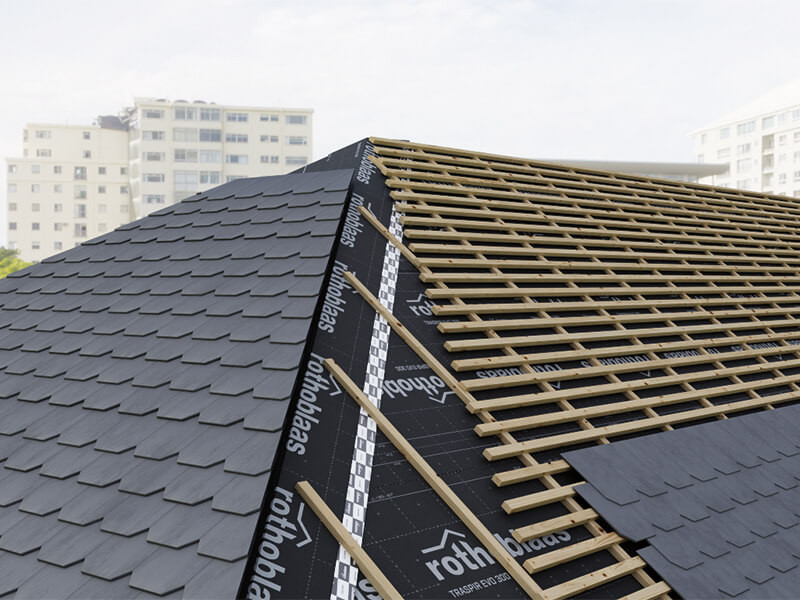

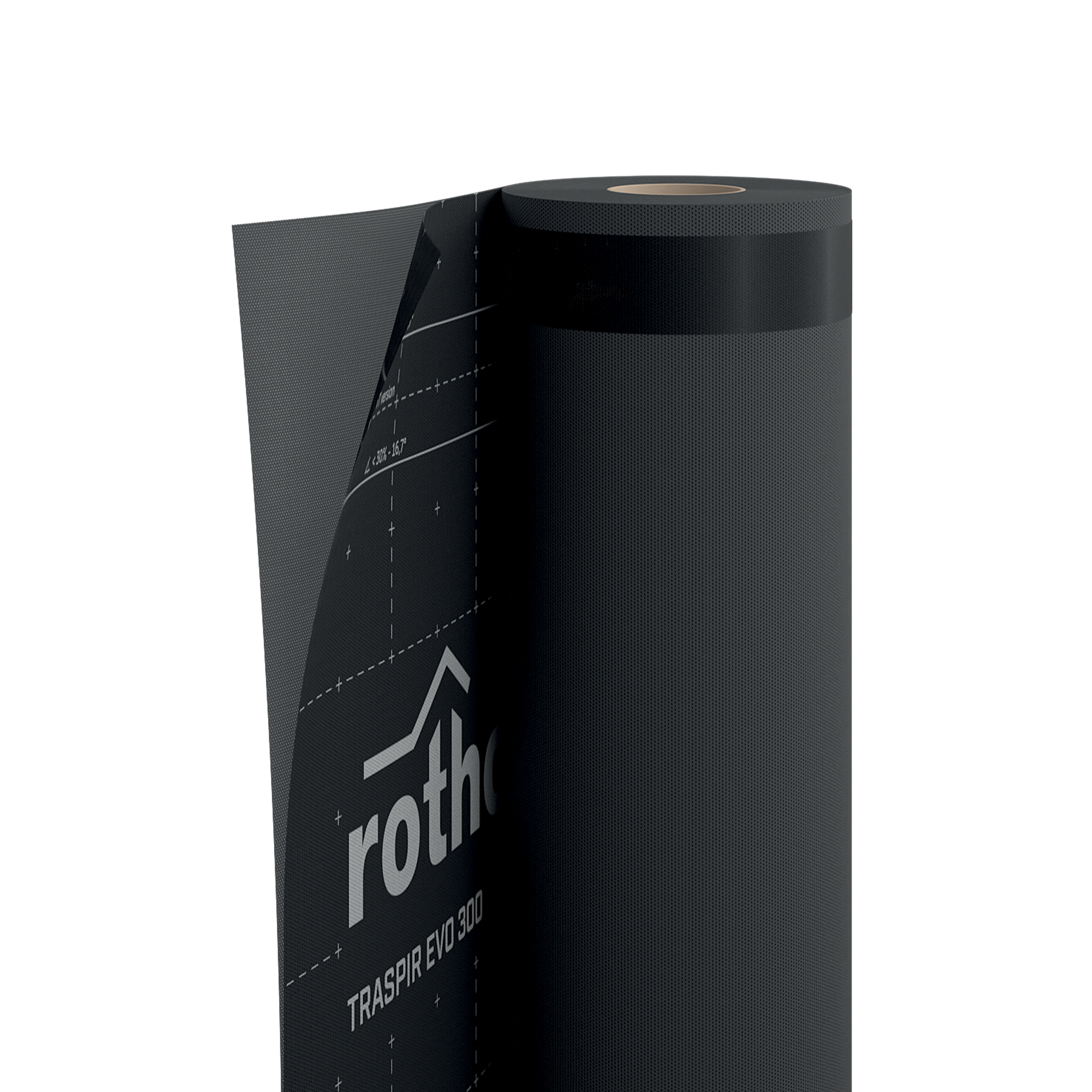

TRASPIR EVO 300 is the highly breathable monolithic membrane that guarantees high waterproofing and an excellent reaction to fire. It consists of a monolithic film in acrylic compound coated on a polyester reinforcement, and it is designed for application on the external and internal side of the roof.
Videos
TRASPIR EVO 300 MONOLITHIC MEMBRANE: UNBEATABLE STABILITY AT HIGH TEMPERATURES
The breathable membrane with monolithic structure TRASPIR EVO 300 ensures a B-s1, d0 reaction to fire class, which indicates the ability of the product not to participate in the propagation of flames during a fire.
With partial exposure at open joints up to 50 mm wide and within 40% of the total surface area, UV stability is permanently guaranteed; however, the special composition of TRASPIR EVO 300 ensures excellent UV resistance even during construction. The functional polyacrylate film offers thermal resistance up to +120°C, making it ideal for application even under photovoltaic and solar thermal panels.
TRASPIR EVO 300
| CODE | description | tape | H
[m]
|
L
[m]
|
A
[m²]
|
H
[ft]
|
L
[ft]
|
A
[sft]
|
pcs./pallet |
|---|---|---|---|---|---|---|---|---|---|
| TEVO300 | TRASPIR EVO 300 | - | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 24 |
| TTTEVO300 | TRASPIR EVO 300 TT | TT | 1.5 | 50 | 75 | 4' 11'' | 164 | 807 | 24 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Mass per unit area | EN 1849-2 | 300 g/m² | 0.98 oz/ft² |
| Thickness | EN 1849-2 | 0,5 mm | 20 mil |
| Water vapour transmission (Sd) | EN 1931 | 0,04 m | 87.413 PERM |
| Tensile strength MD/CD | EN 12311-1 | 380 / 250 N/50mm | 43 / 29 lb/in |
| Elongation MD/CD | EN 12311-1 | 25 / 25 % | - |
| Resistance to nail tearing MD/CD | EN 12310-1 | 160 / 190 N | 36 / 43 lbf |
| Watertightness | EN 1928 | class W1 | - |
| Thermal resistance | - | -40 / 120 °C | -40 / 248 °F |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Resistance to penetration of air | EN 12114 | < 0,02 m³/(m²·h·50Pa) | < 0.001 cfm/ft² at 50Pa |
| Thermal conductivity (λ) | - | 0,3 W/(m·K) | 2.08 (BTU·in)/(h·ft²·°F) |
| Specific heat | - | 1800 J/(kg·K) | - |
| Density | - | ca. 600 kg/m³ | - |
| Water vapour resistance factor (μ) | - | ca. 80 | - |
| Joint strength | EN 12317-2 | > 280 / N/50mm | > 31.976824 / lb/in |
| VOC content | - | 0 % | - |
| UV resistance without final coating | EN 13859-2 | 9 months | - |
| UV stability with joints up to 50 mm wide exposing no more than 40% of the surface | EN 13859-2 | permanent | - |
| Weathering without final cladding | - | 16 weeks | - |
| Water column | ISO 811 | > 500 cm | > 196.8504 in |
| After artificial ageing - watertightness | EN 1297 / EN 1928 | class W1 | - |
| After artificial ageing - tensile strength MD/CD | EN 1297 / EN 12311-1 | 370 / 240 N/50mm | 42 / 27 lb/in |
| After artificial ageing - elongation | EN 1297 / EN 12311-1 | 23 / 23 % | - |
| Flexibility at low temperatures | EN 1109 | -40 / °C | -40 / °F |
| Driving rain test | TU Berlin | passed | - |
Composition
| TOP LAYER | breathable monolithic acrylate film |
|---|---|
| middle layer | PL fabric |
