UNIVERSAL SINGLE-SIDED TAPE, HIGHLY RESISTANT TO UV RAYS

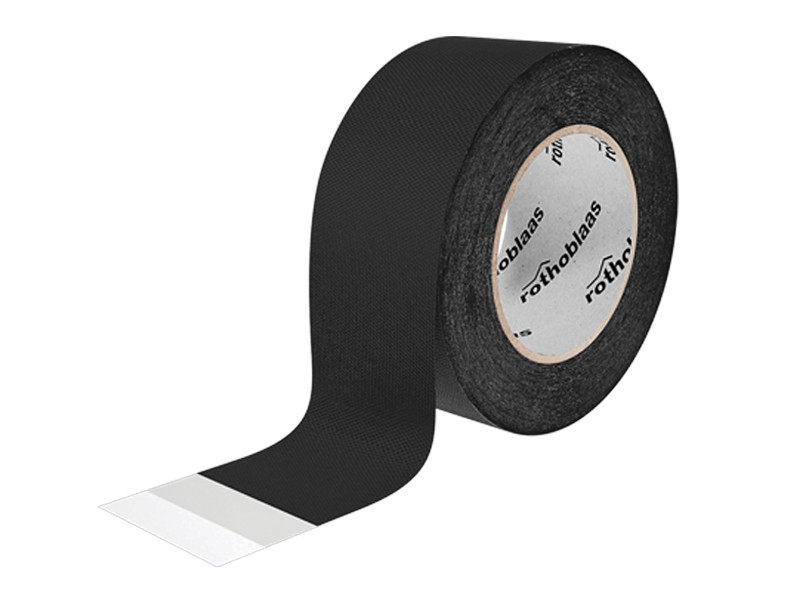

FRONT BAND UV 210
FRONT BAND UV 210 is the universal tape made of TRASPIR EVO UV 210 monolithic membrane that provides excellent aesthetic performance even in the most demanding architectural solutions.
Self-extinguishing tape classified B-s1,d0, that does not spread the flame in case of fire, contributing to the passive protection of the structure.
FRONT BAND UV 210 IS THE FAÇADE SEALING SOLUTION THAT IS NOT AFFECTED BY THE SUN'S RAYS, NOT TODAY, NOT EVER.

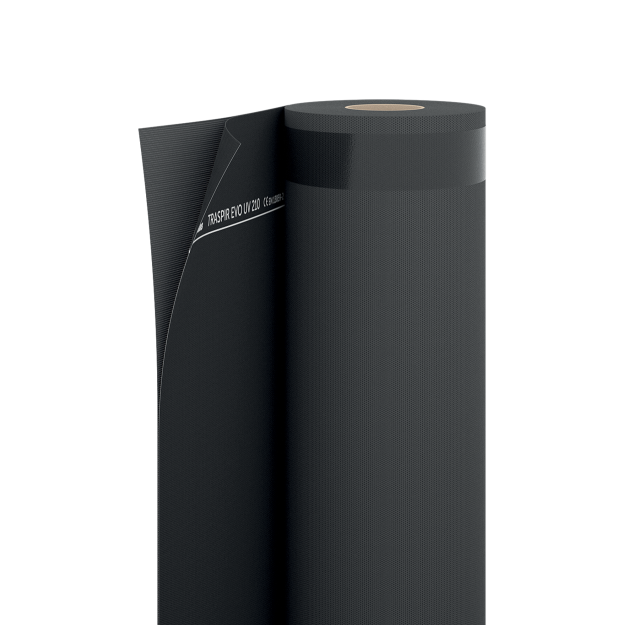

The combination of FRONT BAND UV 210 universal tape with TRASPIR EVO UV 210 and TRASPIR EVO 300 membranes offers the first B-s1,d0 tested system available on the market, as well as ensuring the aesthetic homogeneity of the façade system.
Heat resistance reaches up to 100°C: the product carrier is made from a new generation monolithic membrane, that ensures high levels of thermal and UV stability.
Documents
Technical data sheets
|
|
|---|---|
Item specification
|
FRONT BAND UV 210
| CODE | B
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|
| FRONTUV75 | 75 | 20 | 3 | 66 | 8 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Thickness | DIN EN 1942 | 0,6 mm | 23.6 mil |
| Tear strength | EN 14410 | ≥ 100 N/cm | ≥ 57.1 lbf/in |
| Expansion capacity at | DIN EN 14410 | 20 % | - |
| Adhesion | DIN EN 1939 | ≥ 30 N/25mm | ≥ 6.85 lbf/in |
| Water vapour transmission (Sd) | EN 1931 | 0,1 m | 34.965 US perm |
| UV resistance with joints up to 50 mm wide exposing up to 40% of the surface | - | permanent | - |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Watertightness | - | compliant | - |
| Solvents | - | no | - |
| Thermal resistance | - | -30 / 100 °C | -22 / 212 °F |
| Application temperature | - | 5 / 40 °C | 41 / 104 °F |
| Storage temperature (1) | - | 5 / 25 °C | 41 / 77 °F |
Composition
| SUPPORT | TRASPIR EVO UV 210 |
|---|---|
| GLUE | acrylic dispersion without solvents |
| RELEASE LINER | PP film |
