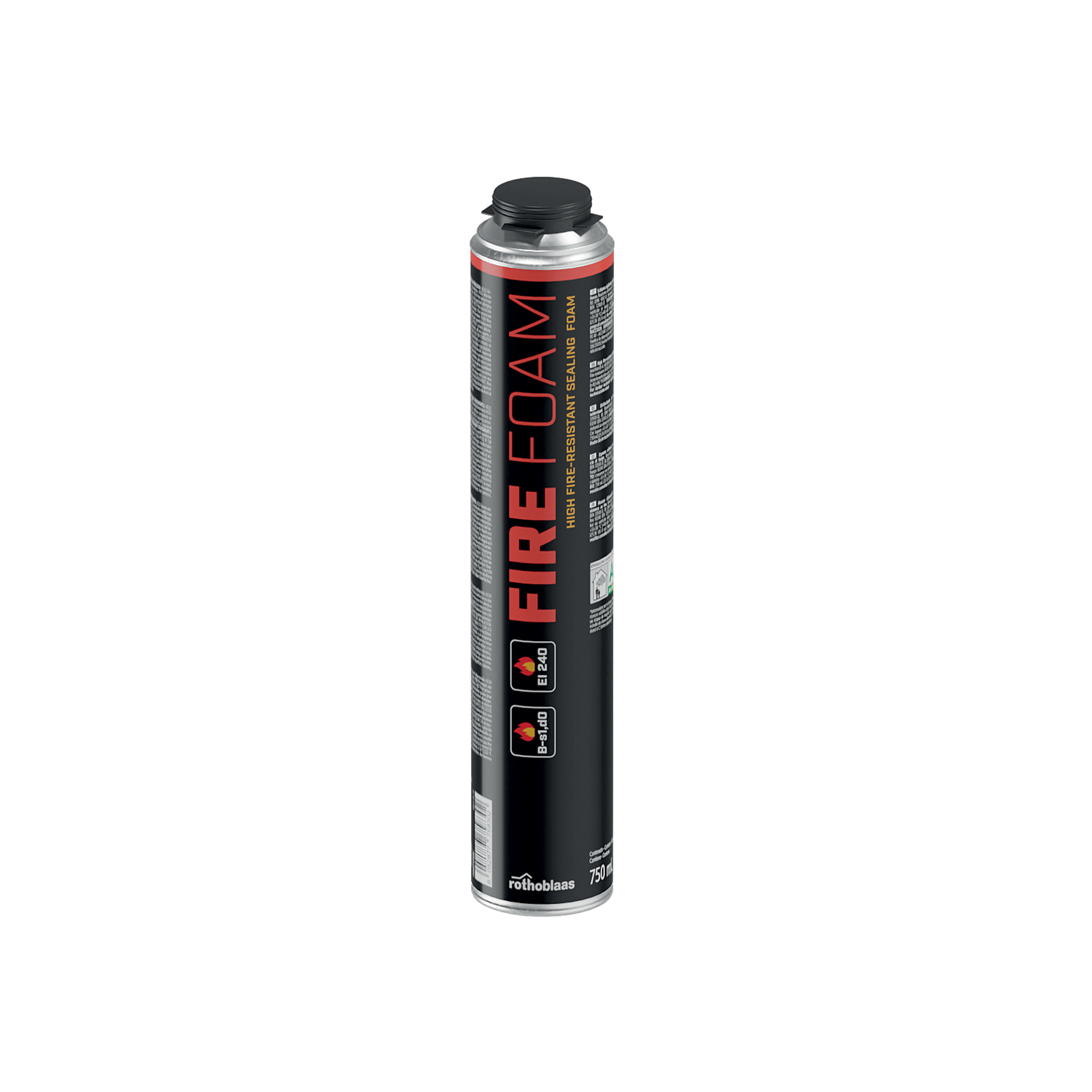

HIGH FIRE-RESISTANT SEALING POLYURETHANE FOAM
FIRE FOAM
New

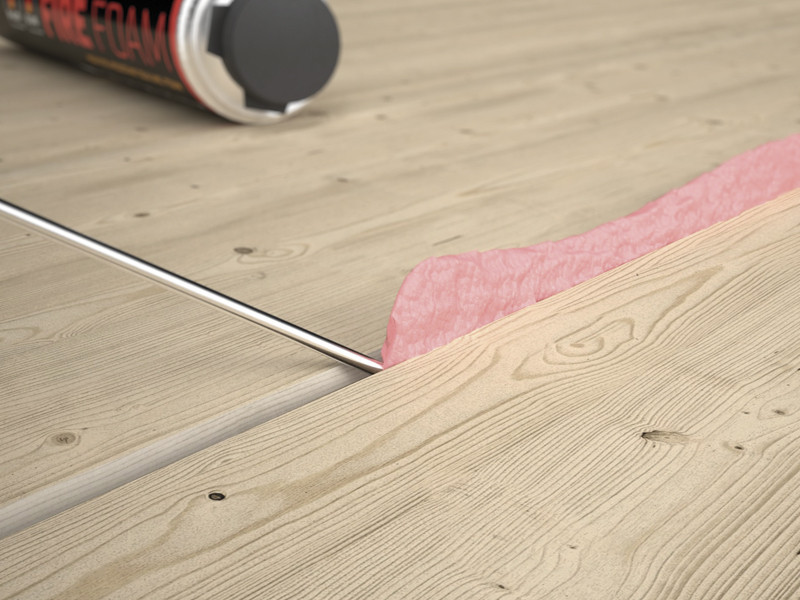

FIRE FOAM is the only ETA tested and certified sealing foam for fire protection and sealing of linear joints and cracks.
Tested in the event of fire to provide protection against combustion fumes and heat for up to 240 minutes.
FIRE FOAM, the EI240 fire-certified high-performance foam sealant
Its uniform cell structure, dimensional stability and mechanical properties make the foam ideal for insulating, sealing and filling in all cases of high fire protection requirements.
Documents
Technical data sheets
|
|
|---|---|
Declaration of performance (DOP)
|
|
Fire test report
|
FIRE FOAM
| CODE | content
[ml]
|
yield
[l]
|
contenuto
[US fl oz]
|
resa
[US gal]
|
description | version | pcs. |
|---|---|---|---|---|---|---|---|

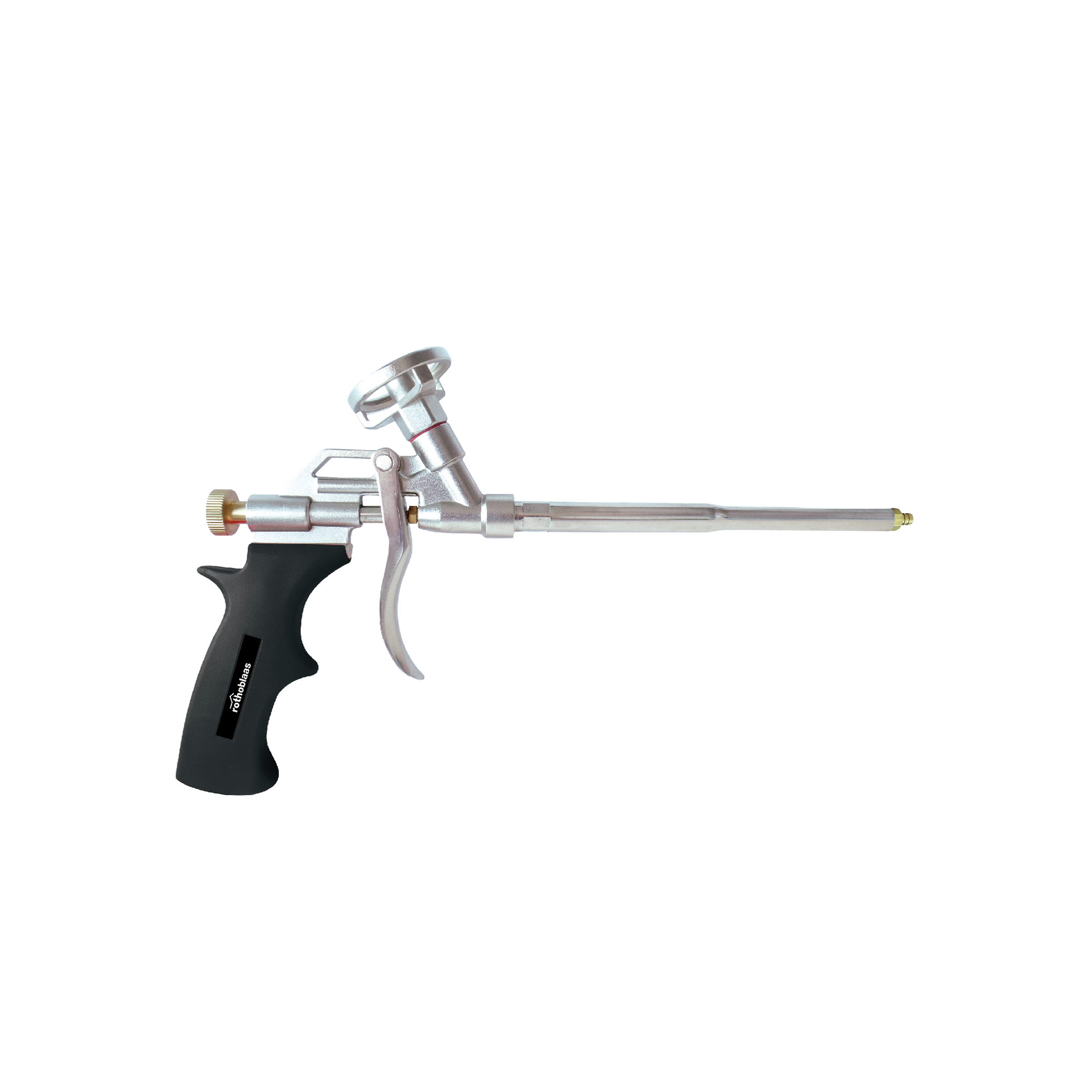

| FIREFOAM | 750 | 42 | 25.36 | 11.1 | ALUMINIUM CARTRIDGE | GUN | 12 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Composition | - | single component PU | - |
| Colour | - | pink | - |
| Post expansion | - | 90 / 120 % | - |
| Film formation time 23 °C / 50% RH | - | 10 minutes | - |
| Cutting time 23 °C / 50% RH (1) | - | 40 minutes | - |
| Thermal conductivity (λ) | EN 12667 | 0,036 W/(m·K) | 0.021 BTU/(h·ft²·°F) |
| Dimensional stability | - | ≤ 3 % | - |
| Reaction to fire | EN 13501-1 | class B-s1,d0 | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Fire resistance (2) | EN 13501-2 | EI240 | - |
| VOC content | - | 0.12 % - 158 g/L | - |
| French VOC classification | ISO 16000 | A+ | - |
| Temperature resistance once hardened | - | -30 / 80 °C | -22 / 176 °F |
| Application temperature (ambient, cartridge and support) | - | 10 / 30 °C | 50 / 86 °F |
| Transport temperature | - | -20 / 30 °C | -4 / 86 °F |
| Storage temperature (3) | - | 5 / 30 °C | 41 / 86 °F |
1. The data expressed may vary depending on the thickness of the product applied and the specific installation conditions: temperature, humidity, ventilation, absorbency of the substrate.
2. Valid value for tested configurations
3.
