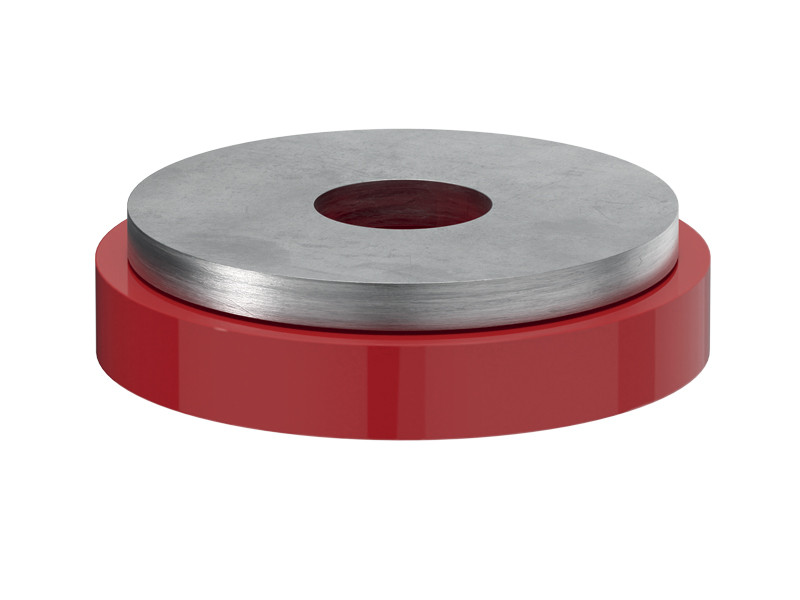

SEPARATING WASHER FOR WOOD SCREWS
XYLOFON WASHER
The acoustic insulator in timber-to-timber joints with screws or angle brackets for tensile forces is XYLOFON WASHER. Used as a sound absorber for metal connections, it avoids acoustic bridges and does not deform over time as a result of the polyurethane compound.
The washer increases the rope effect in the connection, improving the static performance of the detail.
APPLICATIONS

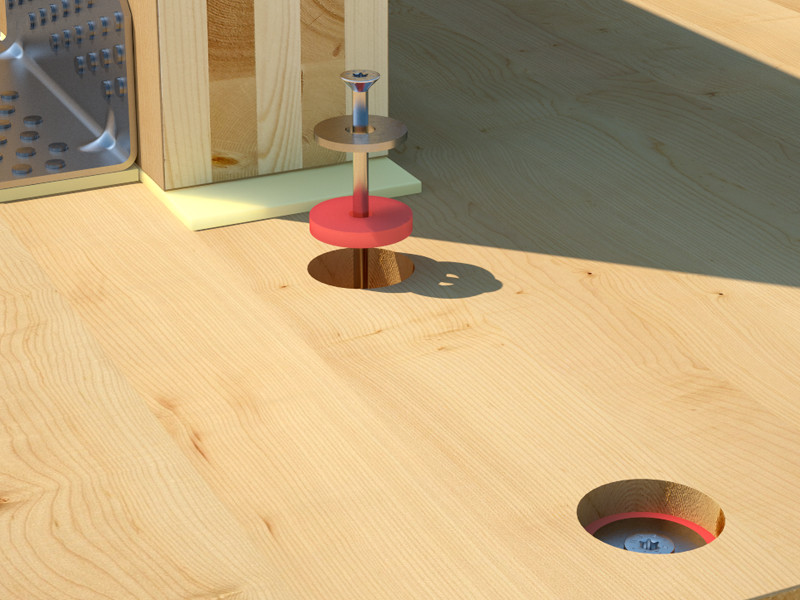

• As an acoustic insulator in timber-to-timber joints with metal screws

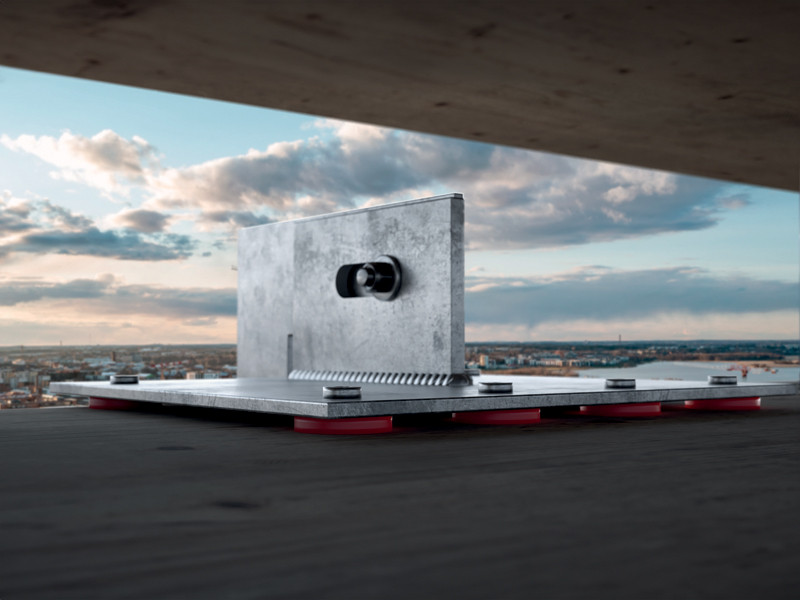

• Placed between angle brackets for tensile forces and timber floors and walls
The theoretical estimate of vibration reduction for specific configurations is 18 dB.
TECHNICAL MANUAL DOWNLOAD
Product free of VOCs and substances harmful for people and the environment.

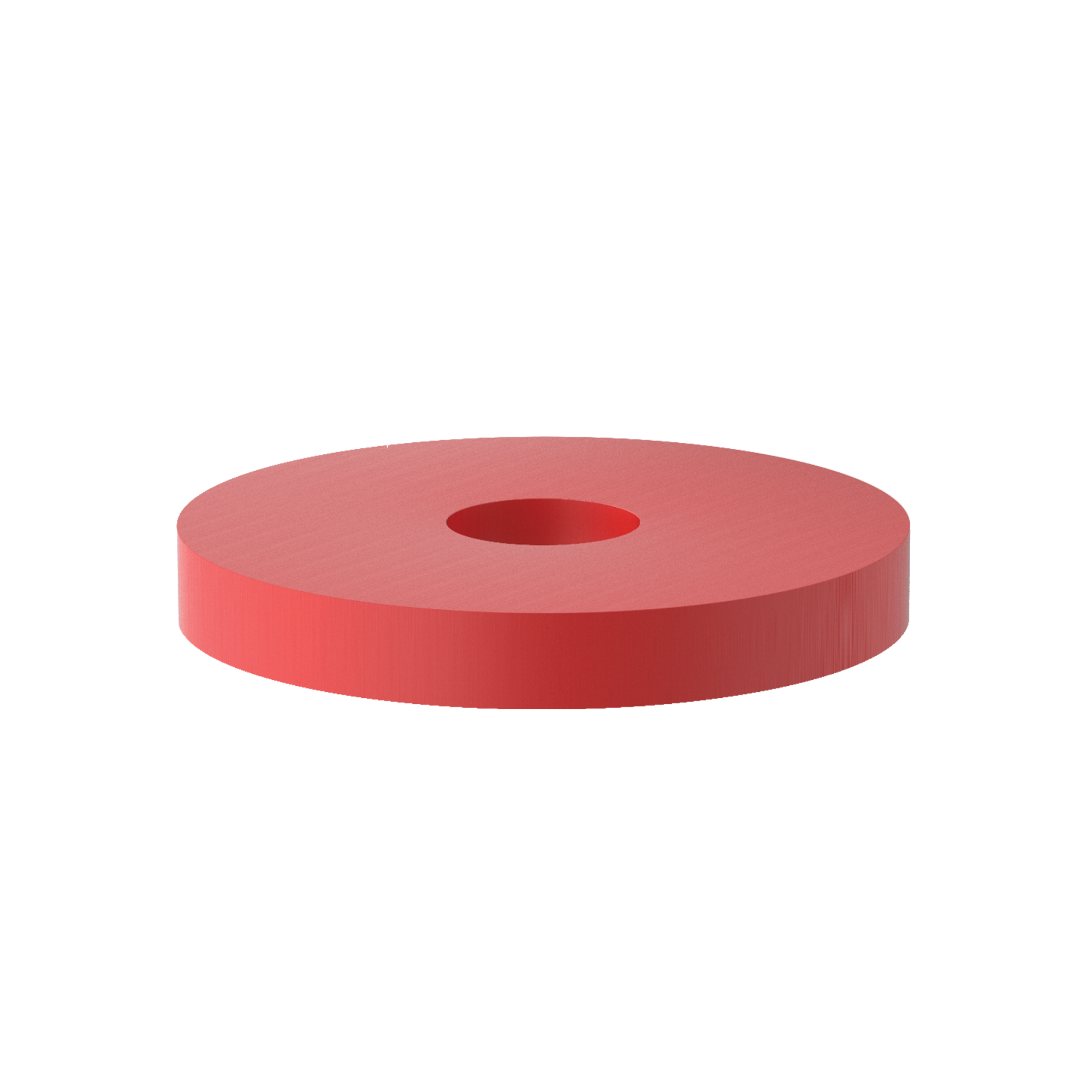

Features
| Material | Monolithic polyurethane mixture from 80 shore |
|---|---|
| Thickness | 6,0 mm |
| Dimensions | Dext 38 mm - Dint 11 mm |
| Stability over time | ★ ★ ★ ★ ★ |
| Application | Washer for Ø8 and Ø10 mm screws |
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
XYLOFON WASHER - SCREWS
| CODE | measures
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|
| XYLW803811 | Ø8 - Ø10 | 6 | 50 |
XYLOFON WASHER - WHT
| CODE | d₁
[mm]
|
P
[mm]
|
B
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| XYLW806060 | 23 | 60 | 60 | 6 | 10 |
| XYLW808080 | 27 | 80 | 80 | 6 | 10 |
| XYLW8080140 | 30 | 80 | 140 | 6 | 1 |
