  4. VGZ EVO FRAME

MINI FULL THREADED SCREW WITH CYLINDRICAL HEAD

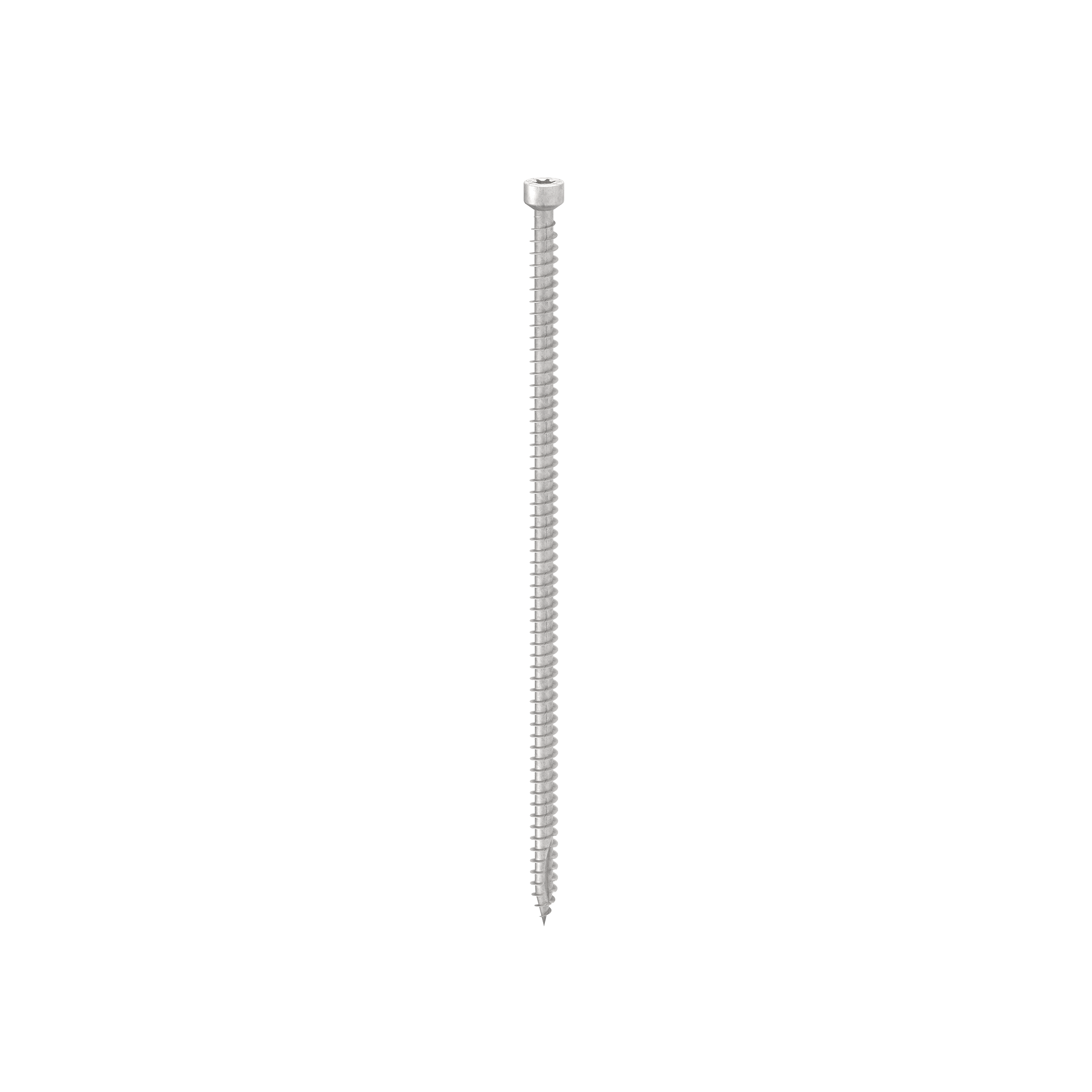

VGZ EVO FRAME

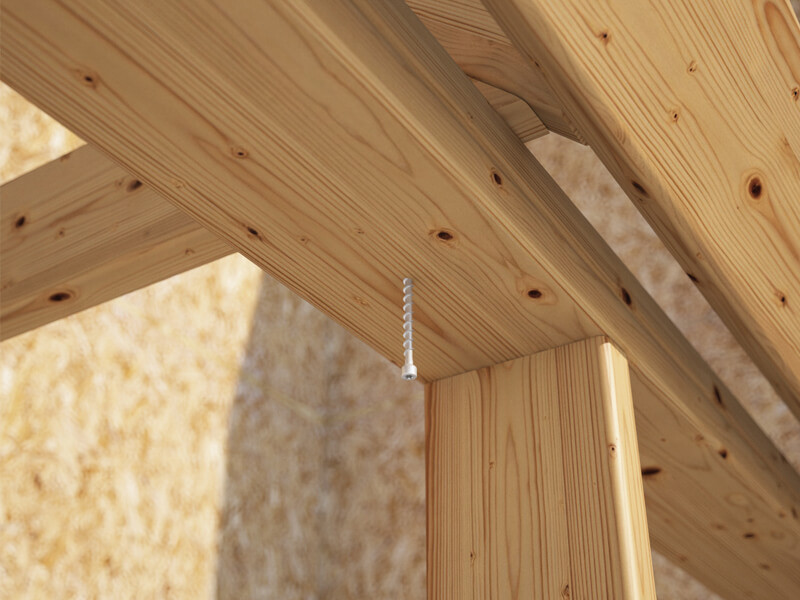

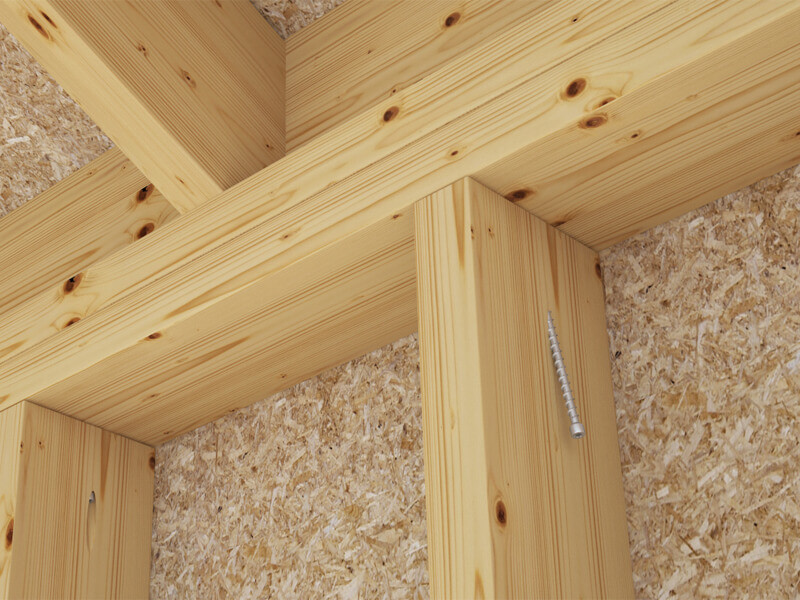

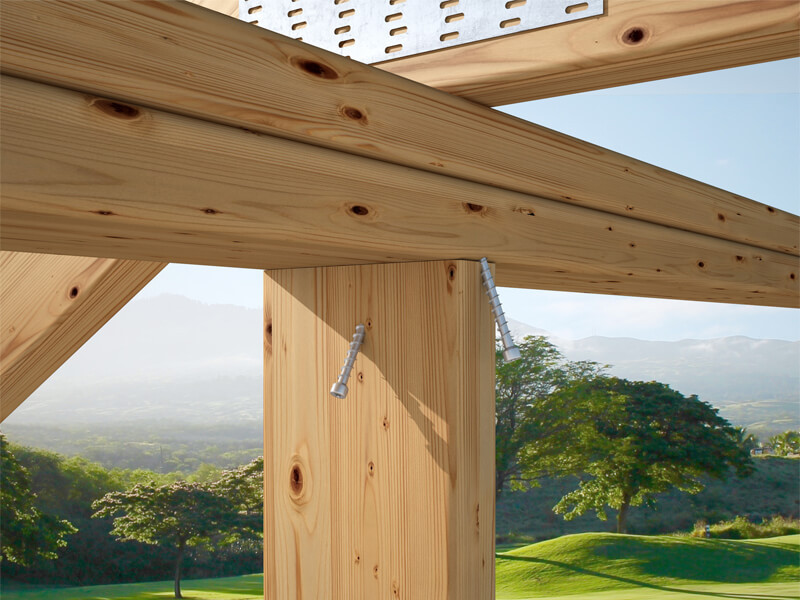

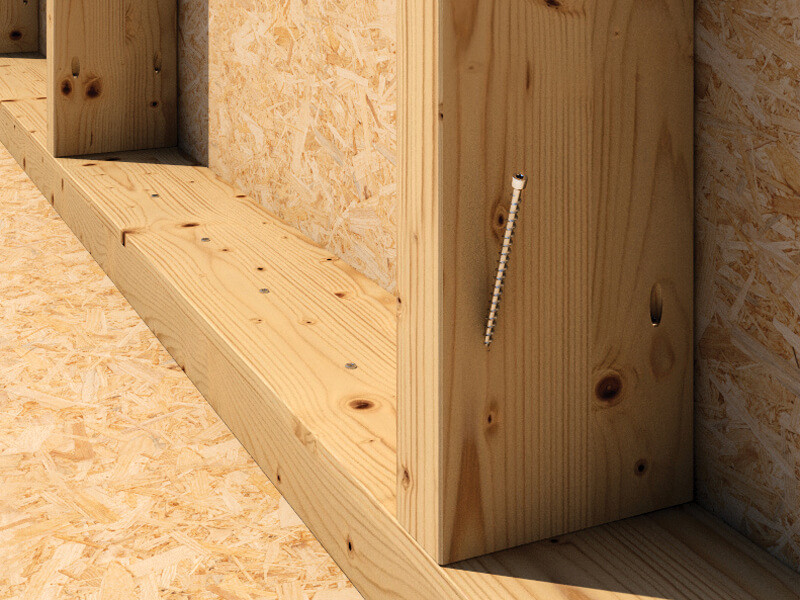

The VGZ EVO FRAME wood screw is the ideal structural connector for joining small timber elements such as the crossbeams and uprights of light frame structures.

The cylindrical head ensures a “concealed” effect for a more pleasing look.

Choose the VGZ EVO FRAME wood screw for your smallest joints: corrosion resistance, durability and pleasing appearance.

VGZ EVO FRAME is the wood screw certified for applications parallel to the grain and with reduced minimum distances.

The values are tested, certified and calculated also for application on CLT and high density woods such as Microllam® LVL.

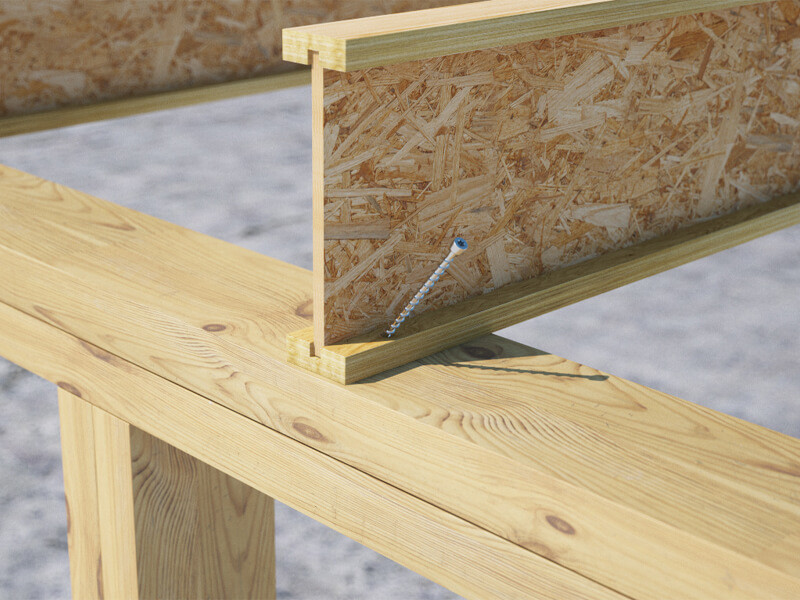

VGZ EVO FRAME is approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°) and is ideal for fastening I-Joist beams.

Safety certified by numerous tests carried out for any direction of insertion. The deep thread and high resistance steel (fy,k = 1000 N/mm2) ensure excellent tensile performance.

The 20 μm C4 EVO multilayer coating with a surface treatment of epoxy resin and aluminium flakes showed no rust after 1440 hours of salt spray exposure testing according to ISO 9227.

In carbon steel with a coating highly resistant to corrosion, VGZ EVO FRAME is certified for outdoor use in service class 3 and under class C4 atmospheric corrosion conditions.

Ideal for use on wood-based panels, solid timber and glulam, CLT and LVL, high-density woods, aggressive woods containing tannin and chemically-treated woods. Service classes 1, 2 and 3.

Features

FOCUS fastener for narrow sections
HEAD cylindrical, countersunk
DIAMETER 5,3 | 5,6 mm
LENGTH from 80 mm to 160 mm

Documents

Technical data sheets
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
File CAD

VGZ EVO FRAME

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
VGZEVO580 - 5.3 80 70 0.21 3 1/8'' 2 3/4'' TX25 50
VGZEVO5100 - 5.3 100 90 0.21 4'' 3 1/2'' TX25 50
VGZEVO5120 - 5.3 120 110 0.21 4 3/4'' 4 3/8'' TX25 50
VGZEVO5140 - 5.6 140 130 0.23 5 1/2'' 5 1/8'' TX25 50
VGZEVO5160 - 5.6 160 150 0.23 6 1/4'' 6'' TX25 50
