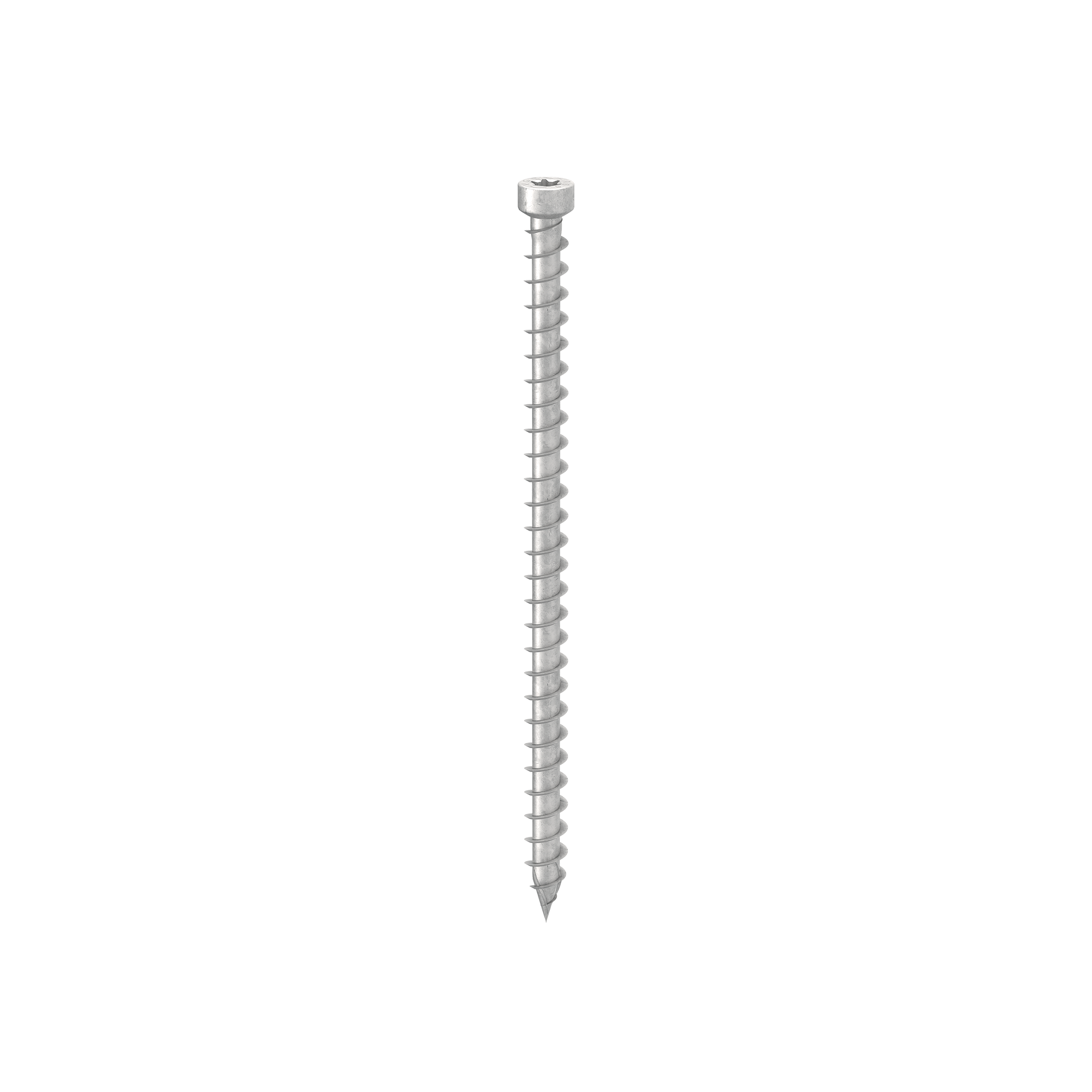

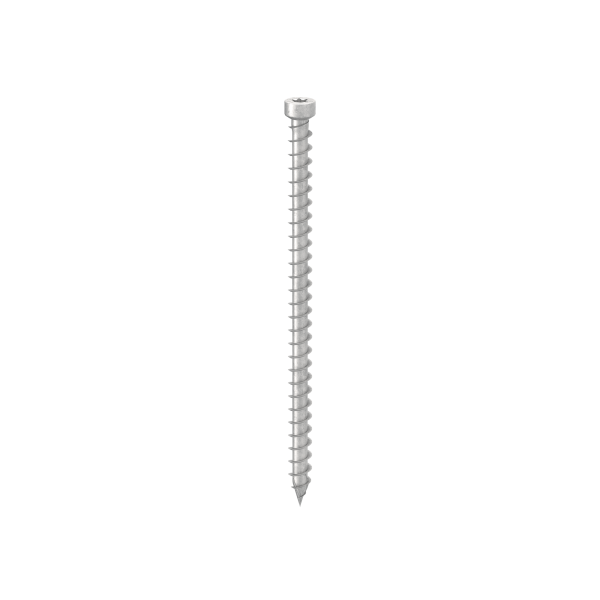

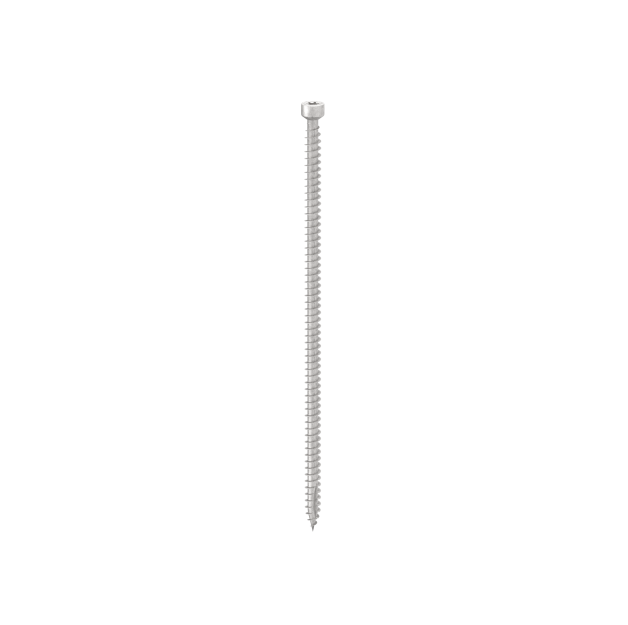

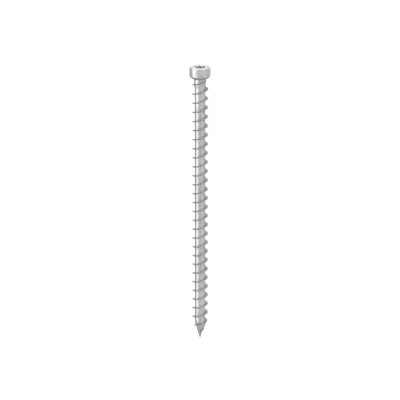

FULL THREADED SCREW WITH CYLINDRICAL HEAD

VGZ EVO

VGZ EVO is the wood screw with total thread for structural uses. It is the ideal connector for applications with woods containing tannin or treated with impregnating agents or other chemical processes, and guarantees excellent tensile performance.

VGZ EVO wood screw, guarantee of quality and durability for structures exposed to atmospheric agents.

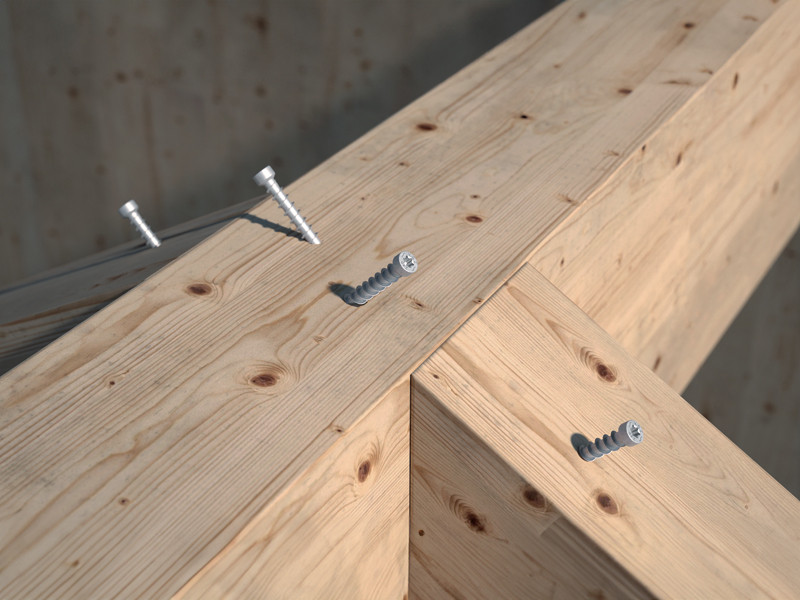

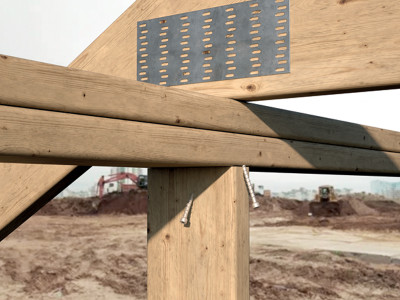

The VGZ EVO screw is approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°). It is the ideal connector for the construction of outdoor structures and for fastening aggressive woods containing tannin, such as chestnut and oak. The deep thread and highly-resistant steel (fy,k = 1000 N/mm2) guarantee excellent tensile performance.

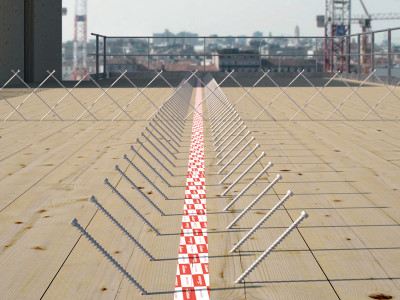

The values are also tested, certified and calculated for CLT and high density woods such as Microllam® LVL. The minimum distances between one connector and the next are reduced. In carbon steel, the VGZ EVO wood screw features 20 μm multilayer C4 EVO coating with a surface treatment of epoxy resin and aluminium flakes, which showed no rust after 1440 hours of salt spray exposure testing according to ISO 9227.

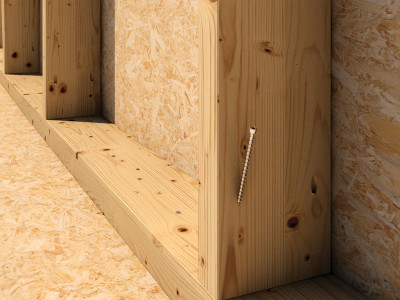

VGZ EVO is the ideal screw for use on wood-based panels, solid timber, glulam, high-density woods, aggressive woods and chemically-treated woods. Service classes 1, 2 and 3.

Features

FOCUS corrosiveness class C4
HEAD cylindrical, countersunk
DIAMETER 5,3 | 5,6 | 7,0 | 9,0 mm
LENGTH from 80 mm to 360 mm

Documents

Technical data sheets
Minimum Distances Guide
Technical data sheets USA
Technical data sheets JAPAN
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

VGZ EVO

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
VGZEVO580 - 5.3 80 70 0.21 3 1/8'' 2 3/4'' TX25 50
VGZEVO5100 - 5.3 100 90 0.21 4'' 3 1/2'' TX25 50
VGZEVO5120 - 5.3 120 110 0.21 4 3/4'' 4 3/8'' TX25 50
VGZEVO5140 - 5.6 140 130 0.23 5 1/2'' 5 1/8'' TX25 50
VGZEVO5150 - 5.6 150 140 0.23 6'' 5 1/2'' TX25 50
VGZEVO5160 - 5.6 160 150 0.23 6 1/4'' 6'' TX25 50
VGZEVO780 - 7 80 70 0.28 3 1/8'' 2 3/4'' TX30 50
VGZEVO7100 - 7 100 90 0.28 4'' 3 1/2'' TX30 50
VGZEVO7120 - 7 120 110 0.28 4 3/4'' 4 3/8'' TX30 50
VGZEVO7140 - 7 140 130 0.28 5 1/2'' 5 1/8'' TX30 50
VGZEVO7160 - 7 160 150 0.28 6 1/4'' 6'' TX30 50
VGZEVO7180 - 7 180 170 0.28 7 1/8'' 6 3/4'' TX30 50
VGZEVO7200 - 7 200 190 0.28 8'' 7 1/2'' TX30 50
VGZEVO7220 - 7 220 210 0.28 8 5/8'' 8 1/4'' TX30 50
VGZEVO7240 - 7 240 230 0.28 9 1/2'' 9 1/16'' TX30 50
VGZEVO7260 - 7 260 250 0.28 10 1/4'' 10'' TX30 50
VGZEVO7280 - 7 280 270 0.28 11'' 10 5/8'' TX30 50
VGZEVO7300 - 7 300 290 0.28 11 3/4'' 11 7/16'' TX30 50
VGZEVO7340 - 7 340 330 0.28 13 3/8'' 13'' TX30 50
VGZEVO7380 - 7 380 370 0.28 15'' 14 9/16'' TX30 50
VGZEVO9160 - 9 160 150 0.36 6 1/4'' 6'' TX40 50
VGZEVO9180 - 9 180 170 0.36 7 1/8'' 6 3/4'' TX40 50
VGZEVO9200 - 9 200 190 0.36 8'' 7 1/2'' TX40 50
VGZEVO9220 - 9 220 210 0.36 8 5/8'' 8 1/4'' TX40 50
VGZEVO9240 - 9 240 230 0.36 9 1/2'' 9 1/16'' TX40 50
VGZEVO9260 - 9 260 250 0.36 10 1/4'' 10'' TX40 50
VGZEVO9280 - 9 280 270 0.36 11'' 10 5/8'' TX40 50
VGZEVO9300 - 9 300 290 0.36 11 3/4'' 11 7/16'' TX40 50
VGZEVO9320 - 9 320 310 0.36 12 5/8'' 12 3/16'' TX40 25
VGZEVO9340 - 9 340 330 0.36 13 3/8'' 13'' TX40 25
VGZEVO9360 - 9 360 350 0.36 14 1/4'' 13 3/4'' TX40 25
VGZEVO9380 - 9 380 370 0.36 15'' 14 9/16'' TX40 25
VGZEVO9400 - 9 400 390 0.36 15 3/4'' 15 3/8'' TX40 25
VGZEVO9440 - 9 440 430 0.36 17 1/4'' 16 15/16'' TX40 25
VGZEVO9480 - 9 480 470 0.36 19'' 18 1/2'' TX40 25
VGZEVO9520 - 9 520 510 0.36 20 1/2'' 20 1/16'' TX40 25
VGZEVO11250 - 11 250 240 0.44 10'' 9 1/2'' TX50 25
VGZEVO11300 - 11 300 290 0.44 11 3/4'' 11 7/16'' TX50 25
VGZEVO11350 - 11 350 340 0.44 13 3/4'' 13 3/8'' TX50 25
VGZEVO11400 - 11 400 390 0.44 15 3/4'' 15 3/8'' TX50 25
VGZEVO11450 - 11 450 440 0.44 17 3/4'' 17 1/4'' TX50 25
VGZEVO11500 - 11 500 490 0.44 19 3/4'' 19 5/16'' TX50 25
VGZEVO11550 - 11 550 540 0.44 21 5/8'' 21 1/4'' TX50 25
VGZEVO11600 - 11 600 590 0.44 23 5/8'' 23 1/4'' TX50 25
