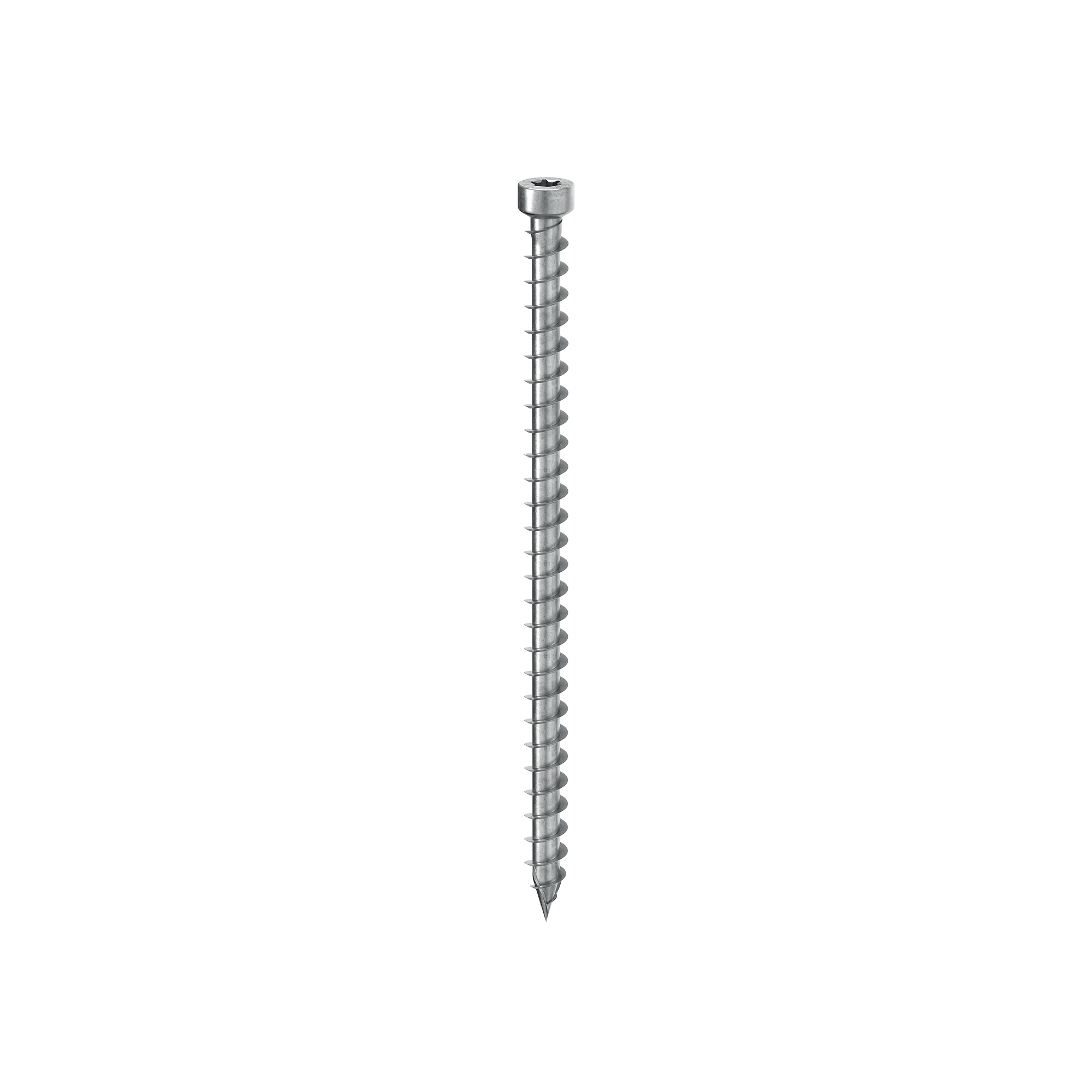

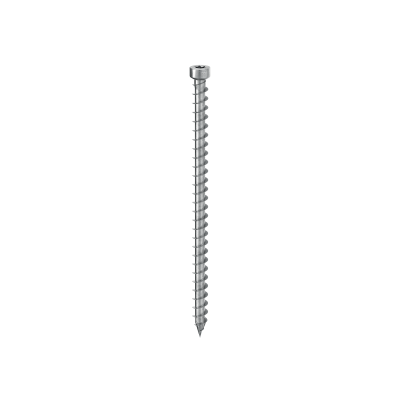

FULL THREADED SCREW WITH CYLINDRICAL HEAD

VGZ

VGZ wood screws with total thread are ideal for concealed joints, timber couplings and structural reinforcements. Available in an extremely large range of sizes, they guarantee fire protection and earthquake suitability.

ETA-11/0030 ETA-22/0806
UKCA 1
ICC-ES 233
ELC 4645
CBL 2
Missing Title Missing Title
Missing Title
zinc-plated
t2

Videos

cookies.consent_necessary

VGZ full-thread wood screws: total reliability for your timber structures.

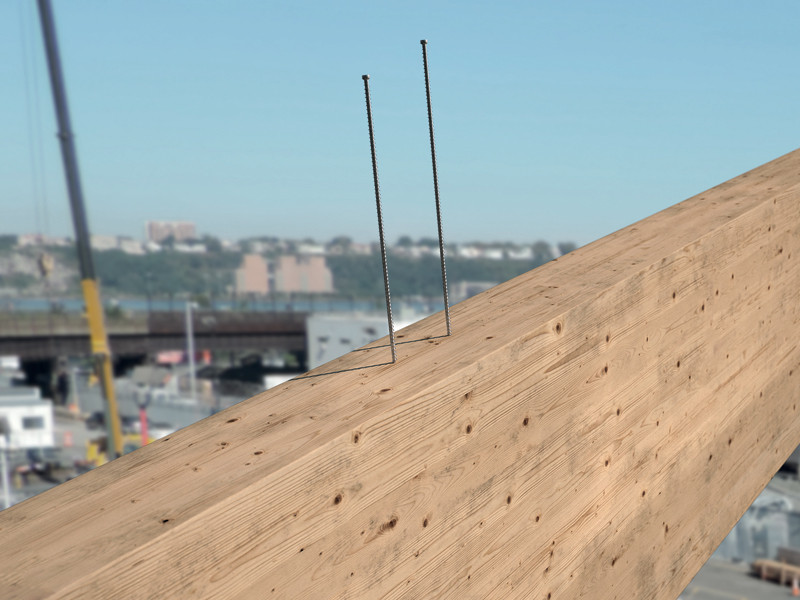

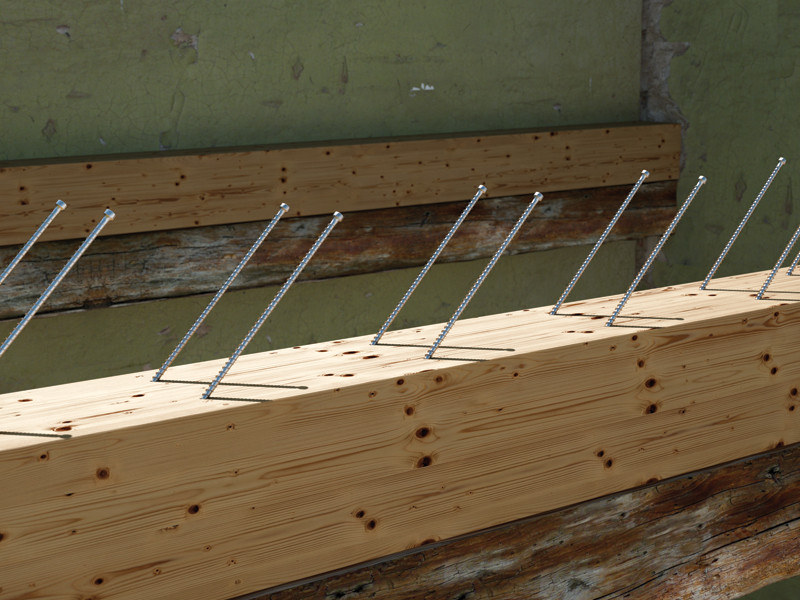

The deep thread and high resistance steel (fy,k = 1000 N/mm2) of the VGZ wood screws guarantee excellent tensile performance. Ideal for coupling beams in structural renovations and new works. VGZ wood screws are approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°).

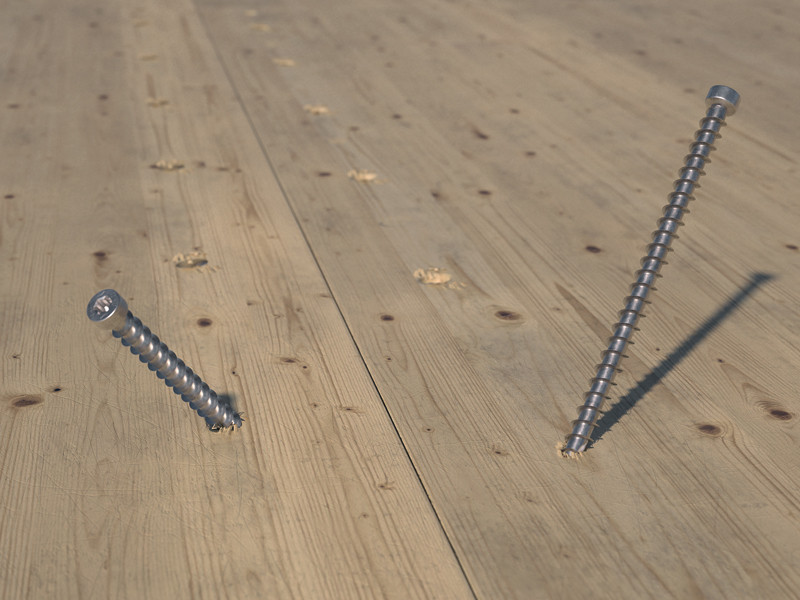

The minimum necessary distances of the fastenings are reduced. Values also tested, certified and calculated for CLT and high density woods such as Microllam® LVL. Total absence of hexavalent chromium. Compliance with the strictest regulations governing chemical substances (SVHC).

REACH information available.

Cyclical SEISMIC-REV tests carried out according to EN 12512. In carbon steel with bright zinc plated, they are ideal for use on wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.

Find the nearest agent Download the catalogue

Features

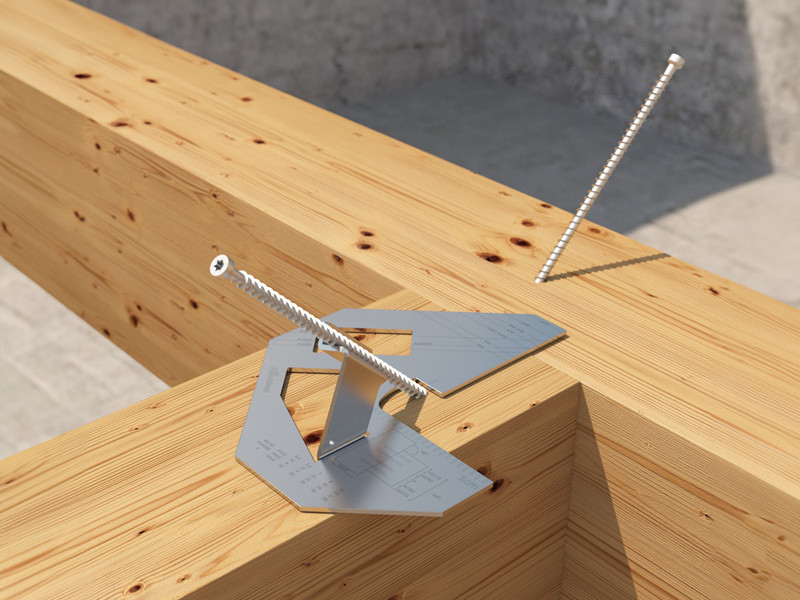

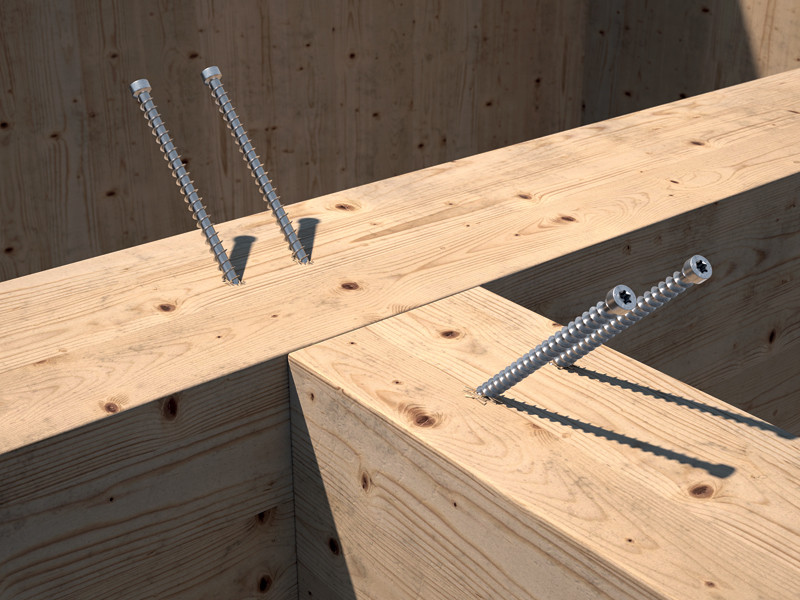

FOCUS 45° connections, reinforcements and couplings
HEAD cylindrical, countersunk
DIAMETER 7,0 | 9,0 | 11,0 mm
LENGTH from 80 mm to 600 mm

Documents

Technical data sheets
Minimum Distances Guide
Technical data sheets USA
Technical data sheets CANADA
Technical data sheets JAPAN
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
Item specification
File CAD
File BIM.ifc
File BIM.rfa
Find the nearest agent Download the catalogue

VGZ

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
VGZ780 - 7 80 70 0.28 3 1/8'' 2 3/4'' TX30 50
VGZ7100 - 7 100 90 0.28 4'' 3 1/2'' TX30 50
VGZ7120 - 7 120 110 0.28 4 3/4'' 4 3/8'' TX30 50
VGZ7140 - 7 140 130 0.28 5 1/2'' 5 1/8'' TX30 50
VGZ7160 - 7 160 150 0.28 6 1/4'' 6'' TX30 50
VGZ7180 - 7 180 170 0.28 7 1/8'' 6 3/4'' TX30 50
VGZ7200 - 7 200 190 0.28 8'' 7 1/2'' TX30 50
VGZ7220 - 7 220 210 0.28 8 5/8'' 8 1/4'' TX30 50
VGZ7240 - 7 240 230 0.28 9 1/2'' 9 1/16'' TX30 50
VGZ7260 - 7 260 250 0.28 10 1/4'' 10'' TX30 50
VGZ7280 - 7 280 270 0.28 11'' 10 5/8'' TX30 50
VGZ7300 - 7 300 290 0.28 11 3/4'' 11 7/16'' TX30 50
VGZ7320 - 7 320 310 0.28 12 5/8'' 12 3/16'' TX30 50
VGZ7340 - 7 340 330 0.28 13 3/8'' 13'' TX30 50
VGZ7360 - 7 360 350 0.28 14 1/4'' 13 3/4'' TX30 50
VGZ7380 - 7 380 370 0.28 15'' 14 9/16'' TX30 50
VGZ7400 - 7 400 390 0.28 15 3/4'' 15 3/8'' TX30 50
VGZ9160 - 9 160 150 0.36 6 1/4'' 6'' TX40 50
VGZ9180 - 9 180 170 0.36 7 1/8'' 6 3/4'' TX40 50
VGZ9200 - 9 200 190 0.36 8'' 7 1/2'' TX40 50
VGZ9220 - 9 220 210 0.36 8 5/8'' 8 1/4'' TX40 50
VGZ9240 - 9 240 230 0.36 9 1/2'' 9 1/16'' TX40 50
VGZ9260 - 9 260 250 0.36 10 1/4'' 10'' TX40 50
VGZ9280 - 9 280 270 0.36 11'' 10 5/8'' TX40 50
VGZ9300 - 9 300 290 0.36 11 3/4'' 11 7/16'' TX40 50
VGZ9320 - 9 320 310 0.36 12 5/8'' 12 3/16'' TX40 50
VGZ9340 - 9 340 330 0.36 13 3/8'' 13'' TX40 50
VGZ9360 - 9 360 350 0.36 14 1/4'' 13 3/4'' TX40 50
VGZ9380 - 9 380 370 0.36 15'' 14 9/16'' TX40 50
VGZ9400 - 9 400 390 0.36 15 3/4'' 15 3/8'' TX40 50
VGZ9440 - 9 440 430 0.36 17 1/4'' 16 15/16'' TX40 25
VGZ9480 - 9 480 470 0.36 19'' 18 1/2'' TX40 25
VGZ9520 - 9 520 510 0.36 20 1/2'' 20 1/16'' TX40 25
VGZ9560 - 9 560 550 0.36 22'' 21 5/8'' TX40 25
VGZ9600 - 9 600 590 0.36 23 5/8'' 23 1/4'' TX40 25
VGZ11150 - 11 150 140 0.44 6'' 5 1/2'' TX50 25
VGZ11200 - 11 200 190 0.44 8'' 7 1/2'' TX50 25
VGZ11250 - 11 250 240 0.44 10'' 9 1/2'' TX50 25
VGZ11275 - 11 275 265 0.44 10 7/8'' 10 7/16'' TX50 25
VGZ11300 - 11 300 290 0.44 11 3/4'' 11 7/16'' TX50 25
VGZ11325 - 11 325 315 0.44 12 3/4'' 12 3/8'' TX50 25
VGZ11350 - 11 350 340 0.44 13 3/4'' 13 3/8'' TX50 25
VGZ11375 - 11 375 365 0.44 14 3/4'' 14 3/8'' TX50 25
VGZ11400 - 11 400 390 0.44 15 3/4'' 15 3/8'' TX50 25
VGZ11425 - 11 425 415 0.44 16 3/4'' 16 5/16'' TX50 25
VGZ11450 - 11 450 440 0.44 17 3/4'' 17 1/4'' TX50 25
VGZ11475 - 11 475 465 0.44 18 11/16'' 18 5/16'' TX50 25
VGZ11500 - 11 500 490 0.44 19 3/4'' 19 5/16'' TX50 25
VGZ11525 - 11 525 515 0.44 20 11/16'' 20 1/4'' TX50 25
VGZ11550 - 11 550 540 0.44 21 5/8'' 21 1/4'' TX50 25
VGZ11575 - 11 575 565 0.44 22 5/8'' 22 1/4'' TX50 25
VGZ11600 - 11 600 590 0.44 23 5/8'' 23 1/4'' TX50 25
VGZ11650 - 11 650 640 0.44 25 9/16'' 25 3/16'' TX50 25
VGZ11700 - 11 700 690 0.44 27 1/2'' 27 3/16'' TX50 25
VGZ11750 - 11 750 740 0.44 29 1/2'' 29 1/8'' TX50 25
VGZ11800 - 11 800 790 0.44 31 1/2'' 31 1/8'' TX50 25
VGZ11850 - 11 850 840 0.44 33 7/16'' 33 1/16'' TX50 25
VGZ11900 - 11 900 890 0.44 35 1/2'' 35 1/16'' TX50 25
VGZ11950 - 11 950 940 0.44 37 3/8'' 37'' TX50 25
VGZ111000 SELF-DRILLING TIP 11 1000 990 0.44 39 3/8'' 39'' TX50 25
