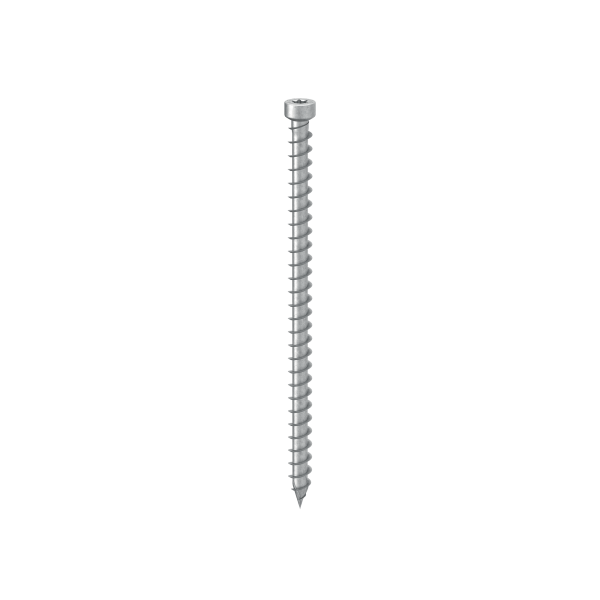

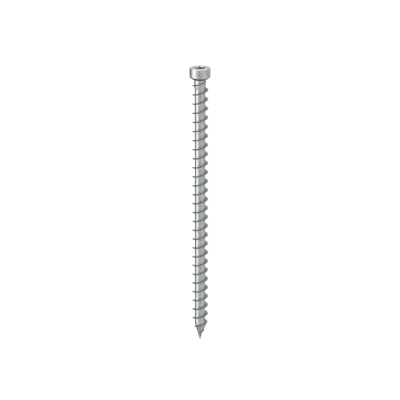

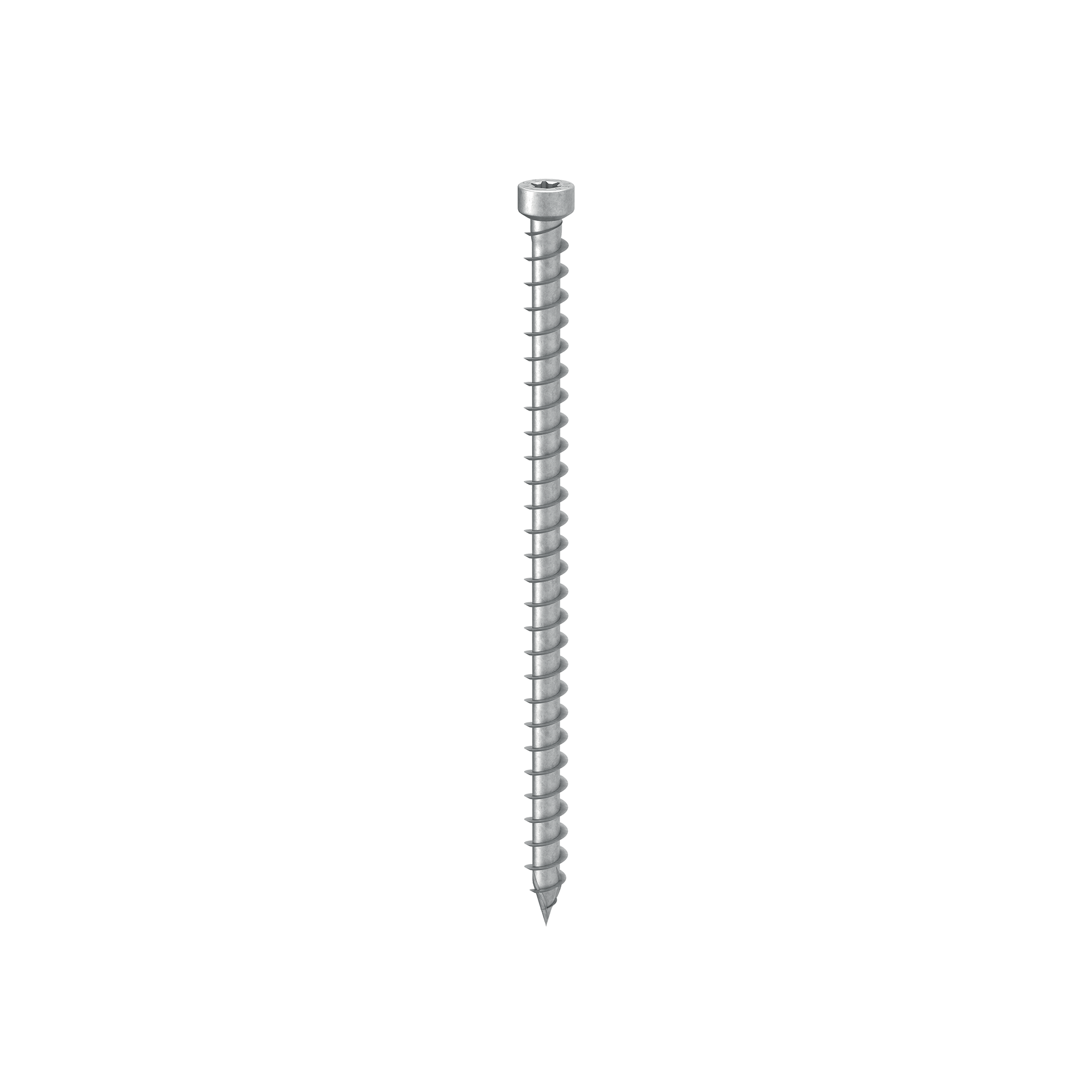

FULL THREAD CONNECTOR WITH COUNTERSUNK HEAD
VGS EVO C5
New
COMING SOON
C5 ATMOSPHERIC CORROSIVITY
Multi-layer coating capable of withstanding outdoor environments classified C5 according to ISO 9223. Salt Spray Test (SST) with exposure time
greater than 3000 h carried out on screws previously screwed and unscrewed in Douglas fir timber.
3 THORNS TIP
Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements.
MAXIMUM STRENGTH

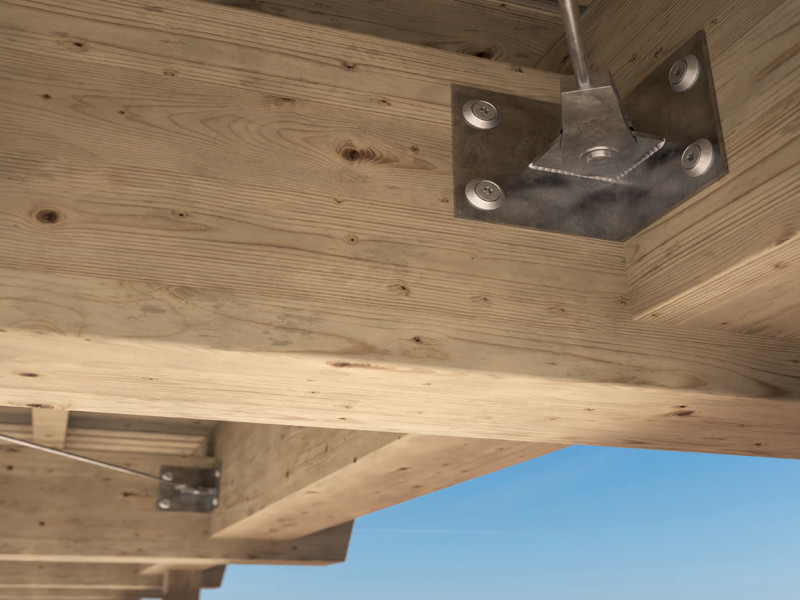

It is the screw of choice if high mechanical performance is required under very adverse environmental and wood corrosive conditions. The cylindrical head makes it ideal for concealed joints, timber couplings and structural reinforcements.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
VGS EVO C5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| VGSEVO9200C5 | - | 9 | 200 | 190 | 0.36 | 8'' | 7 1/2'' | TX40 | 25 |
| VGSEVO9240C5 | - | 9 | 240 | 230 | 0.36 | 9 1/2'' | 9 1/16'' | TX40 | 25 |
| VGSEVO9280C5 | - | 9 | 280 | 270 | 0.36 | 11'' | 10 5/8'' | TX40 | 25 |
| VGSEVO9360C5 | - | 9 | 360 | 350 | 0.36 | 14 1/4'' | 13 3/4'' | TX40 | 25 |
