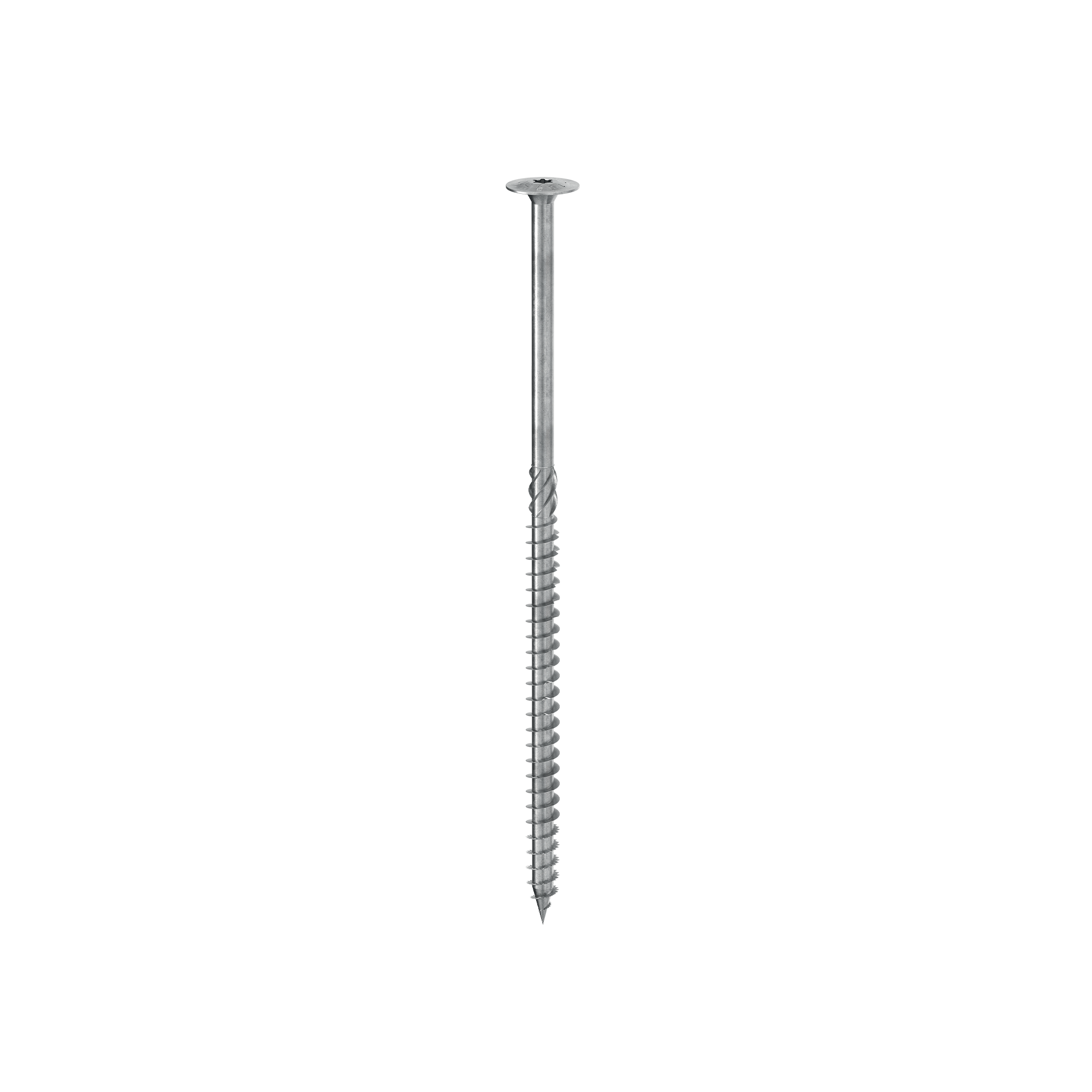

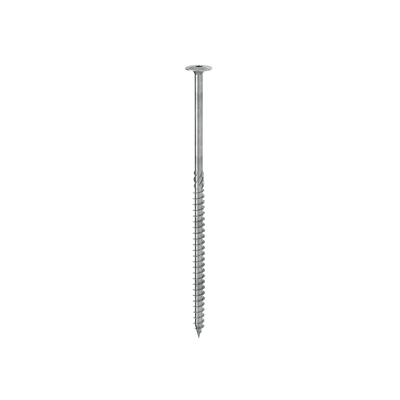

FLANGE HEAD SCREW

TBS SOFTWOOD

New

Special self-perforating tip with serrated thread (SAW tip) that cuts the timber grains, facilitating initial grip and subsequent pull-through.

The flange head serves as washer and ensures high head strength and pull-through. Ideal in the presence of wind or variations in timber dimensions.

Greater thread length (60%) to ensure superb joint closure and great versatility.

Optimised geometry for maximum performance on the most common construction timbers.

Technical data sheets	Choose a Language
Technical data sheets USA	Choose a Language
Declaration of performance (DOP)	Download
File CAD	Choose a Language
File BIM.ifc	Choose a Language
File BIM.rfa	Choose a Language

CODE	info	d₁ [mm]	L [mm]	b [mm]	d₁ [in]	L [in]	b [in]	TX	pcs.
TBSS680	-	6	80	50	0.24	3 1/8''	1 15/16''	TX30	100
TBSS6100	-	6	100	60	0.24	4''	2 3/8''	TX30	100
TBSS6120	-	6	120	75	0.24	4 3/4''	2 15/16''	TX30	100
TBSS6140	-	6	140	80	0.24	5 1/2''	3 1/8''	TX30	100
TBSS6160	-	6	160	90	0.24	6 1/4''	3 1/2''	TX30	100
TBSS8180	-	8	180	100	0.32	7 1/8''	4''	TX40	50
TBSS8200	-	8	200	100	0.32	8''	4''	TX40	50
TBSS8220	-	8	220	100	0.32	8 5/8''	4''	TX40	50
TBSS8240	-	8	240	100	0.32	9 1/2''	4''	TX40	50
TBSS8260	-	8	260	100	0.32	10 1/4''	4''	TX40	50
TBSS8280	-	8	280	100	0.32	11''	4''	TX40	50
TBSS8300	-	8	300	100	0.32	11 3/4''	4''	TX40	50
TBSS8320	-	8	320	120	0.32	12 5/8''	4 3/4''	TX40	50
TBSS8340	-	8	340	120	0.32	13 3/8''	4 3/4''	TX40	50
TBSS8360	-	8	360	120	0.32	14 1/4''	4 3/4''	TX40	50
TBSS8380	-	8	380	120	0.32	15''	4 3/4''	TX40	50
TBSS8400	-	8	400	120	0.32	15 3/4''	4 3/4''	TX40	50
