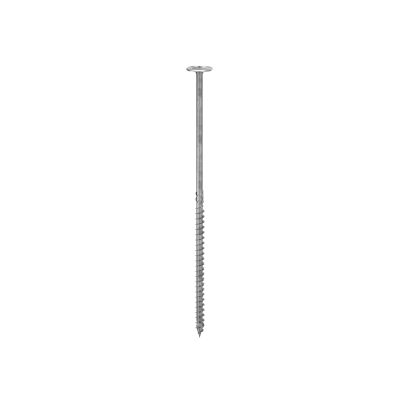

XL FLANGE HEAD SCREW
TBS MAX
New
The oversized head provides excellent head pull-through strength and joint tightening capacity.
The oversized thread of the TBS MAX guarantees excellent withdrawal resistance and closing strength of the joint.

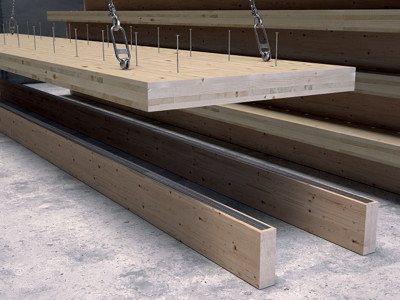

Thanks to its large head and oversized thread, it is the ideal screw in the production of ribbed floors (Rippendecke). Used in conjunction with SHARP METAL, it optimises the number of fasteners by avoiding the use of presses when gluing timber elements together.
Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements. Costs and time for project implementation are reduced.
Documents
Technical data sheets
|
|
|---|---|
Minimum Distances Guide
|
|
Technical data sheets USA
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
TBS MAX
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| TBSMAX8120 | - | 8 | 120 | 100 | 0.32 | 4 3/4'' | 4'' | TX40 | 50 |
| TBSMAX8160 | - | 8 | 160 | 120 | 0.32 | 6 1/4'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8180 | - | 8 | 180 | 120 | 0.32 | 7 1/8'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8200 | - | 8 | 200 | 120 | 0.32 | 8'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8220 | - | 8 | 220 | 120 | 0.32 | 8 5/8'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8240 | - | 8 | 240 | 120 | 0.32 | 9 1/2'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8280 | - | 8 | 280 | 120 | 0.32 | 11'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8320 | - | 8 | 320 | 120 | 0.32 | 12 5/8'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8360 | - | 8 | 360 | 120 | 0.32 | 14 1/4'' | 4 3/4'' | TX40 | 50 |
| TBSMAX8400 | - | 8 | 400 | 120 | 0.32 | 15 3/4'' | 4 3/4'' | TX40 | 50 |
