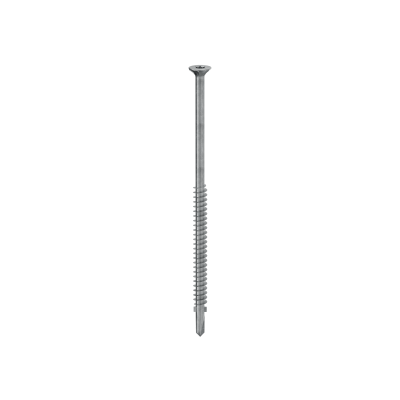

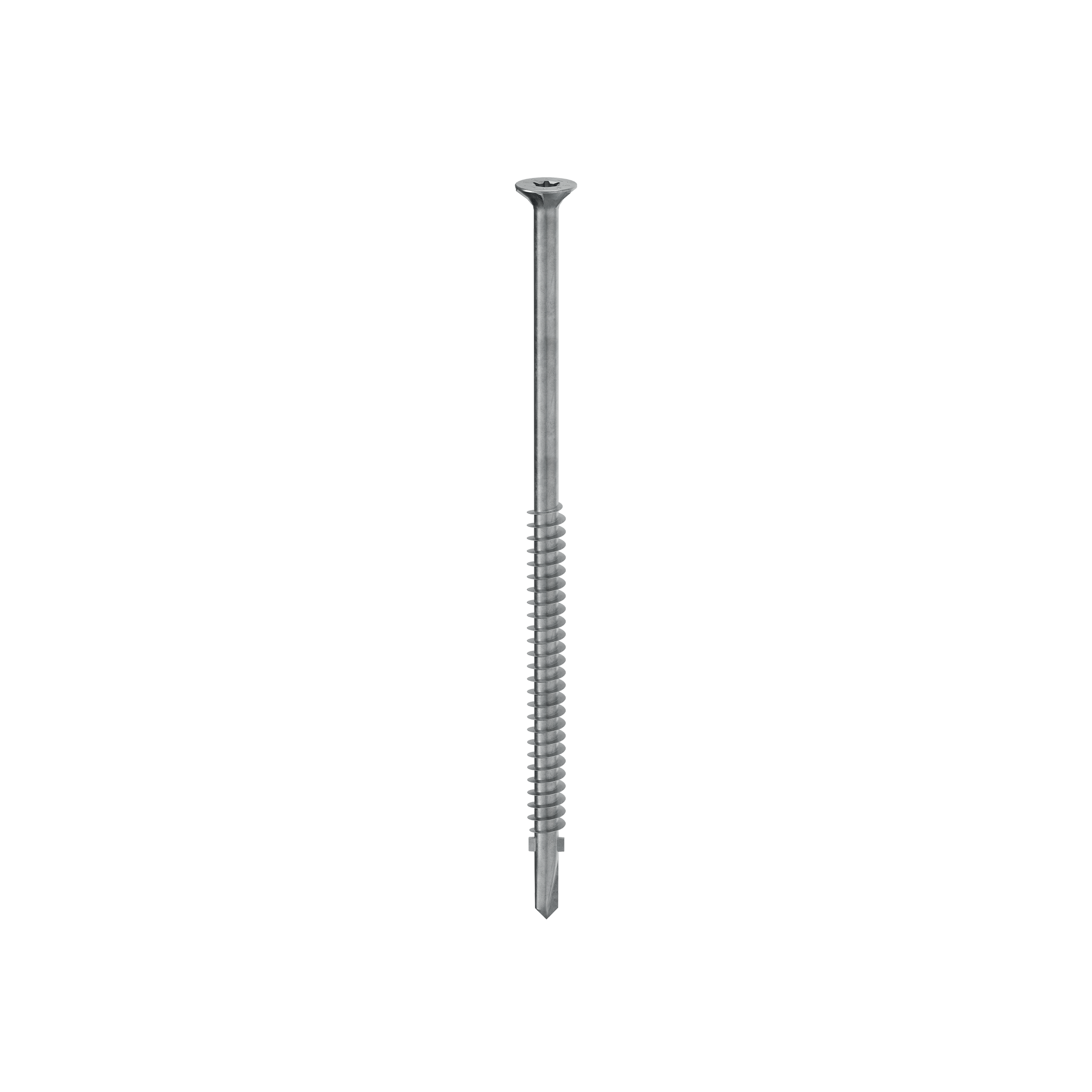

SELF-DRILLING TIMBER-TO-METAL SCREW
SPP
The SPP self-drilling screw is CE marked according to EN 14592. It is the ideal choice for professionals who demand quality, safety and reliable performance in structural timber-to-metal applications.
Special self-perforating tip with bleeder geometry for excellent drilling capacity both in aluminium (thickness: up to 10 mm) and steel (thickness: up to 8 mm).
The fins protect the screw thread during timber pull-through. They guarantee maximum threading efficiency in metal and perfect adhesion between the thickness of the wood and the metal.

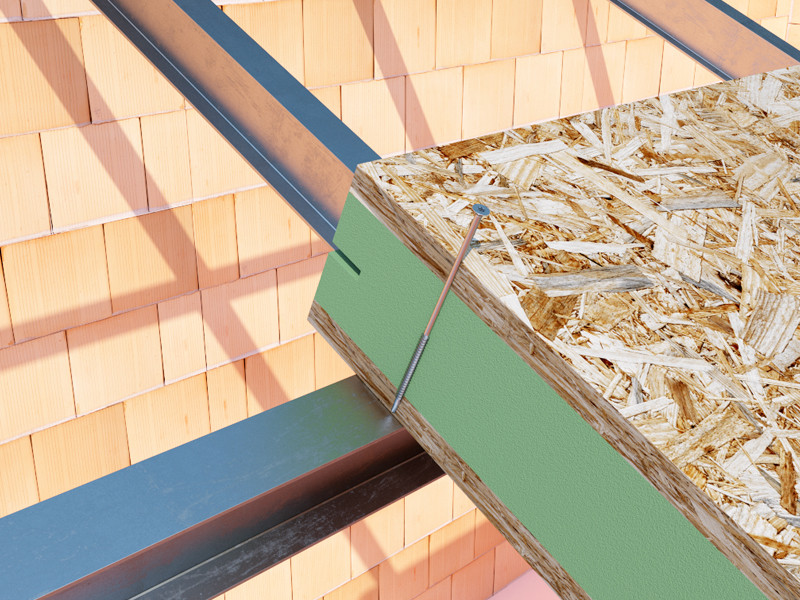

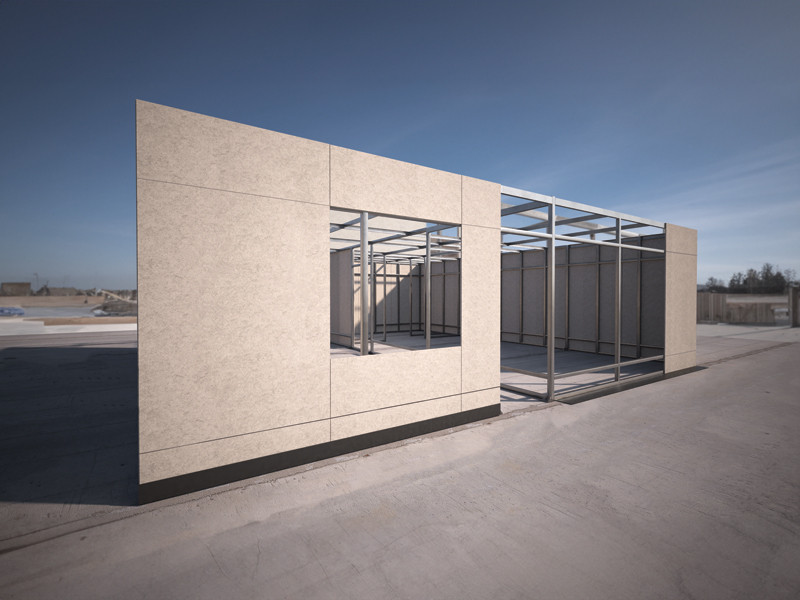

The SPP version, with partially thread, is ideal for fastening sandwich panels, even thick ones, to steel. Very sharp under-head ribs for a perfect surface finish on the wooden element.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
SPP
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SPP63125 | - | 6.3 | 125 | 60 | 0.25 | 4 15/16'' | 2 3/8'' | TX30 | 100 |
| SPP63145 | - | 6.3 | 145 | 60 | 0.25 | 5 11/16'' | 2 3/8'' | TX30 | 100 |
| SPP63165 | - | 6.3 | 165 | 60 | 0.25 | 6 1/2'' | 2 3/8'' | TX30 | 100 |
| SPP63180 | - | 6.3 | 180 | 60 | 0.25 | 7 1/8'' | 2 3/8'' | TX30 | 100 |
| SPP63200 | - | 6.3 | 200 | 60 | 0.25 | 8'' | 2 3/8'' | TX30 | 100 |
| SPP63220 | - | 6.3 | 220 | 60 | 0.25 | 8 5/8'' | 2 3/8'' | TX30 | 100 |
| SPP63240 | - | 6.3 | 240 | 60 | 0.25 | 9 1/2'' | 2 3/8'' | TX30 | 100 |
