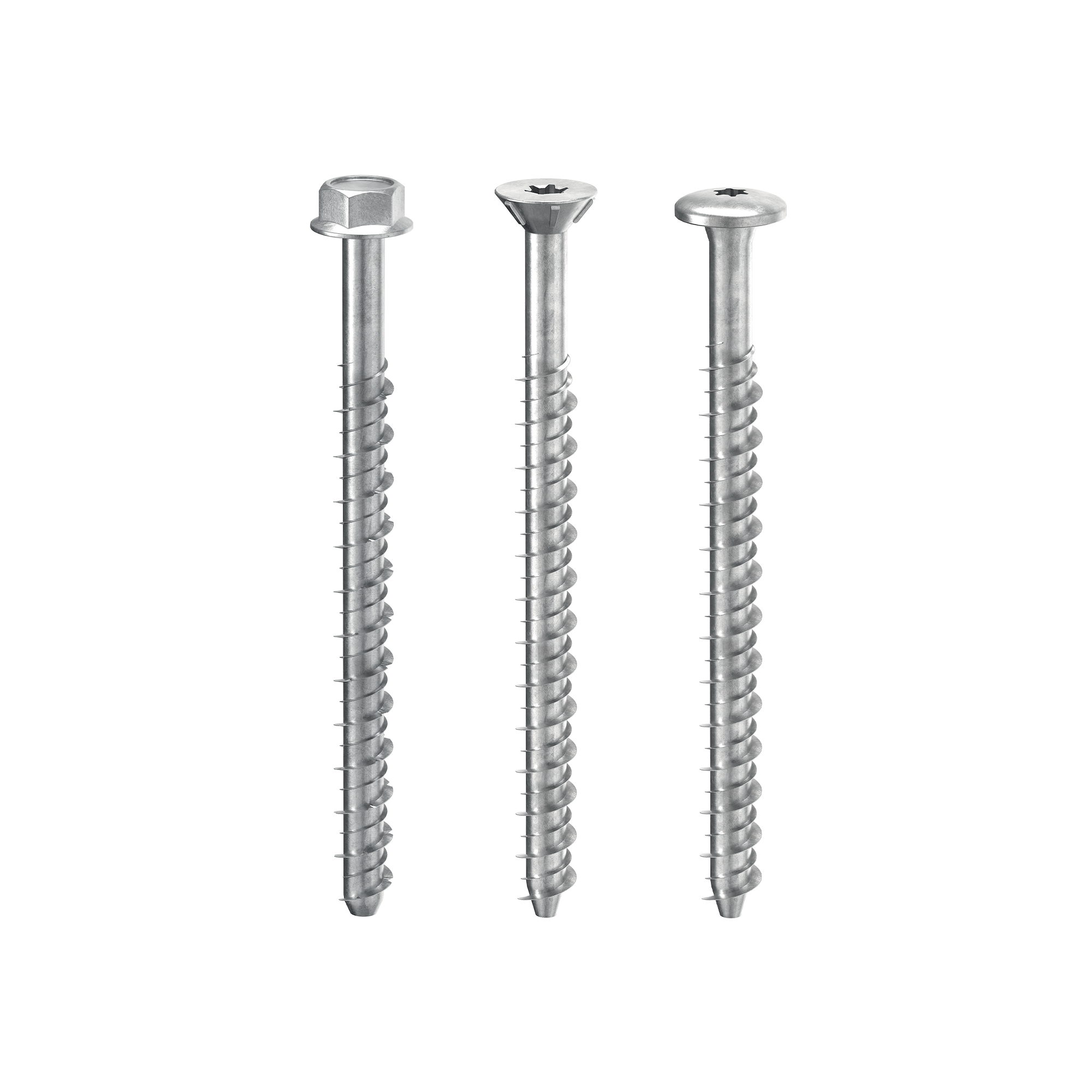

SCREW ANCHOR FOR CONCRETE
SKR | SKS | SKP

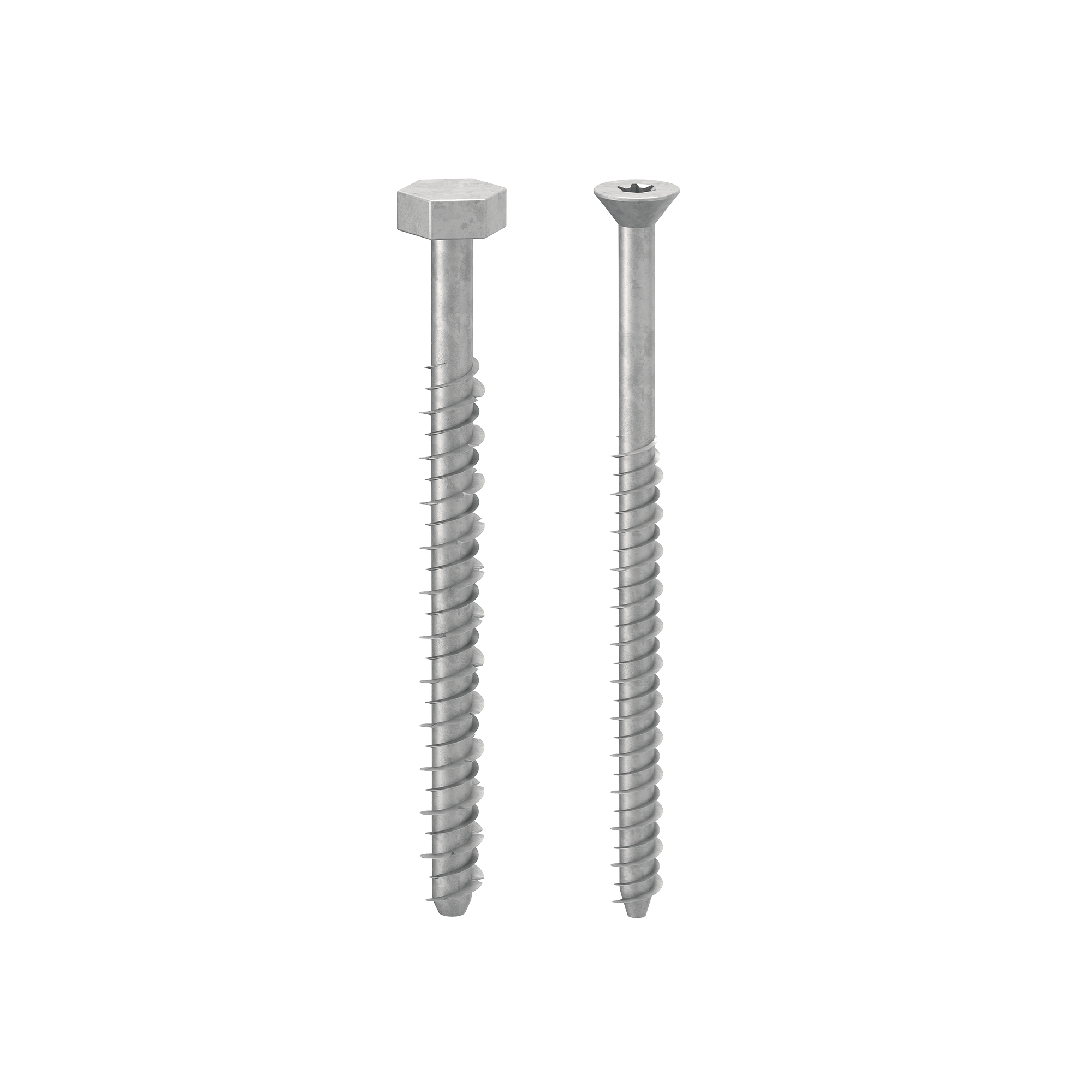

The SKR and SKS concrete anchors are quick and easy to use.
The special threading requires a small pre-drill and guarantees fastening on concrete without creating expansion stresses within it. Reduced minimum distances.

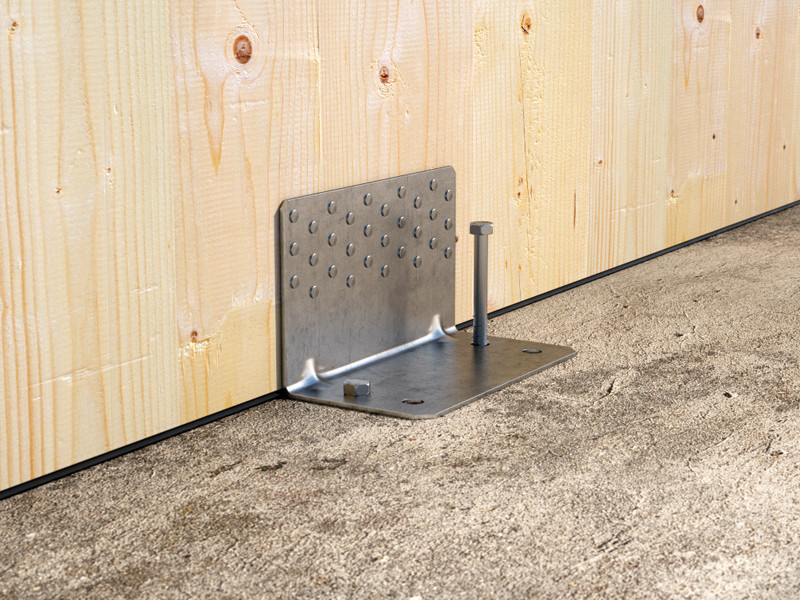

SKR and SKS concrete anchors, the ideal combination of concrete and timber or steel.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
SKR
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
|---|---|---|---|---|---|
| SKR8100 | 8 | 100 | 0.32 | 4'' | 50 |
| SKR1080 | 10 | 80 | 0.4 | 3 1/8'' | 50 |
| SKR10100 | 10 | 100 | 0.4 | 4'' | 25 |
| SKR10120 | 10 | 120 | 0.4 | 4 3/4'' | 25 |
| SKR1290 | 12 | 90 | 0.48 | 3 1/2'' | 25 |
| SKR12110 | 12 | 110 | 0.48 | 4 3/8'' | 25 |
| SKR12150 | 12 | 150 | 0.48 | 6'' | 25 |
| SKR12210 | 12 | 210 | 0.48 | 8 1/4'' | 20 |
| SKR12250 | 12 | 250 | 0.48 | 10'' | 15 |
| SKR12290 | 12 | 290 | 0.48 | 11 7/16'' | 15 |
| SKR16130 | 16 | 130 | 0.63 | 5 1/8'' | 10 |
SKS
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
|---|---|---|---|---|---|
| SKS8100 | 8 | 100 | 0.32 | 4'' | 50 |
| SKS10100 | 10 | 100 | 0.4 | 4'' | 50 |
