45° WASHER FOR VGS
VGU

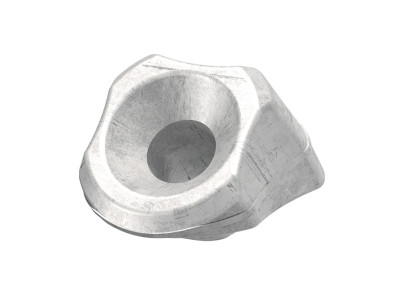

VGU is the washer that makes it possible to install VGS wood screws at a 45° angle on steel plates.
The ergonomic shape ensures a firm, precise grip during installation.
Available in 3 versions compatible with VGS Ø9, Ø11 and Ø13 mm, for plates of variable thickness.
VGU, the 45° washer for the correct installation of VGS wood screws.
The VGU washer is CE marked according to ETA 11/0030.
Using VGU washers with VGS wood screws at a 45° angle on steel plates restores resistance to sliding.
Also available is the JIG VGU template, which makes it easy to prepare a 45° angle pre-drill, facilitating subsequent tightening of the VGS wood screws inside the washer. The recommended pre-drill length is at least 20 mm.
The VGU washer is made of carbon steel with bright zinc plated, it is ideal for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
Technical data sheets CANADA
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
Installation manual
| Installation Instructions VGS |
|---|
VGU
| CODE | description | version | pcs. |
|---|---|---|---|
| VGU945 | not available in Germany (nicht erhältlich in Deutschland) | for screw VGS Ø9 | 25 |
| VGU1145 | not available in Germany (nicht erhältlich in Deutschland) | for screw VGS Ø11 | 25 |
| VGU1345 | not available in Germany (nicht erhältlich in Deutschland) | for screw VGS Ø13 | 25 |
VGU DE
| CODE | version | pcs. |
|---|---|---|
| VGU945DE | for screw VGS Ø9 | 25 |
| VGU1145DE | for screw VGS Ø11 | 25 |
| VGU1345DE | for screw VGS Ø13 | 25 |
VGU EVO DE
| CODE | version | pcs. | |
|---|---|---|---|
| VGUEVO945DE | New | for screw VGS Ø9 | 25 |
| VGUEVO1145DE | New | for screw VGS Ø11 | 25 |
| VGUEVO1345DE | New | for screw VGS Ø13 | 25 |
