FULLY THREADED SCREW WITH COUNTERSUNK OR HEXAGONAL HEAD

VGS

VGS is the structural wood screw with total thread, perfect for making joints that require high tension or sliding strength. In combination with the WASP hook, it is useful as a lifting and transport system.

ETA-11/0030 ETA-22/0806
ETA-11/0030
UKCA 1
ICC-ES 233
ELC 4645
CBL 2
Missing Title Missing Title
Missing Title
zinc-plated
t1
t2

VGS wood screws: excellent resistance and reliability for your structural uses.

VGS wood screws feature a deep thread and high resistance steel (fy,k = 1000 N/mm2) for excellent tensile performance. They are approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°).

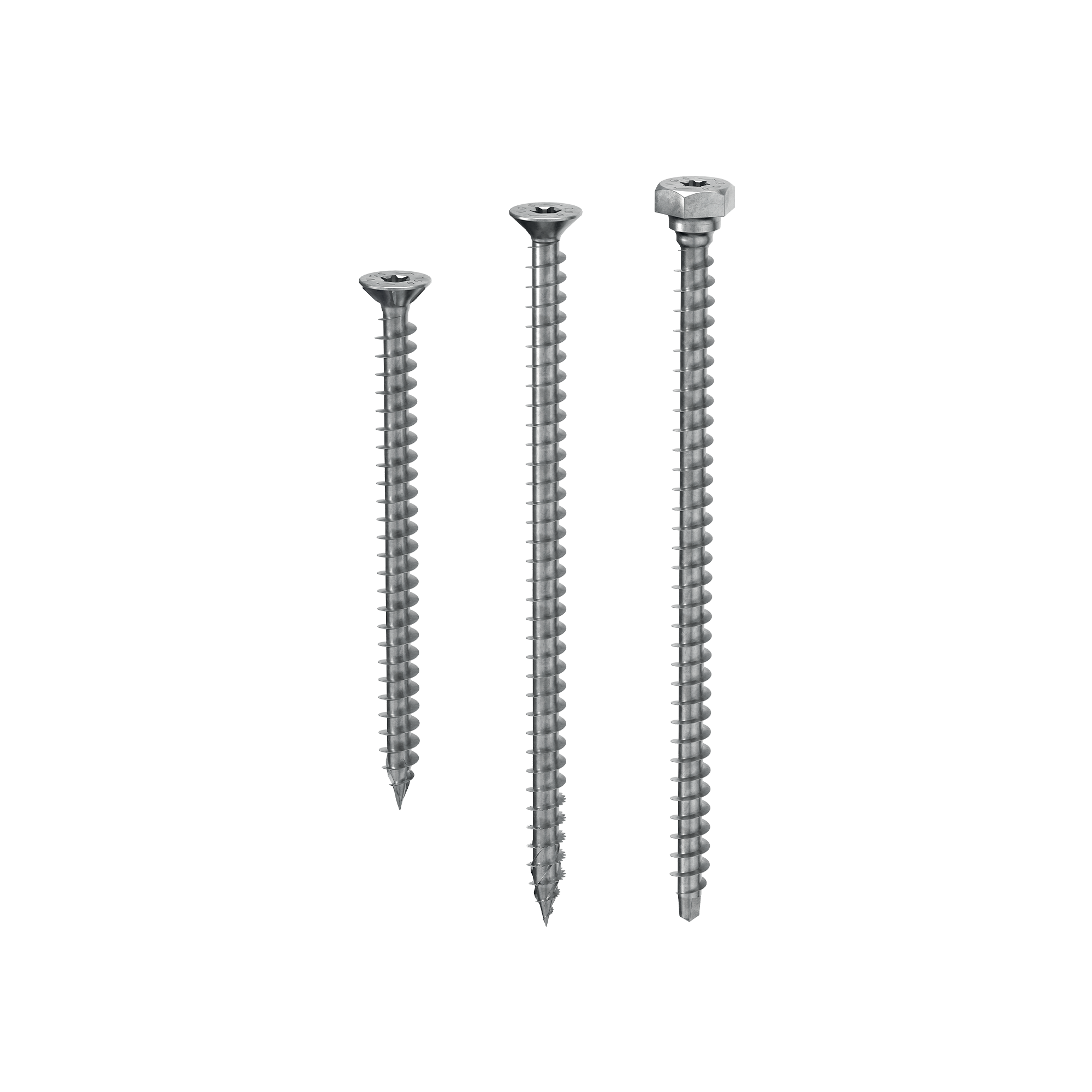

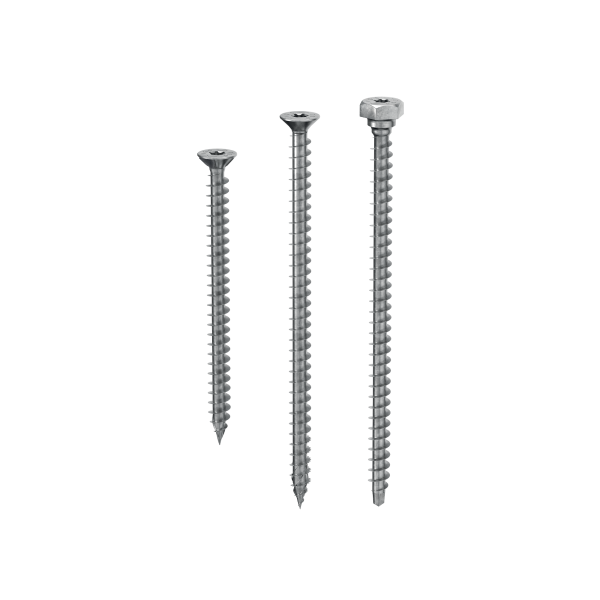

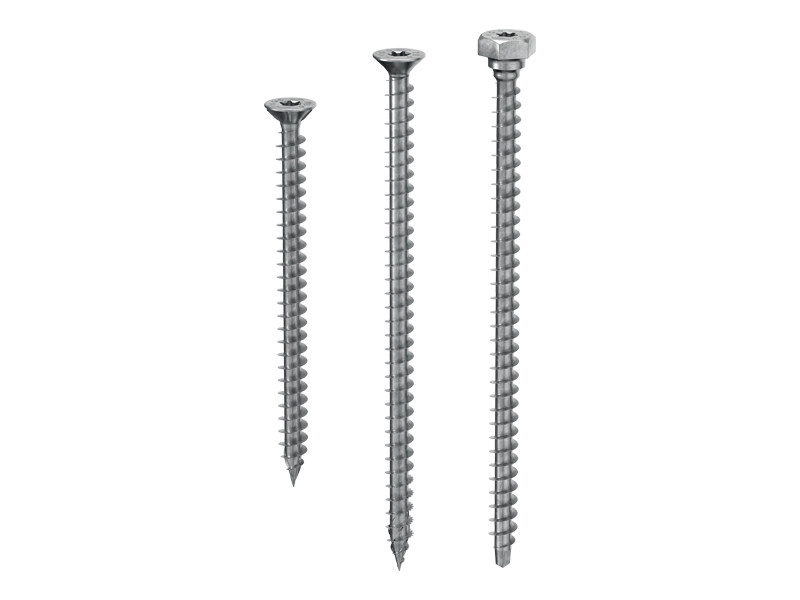

The countersunk head, up to 600 mm long, is excellent for use on plates or for concealed reinforcements; the hexagonal head in lengths of more than 600 mm facilitates grip with the screw gun. Values are also tested, certified and calculated for fastening standard Rothoblaas plates. Total absence of hexavalent chromium.

Compliance with the strictest regulations governing chemical substances (SVHC). REACH information available. In carbon steel with bright zinc plated, they are ideal for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.

Find the nearest agent Download the catalogue

Features

FOCUS 45° connections, lifting and reinforcements
HEAD countersunk with ribs for L ≤ 600 mm hexagonal for L > 600 mm
DIAMETER 9,0 | 11,0 | 13,0 mm
LENGTH from 100 mm to 1200 mm

Documents

Technical data sheets
Minimum Distances Guide
Technical data sheets USA
Technical data sheets CANADA
Technical data sheets JAPAN
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
Item specification
File CAD
File BIM.ifc
File BIM.rfa

Installation manual

Installation Instructions
Find the nearest agent Download the catalogue

VGS Ø9

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
VGS9100 - 9 100 90 0.36 4'' 3 1/2'' TX40 50
VGS9120 - 9 120 110 0.36 4 3/4'' 4 3/8'' TX40 50
VGS9140 - 9 140 130 0.36 5 1/2'' 5 1/8'' TX40 50
VGS9160 - 9 160 150 0.36 6 1/4'' 6'' TX40 50
VGS9180 - 9 180 170 0.36 7 1/8'' 6 3/4'' TX40 50
VGS9200 - 9 200 190 0.36 8'' 7 1/2'' TX40 50
VGS9220 - 9 220 210 0.36 8 5/8'' 8 1/4'' TX40 50
VGS9240 - 9 240 230 0.36 9 1/2'' 9 1/16'' TX40 50
VGS9260 - 9 260 250 0.36 10 1/4'' 10'' TX40 50
VGS9280 - 9 280 270 0.36 11'' 10 5/8'' TX40 50
VGS9300 - 9 300 290 0.36 11 3/4'' 11 7/16'' TX40 50
VGS9320 - 9 320 310 0.36 12 5/8'' 12 3/16'' TX40 50
VGS9340 - 9 340 330 0.36 13 3/8'' 13'' TX40 50
VGS9360 - 9 360 350 0.36 14 1/4'' 13 3/4'' TX40 50
VGS9380 - 9 380 370 0.36 15'' 14 9/16'' TX40 50
VGS9400 - 9 400 390 0.36 15 3/4'' 15 3/8'' TX40 50
VGS9440 - 9 440 430 0.36 17 1/4'' 16 15/16'' TX40 25
VGS9480 - 9 480 470 0.36 19'' 18 1/2'' TX40 25
VGS9520 - 9 520 510 0.36 20 1/2'' 20 1/16'' TX40 25
VGS9560 - 9 560 550 0.36 22'' 21 5/8'' TX40 25
VGS9600 - 9 600 590 0.36 23 5/8'' 23 1/4'' TX40 25

VGS Ø11

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
VGS1180 - 11 80 70 0.44 3 1/8'' 2 3/4'' TX50 25
VGS11100 - 11 100 90 0.44 4'' 3 1/2'' TX50 25
VGS11125 - 11 125 115 0.44 4 15/16'' 4 1/2'' TX50 25
VGS11150 - 11 150 140 0.44 6'' 5 1/2'' TX50 25
VGS11175 - 11 175 165 0.44 6 7/8'' 6 1/2'' TX50 25
VGS11200 - 11 200 190 0.44 8'' 7 1/2'' TX50 25
VGS11225 - 11 225 215 0.44 8 7/8'' 8 7/16'' TX50 25
VGS11250 - 11 250 240 0.44 10'' 9 1/2'' TX50 25
VGS11275 - 11 275 265 0.44 10 7/8'' 10 7/16'' TX50 25
VGS11300 - 11 300 290 0.44 11 3/4'' 11 7/16'' TX50 25
VGS11325 - 11 325 315 0.44 12 3/4'' 12 3/8'' TX50 25
VGS11350 - 11 350 340 0.44 13 3/4'' 13 3/8'' TX50 25
VGS11375 - 11 375 365 0.44 14 3/4'' 14 3/8'' TX50 25
VGS11400 - 11 400 390 0.44 15 3/4'' 15 3/8'' TX50 25
VGS11425 - 11 425 415 0.44 16 3/4'' 16 5/16'' TX50 25
VGS11450 - 11 450 440 0.44 17 3/4'' 17 1/4'' TX50 25
VGS11475 - 11 475 465 0.44 18 11/16'' 18 5/16'' TX50 25
VGS11500 - 11 500 490 0.44 19 3/4'' 19 5/16'' TX50 25
VGS11525 - 11 525 515 0.44 20 11/16'' 20 1/4'' TX50 25
VGS11550 - 11 550 540 0.44 21 5/8'' 21 1/4'' TX50 25
VGS11575 - 11 575 565 0.44 22 5/8'' 22 1/4'' TX50 25
VGS11600 - 11 600 590 0.44 23 5/8'' 23 1/4'' TX50 25
VGS11650 - 11 650 630 0.44 25 9/16'' 24 13/16'' TX50 25
VGS11700 - 11 700 680 0.44 27 1/2'' 26 3/4'' TX50 25
VGS11750 - 11 750 680 0.44 29 1/2'' 26 3/4'' TX50 25
VGS11800 - 11 800 780 0.44 31 1/2'' 30 11/16'' TX50 25
VGS11850 - 11 850 830 0.44 33 7/16'' 32 11/16'' TX50 25
VGS11900 - 11 900 880 0.44 35 1/2'' 34 5/8'' TX50 25
VGS11950 - 11 950 930 0.44 37 3/8'' 36 5/8'' TX50 25
VGS111000 SELF-DRILLING TIP 11 1000 980 0.44 39 3/8'' 38 9/16'' TX50 25

VGS Ø13

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
VGS1380 - 13 80 70 0.52 3 1/8'' 2 3/4'' TX50 25
VGS13100 - 13 100 90 0.52 4'' 3 1/2'' TX50 25
VGS13150 - 13 150 140 0.52 6'' 5 1/2'' TX50 25
VGS13200 - 13 200 190 0.52 8'' 7 1/2'' TX50 25
VGS13250 - 13 250 240 0.52 10'' 9 1/2'' TX50 25
VGS13300 - 13 300 280 0.52 11 3/4'' 11'' TX50 25
VGS13350 - 13 350 330 0.52 13 3/4'' 13'' TX50 25
VGS13400 - 13 400 380 0.52 15 3/4'' 15'' TX50 25
VGS13450 - 13 450 430 0.52 17 3/4'' 16 15/16'' TX50 25
VGS13500 - 13 500 480 0.52 19 3/4'' 19'' TX50 25
VGS13550 - 13 550 530 0.52 21 5/8'' 20 7/8'' TX50 25
VGS13600 - 13 600 580 0.52 23 5/8'' 22 13/16'' TX50 25
VGS13650 - 13 650 630 0.52 25 9/16'' 24 13/16'' TX50 25
VGS13700 - 13 700 680 0.52 27 1/2'' 26 3/4'' TX50 25
VGS13750 - 13 750 730 0.52 29 1/2'' 28 3/4'' TX50 25
VGS13800 - 13 800 780 0.52 31 1/2'' 30 11/16'' TX50 25
VGS13850 - 13 850 830 0.52 33 7/16'' 32 11/16'' TX50 25
VGS13900 - 13 900 880 0.52 35 1/2'' 34 5/8'' TX50 25
VGS13950 - 13 950 930 0.52 37 3/8'' 36 5/8'' TX50 25
VGS131000 - 13 1000 980 0.52 39 3/8'' 38 9/16'' TX50 25
VGS131100 - 13 1100 1080 0.52 43 5/16'' 42 1/2'' TX50 25
VGS131200 - 13 1200 1180 0.52 47 1/4'' 46 7/16'' TX50 25
VGS131300 - 13 1300 1280 0.52 51 3/16'' 50 3/8'' TX50 25
VGS131400 - 13 1400 1380 0.52 55 1/8'' 54 5/16'' TX50 25
VGS131500 - 13 1500 1480 0.52 59 1/16'' 58 1/4'' TX50 25

VGS Ø15

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
VGS15600 COMING SOON 15 600 580 0.6 23 5/8'' 22 13/16'' TX50 25
VGS15700 COMING SOON 15 700 680 0.6 27 1/2'' 26 3/4'' TX50 25
VGS15800 COMING SOON 15 800 780 0.6 31 1/2'' 30 11/16'' TX50 25
VGS15900 COMING SOON 15 900 880 0.6 35 1/2'' 34 5/8'' TX50 25
VGS151000 COMING SOON 15 1000 980 0.6 39 3/8'' 38 9/16'' TX50 25
VGS151200 COMING SOON 15 1200 1180 0.6 47 1/4'' 46 7/16'' TX50 25
VGS151400 COMING SOON 15 1400 1380 0.6 55 1/8'' 54 5/16'' TX50 25
VGS151600 COMING SOON 15 1600 1580 0.6 63'' 62 3/16'' TX50 25
VGS151800 COMING SOON 15 1800 1780 0.6 70 7/8'' 70 1/16'' TX50 25
VGS152000 COMING SOON 15 2000 1980 0.6 78 3/4'' 77 15/16'' TX50 25
