PAN HEAD SCREW
KKF AISI410

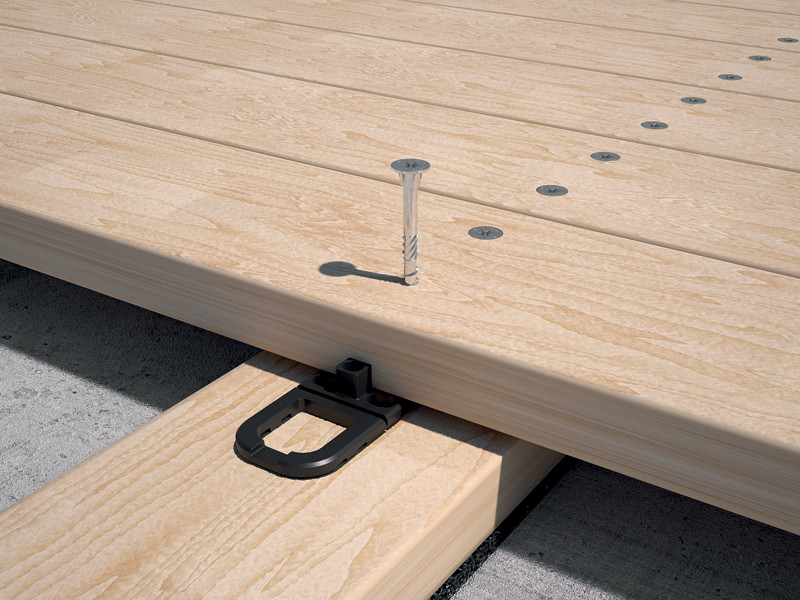

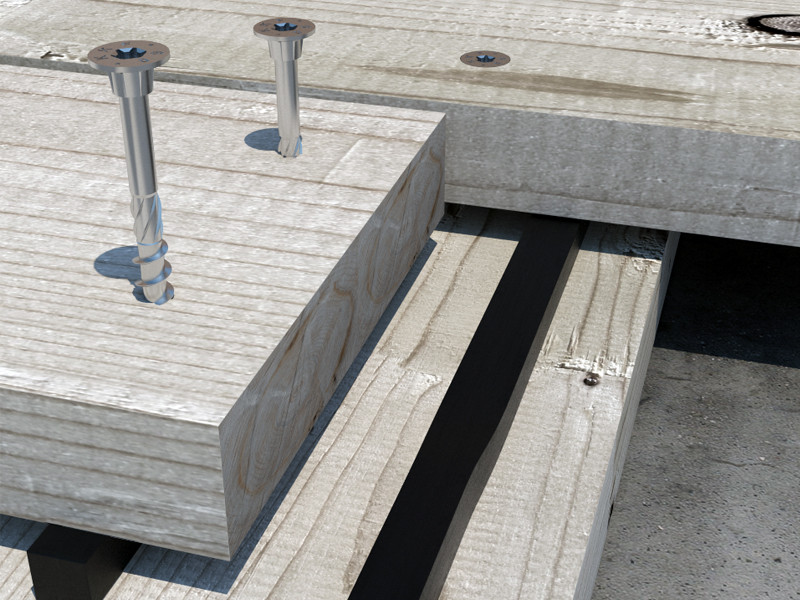

The KKF AISI410 wood screw in stainless steel is designed for fastening wooden or WPC boards in aggressive environments.
It has a pan head, which ensures excellent surface finish after installation.
KKF AISI410 wood screws: durability and attractive finishing for your outdoor environments.
The flat under-head of the KKF AISI410 wood screws accompanies absorption of the shavings, preventing the wood from cracking during screwing, ensuring excellent surface finish.
The special asymmetric “umbrella” thread, with an increased length of 60%, ensures great grip.
Fine thread for the utmost precision when tightening is complete. KKF AISI410 is also ideal for fastening standard Rothoblaas TERRALOCK PP clips in outdoor environments.
In AISI410 martensitic stainless steel with an excellent balance between mechanical resistance and corrosion resistance, it can be used without pre-drilling on wooden boards with a maximum density of 780 kg/m3 and with pre-drilling on WPC boards. Suitable for service classes 1, 2 and 3.
Features
| FOCUS | excellent versatility of use |
|---|---|
| HEAD | pan head |
| DIAMETER | from 4,0 mm to 6,0 mm |
| LENGTH | from 20 mm to 120 mm |
Documents
Technical data sheets
|
|
|---|---|
Minimum Distances Guide
|
|
Technical data sheets USA
|
|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
KKF AISI410
| CODE | info | d₁
[mm]
|
L
[mm]
|
TX | pcs. |
|---|---|---|---|---|---|
| KKF430 | - | 4 | 30 | TX20 | 500 |
| KKF435 | - | 4 | 35 | TX20 | 500 |
| KKF440 | - | 4 | 40 | TX20 | 500 |
| KKF445 | - | 4 | 45 | TX20 | 200 |
| KKF450 | - | 4 | 50 | TX20 | 200 |
| KKF4520 | - | 4.5 | 20 | TX20 | 200 |
| KKF4540 | - | 4.5 | 40 | TX20 | 200 |
| KKF4545 | - | 4.5 | 45 | TX20 | 200 |
| KKF4550 | - | 4.5 | 50 | TX20 | 200 |
| KKF4560 | - | 4.5 | 60 | TX20 | 200 |
| KKF4570 | - | 4.5 | 70 | TX20 | 200 |
| KKF540 | - | 5 | 40 | TX25 | 200 |
| KKF550 | - | 5 | 50 | TX25 | 200 |
| KKF560 | - | 5 | 60 | TX25 | 200 |
| KKF570 | - | 5 | 70 | TX25 | 100 |
| KKF580 | - | 5 | 80 | TX25 | 100 |
| KKF590 | - | 5 | 90 | TX25 | 100 |
| KKF5100 | - | 5 | 100 | TX25 | 100 |
| KKF680 | - | 6 | 80 | TX30 | 100 |
| KKF6100 | - | 6 | 100 | TX30 | 100 |
| KKF6120 | - | 6 | 120 | TX30 | 100 |
Related products
-

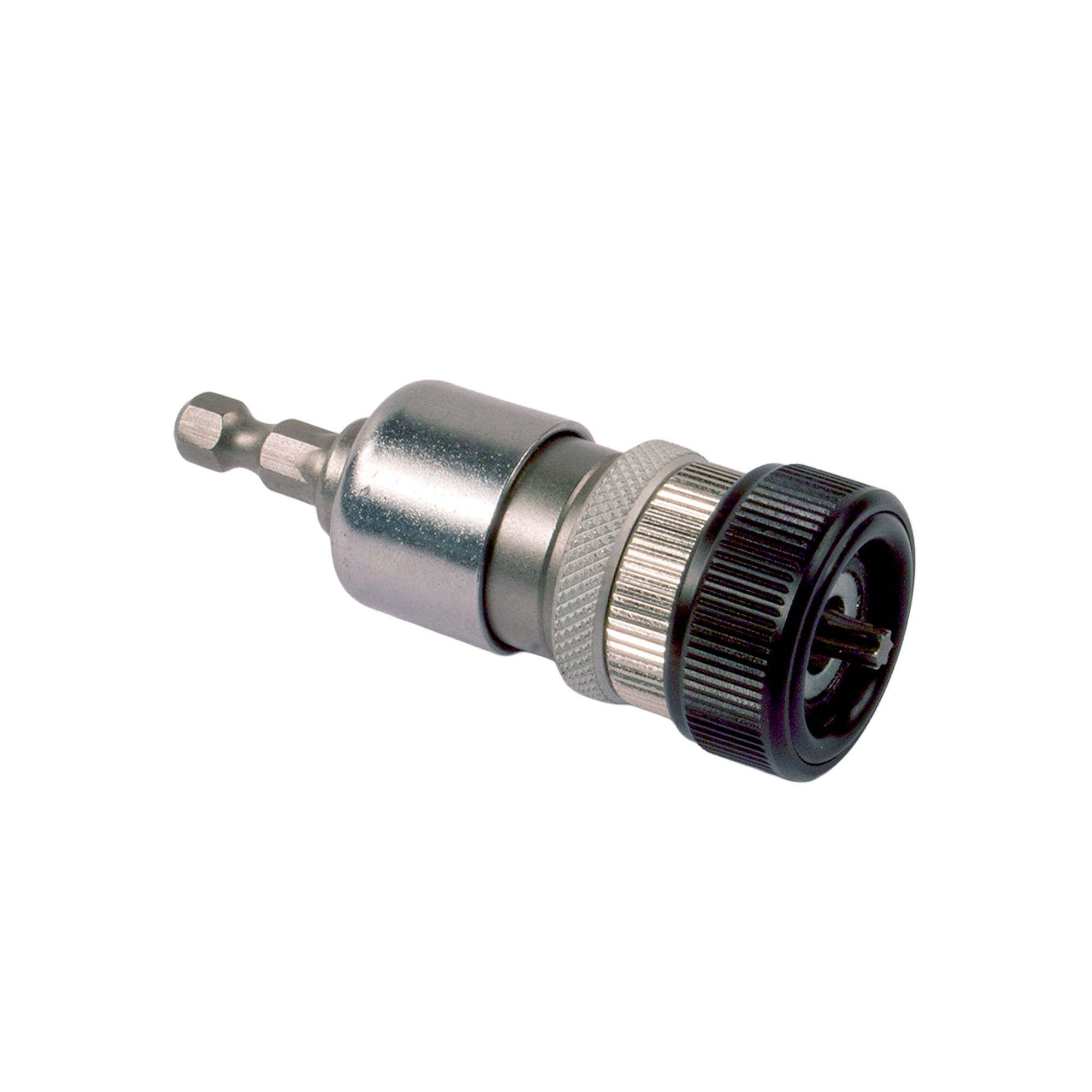

BIT STOP
AUTOMATIC SCREWING DEVICE WITH DEPTH STOP
-
STAR
STAR FOR DISTANCES
-
PROFID
SPACER PROFILE
-

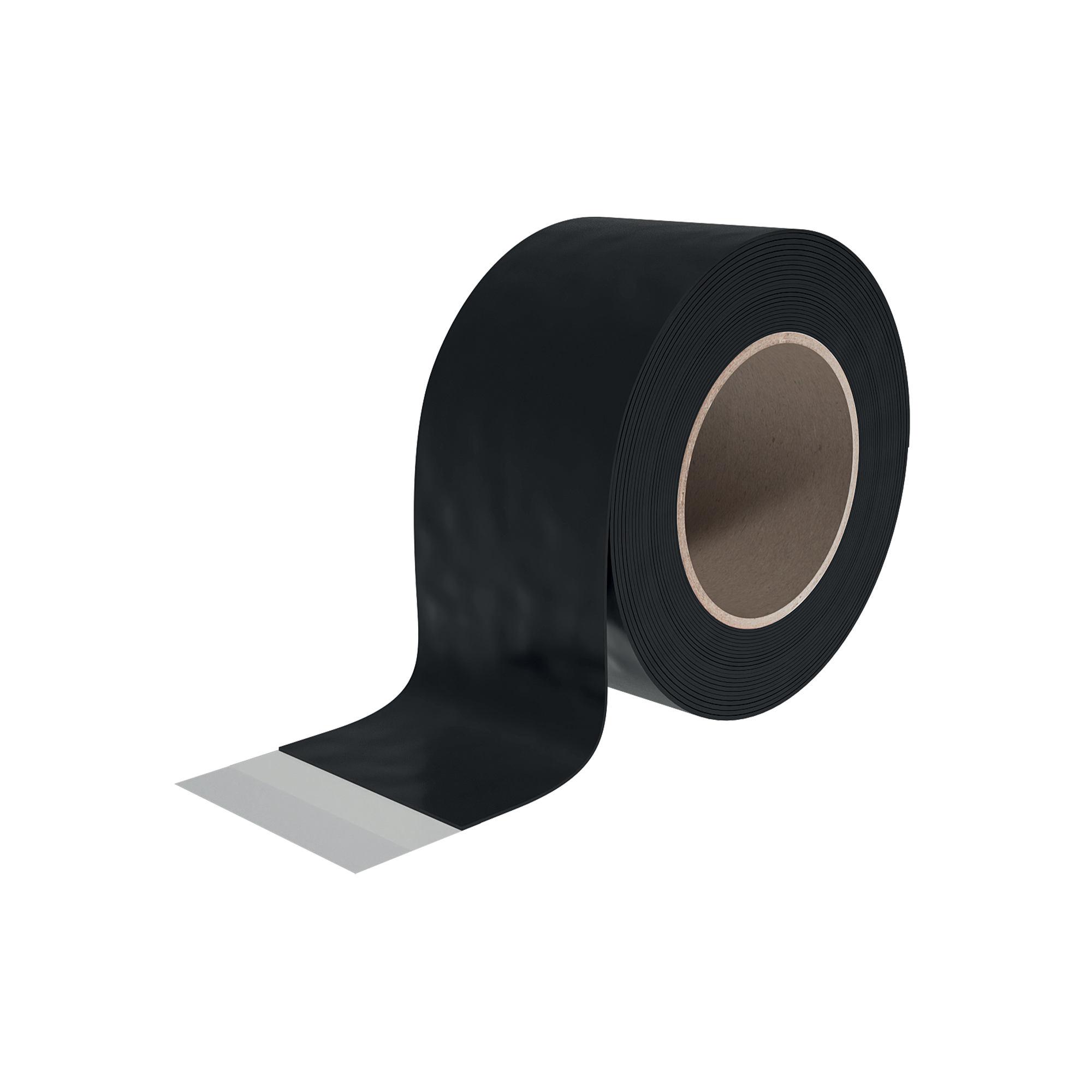

TERRA BAND UV
BUTYL ADHESIVE TAPE
-
GRANULO
GRANULAR RUBBER SUBSTRATE
-
NAG
LEVELING PAD
-

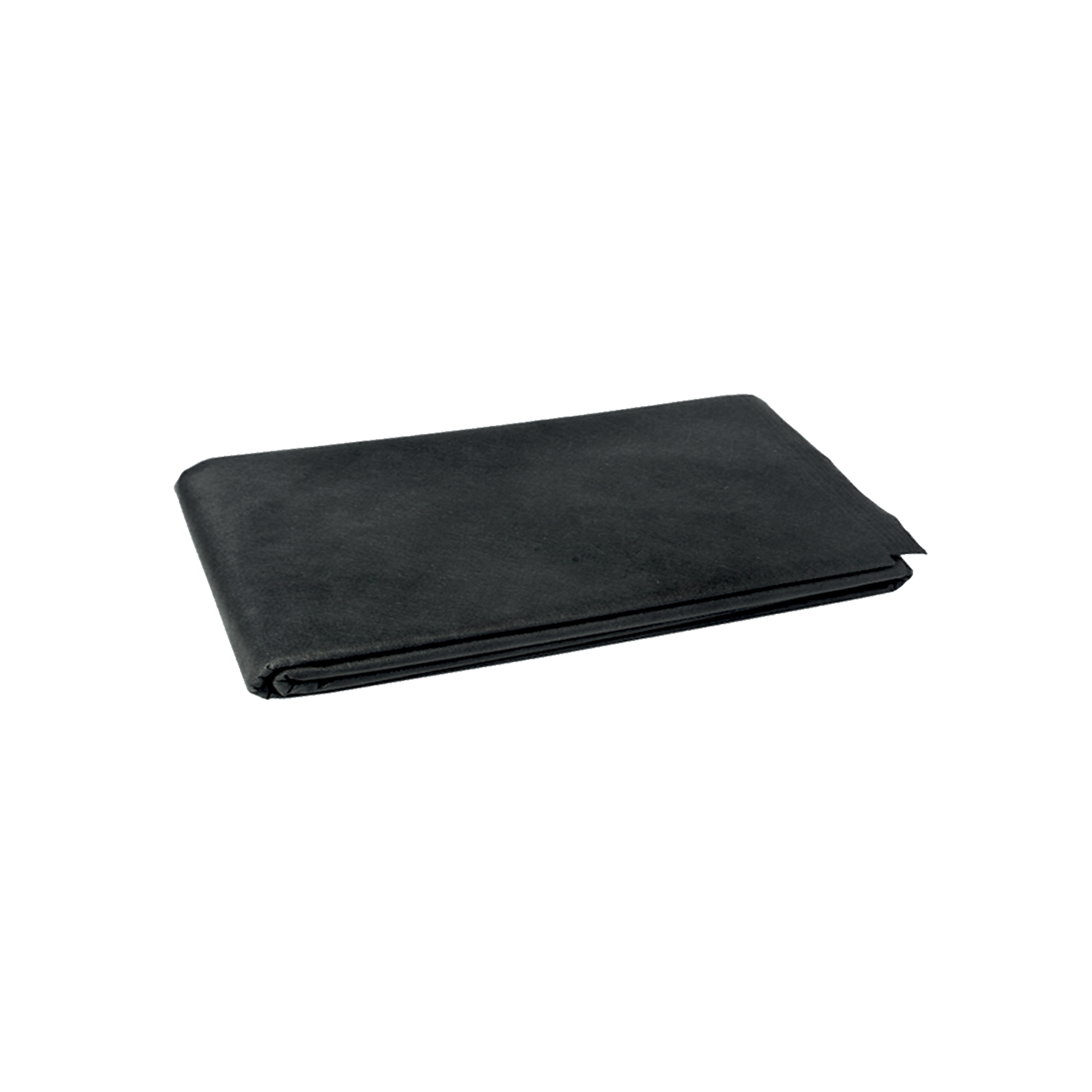

GROUND COVER
ANTI-VEGETATION TARP FOR SUBSTRATES
-
JFA
ADJUSTABLE SUPPORT FOR TERRACES
-
SUPPORT
ADJUSTABLE SUPPORT FOR TERRACES
-
A 18 | ASB 18
CORDLESS DRILL
-

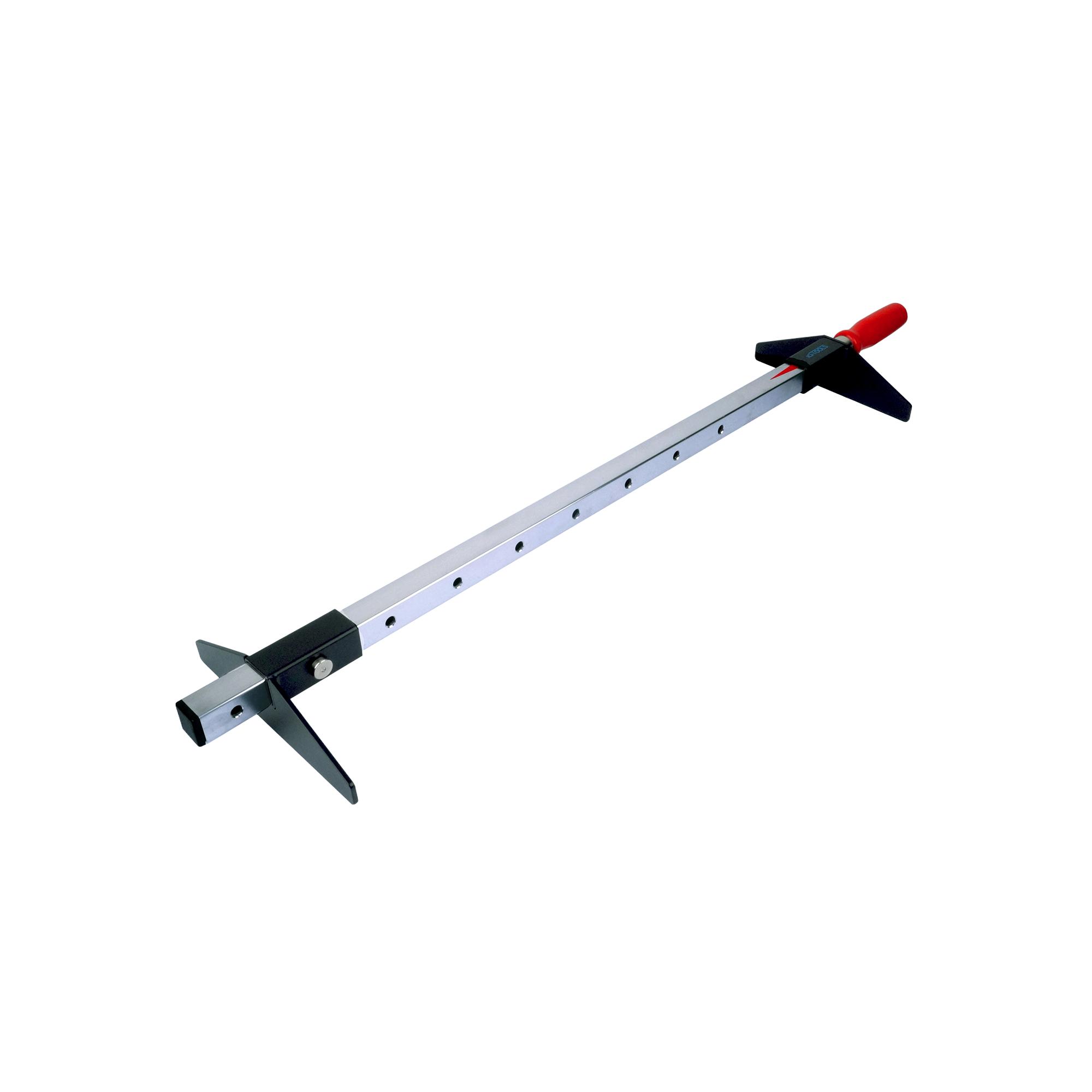

CRAB MAXI
