TURNED WASHER
HUS

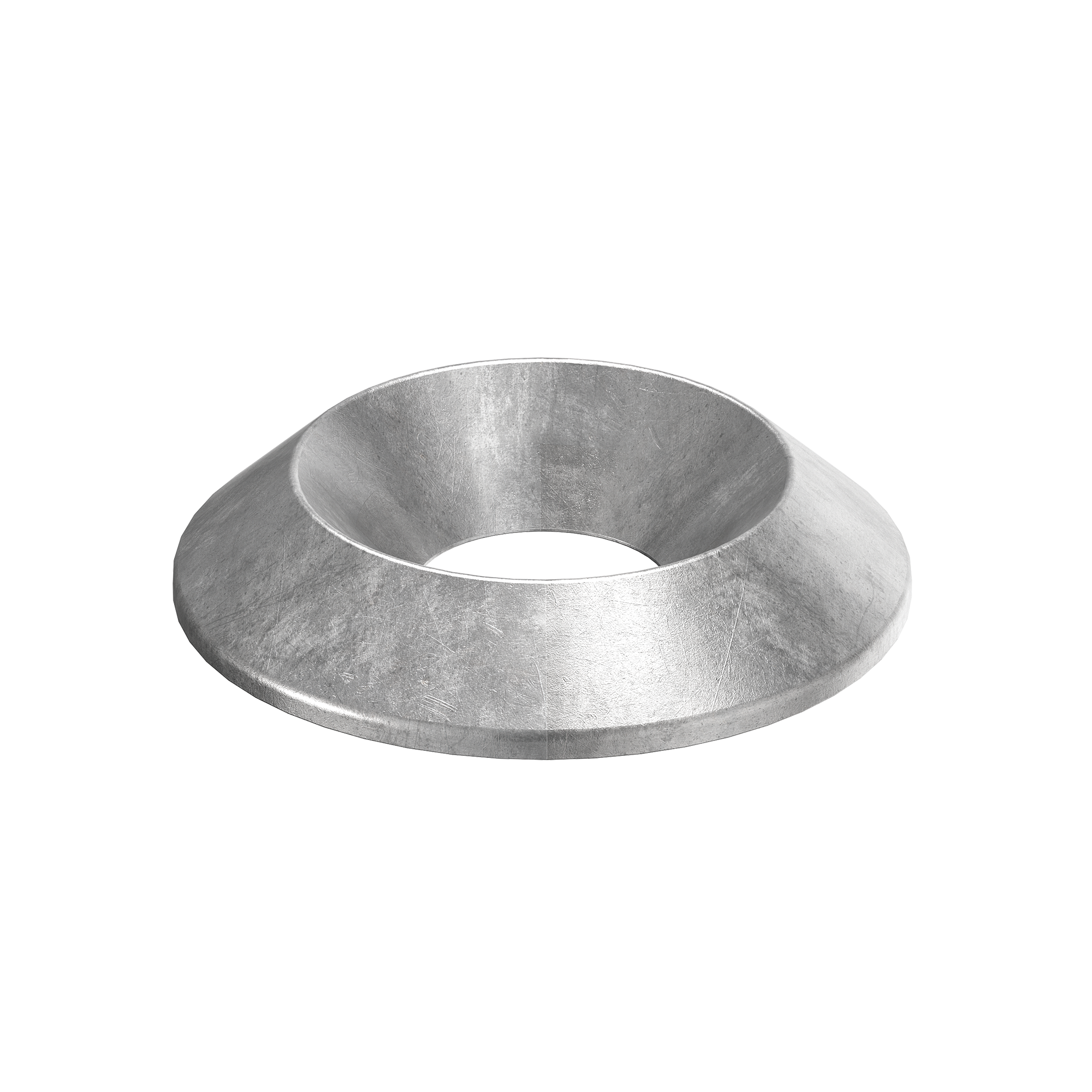

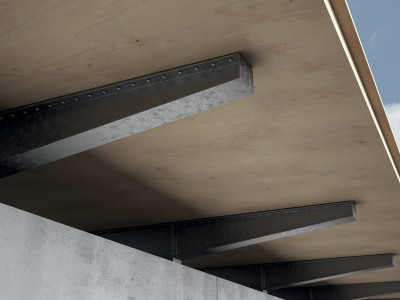

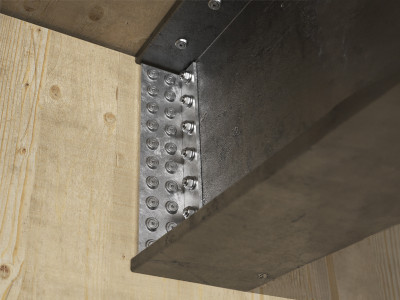

The HUS turned washer is the ideal coupling for countersunk head screws where increased axial strength of the connection is required. It is also excellent for connections on metal plates where holes are too wide.

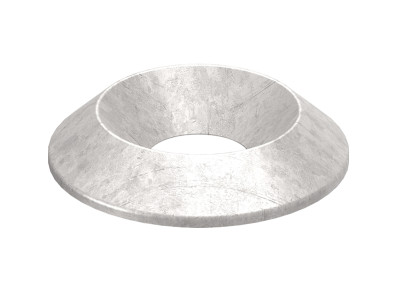

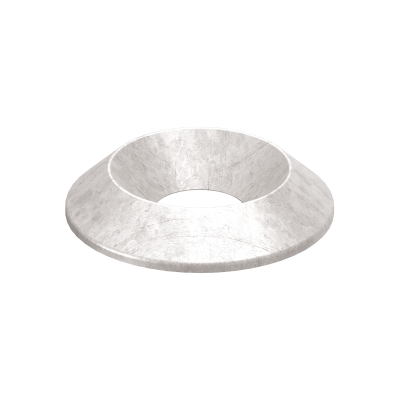

The HUS EVO version combines the improved mechanical performance of the HUS with an upgrading of the washer's corrosion resistance, thanks to the special surface treatment. This allows it to be used in service class 3 and atmospheric corrosion class C4.
Documents
Technical data sheets
|
|
|---|---|
ICC-ES Evaluation report USA
|
|
ICC-ES Listing report CANADA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
HUS
| CODE | version | pcs. |
|---|---|---|
| HUS6 | for screw HBS Ø6 | 100 |
| HUS8 | for screw HBS Ø8 and VGS Ø9 | 50 |
| HUS10 | for screw HBS Ø10 and VGS Ø11 | 50 |
| HUS12 | for screw HBS Ø12 and VGS Ø13 | 25 |

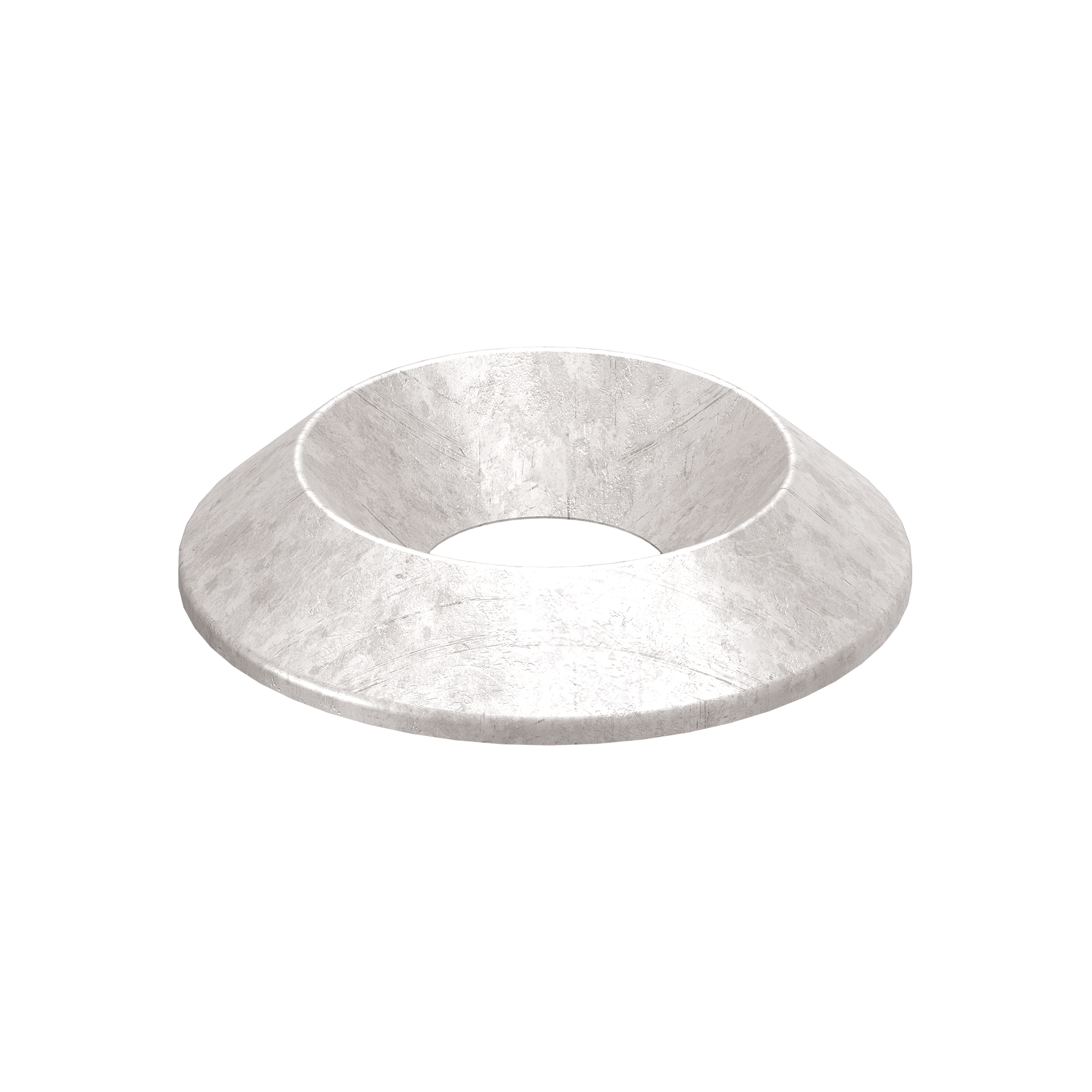

HUS EVO
| CODE | version | pcs. |
|---|---|---|
| HUSEVO6 | for screw HBS EVO Ø6 | 100 |
| HUSEVO8 | for screw HBS EVO Ø8 and VGS EVO Ø9 | 50 |

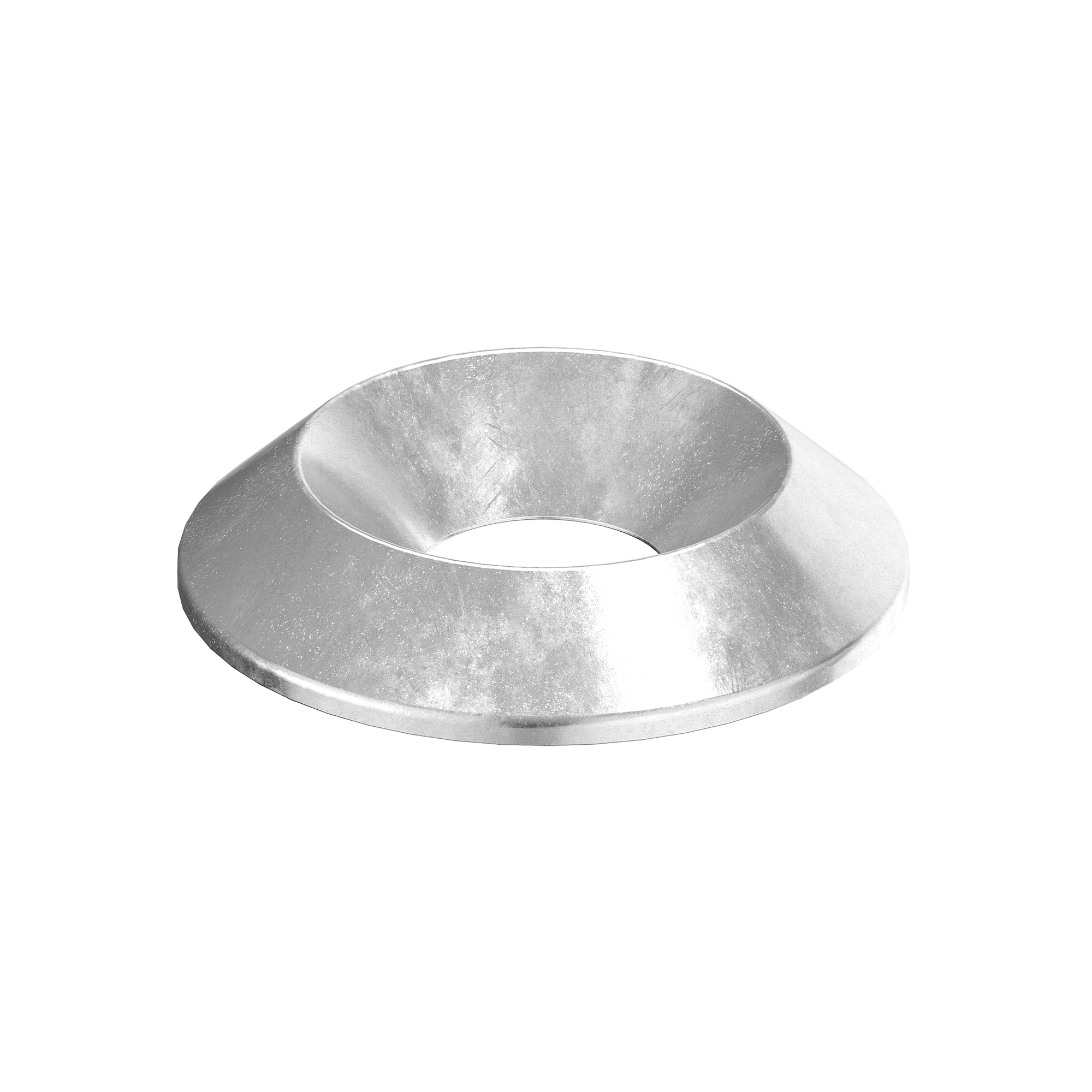

HUS A4
| CODE | version | pcs. |
|---|---|---|
| HUS6A4 | for screw SCI Ø6 | 100 |
| HUS8A4 | for screw SCI Ø8 and VGS A4 Ø9 | 100 |
| HUS10A4 | for screw VGS A4 Ø11 | 50 |

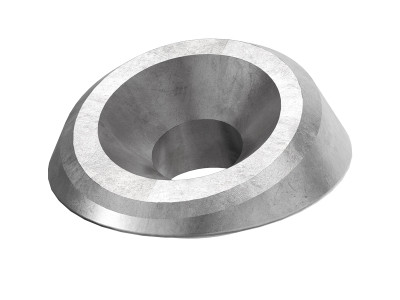

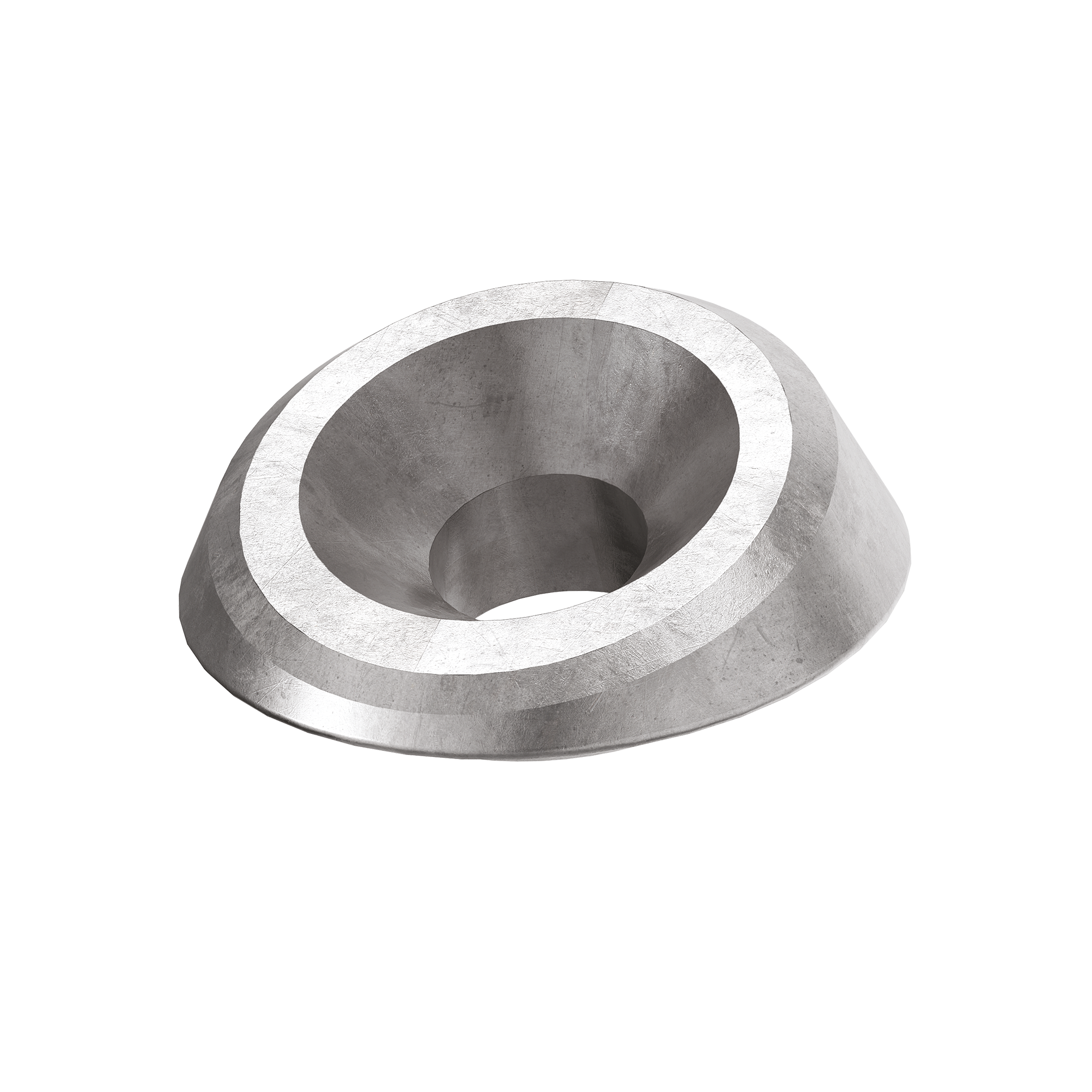

HUS 15°
| CODE | description | version | pcs. |
|---|---|---|---|
| HUS815 | not available in Germany (nicht erhältlich in Deutschland) | for screw HBS Ø8 and VGS Ø9 | 50 |
HUS 15° DE
| CODE | version | pcs. | |
|---|---|---|---|
| HUS815DE | New | for screw HBS Ø8 and VGS Ø9 | 50 |
HUS BAND
| CODE | measures
[mm]
|
pcs. |
|---|---|---|
| HUSBAND | d int = 22 | d dext = 30 | 50 |
