COUNTERSUNK SCREW

HBS SOFTWOOD

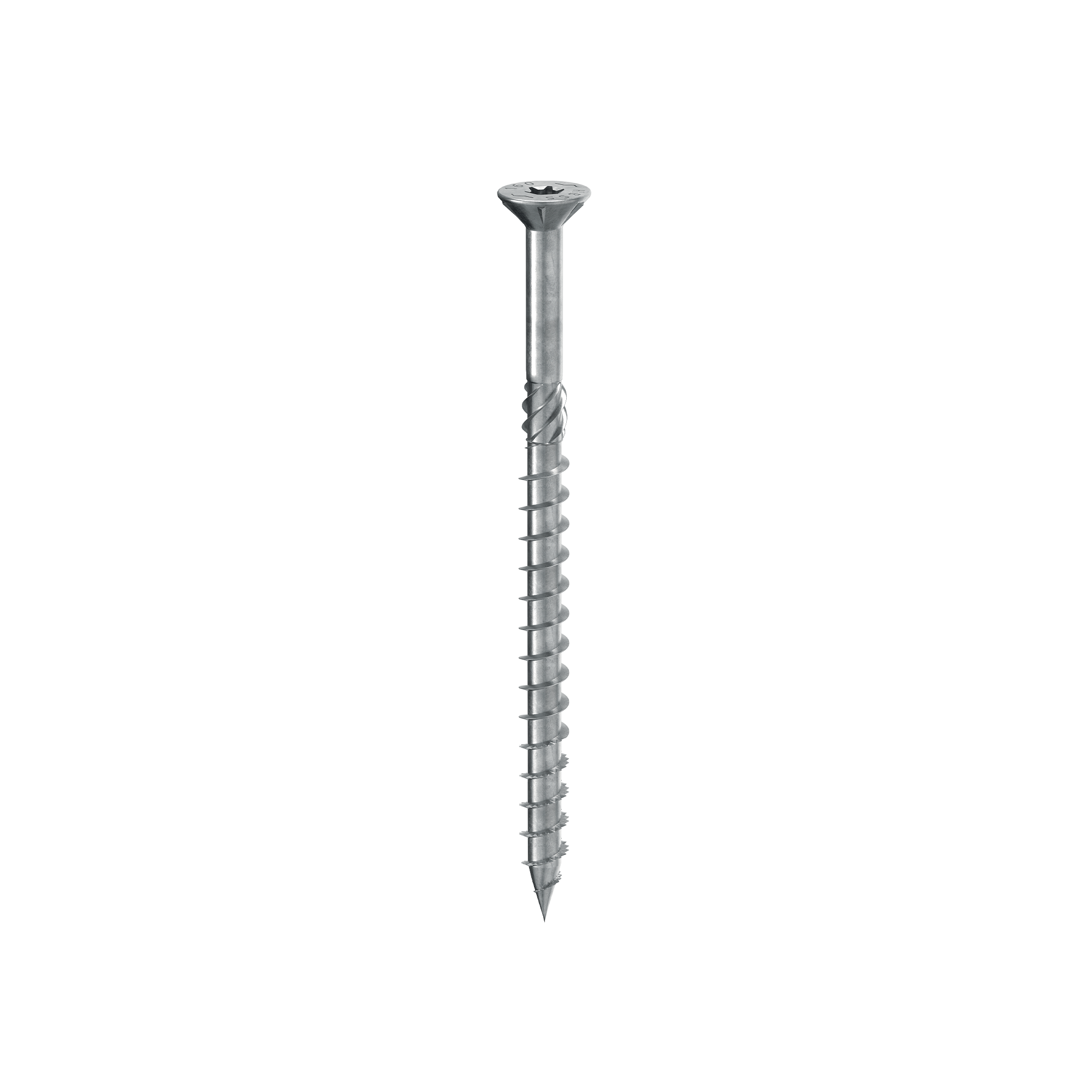

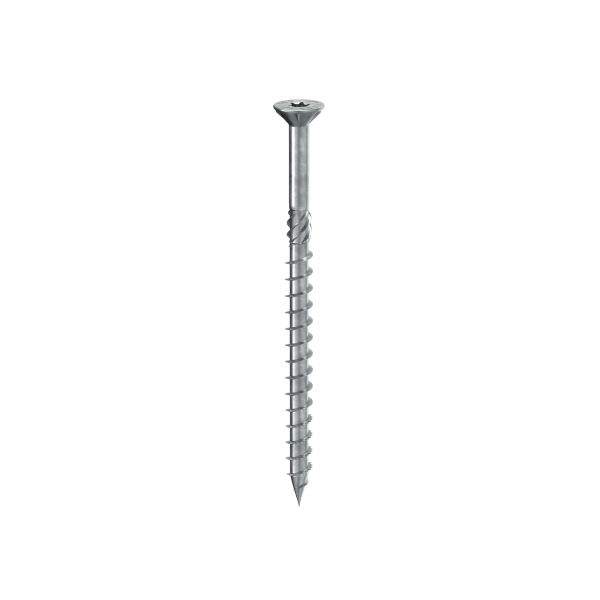

HBS SOFTWOOD is the screw for soft woods with special self-perforating tip and serrated thread (SAW tip) that cuts the timber fibres, facilitating initial grip and subsequent penetration.

countersunk-screw-hbs-softwood
  • countersunk-screw-hbs-softwood
  • application-countersunk-screw-hbs-softwood
  • application-countersunk-screw-hbs-softwood
  • application-countersunk-screw-hbs-softwood
EN 14592
zinc-plated
t2

HBS SOFTWOOD wood screws: quick grip, quality guaranteed.

The fast initial grip of the HBS SOFTWOOD wood screws makes it possible to create secure structural connections in all assembly conditions.

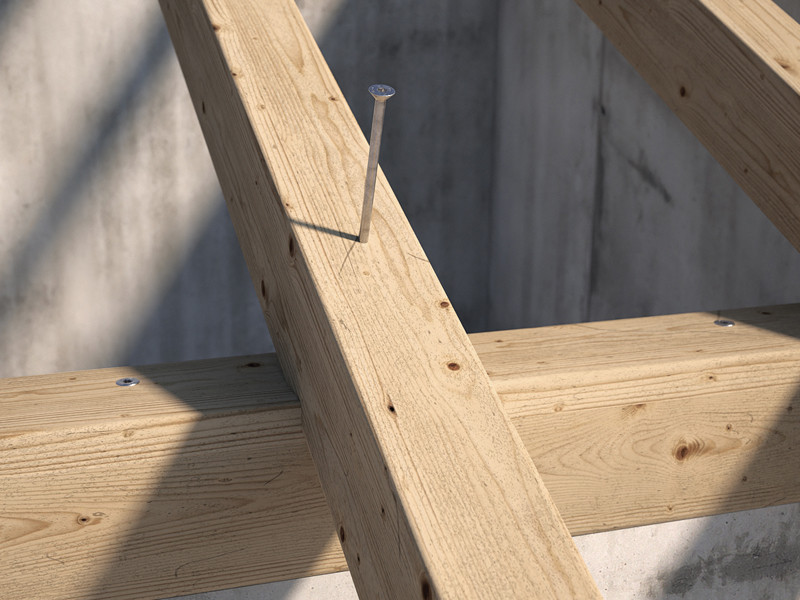

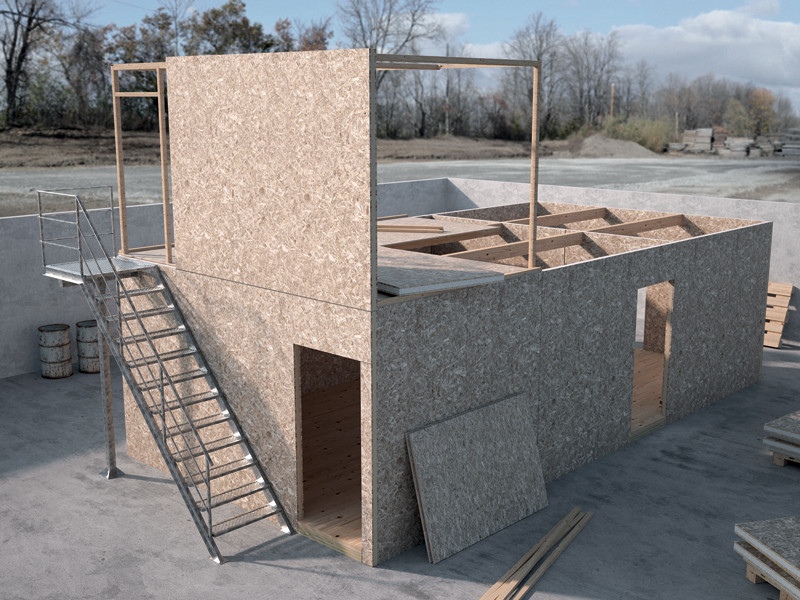

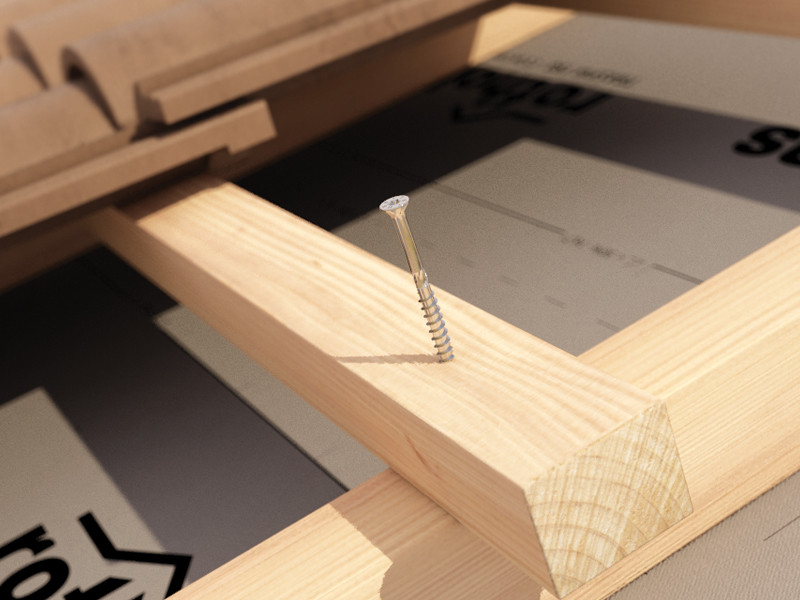

The length of the thread ensures superb joint closure and great versatility. In carbon steel with bright zinc plated, they are ideal for use with solid timber, glulam, wood-based panels, fibre board and MDF panels, CLT and LVL. Service classes 1 and 2.

Total absence of hexavalent chromium, in compliance with the strictest regulations governing chemical substances (SVHC).

REACH information available.

Find the nearest agent Download the catalogue

Features

FOCUS long thread
HEAD countersunk with under-head ribs
DIAMETER from 5,0 mm to 8,0 mm
LENGTH from 50 mm to 400 mm

Documents

Technical data sheets
Technical data sheets USA
Declaration of performance (DOP) Download
File CAD
Find the nearest agent Download the catalogue

HBS SOFTWOOD

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSS550 - 5 50 30 0.2 1 15/16'' 1 3/16'' TX25 200
HBSS560 - 5 60 35 0.2 2 3/8'' 1 3/8'' TX25 200
HBSS570 - 5 70 40 0.2 2 3/4'' 1 9/16'' TX25 200
HBSS580 - 5 80 50 0.2 3 1/8'' 1 15/16'' TX25 100
HBSS5100 - 5 100 60 0.2 4'' 2 3/8'' TX25 100
HBSS5120 - 5 120 60 0.2 4 3/4'' 2 3/8'' TX25 100
HBSS660 - 6 60 35 0.24 2 3/8'' 1 3/8'' TX30 100
HBSS670 - 6 70 40 0.24 2 3/4'' 1 9/16'' TX30 100
HBSS680 - 6 80 50 0.24 3 1/8'' 1 15/16'' TX30 100
HBSS690 - 6 90 55 0.24 3 1/2'' 2 3/16'' TX30 100
HBSS6100 - 6 100 60 0.24 4'' 2 3/8'' TX30 100
HBSS6120 - 6 120 75 0.24 4 3/4'' 2 15/16'' TX30 100
HBSS6140 - 6 140 80 0.24 5 1/2'' 3 1/8'' TX30 100
HBSS6160 - 6 160 90 0.24 6 1/4'' 3 1/2'' TX30 100
HBSS6180 - 6 180 100 0.24 7 1/8'' 4'' TX30 100
HBSS6200 - 6 200 100 0.24 8'' 4'' TX30 100
HBSS6220 - 6 220 100 0.24 8 5/8'' 4'' TX30 100
HBSS6240 - 6 240 100 0.24 9 1/2'' 4'' TX30 100
HBSS6260 - 6 260 100 0.24 10 1/4'' 4'' TX30 100
HBSS6280 - 6 280 100 0.24 11'' 4'' TX30 100
HBSS6300 - 6 300 100 0.24 11 3/4'' 4'' TX30 100
HBSS880 - 8 80 52 0.32 3 1/8'' 2 1/16'' TX40 100
HBSS8100 - 8 100 60 0.32 4'' 2 3/8'' TX40 100
HBSS8120 - 8 120 80 0.32 4 3/4'' 3 1/8'' TX40 100
HBSS8140 - 8 140 80 0.32 5 1/2'' 3 1/8'' TX40 100
HBSS8160 - 8 160 90 0.32 6 1/4'' 3 1/2'' TX40 100
HBSS8180 - 8 180 90 0.32 7 1/8'' 3 1/2'' TX40 100
HBSS8200 - 8 200 100 0.32 8'' 4'' TX40 100
HBSS8220 - 8 220 100 0.32 8 5/8'' 4'' TX40 100
HBSS8240 - 8 240 100 0.32 9 1/2'' 4'' TX40 100
HBSS8260 - 8 260 100 0.32 10 1/4'' 4'' TX40 100
HBSS8280 - 8 280 100 0.32 11'' 4'' TX40 100
HBSS8300 - 8 300 100 0.32 11 3/4'' 4'' TX40 100
HBSS8320 - 8 320 100 0.32 12 5/8'' 4'' TX40 100
HBSS8340 - 8 340 100 0.32 13 3/8'' 4'' TX40 100
HBSS8360 - 8 360 100 0.32 14 1/4'' 4'' TX40 100
HBSS8380 - 8 380 100 0.32 15'' 4'' TX40 100
HBSS8400 - 8 400 100 0.32 15 3/4'' 4'' TX40 100
