PAN HEAD SCREW FOR PLATES

HBS PLATE

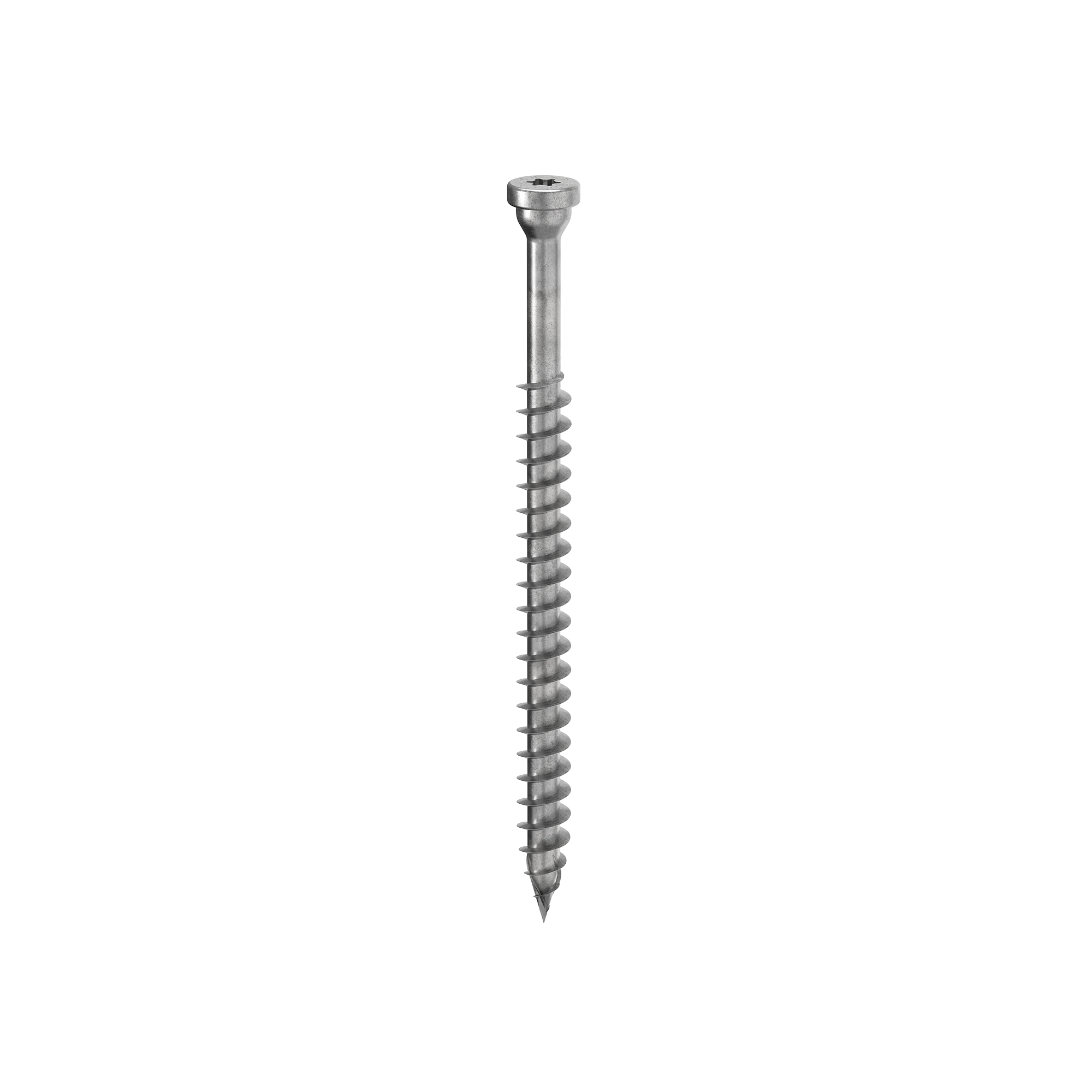

HBS PLATE is the wood screw designed for steel-to-timber joints. The truncated-cone shape and the increased thickness of the head make it possible to fasten metal plates securely to wood. Thanks to the longer thread, it ensures excellent shear and tensile strength values.

pan-head-screw-for-plates-hbs-plate
  • pan-head-screw-for-plates-hbs-plate

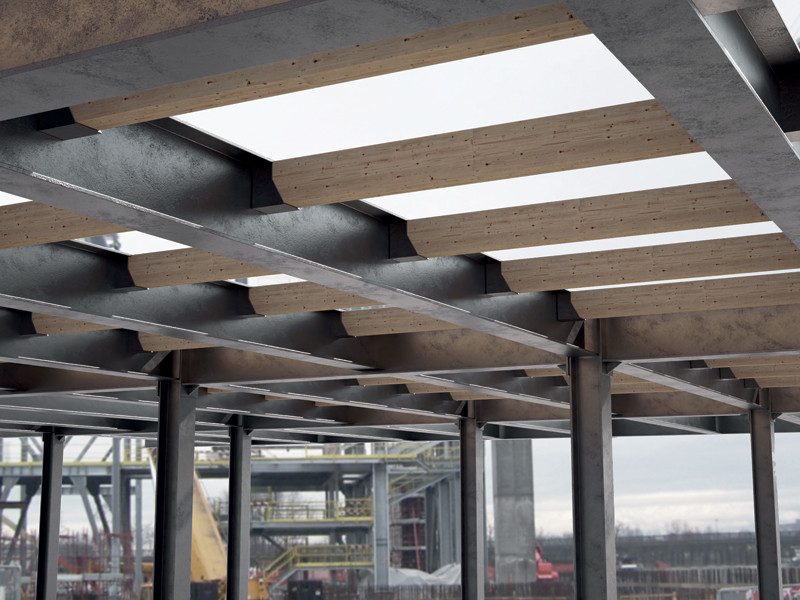

  • application-pan-head-screw-for-plates-hbs-plate

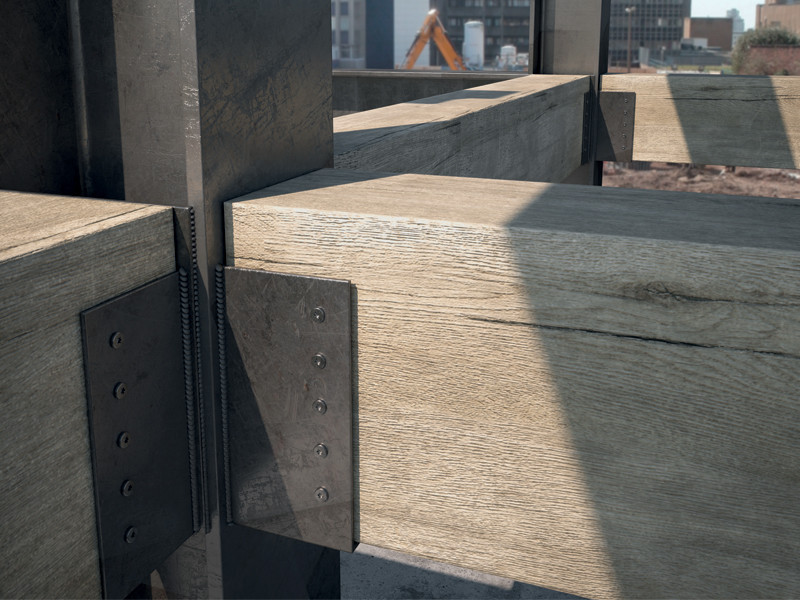

  • application-pan-head-screw-for-plates-hbs-plate

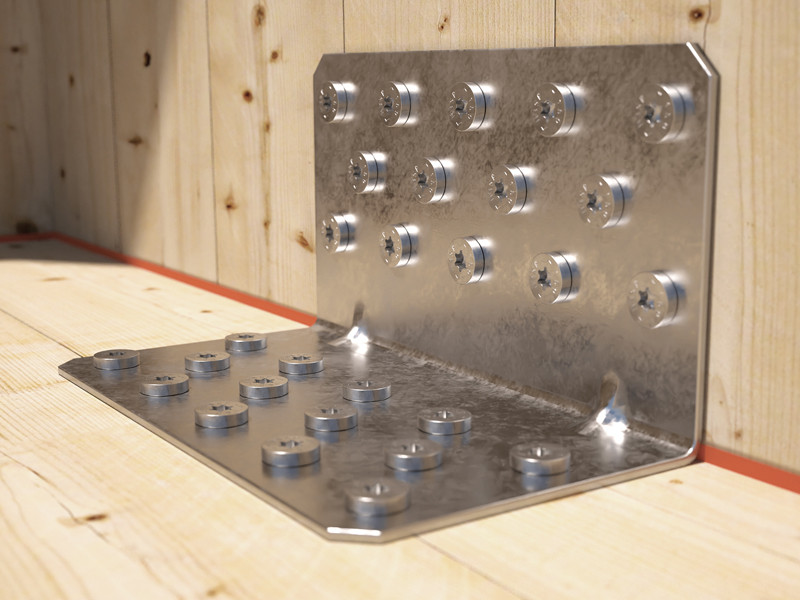

  • application-pan-head-screw-for-plates-hbs-plate
ETA-11/0030
ICC-ES 233
ELC 4645
Missing Title Missing Title
Missing Title
zinc-plated
t2

Rely on HBS PLATE wood screws for fastening metal plates onto timber.

The truncated-cone under-head of HBS PLATE screws achieves an interlocking effect with the circular hole in the plate, guaranteeing excellent static performance. The longer length of the thread makes it possible to obtain excellent shear and tensile strength in steel-to-timber joints, with values higher than normal.

The HBS PLATE wood screw is ideal for steel-to-timber joints in combination with large plates, made to measure for multi-storey wooden buildings. Values are also tested, certified and calculated for fastening standard Rothoblaas plates.

In carbon steel with bright zinc plated, it is excellent for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.

Find the nearest agent Download the catalogue

Features

FOCUS steel to timber joints
HEAD shoulder for plate
DIAMETER from 8,0 mm to 12,0 mm
LENGTH from 80 mm to 200 mm

Documents

Technical data sheets
Minimum Distances Guide
HBS P Technical data sheets 2022
Technical data sheets USA
Technical data sheets CANADA
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File CAD HBS P 2022
File BIM.ifc
File BIM.rfa

Installation manual

Installation Instructions
Find the nearest agent Download the catalogue

HBS PL

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSPL860 - 8 60 52 0.32 2 3/8'' 2 1/16'' TX40 100
HBSPL880 - 8 80 55 0.32 3 1/8'' 2 3/16'' TX40 100
HBSPL8100 - 8 100 75 0.32 4'' 2 15/16'' TX40 100
HBSPL8120 - 8 120 95 0.32 4 3/4'' 3 3/4'' TX40 100
HBSPL8140 - 8 140 110 0.32 5 1/2'' 4 3/8'' TX40 100
HBSPL8160 - 8 160 130 0.32 6 1/4'' 5 1/8'' TX40 100
HBSPL1080 - 10 80 60 0.4 3 1/8'' 2 3/8'' TX40 50
HBSPL10100 - 10 100 75 0.4 4'' 2 15/16'' TX40 50
HBSPL10120 - 10 120 95 0.4 4 3/4'' 3 3/4'' TX40 50
HBSPL10140 - 10 140 110 0.4 5 1/2'' 4 3/8'' TX40 50
HBSPL10160 - 10 160 130 0.4 6 1/4'' 5 1/8'' TX40 50
HBSPL10180 - 10 180 150 0.4 7 1/8'' 6'' TX40 50
HBSPL12100 - 12 100 75 0.48 4'' 2 15/16'' TX50 25
HBSPL12120 - 12 120 90 0.48 4 3/4'' 3 1/2'' TX50 25
HBSPL12140 - 12 140 110 0.48 5 1/2'' 4 3/8'' TX50 25
HBSPL12160 - 12 160 120 0.48 6 1/4'' 4 3/4'' TX50 25
HBSPL12180 - 12 180 140 0.48 7 1/8'' 5 1/2'' TX50 25
HBSPL12200 - 12 200 160 0.48 8'' 6 1/4'' TX50 25

HBS P

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSP860 - 8 60 52 0.32 2 3/8'' 2 1/16'' TX40 100
HBSP8140 - 8 140 110 0.32 5 1/2'' 4 3/8'' TX40 100
HBSP8160 - 8 160 130 0.32 6 1/4'' 5 1/8'' TX40 100
HBSP1080 - 10 80 60 0.4 3 1/8'' 2 3/8'' TX40 50
HBSP10100 - 10 100 75 0.4 4'' 2 15/16'' TX40 50
HBSP10120 - 10 120 95 0.4 4 3/4'' 3 3/4'' TX40 50
HBSP10140 - 10 140 110 0.4 5 1/2'' 4 3/8'' TX40 50
HBSP10180 - 10 180 150 0.4 7 1/8'' 6'' TX40 50
HBSP12120 - 12 120 90 0.48 4 3/4'' 3 1/2'' TX50 25
HBSP12140 - 12 140 110 0.48 5 1/2'' 4 3/8'' TX50 25
HBSP12160 - 12 160 120 0.48 6 1/4'' 4 3/4'' TX50 25
HBSP12180 - 12 180 140 0.48 7 1/8'' 5 1/2'' TX50 25
HBSP12200 - 12 200 160 0.48 8'' 6 1/4'' TX50 25
