COUNTERSUNK SCREW

HBS

HBS is the queen of wood screws. Certified for structural applications, it has a high wood penetration capacity and superior seismic performance.

The extremely broad range includes a myriad of diameters and lengths.

countersunk-screw-hbs
  • countersunk-screw-hbs

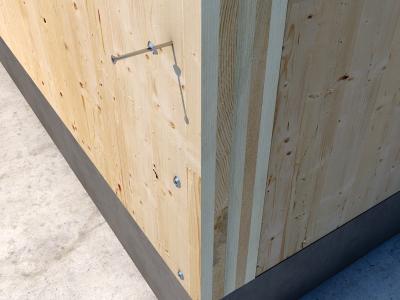

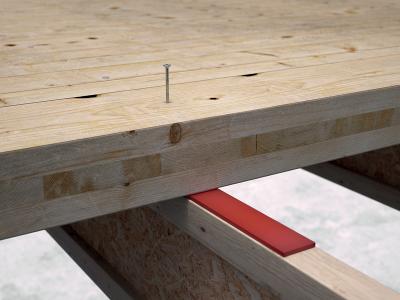

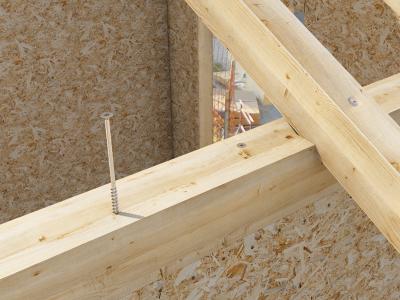

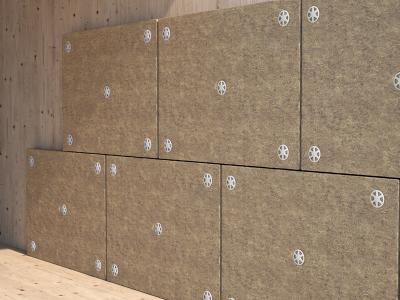

  • application-countersunk-screw-hbs
  • application-countersunk-screw-hbs
  • application-countersunk-screw-hbs
  • application-countersunk-screw-hbs
  • application-countersunk-screw-hbs
ETA-11/0030
UKCA 1
ICC-ES 233
ELC 4645
CBL 1
Missing Title
Missing Title
zinc-plated
t2

Among wood screws, choose HBS, the carpentry screw synonymous with guaranteed quality and completeness of range.

Its superior strength makes HBS the preferred torx screw among carpenters.

In carbon steel with bright zinc plated, it is designed for use with solid timber, glulam (Glued Laminated Timber), wood-based panels and high-density woods.

The values are tested, certified and calculated also for application on CLT, Microllam® LVL panels and high-density woods.

The asymmetric “umbrella” threading ensures better wood pull-through. The excellent resistance to failure and yielding of the steel (fy,k = 1000 N/mm2) and its very high torsional strength (ftor,k) make it extremely safe in the screwing stage.

Versatile, its bending angle is 20° greater than standard, certified according to ETA 11/0030. Cyclical SEISMIC-REV tests carried out according to the EN 12512 standard. Seismic performance tested according to EN 14592 standard.

HBS is approved for structural applications subject to stresses in any direction vs. the grain (α = 0° - 90°).

HBS wood screws are applicable in service classes 1 and 2.

They contain no traces of hexavalent chromium and are compliant with the strictest standards governing chemical substances (SVHC).

REACH information is available.

Find the nearest agent Download the catalogue

Features

FOCUS extremely complete range
HEAD countersunk with under-head ribs
DIAMETER from 3,5 mm to 12,0 mm
LENGTH from 30 mm to 600 mm

Documents

Technical data sheets
Minimum Distances Guide
Technical data sheets USA
Technical data sheets CANADA
Technical data sheets JAPAN
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
Item specification
Timber connections with Xylofon
File CAD
File BIM.ifc
File BIM.rfa
Find the nearest agent Download the catalogue

HBS

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBS3540 - 3.5 40 18 0.14 1 9/16'' 11/16'' TX15 500
HBS3545 - 3.5 45 24 0.14 1 3/4'' 15/16'' TX15 400
HBS3550 - 3.5 50 24 0.14 1 15/16'' 15/16'' TX15 400
HBS430 - 4 30 18 0.16 1 3/16'' 11/16'' TX20 500
HBS435 - 4 35 18 0.16 1 3/8'' 11/16'' TX20 500
HBS440 - 4 40 24 0.16 1 9/16'' 15/16'' TX20 500
HBS445 - 4 45 30 0.16 1 3/4'' 1 3/16'' TX20 400
HBS450 - 4 50 30 0.16 1 15/16'' 1 3/16'' TX20 400
HBS460 - 4 60 35 0.16 2 3/8'' 1 3/8'' TX20 200
HBS470 - 4 70 40 0.16 2 3/4'' 1 9/16'' TX20 200
HBS480 - 4 80 40 0.16 3 1/8'' 1 9/16'' TX20 200
HBS4540 - 4.5 40 24 0.18 1 9/16'' 15/16'' TX20 400
HBS4545 - 4.5 45 30 0.18 1 3/4'' 1 3/16'' TX20 400
HBS4550 - 4.5 50 30 0.18 1 15/16'' 1 3/16'' TX20 200
HBS4560 - 4.5 60 35 0.18 2 3/8'' 1 3/8'' TX20 200
HBS4570 - 4.5 70 40 0.18 2 3/4'' 1 9/16'' TX20 200
HBS4580 - 4.5 80 40 0.18 3 1/8'' 1 9/16'' TX20 200
HBS540 - 5 40 24 0.2 1 9/16'' 15/16'' TX25 200
HBS545 - 5 45 24 0.2 1 3/4'' 15/16'' TX25 200
HBS550 - 5 50 24 0.2 1 15/16'' 15/16'' TX25 200
HBS560 - 5 60 30 0.2 2 3/8'' 1 3/16'' TX25 200
HBS570 - 5 70 35 0.2 2 3/4'' 1 3/8'' TX25 100
HBS580 - 5 80 40 0.2 3 1/8'' 1 9/16'' TX25 100
HBS590 - 5 90 45 0.2 3 1/2'' 1 3/4'' TX25 100
HBS5100 - 5 100 50 0.2 4'' 1 15/16'' TX25 100
HBS5120 - 5 120 60 0.2 4 3/4'' 2 3/8'' TX25 100
HBS640 - 6 40 35 0.24 1 9/16'' 1 3/8'' TX30 100
HBS650 - 6 50 35 0.24 1 15/16'' 1 3/8'' TX30 100
HBS660 - 6 60 30 0.24 2 3/8'' 1 3/16'' TX30 100
HBS670 - 6 70 40 0.24 2 3/4'' 1 9/16'' TX30 100
HBS680 - 6 80 40 0.24 3 1/8'' 1 9/16'' TX30 100
HBS690 - 6 90 50 0.24 3 1/2'' 1 15/16'' TX30 100
HBS6100 - 6 100 50 0.24 4'' 1 15/16'' TX30 100
HBS6110 - 6 110 60 0.24 4 3/8'' 2 3/8'' TX30 100
HBS6120 - 6 120 60 0.24 4 3/4'' 2 3/8'' TX30 100
HBS6130 - 6 130 60 0.24 5 1/8'' 2 3/8'' TX30 100
HBS6140 - 6 140 75 0.24 5 1/2'' 2 15/16'' TX30 100
HBS6150 - 6 150 75 0.24 6'' 2 15/16'' TX30 100
HBS6160 - 6 160 75 0.24 6 1/4'' 2 15/16'' TX30 100
HBS6180 - 6 180 75 0.24 7 1/8'' 2 15/16'' TX30 100
HBS6200 - 6 200 75 0.24 8'' 2 15/16'' TX30 100
HBS6220 - 6 220 75 0.24 8 5/8'' 2 15/16'' TX30 100
HBS6240 - 6 240 75 0.24 9 1/2'' 2 15/16'' TX30 100
HBS6260 - 6 260 75 0.24 10 1/4'' 2 15/16'' TX30 100
HBS6280 - 6 280 75 0.24 11'' 2 15/16'' TX30 100
HBS6300 - 6 300 75 0.24 11 3/4'' 2 15/16'' TX30 100
HBS6320 - 6 320 75 0.24 12 5/8'' 2 15/16'' TX30 100
HBS6340 - 6 340 75 0.24 13 3/8'' 2 15/16'' TX30 100
HBS6360 - 6 360 75 0.24 14 1/4'' 2 15/16'' TX30 100
HBS6380 - 6 380 75 0.24 15'' 2 15/16'' TX30 100
HBS6400 - 6 400 75 0.24 15 3/4'' 2 15/16'' TX30 100
HBS880 - 8 80 52 0.32 3 1/8'' 2 1/16'' TX40 100
HBS8100 - 8 100 52 0.32 4'' 2 1/16'' TX40 100
HBS8120 - 8 120 60 0.32 4 3/4'' 2 3/8'' TX40 100
HBS8140 - 8 140 60 0.32 5 1/2'' 2 3/8'' TX40 100
HBS8160 - 8 160 80 0.32 6 1/4'' 3 1/8'' TX40 100
HBS8180 - 8 180 80 0.32 7 1/8'' 3 1/8'' TX40 100
HBS8200 - 8 200 80 0.32 8'' 3 1/8'' TX40 100
HBS8220 - 8 220 80 0.32 8 5/8'' 3 1/8'' TX40 100
HBS8240 - 8 240 80 0.32 9 1/2'' 3 1/8'' TX40 100
HBS8260 - 8 260 80 0.32 10 1/4'' 3 1/8'' TX40 100
HBS8280 - 8 280 80 0.32 11'' 3 1/8'' TX40 100
HBS8300 - 8 300 100 0.32 11 3/4'' 4'' TX40 100
HBS8320 - 8 320 100 0.32 12 5/8'' 4'' TX40 100
HBS8340 - 8 340 100 0.32 13 3/8'' 4'' TX40 100
HBS8360 - 8 360 100 0.32 14 1/4'' 4'' TX40 100
HBS8380 - 8 380 100 0.32 15'' 4'' TX40 100
HBS8400 - 8 400 100 0.32 15 3/4'' 4'' TX40 100
HBS8440 - 8 440 100 0.32 17 1/4'' 4'' TX40 100
HBS8480 - 8 480 100 0.32 19'' 4'' TX40 100
HBS8520 - 8 520 100 0.32 20 1/2'' 4'' TX40 100
HBS8560 - 8 560 100 0.32 22'' 4'' TX40 100
HBS8580 - 8 580 100 0.32 22 13/16'' 4'' TX40 100
HBS8600 - 8 600 100 0.32 23 5/8'' 4'' TX40 100
HBS1080 - 10 80 52 0.4 3 1/8'' 2 1/16'' TX40 50
HBS10100 - 10 100 52 0.4 4'' 2 1/16'' TX40 50
HBS10120 - 10 120 60 0.4 4 3/4'' 2 3/8'' TX40 50
HBS10140 - 10 140 60 0.4 5 1/2'' 2 3/8'' TX40 50
HBS10160 - 10 160 80 0.4 6 1/4'' 3 1/8'' TX40 50
HBS10180 - 10 180 80 0.4 7 1/8'' 3 1/8'' TX40 50
HBS10200 - 10 200 80 0.4 8'' 3 1/8'' TX40 50
HBS10220 - 10 220 80 0.4 8 5/8'' 3 1/8'' TX40 50
HBS10240 - 10 240 80 0.4 9 1/2'' 3 1/8'' TX40 50
HBS10260 - 10 260 80 0.4 10 1/4'' 3 1/8'' TX40 50
HBS10280 - 10 280 80 0.4 11'' 3 1/8'' TX40 50
HBS10300 - 10 300 100 0.4 11 3/4'' 4'' TX40 50
HBS10320 - 10 320 100 0.4 12 5/8'' 4'' TX40 50
HBS10340 - 10 340 100 0.4 13 3/8'' 4'' TX40 50
HBS10360 - 10 360 100 0.4 14 1/4'' 4'' TX40 50
HBS10380 - 10 380 100 0.4 15'' 4'' TX40 50
HBS10400 - 10 400 100 0.4 15 3/4'' 4'' TX40 50
HBS10440 - 10 440 100 0.4 17 1/4'' 4'' TX40 50
HBS10480 - 10 480 100 0.4 19'' 4'' TX40 50
HBS10520 - 10 520 100 0.4 20 1/2'' 4'' TX40 50
HBS10560 - 10 560 100 0.4 22'' 4'' TX40 50
HBS10600 - 10 600 100 0.4 23 5/8'' 4'' TX40 50
HBS12120 - 12 120 80 0.48 4 3/4'' 3 1/8'' TX50 25
HBS12160 - 12 160 80 0.48 6 1/4'' 3 1/8'' TX50 25
HBS12200 - 12 200 80 0.48 8'' 3 1/8'' TX50 25
HBS12240 - 12 240 80 0.48 9 1/2'' 3 1/8'' TX50 25
HBS12280 - 12 280 80 0.48 11'' 3 1/8'' TX50 25
HBS12320 - 12 320 120 0.48 12 5/8'' 4 3/4'' TX50 25
HBS12360 - 12 360 120 0.48 14 1/4'' 4 3/4'' TX50 25
HBS12400 - 12 400 120 0.48 15 3/4'' 4 3/4'' TX50 25
HBS12440 - 12 440 120 0.48 17 1/4'' 4 3/4'' TX50 25
HBS12480 - 12 480 120 0.48 19'' 4 3/4'' TX50 25
HBS12520 - 12 520 120 0.48 20 1/2'' 4 3/4'' TX50 25
HBS12560 - 12 560 120 0.48 22'' 4 3/4'' TX50 25
HBS12600 - 12 600 120 0.48 23 5/8'' 4 3/4'' TX50 25
HBS12700 - 12 700 120 0.48 27 1/2'' 4 3/4'' TX50 25
HBS12800 - 12 800 120 0.48 31 1/2'' 4 3/4'' TX50 25
HBS12900 - 12 900 120 0.48 35 1/2'' 4 3/4'' TX50 25
HBS121000 - 12 1000 120 0.48 39 3/8'' 4 3/4'' TX50 25
