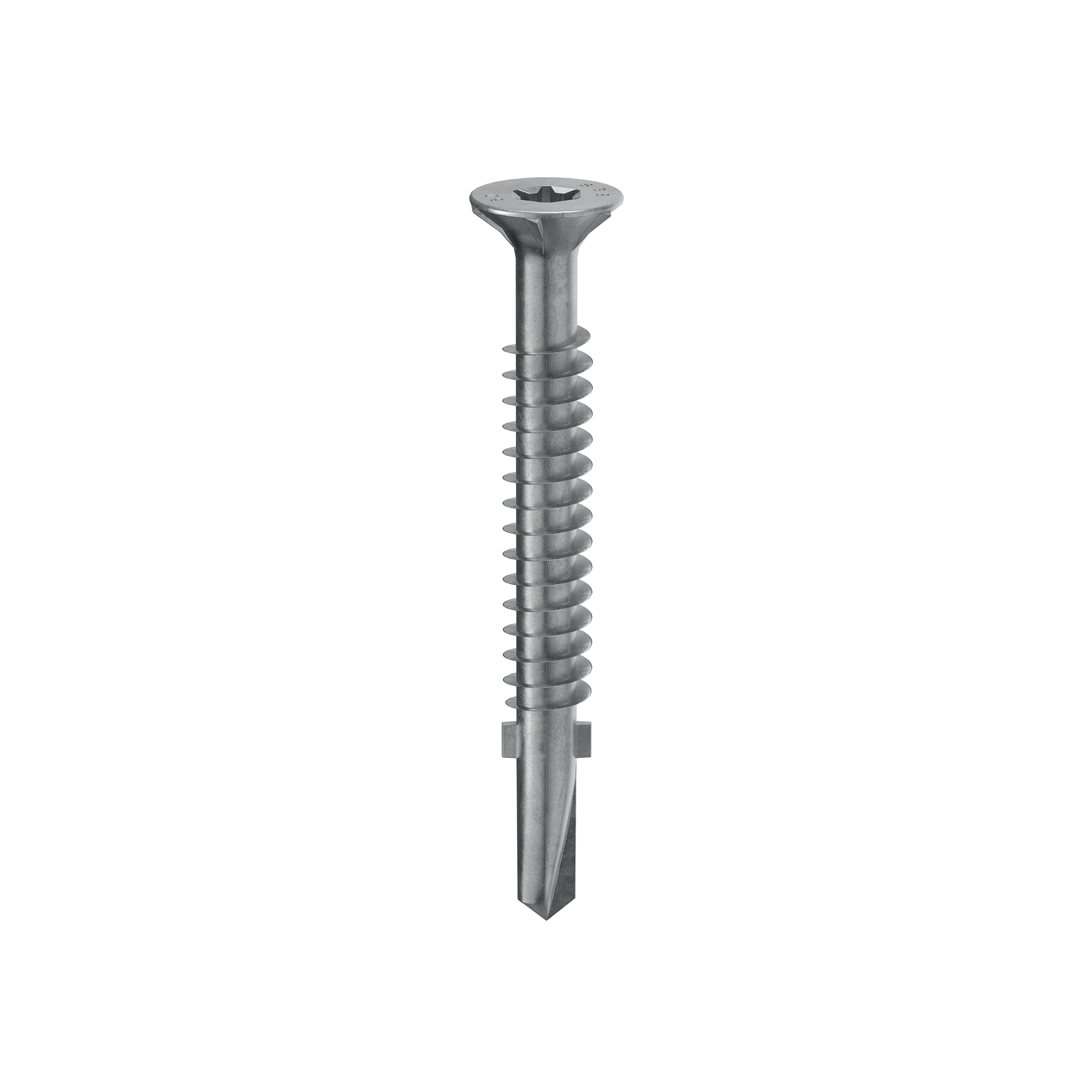

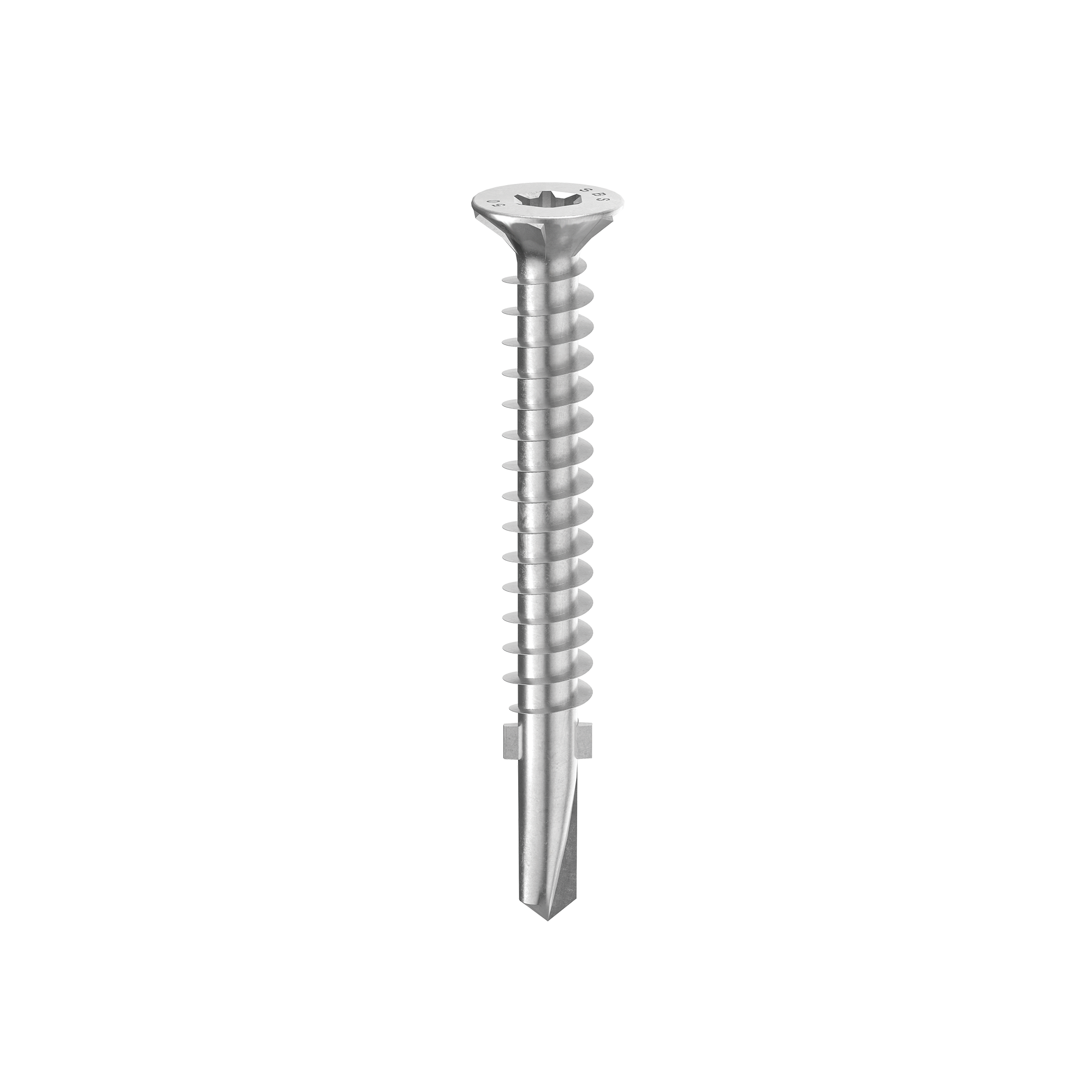

SELF-DRILLING TIMBER-METAL SCREW
SBS
The SBS self-drilling screw is CE marked according to EN 14592. It is the ideal choice for professionals who demand quality, safety and reliable performance in structural timber-to-metal applications.
Special self-perforating tip with bleeder geometry for excellent drilling capacity both in aluminium (thickness: up to 8 mm) and steel (thickness: up to 6 mm).
The fins protect the screw thread during timber pull-through. They guarantee maximum threading efficiency in metal and perfect adhesion between the thickness of the wood and the metal.
Features
| FOCUS | self-perforating tip with protective fins |
|---|---|
| HEAD | countersunk with under-head ribs |
| DIAMETER | from 4,2 mm to 6,3 mm |
| LENGTH | from 32 mm to 240 mm |
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
SBS
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| SBS4232 | - | 4.2 | 32 | 18 | 0.17 | 1 1/4'' | 11/16'' | TX20 | 500 |
| SBS4238 | - | 4.2 | 38 | 19 | 0.17 | 1 1/2'' | 3/4'' | TX20 | 500 |
| SBS4838 | - | 4.8 | 38 | 23 | 0.19 | 1 1/2'' | 7/8'' | TX25 | 200 |
| SBS4845 | - | 4.8 | 45 | 25 | 0.19 | 1 3/4'' | 1'' | TX25 | 200 |
| SBS5545 | - | 5.5 | 45 | 29 | 0.22 | 1 3/4'' | 1 1/8'' | TX30 | 200 |
| SBS5550 | - | 5.5 | 50 | 29 | 0.22 | 1 15/16'' | 1 1/8'' | TX30 | 200 |
| SBS6360 | - | 6.3 | 60 | 35 | 0.25 | 2 3/8'' | 1 3/8'' | TX30 | 100 |
| SBS6370 | - | 6.3 | 70 | 45 | 0.25 | 2 3/4'' | 1 3/4'' | TX30 | 100 |
| SBS6385 | - | 6.3 | 85 | 55 | 0.25 | 3 3/8'' | 2 3/16'' | TX30 | 100 |
| SBS63100 | - | 6.3 | 100 | 55 | 0.25 | 4'' | 2 3/16'' | TX30 | 100 |
