STRUCTURAL REINFORCEMENT SYSTEM
RTR

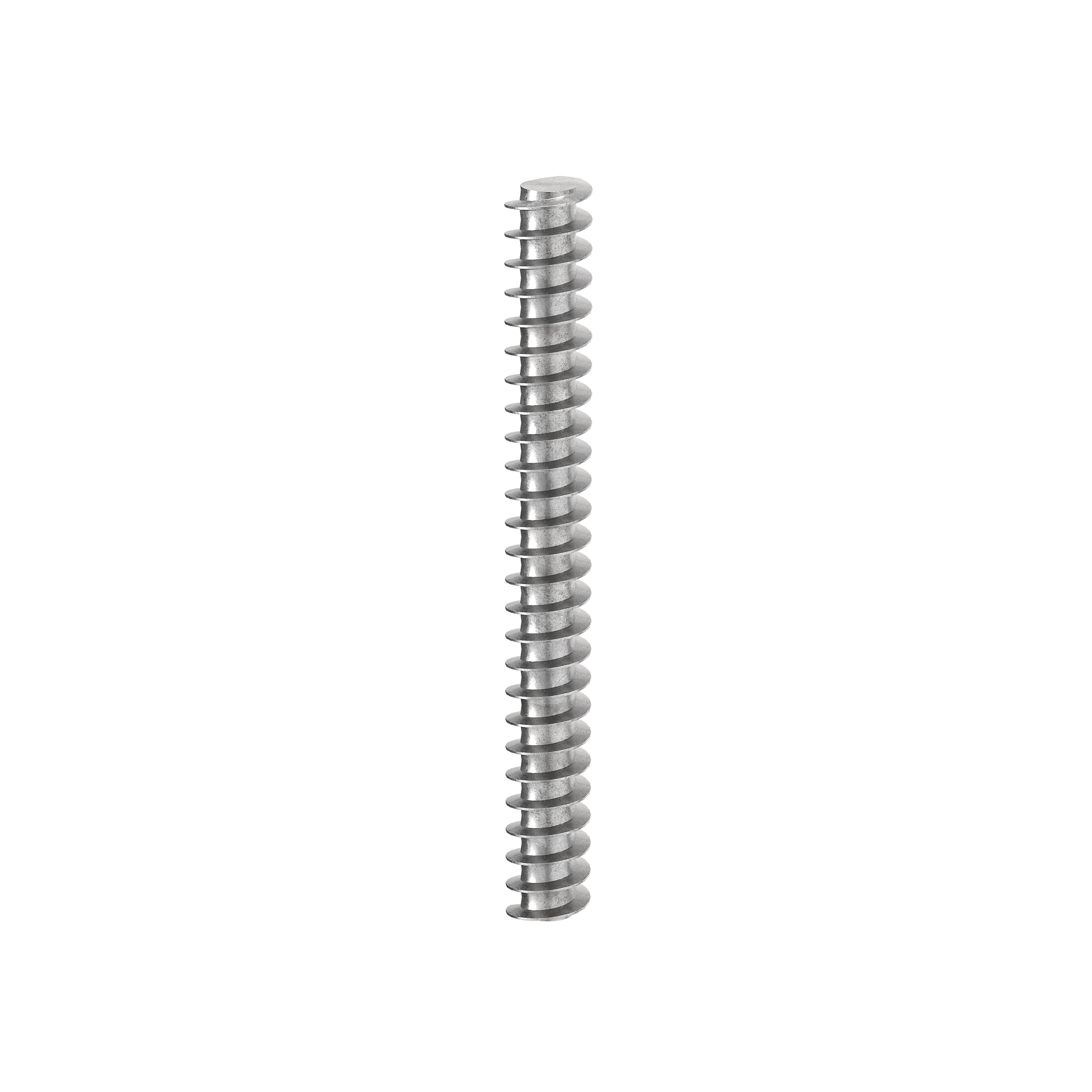

RTR is the structural reinforcement bar with wood thread, CE certified according to ETA 11/0030. The length of the bars allows for fast and secure reinforcements on any size beams.
Videos
For your structural reinforcements, rely on RTR, the CE certified bar with wood thread

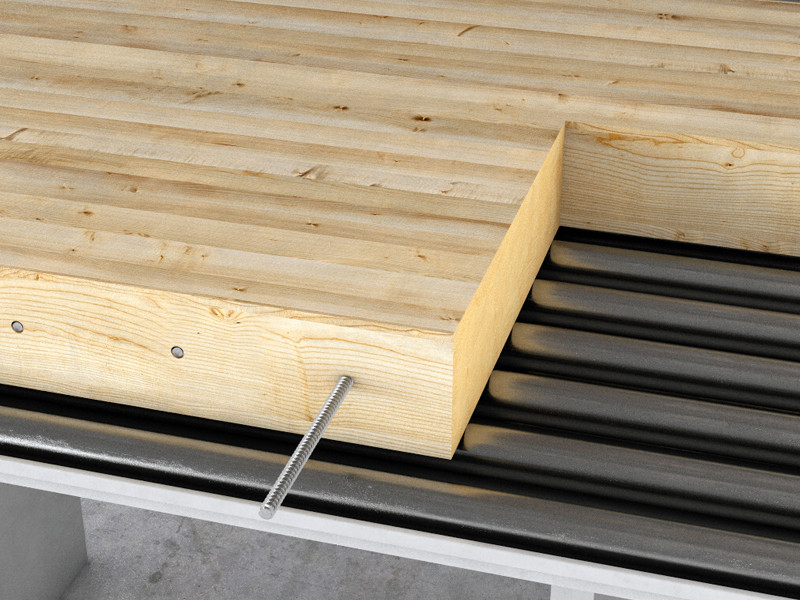

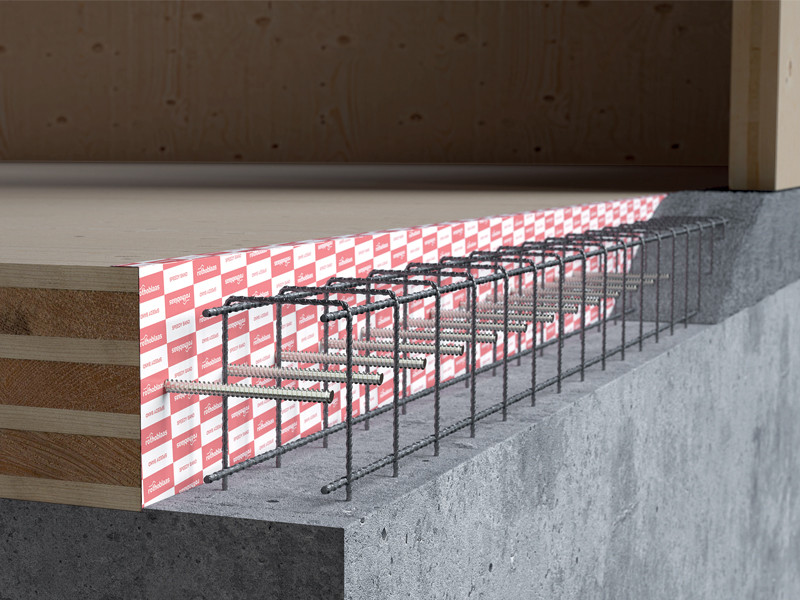

The large RTR reinforcement bar (diameter: 16 mm and 20 mm) with wood thread is a dry system that does not require the use of resin or adhesives. High tensile strength steel (fy,k = 800 N/mm2), ideal for structural reinforcements. Ideal for factory installations.
In carbon steel with bright zinc plated, it is designed for use with wood-based panels, solid timber, glulam, CLT, LVL and high-density woods. Service classes 1 and 2.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
RTR
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
pcs. |
|---|---|---|---|---|---|
| RTR162200 | 16 | 2200 | 0.63 | 86 5/8'' | 10 |
| RTR202200 | 20 | 2200 | 0.79 | 86 5/8'' | 5 |
Specifications
Supply and installation of threaded rod for timber, type RTR
Material:
- Bright zinc plated carbon steel
Geometry:
- Diameter Ø (mm) =
- Length L (mm) =
CE marking in accordance with ETA-11/0030
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
