COUNTERSUNK CYLINDRICAL HEAD SCREW

KKZ A2 | AISI304

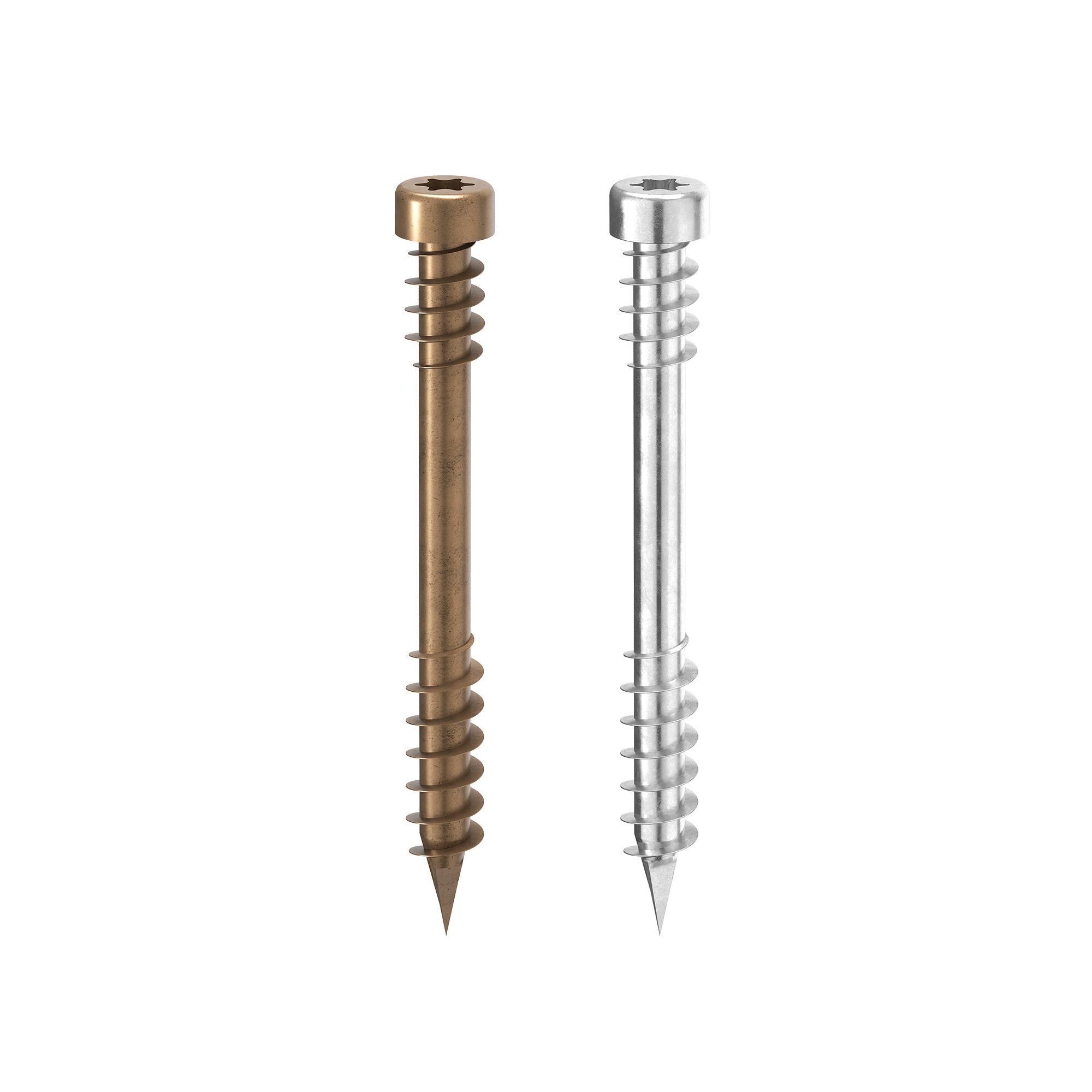

KKZ A2 | AISI304 is the wood screw designed for use in outdoor environments on very hard woods.

Thanks to the special sword tip, it can be used without pre-drilling also on woods with very high density.

KKZ A2 | AISI304, the hardwood screws for outdoor application without pre-drilling.

The special tip with sword-shaped geometry of the KKZ A2 | AISI304 wood screw was specifically designed for drilling into very high density woods without pre-drilling.

With pre-drilling, it is also effective on woods with densities of more than 1000 kg/m3, such as IPE, massaranduba or bamboo Microllam®.

The larger diameter right-hand under-head thread ensures an effective grip, guaranteeing good coupling of the wooden elements.

The concealed head ensures a pleasing appearance. Also available in a version in antique-burnished stainless steel, ideal to guarantee superb camouflaging in the wood.

In A2 | AISI304 austenitic stainless steel, it can be used outdoors in very aggressive environments. Service classes 1, 2 and 3.

Features

FOCUS exceptional hardwood perforation
HEAD cylindrical, countersunk
DIAMETER 5.0 mm
LENGTH from 50 mm to 70 mm

Documents

Technical data sheets
Technical data sheets USA
Declaration of performance (DOP) Download
File CAD

KKZ A2 | AISI304

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
KKZ550 - 5 50 22 0.2 1 15/16'' 7/8'' TX25 200
KKZ560 - 5 60 27 0.2 2 3/8'' 1 1/16'' TX25 200
KKZ570 - 5 70 32 0.2 2 3/4'' 1 1/4'' TX25 100

KKZ BRONZE A2 | AISI304

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
KKZB550 - 5 50 22 0.2 1 15/16'' 7/8'' TX25 200
KKZB560 - 5 60 27 0.2 2 3/8'' 1 1/16'' TX25 200
