SELF-DRILLING SCREW TIMBER-TO-TIMBER | TIMBER-TO-ALUMINIUM

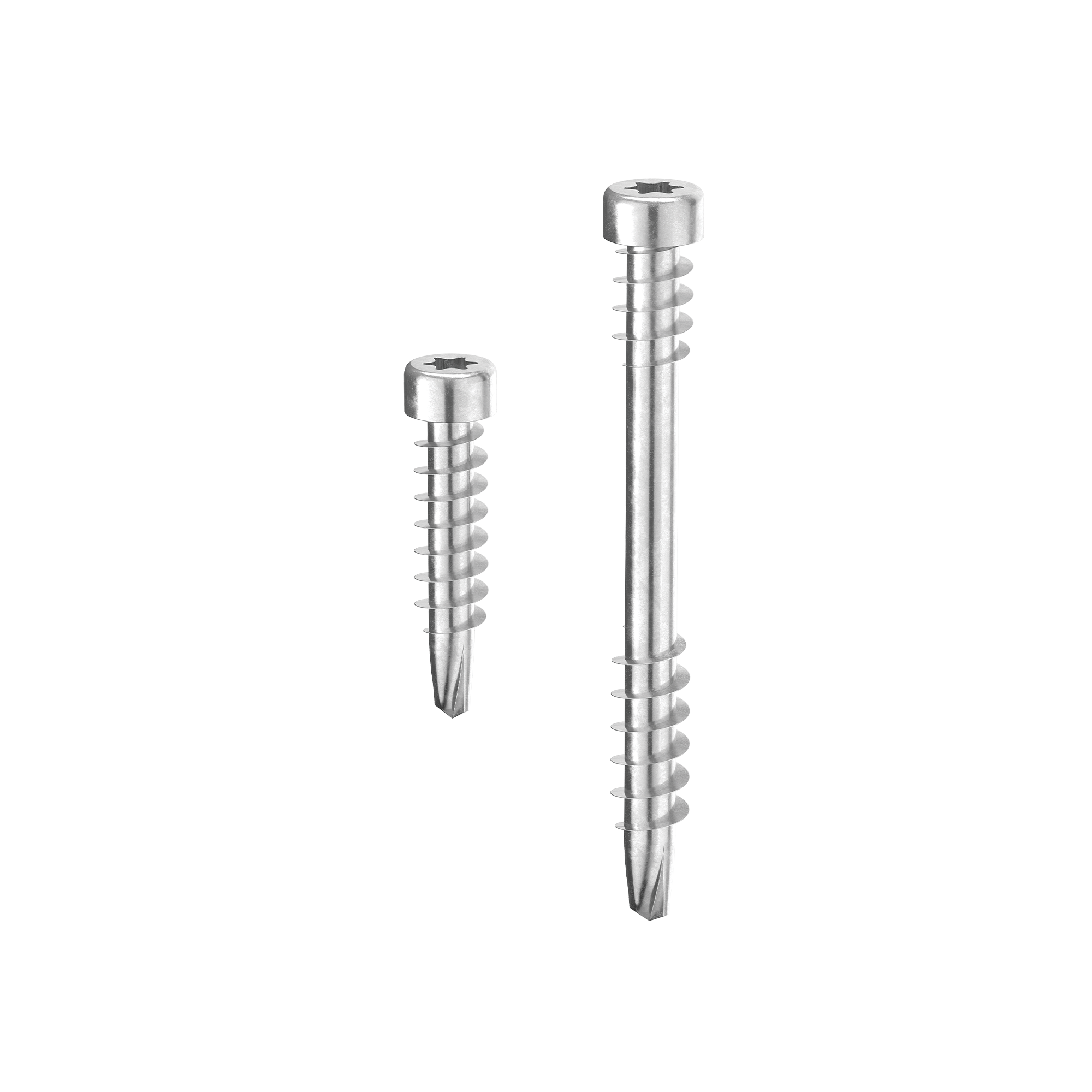

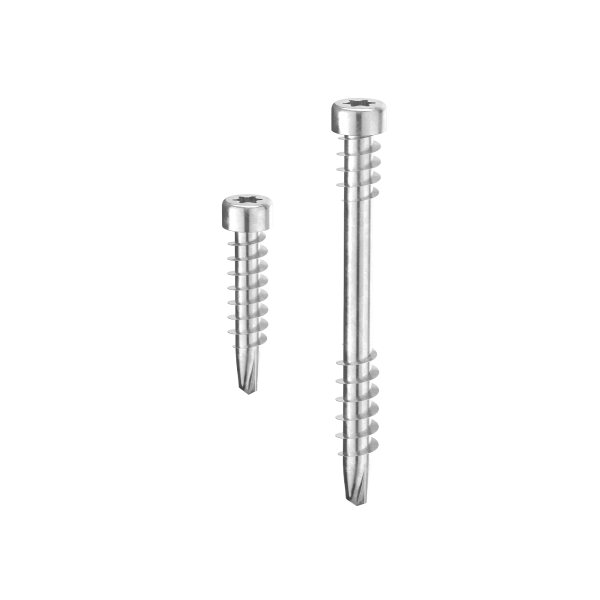

KKA AISI410

KKA AISI410 is the ideal wood screw for fastening wooden boards to timber or aluminium substructures.

Thanks to the special tip, it does not need pre-drilling. In stainless steel, also ensures durability in aggressive environments.

KKA AISI410 wood screws, the timber-aluminium self-drilling screws that are not sensitive to aggressive environments.

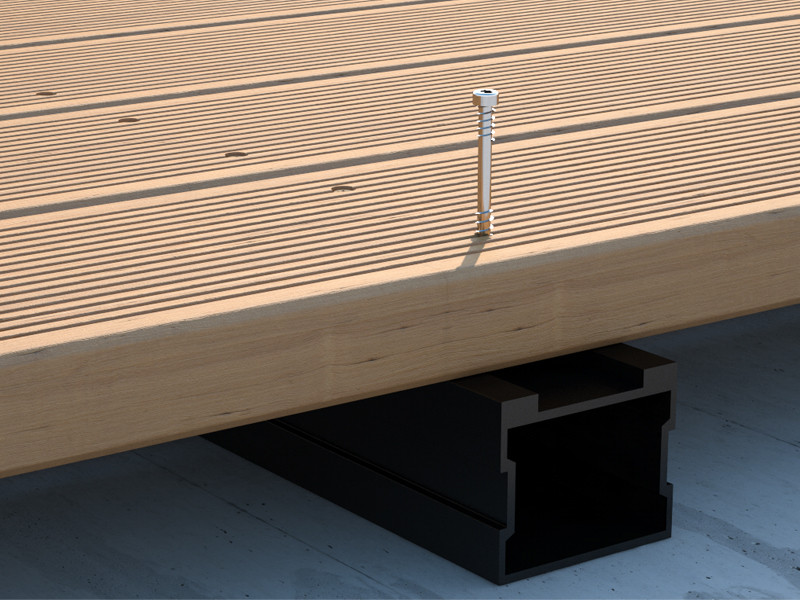

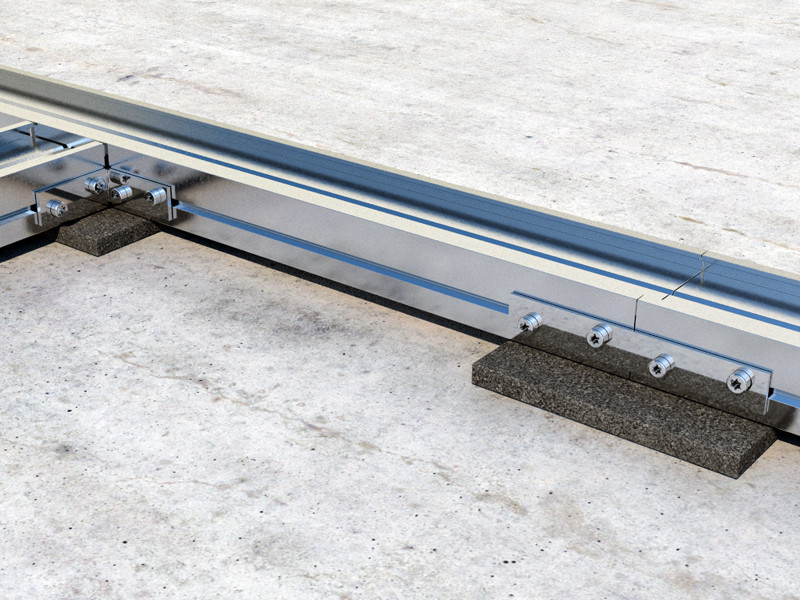

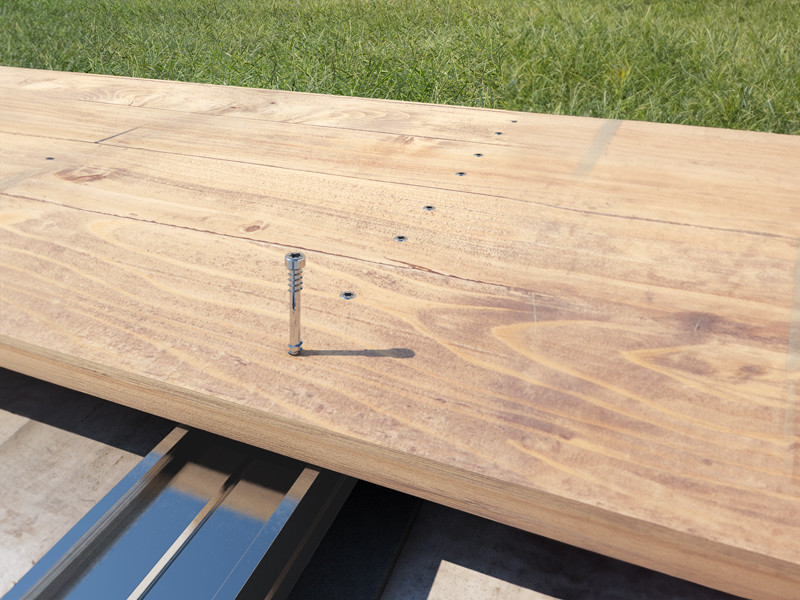

KKA AISI410 features a self-perforating timber-to-metal tip with special bleeder geometry, which makes it the ideal screw for fastening clips, plates, angle brackets, wooden boards and WPC boards to aluminium substructures.

In AISI410 martensitic stainless steel, the KKA AISI410 wood screws are suitable for use in outdoor environments without pre-drilling on wooden boards with a density of less than 880 kg/m3. Service classes 1, 2 and 3.

Features

FOCUS self-drilling, timber-aluminium
HEAD cylindrical, countersunk
DIAMETER 4,0 | 5,0 mm
LENGTH from 20 mm to 50 mm

Documents

Technical data sheets
Technical data sheets USA
File CAD
Calculator Spreadsheet_DeckDesigner

KKA Ø4

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
KKA420 - 4 20 11.4 0.16 13/16'' 7/16'' TX20 200

KKA Ø5

CODE info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX pcs.
KKA540 - 5 40 15.5 0.2 1 9/16'' 5/8'' TX25 100
KKA550 - 5 50 20.5 0.2 1 15/16'' 13/16'' TX25 100
