  4. HBS PLATE EVO

PAN HEAD SCREW

HBS PLATE EVO

The HBS PLATE EVO wood screw is designed for outdoor steel-to-timber joints.

The special coating makes it perfect for applications in service class 3 or with aggressive or chemically treated woods.

pan-head-screw-hbs-plate-evo
  • pan-head-screw-hbs-plate-evo

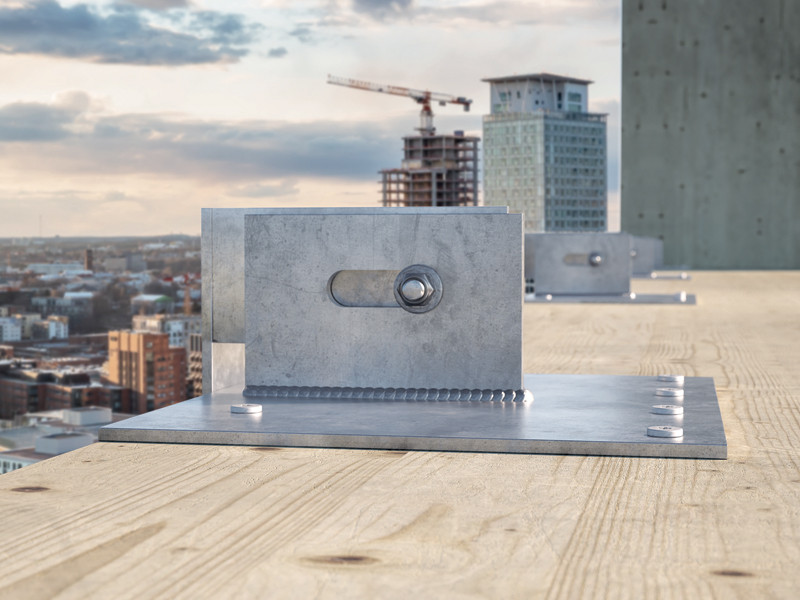

  • application-pan-head-screw-hbs-plate-evo

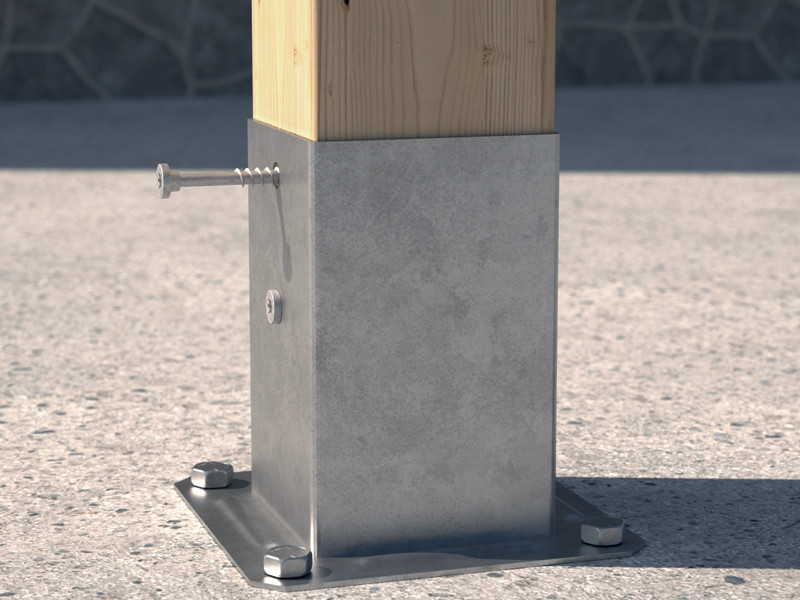

  • application-pan-head-screw-hbs-plate-evo
ETA-11/0030
ICC-ES 233
ELC 4645
Missing Title Missing Title
Missing Title
C4 EVO

HBS PLATE EVO, the wood screw for fastening metal plates that is not sensitive to aggressive environments.

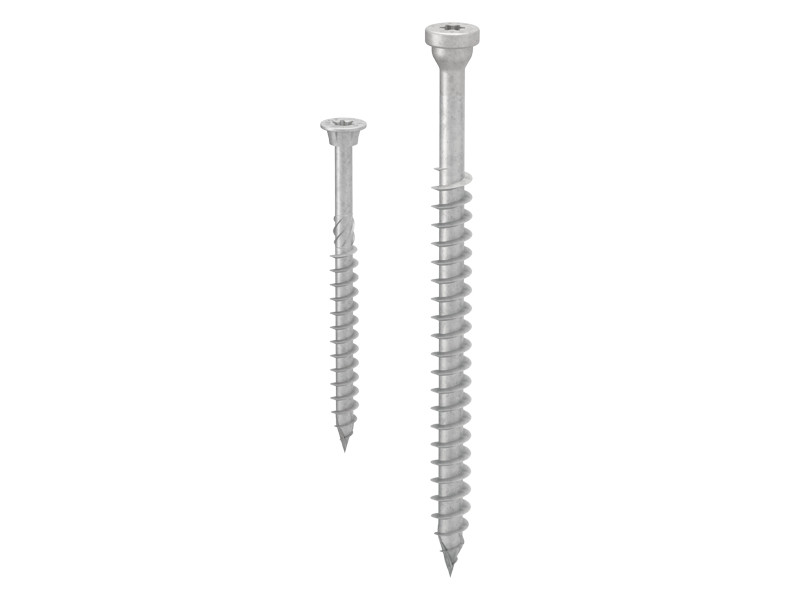

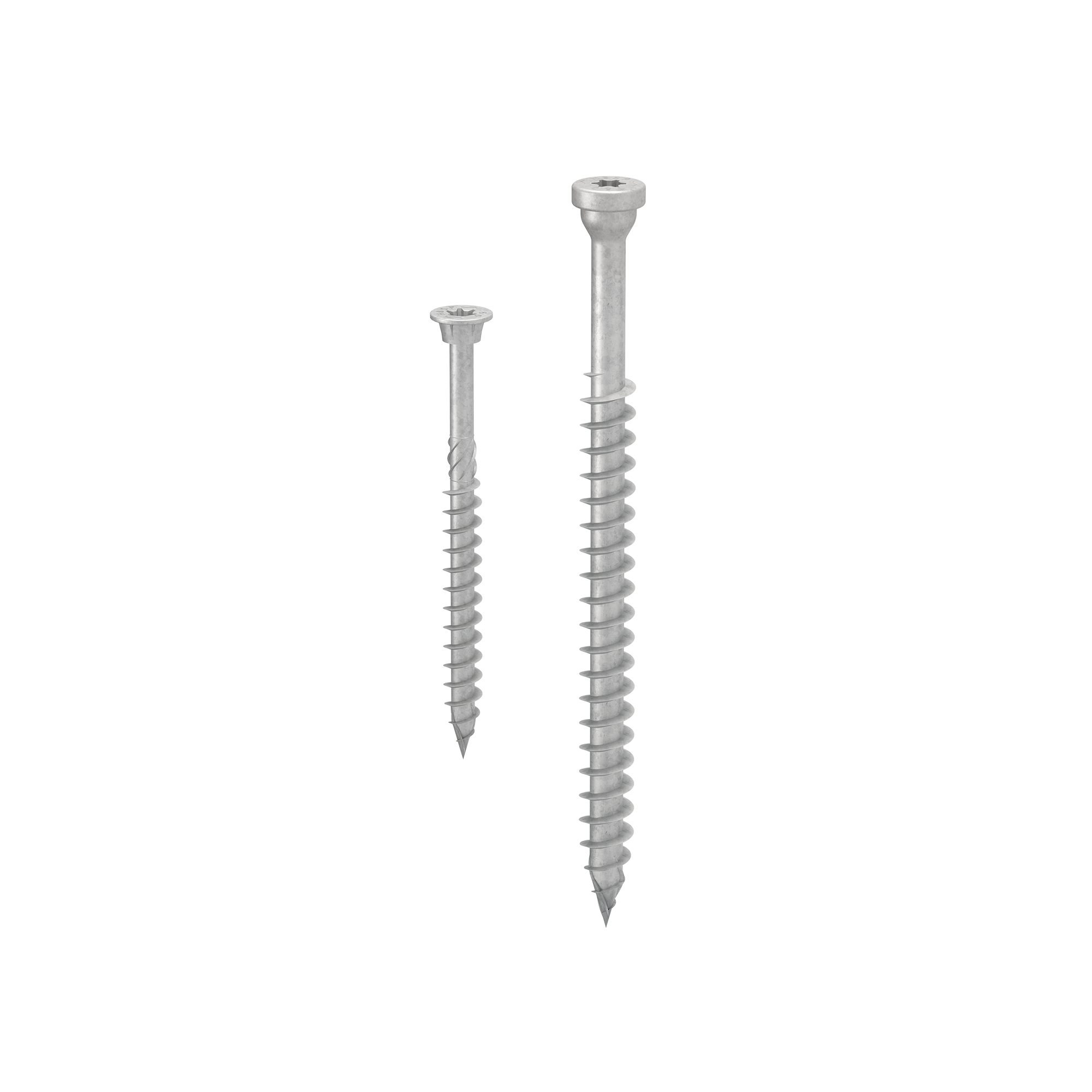

HBS PLATE EVO is the wood screw designed for fastening metal plates to timber in outdoor environments.

Its truncated cone-shaped head and greater thickness enable secure fastening of plates to timber. The small sizes (5,0 and 6,0 mm) are also suitable for timber-to-timber joints. HBS PLATE EVO is perfect for fastening Rothoblaas standard plates in outdoor environments. The 5 mm diameter version is also suitable for fastening patio deck planks.

The special 20 μm multilayer C4 EVO coating with a surface treatment of epoxy resin and aluminium flakes showed no rust after 1440 hours of salt spray exposure testing, according to ISO 9227.

Made of carbon steel, with a coating that is highly resistant to corrosion, it can be used in service class 3 outdoor applications and under class C4 atmospheric corrosion conditions.

HBS PLATE EVO is ideal for use with wood-based panels, solid timber, glulam, CLT, LVL, and high-density and aggressive woods. Service classes 1, 2 and 3.

Find the nearest agent Download the catalogue

Features

FOCUS corrosiveness class C4
HEAD shoulder for plate
DIAMETER from 5,0 mm to 10,0 mm
LENGTH from 40 mm to 180 mm

Documents

Technical data sheets
Minimum Distances Guide
Technical data sheets USA
ICC-ES Evaluation report USA
ICC-ES Listing report CANADA
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File CAD HBS P 2022
File BIM.ifc
File BIM.rfa
Technical data sheets HBS P EVO 2022

Installation manual

Installation Instructions
Find the nearest agent Download the catalogue

HBS P EVO Ø5 - Ø6

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSPEVO550 - 5 50 30 0.2 1 15/16'' 1 3/16'' TX25 200
HBSPEVO560 - 5 60 35 0.2 2 3/8'' 1 3/8'' TX25 200
HBSPEVO570 - 5 70 40 0.2 2 3/4'' 1 9/16'' TX25 100
HBSPEVO580 - 5 80 50 0.2 3 1/8'' 1 15/16'' TX25 100
HBSPEVO680 - 6 80 50 0.24 3 1/8'' 1 15/16'' TX30 100
HBSPEVO690 - 6 90 55 0.24 3 1/2'' 2 3/16'' TX30 100

HBS PL EVO Ø8 - Ø10 - Ø12

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSPLEVO840 - 8 40 32 0.32 1 9/16'' 1 1/4'' TX40 100
HBSPLEVO860 - 8 60 52 0.32 2 3/8'' 2 1/16'' TX40 100
HBSPLEVO880 - 8 80 55 0.32 3 1/8'' 2 3/16'' TX40 100
HBSPLEVO8100 - 8 100 75 0.32 4'' 2 15/16'' TX40 100
HBSPLEVO8120 - 8 120 95 0.32 4 3/4'' 3 3/4'' TX40 100
HBSPLEVO8140 - 8 140 110 0.32 5 1/2'' 4 3/8'' TX40 100
HBSPLEVO8160 - 8 160 130 0.32 6 1/4'' 5 1/8'' TX40 100
HBSPLEVO1060 - 10 60 52 0.4 2 3/8'' 2 1/16'' TX40 50
HBSPLEVO1080 - 10 80 60 0.4 3 1/8'' 2 3/8'' TX40 50
HBSPLEVO10100 - 10 100 75 0.4 4'' 2 15/16'' TX40 50
HBSPLEVO10120 - 10 120 95 0.4 4 3/4'' 3 3/4'' TX40 50
HBSPLEVO10140 - 10 140 110 0.4 5 1/2'' 4 3/8'' TX40 50
HBSPLEVO10160 - 10 160 130 0.4 6 1/4'' 5 1/8'' TX40 50
HBSPLEVO10180 - 10 180 150 0.4 7 1/8'' 6'' TX40 50
HBSPLEVO12120 - 12 120 90 0.48 4 3/4'' 3 1/2'' TX50 25
HBSPLEVO12140 - 12 140 110 0.48 5 1/2'' 4 3/8'' TX50 25
HBSPLEVO12160 - 12 160 120 0.48 6 1/4'' 4 3/4'' TX50 25
HBSPLEVO12180 - 12 180 140 0.48 7 1/8'' 5 1/2'' TX50 25
HBSPLEVO12200 - 12 200 160 0.48 8'' 6 1/4'' TX50 25

HBS P EVO Ø8 - Ø10

CODE info d₁
[mm]
 L
[mm]
 b
[mm]
 d₁
[in]
 L
[in]
 b
[in]
 TX pcs.
HBSPEVO840 - 8 40 32 0.32 1 9/16'' 1 1/4'' TX40 100
HBSPEVO860 - 8 60 52 0.32 2 3/8'' 2 1/16'' TX40 100
HBSPEVO880 - 8 80 55 0.32 3 1/8'' 2 3/16'' TX40 100
HBSPEVO8100 - 8 100 75 0.32 4'' 2 15/16'' TX40 100
HBSPEVO8120 - 8 120 95 0.32 4 3/4'' 3 3/4'' TX40 100
HBSPEVO8140 - 8 140 110 0.32 5 1/2'' 4 3/8'' TX40 100
HBSPEVO8160 - 8 160 130 0.32 6 1/4'' 5 1/8'' TX40 100
HBSPEVO1060 - 10 60 52 0.4 2 3/8'' 2 1/16'' TX40 50
HBSPEVO1080 - 10 80 60 0.4 3 1/8'' 2 3/8'' TX40 50
HBSPEVO10100 - 10 100 75 0.4 4'' 2 15/16'' TX40 50
HBSPEVO10120 - 10 120 95 0.4 4 3/4'' 3 3/4'' TX40 50
HBSPEVO10140 - 10 140 110 0.4 5 1/2'' 4 3/8'' TX40 50
HBSPEVO10160 - 10 160 130 0.4 6 1/4'' 5 1/8'' TX40 50
HBSPEVO10180 - 10 180 150 0.4 7 1/8'' 6'' TX40 50
