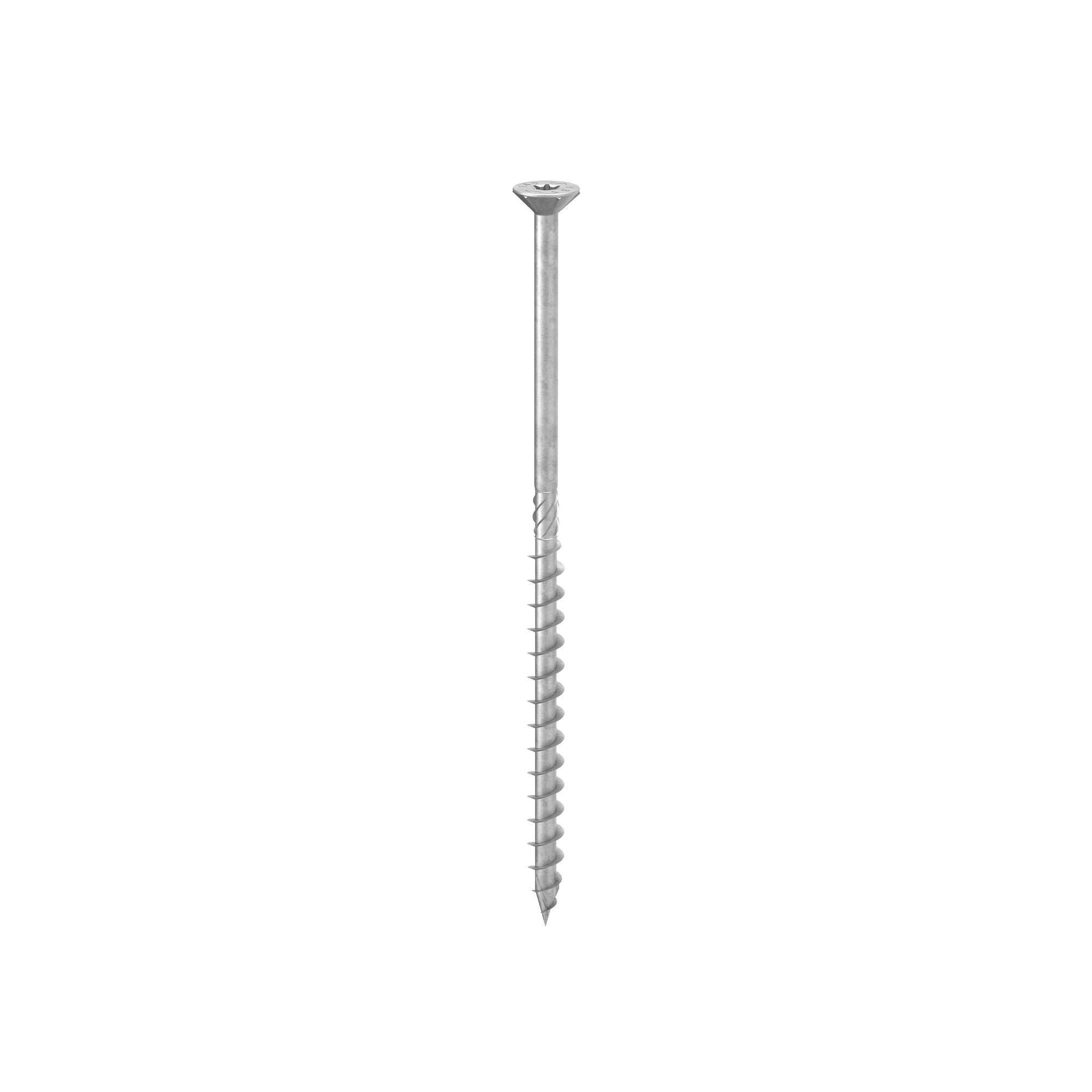

COUNTERSUNK SCREW
HBS EVO C5
New
COMING SOON
C5 ATMOSPHERIC CORROSIVITY
Multi-layer coating capable of withstanding outdoor environments classified C5 according to ISO 9223. SST (Salt Spray Test) with exposure time
greater than 3000h carried out on screws previously screwed and unscrewed in Douglas fir timber.
MAXIMUM STRENGTH
It is the screw of choice when high mechanical performance is required under very adverse environmental and wood corrosive conditions.
3 THORNS TIP
Thanks to the 3 THORNS tip, minimum installation distances are reduced. More screws can be used in less space and larger screws in smaller elements,
reducing costs and time.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
HBS EVO C5
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| HBSEVO440C5 | - | 3.5 | 30 | 18 | 0.14 | 1 3/16'' | 11/16'' | TX15 | 500 |
| HBSEVO450C5 | - | 3.5 | 40 | 18 | 0.14 | 1 9/16'' | 11/16'' | TX15 | 400 |
| HBSEVO550C5 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX20 | 200 |
| HBSEVO560C5 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX20 | 200 |
| HBSEVO570C5 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 100 |
| HBSEVO580C5 | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX20 | 100 |
| HBSEVO590C5 | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX25 | 100 |
| HBSEVO680C5 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 100 |
| HBSEVO3530C5 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 500 |
| HBSEVO3540C5 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 500 |
| HBSEVO4550C5 | - | 5 | 90 | 45 | 0.2 | 3 1/2'' | 1 3/4'' | TX25 | 200 |
| HBSEVO4560C5 | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX25 | 200 |
| HBSEVO5100C5 | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 100 |
| HBSEVO6100C5 | - | 6 | 100 | 50 | 0.24 | 4'' | 1 15/16'' | TX30 | 100 |
| HBSEVO6120C5 | - | 6 | 120 | 60 | 0.24 | 4 3/4'' | 2 3/8'' | TX30 | 100 |
| HBSEVO6140C5 | - | 6 | 140 | 75 | 0.24 | 5 1/2'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6160C5 | - | 6 | 160 | 75 | 0.24 | 6 1/4'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6180C5 | - | 6 | 180 | 75 | 0.24 | 7 1/8'' | 2 15/16'' | TX30 | 100 |
| HBSEVO6200C5 | - | 6 | 200 | 75 | 0.24 | 8'' | 2 15/16'' | TX30 | 100 |
| HBSEVO8100C5 | - | 8 | 100 | 52 | 0.32 | 4'' | 2 1/16'' | TX40 | 100 |
| HBSEVO8120C5 | - | 8 | 120 | 60 | 0.32 | 4 3/4'' | 2 3/8'' | TX40 | 100 |
| HBSEVO8140C5 | - | 8 | 140 | 60 | 0.32 | 5 1/2'' | 2 3/8'' | TX40 | 100 |
| HBSEVO8160C5 | - | 8 | 160 | 80 | 0.32 | 6 1/4'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8180C5 | - | 8 | 180 | 80 | 0.32 | 7 1/8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8200C5 | - | 8 | 200 | 80 | 0.32 | 8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8220C5 | - | 8 | 220 | 80 | 0.32 | 8 5/8'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8240C5 | - | 8 | 240 | 80 | 0.32 | 9 1/2'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8280C5 | - | 8 | 280 | 80 | 0.32 | 11'' | 3 1/8'' | TX40 | 100 |
| HBSEVO8320C5 | - | 8 | 320 | 100 | 0.32 | 12 5/8'' | 4'' | TX40 | 100 |
