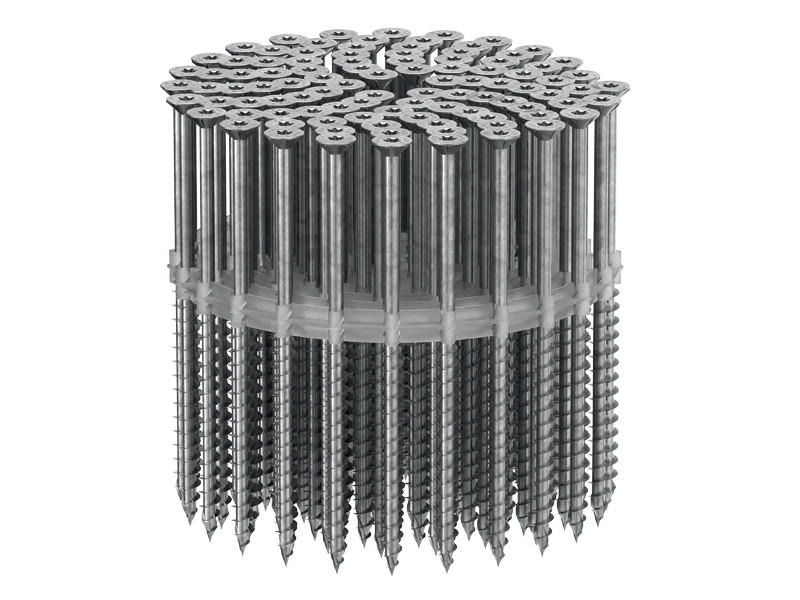

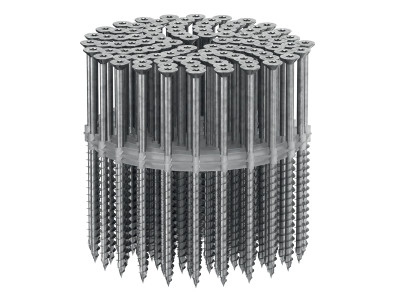

HBS BOUND SCREWS
HBS COIL
Our celebrated HBS bound wood screws, for practical and precise installation.
Fast and safe execution thanks to the special binding. The excellent mechanical and geometric performance of HBS wood screws is ideal for use in series in the bound version.
Videos

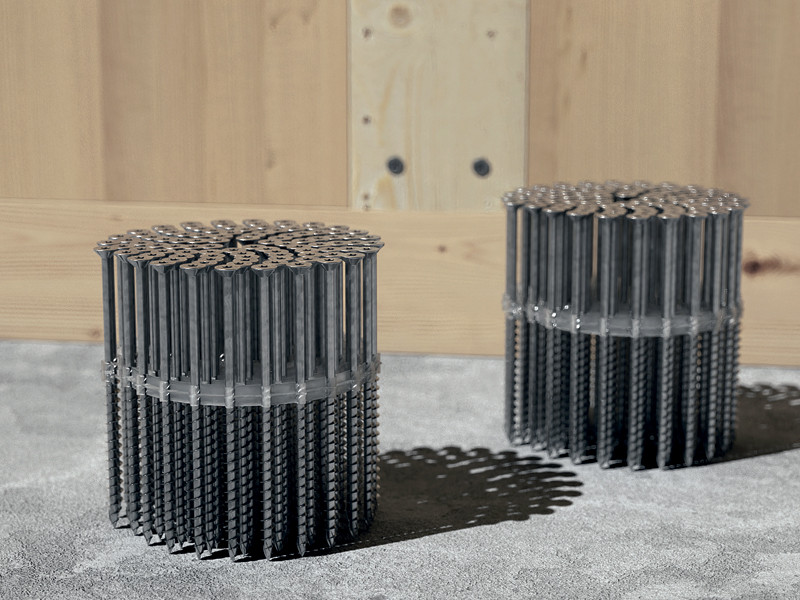

HBS COIL wood screws: the HBS quality, as always, in the new bound format, for practical and precise processing.
Wood screws available also in a diameter of 6.0 mm, perfect for quick wall-to-wall fastening in CLT structures.
Dedicated accessories are available for the 6 mm diameter: automatic loader HH3372 in combination with special plate HZB6PLATE and bit TX30.
The excellent mechanical and geometric performance of the HBS wood screw is ideal for fast, serial assembly in the bound version.
In carbon steel with bright zinc plated, they are excellent for use with wood-based panels, solid timber, glulam, CLT, LVL and with high-density woods. Service classes 1 and 2.
Features
| FOCUS | HBS bound screw |
|---|---|
| HEAD | countersunk with under-head ribs |
| DIAMETER | from 4,0 mm to 6,0 mm |
| LENGTH | from 30 mm to 80 mm |
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
HBS COIL
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| HH10600459 | - | 4 | 25 | 18 | 0.16 | 1'' | 11/16'' | TX20 | 1200 |
| HZB440 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX20 | 2000 |
| HZB450 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX20 | 1500 |
| HZB4550 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX20 | 1500 |
| HZB560 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX25 | 1250 |
| HZB570 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX25 | 625 |
| HZB580 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX25 | 625 |
| HZB670 | - | 6 | 70 | 40 | 0.24 | 2 3/4'' | 1 9/16'' | TX30 | 625 |
| HZB680 | - | 6 | 80 | 40 | 0.24 | 3 1/8'' | 1 9/16'' | TX30 | 625 |
