CONNECTOR FOR DECKING
TERRALOCK

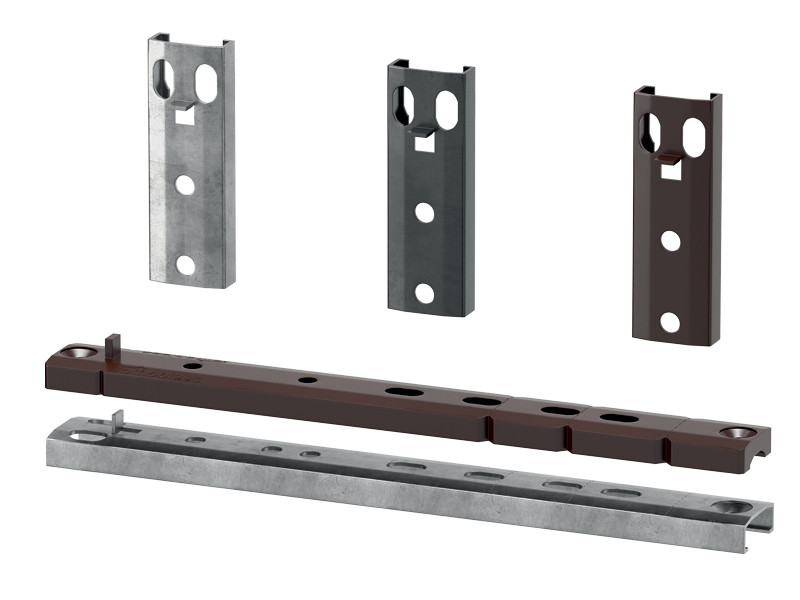

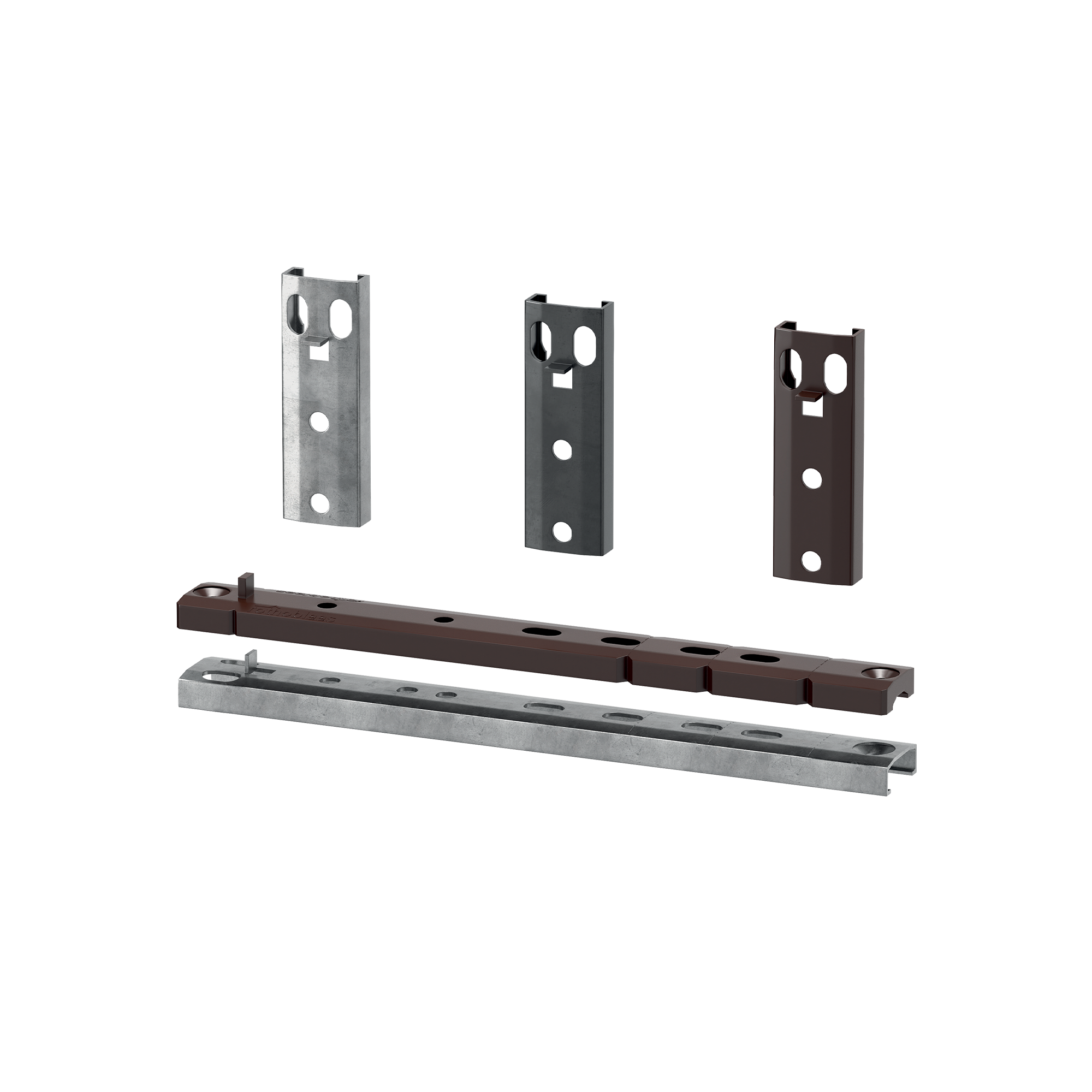

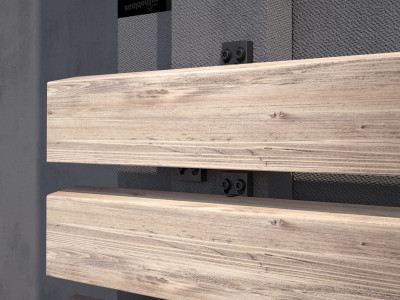

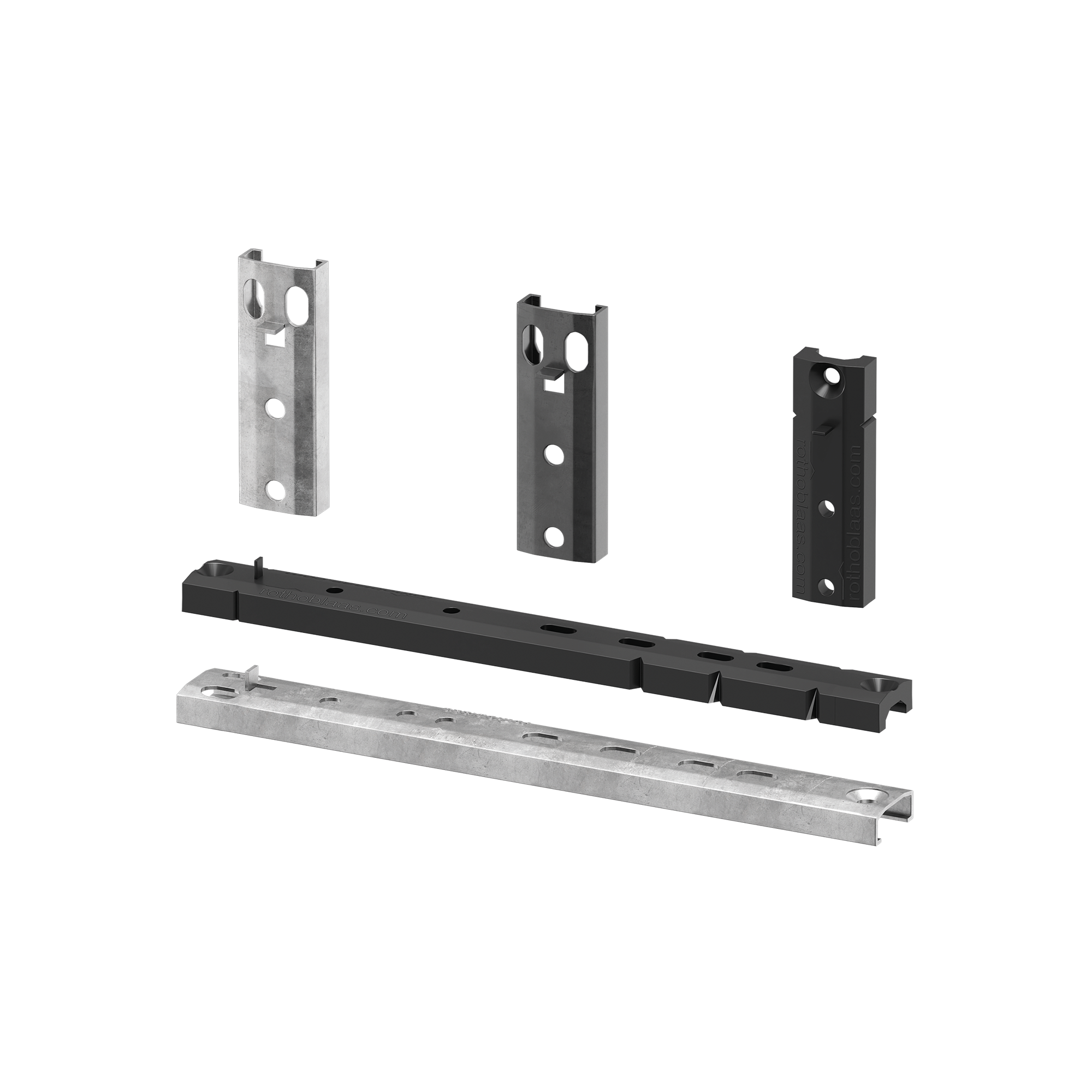

The TERRALOCK concealed connector for the creation of terraces and claddings of façades in timber ensures completely concealed fastening of wooden boards.
In carbon steel, it is available also in plastic (TERRALOCK PP) for marine environments.
Videos
Durability and good looks for your outdoor timber terraces and façades: discover the TERRALOCK connector.

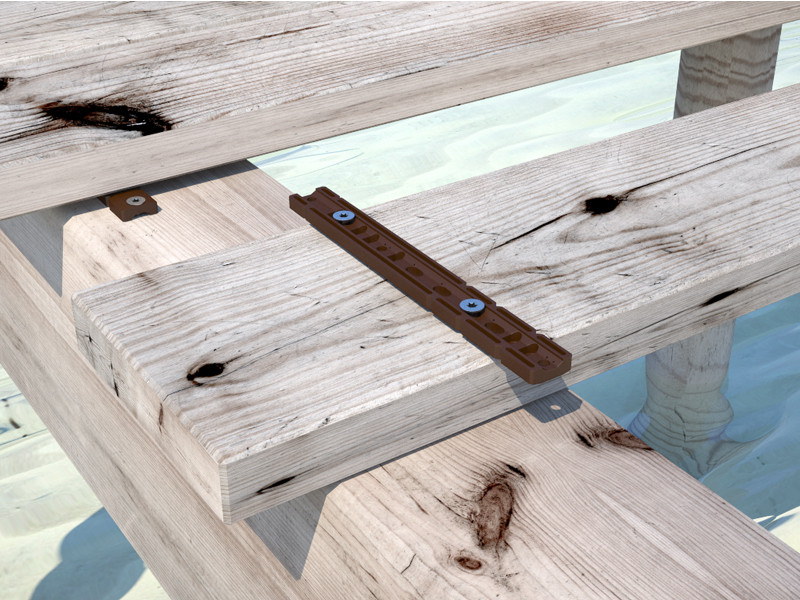

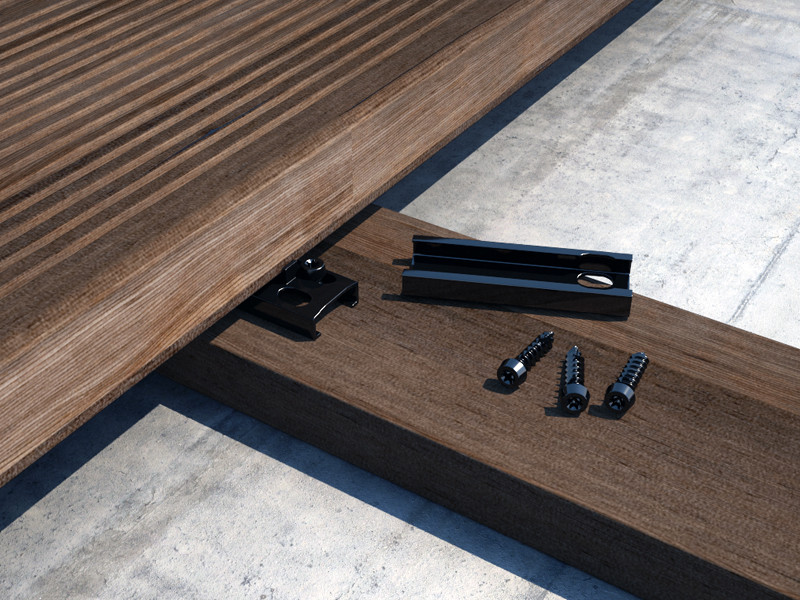

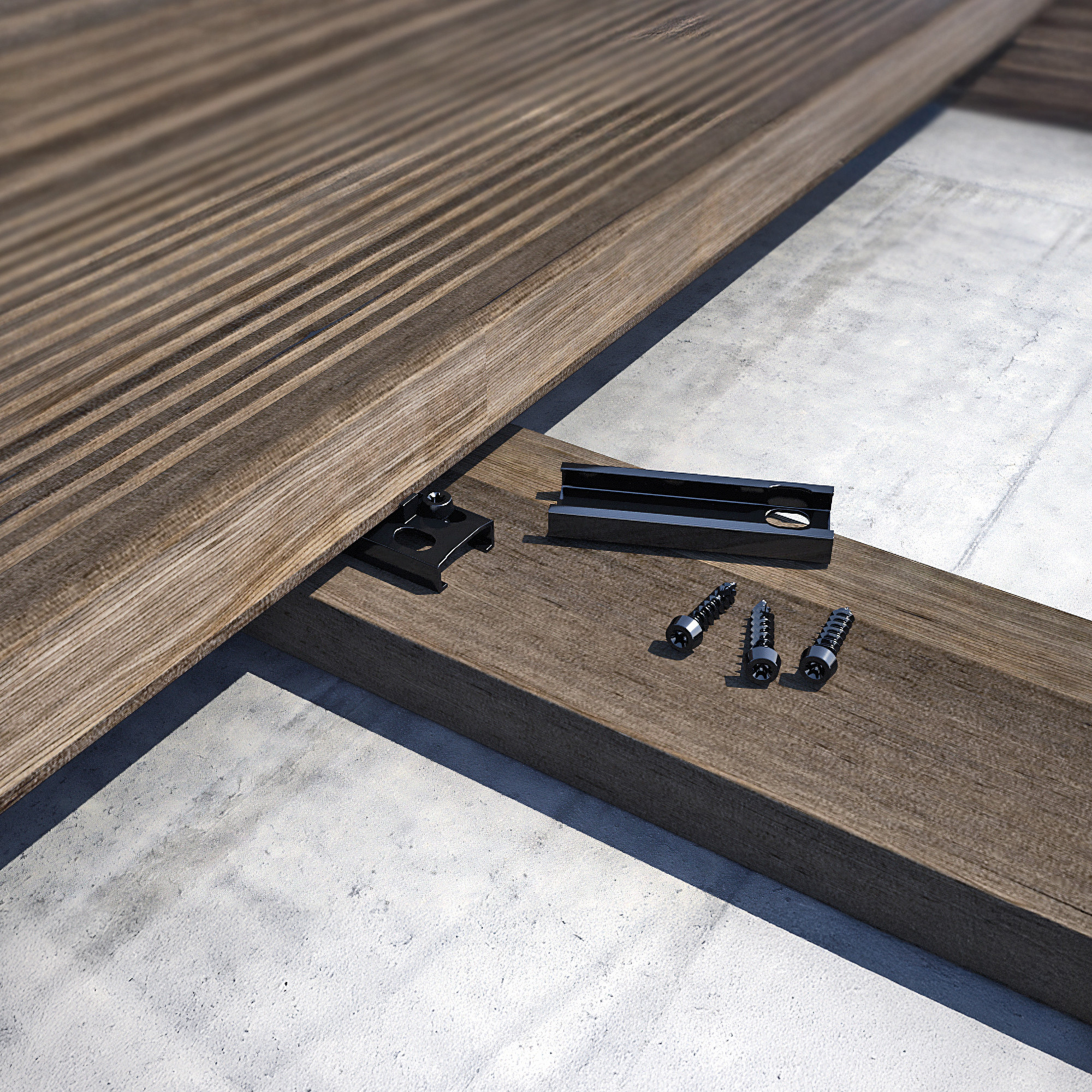

TERRALOCK is the completely concealed connector for terraces and façades that guarantees a highly attractive result. The micro-ventilation under the boards prevents water stagnation, ensuring excellent durability.
The larger bearing surface ensures that the substructure is not crushed at all. Thanks to the assembly stop, it is possible to position each connector with extreme precision. The assembly stop ensures precise positioning of each connector. The slotted holes permit the natural movements of the wood.

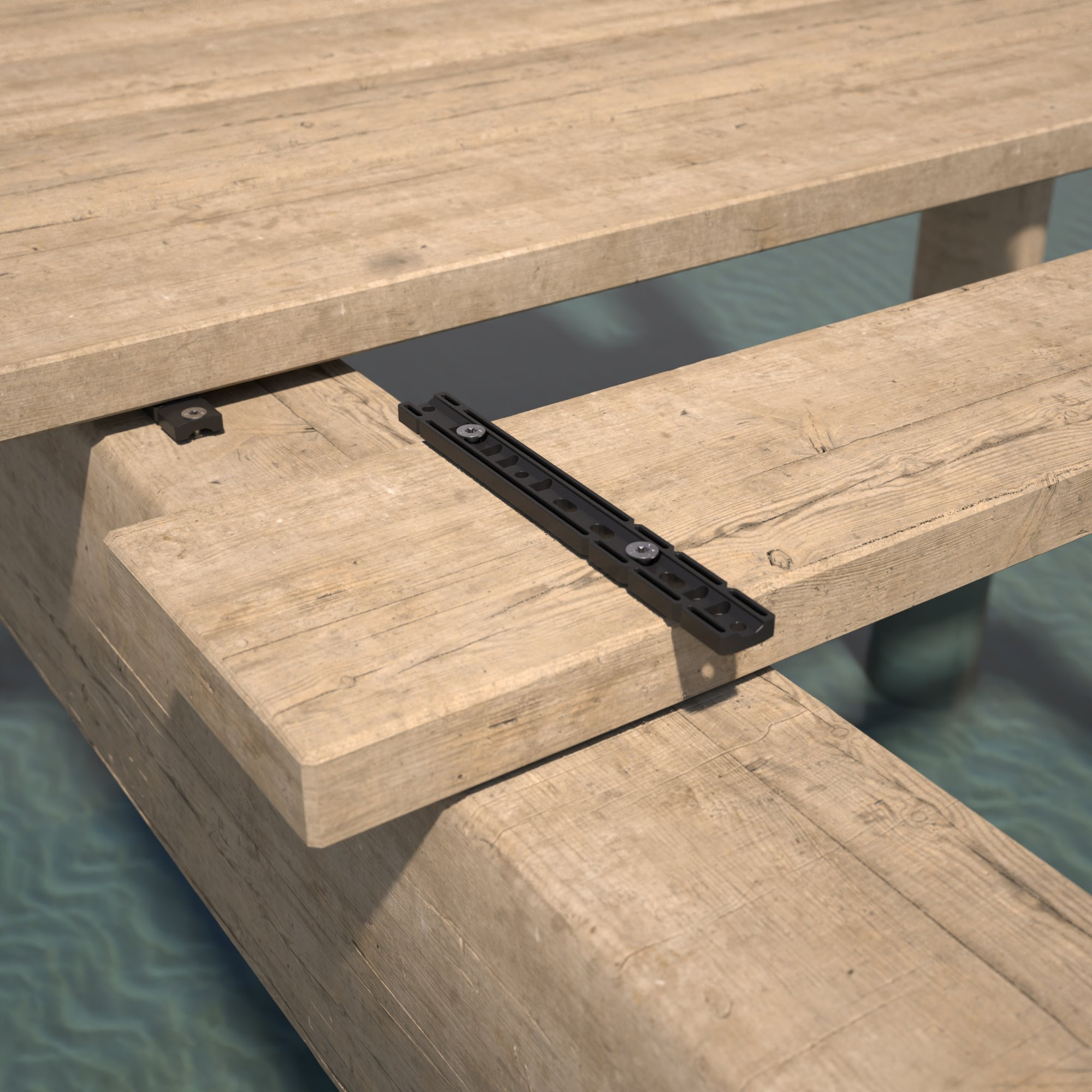

The system offers the possibility of replacing individual boards. In carbon steel with coloured, anti-rust coating, it is available also in a brown polypropylene version (TERRALOCK PP), ideal for creating terraces near aquatic environments.

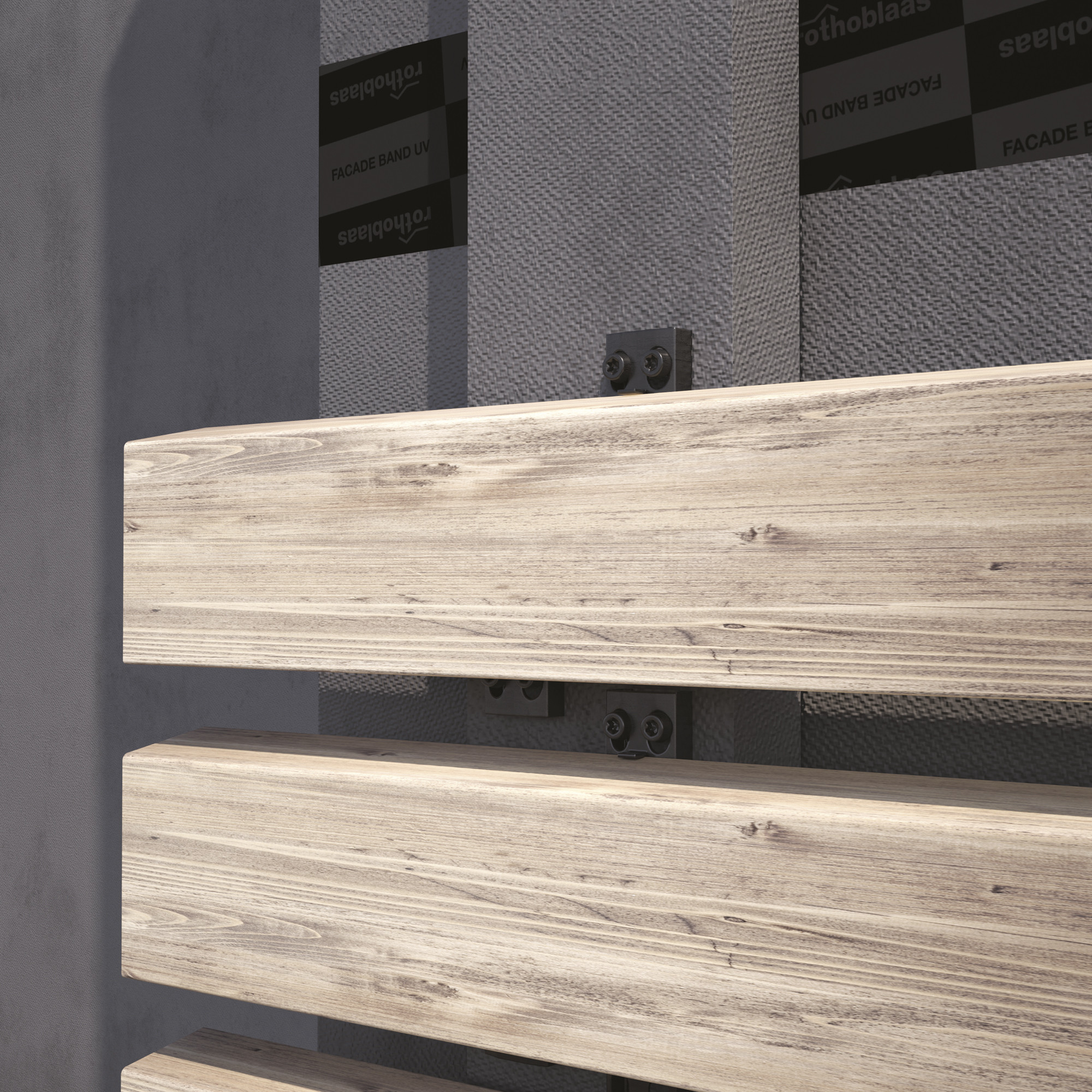

TERRALOCK is designed for outdoor fastening of timber or WPC boards on wood, WPC or aluminium substructures. Suitable for service classes 1, 2 and 3.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
File CAD
|
|
Calculator Spreadsheet_DeckDesigner
|
TERRALOCK
| CODE | material | colour | B
[mm]
|
P
[mm]
|
H
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|---|
| TER60ALU | zinc-plated steel | - | 20 | 60 | 8 | 0.8 | 2.4 | 0.3 | 100 |
| TER180ALU | zinc-plated steel | - | 20 | 180 | 8 | 0.8 | 7.1 | 0.3 | 50 |
| TER60ALUN | zinc-plated steel | black | 20 | 60 | 8 | 0.8 | 2.4 | 0.3 | 100 |
| TER180ALUN | zinc-plated steel | black | 20 | 180 | 8 | 0.8 | 7.1 | 0.3 | 50 |
TERRALOCK PP
| CODE | material | colour | B
[mm]
|
P
[mm]
|
H
[mm]
|
B
[in]
|
P
[in]
|
H
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|---|---|
| TER60PPN | nylon | black | 20 | 60 | 8 | 0.8 | 2.4 | 0.3 | 100 |
| TER180PPN | nylon | black | 20 | 180 | 8 | 0.8 | 7.1 | 0.3 | 50 |
