CONNECTOR AND SPACER FOR DECKS

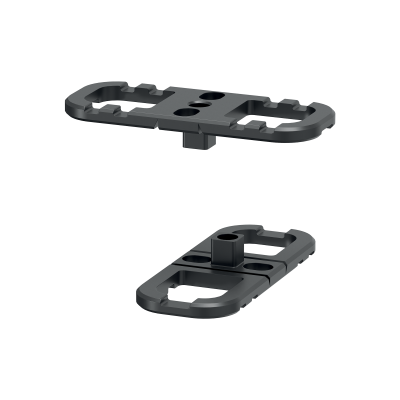

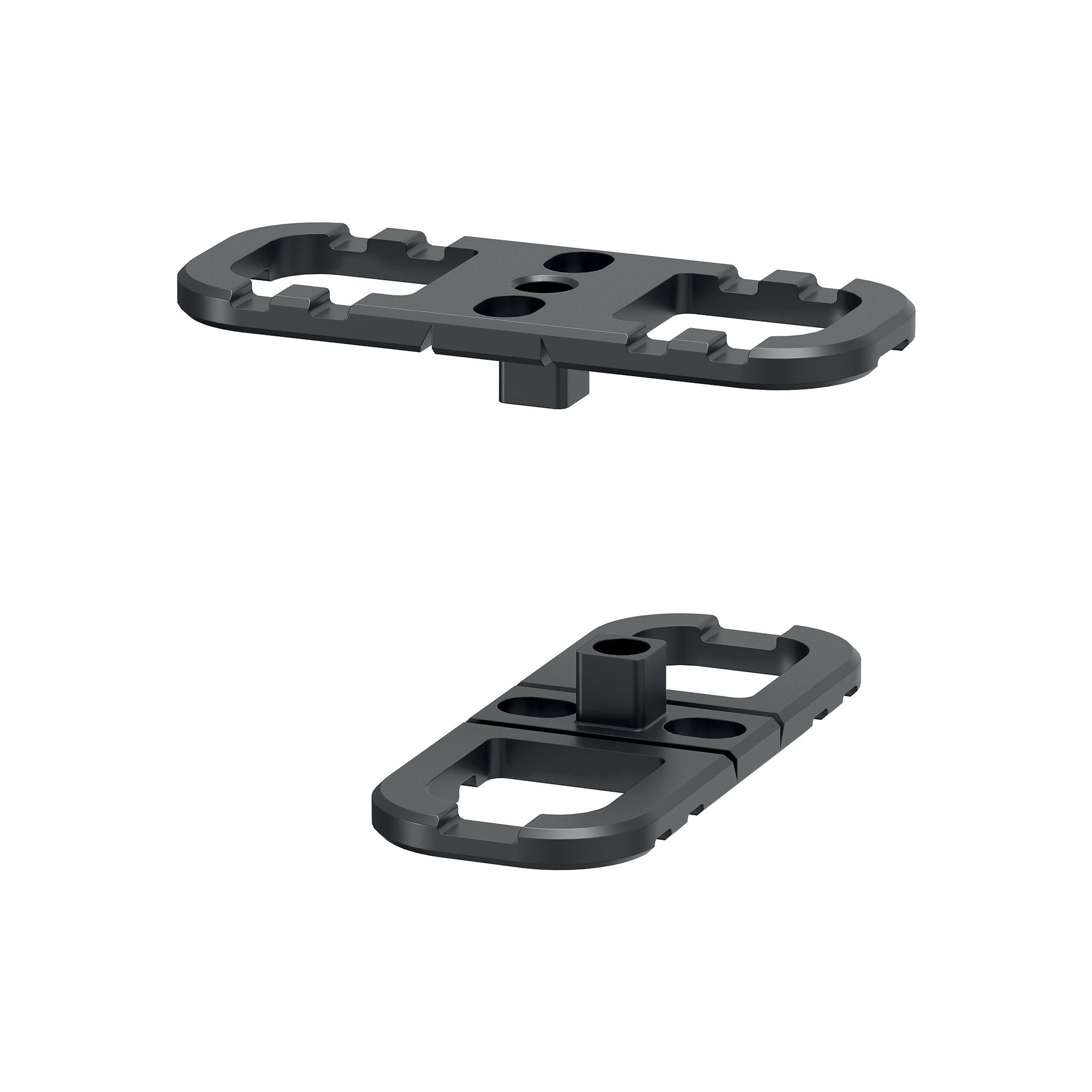

SNAP

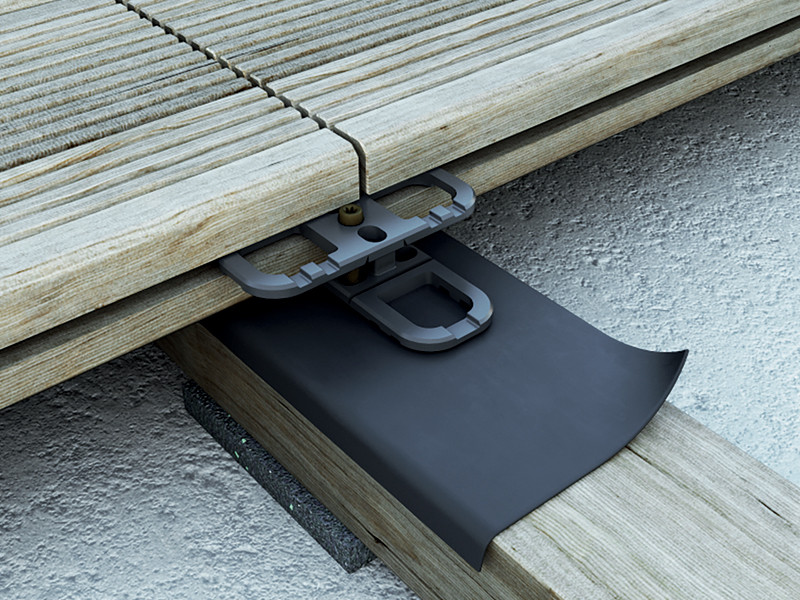

It can be used both as a concealed connector for boards and as a spacer between boards and battens. SNAP is developed to be used individually but also in combination. In this case, SNAPs have dual functionality as connector and spacer, for maximum efficiency and convenience.

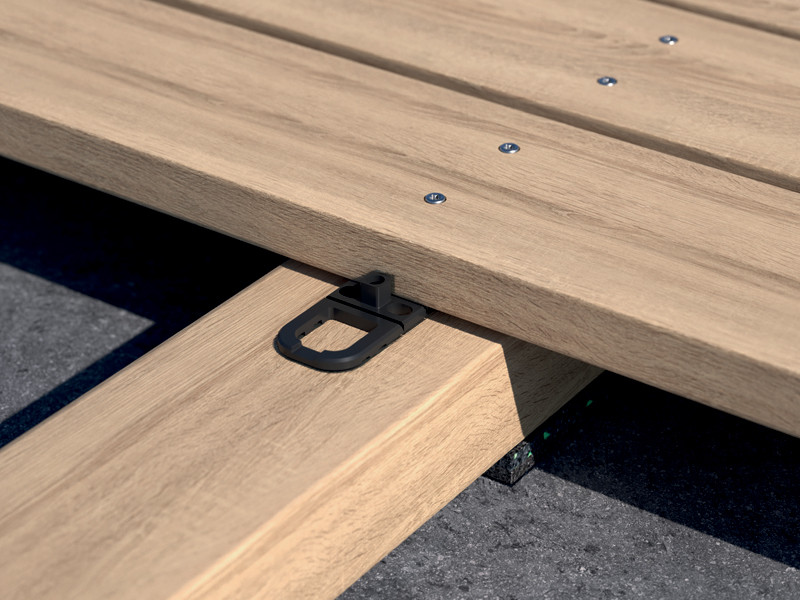

When used as a spacer, SNAP prevents water stagnation thanks to the micro-ventilation created under the decking boards.
PP (glass fiber reinforced polypropylene) material provides excellent durability at an affordable price.
Documents
Technical data sheets
|
|
---|---|
Technical data sheets USA
|
SNAP
CODE | material | B
[mm]
|
P
[mm]
|
s
[mm]
|
B
[in]
|
P
[in]
|
s
[in]
|
pcs. |
---|---|---|---|---|---|---|---|---|
SNAP | Polipropilene rinforzato | 28 | 70 | 4 | 1.1 | 2.8 | 0.157 | 100 |
