ALUMINIUM PROFILE FOR PATIOS
ALU TERRACE
The ALU TERRACE profile for terraces makes it possible to create substructures that ensure excellent durability of the terrace.
Available in a version for standard loads and a version for very heavy loads.
Prolong the life of your terraces, create your substructures with the ALU TERRACE profiles in aluminium.

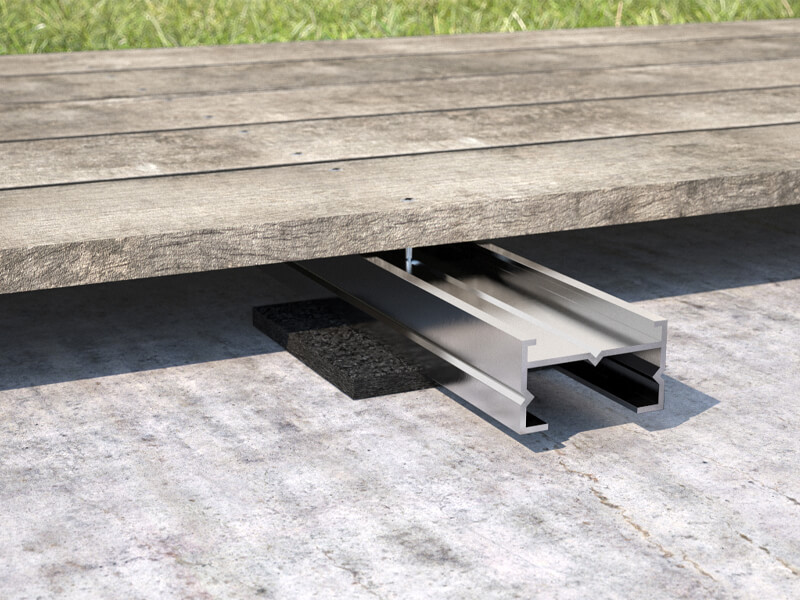

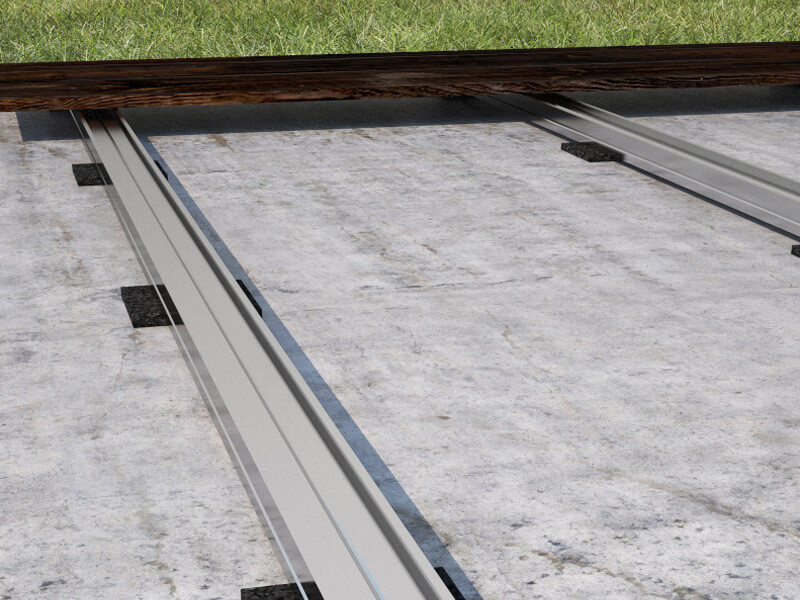

The substructure made of aluminium profiles ensures the durability of the terrace.
The drainage channel allows water to run off and generates effective micro-ventilation.

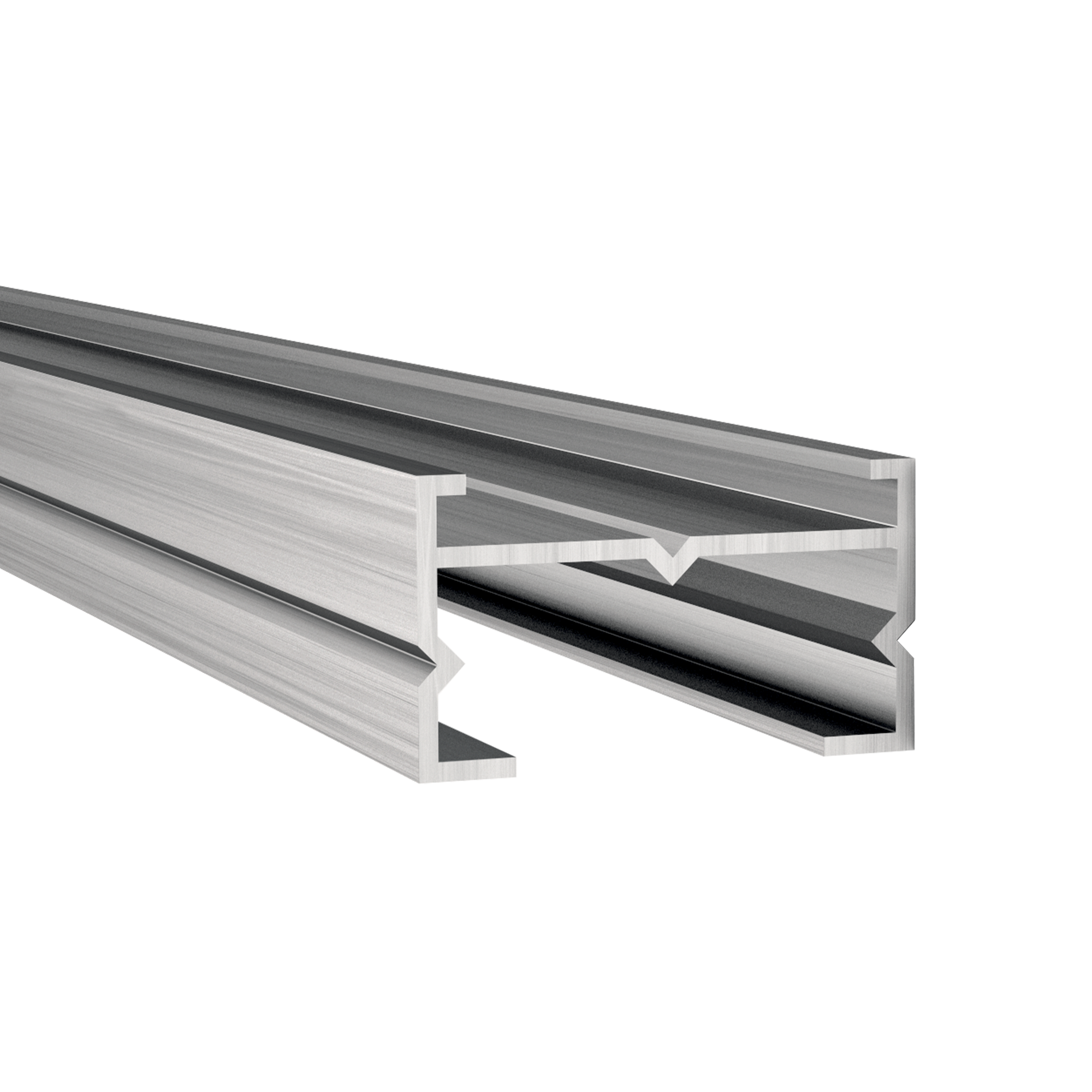

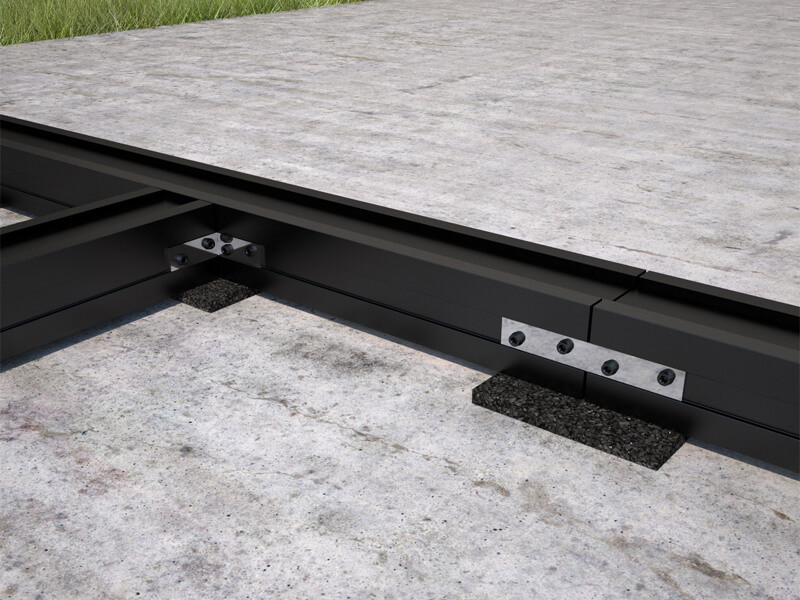

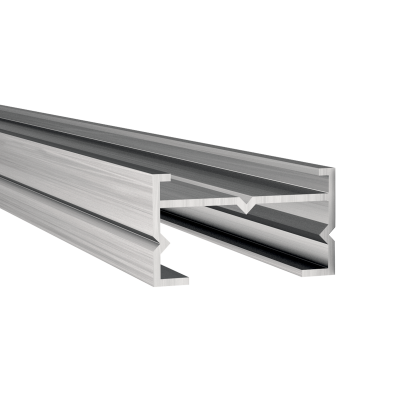

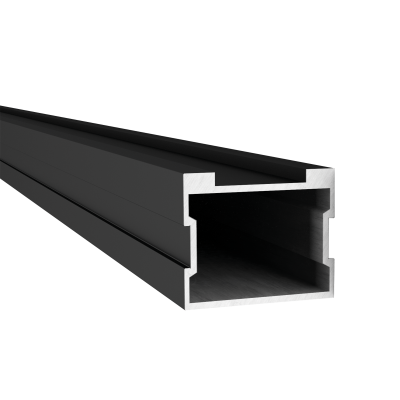

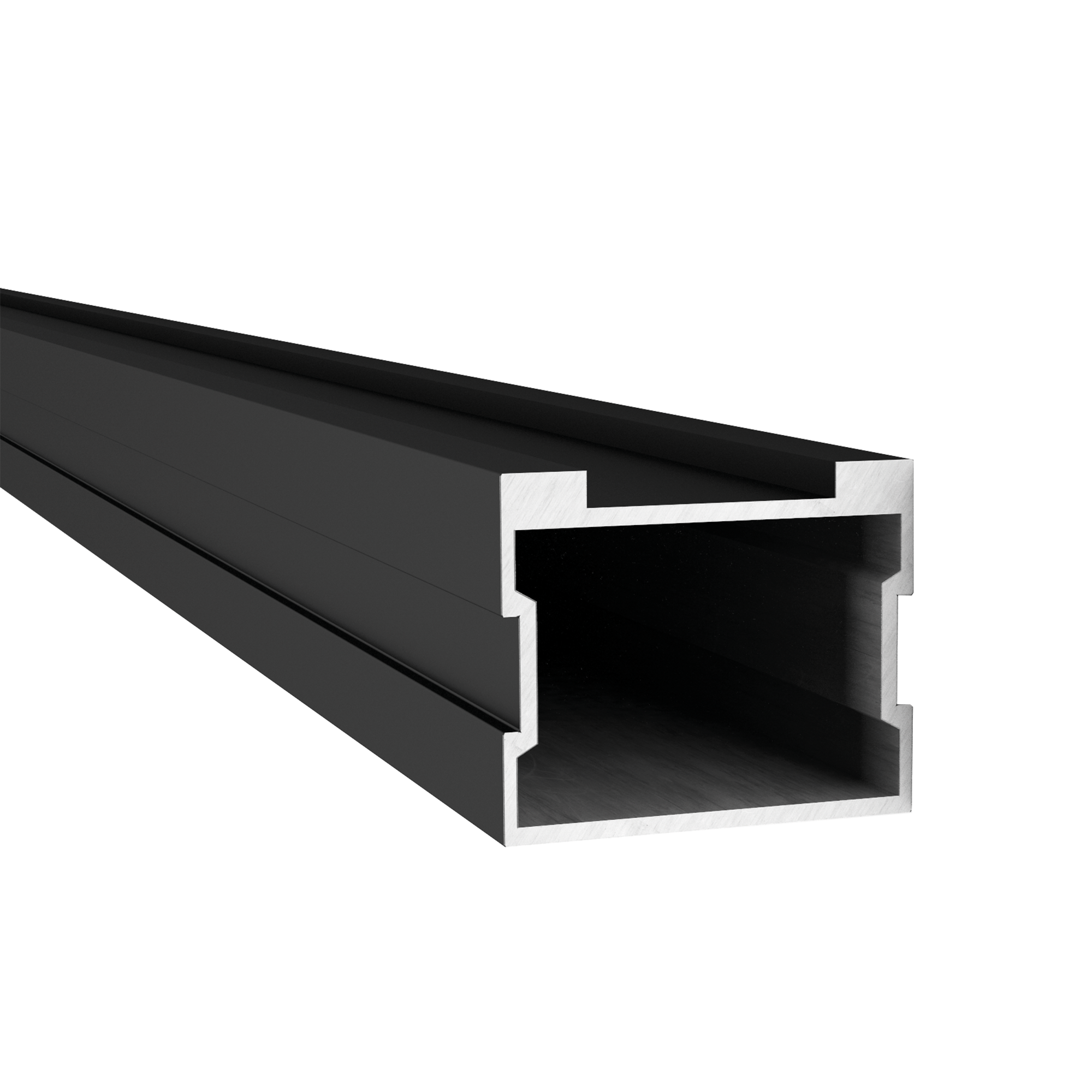

ALU TERRACE is available in two versions: ALUTERRA30 for standard loads, ALUTERRA50 in black, for very high loads, which can be used on both sides.

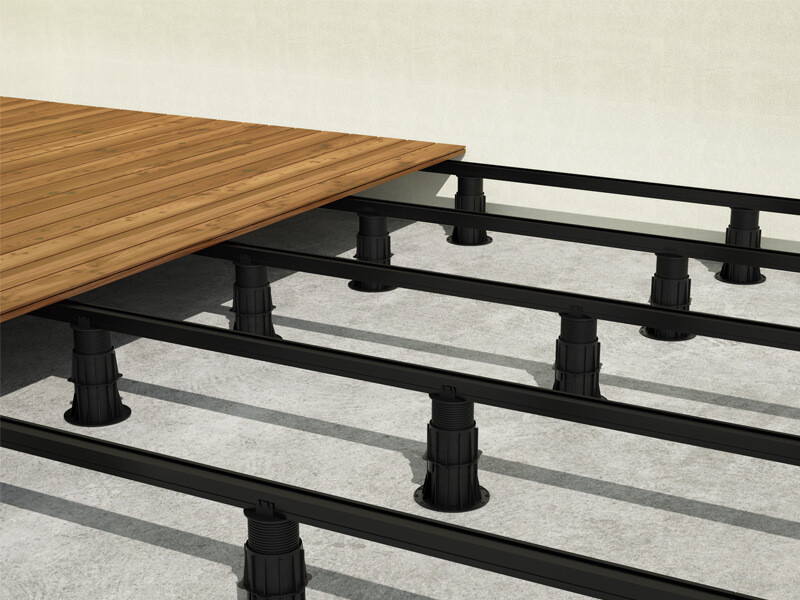

ALUTERRA50 is designed with a very high inertia so that the SUPPORTS can be positioned every 1,10 m (along the profile midline), even with high loads (4,0 kN/m2).

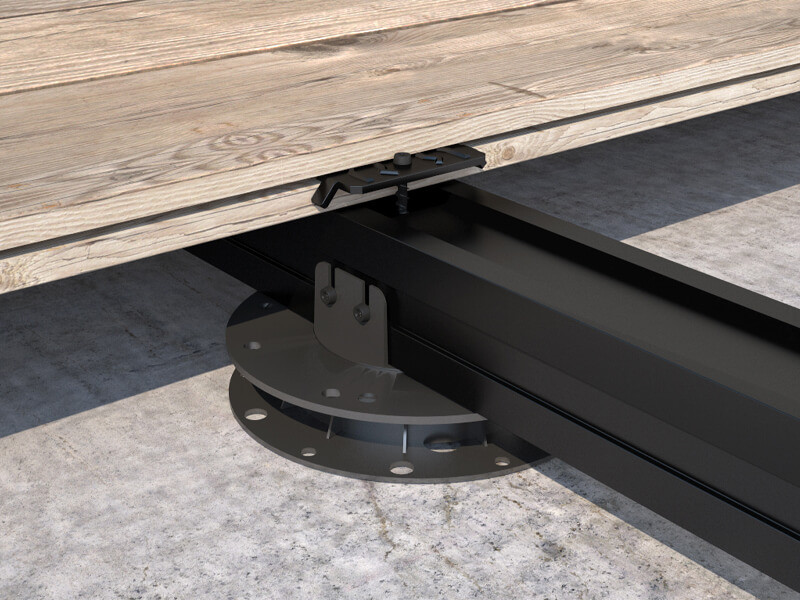

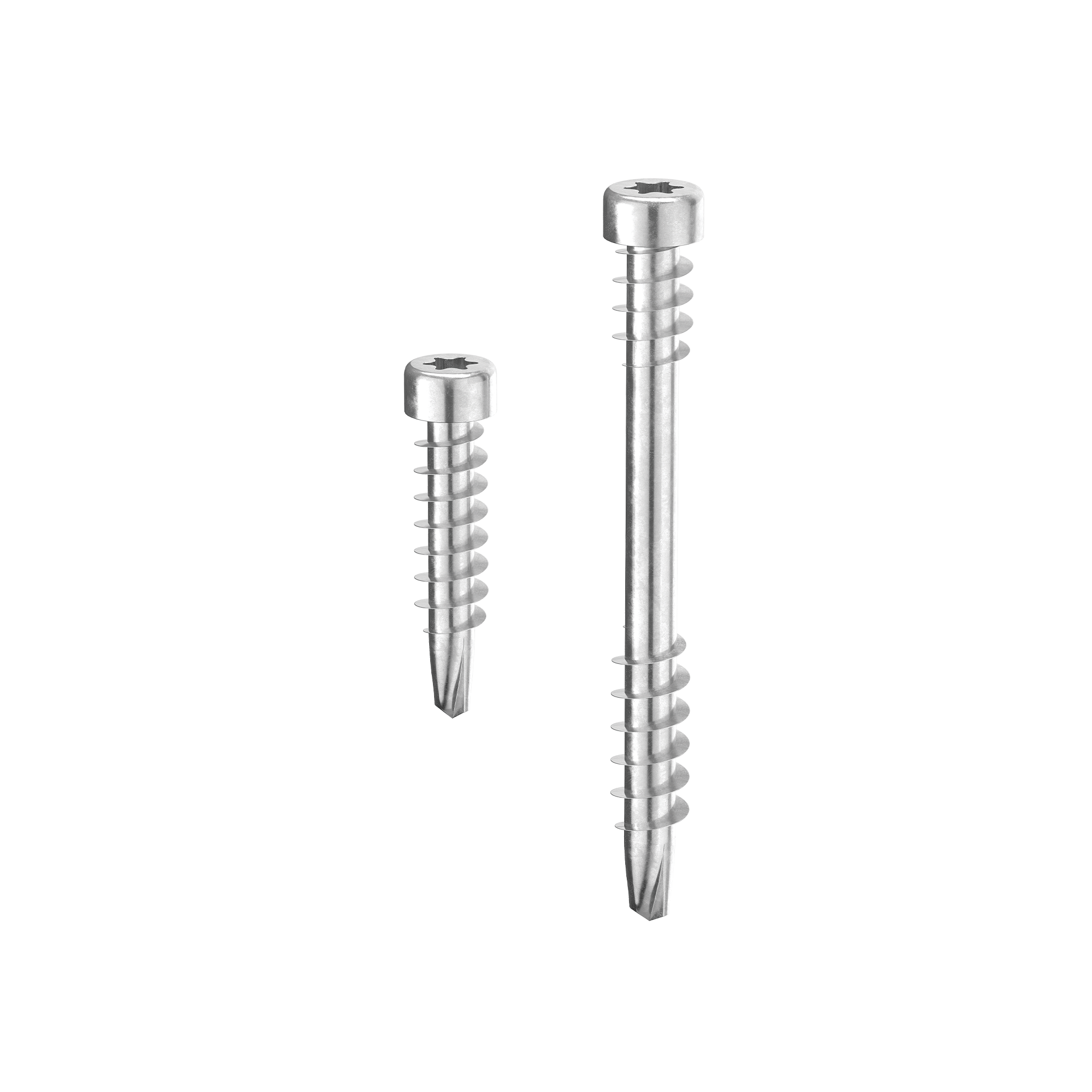

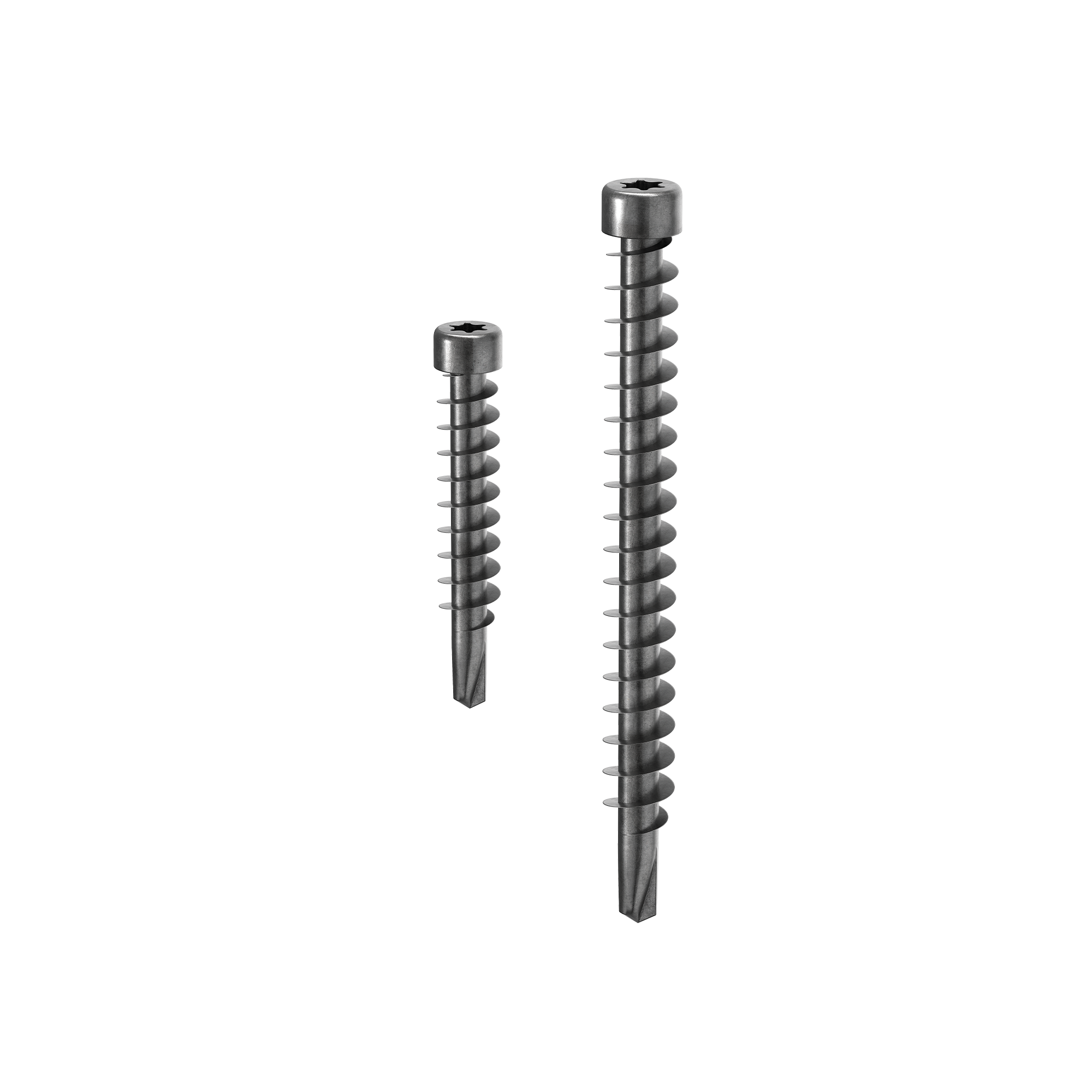

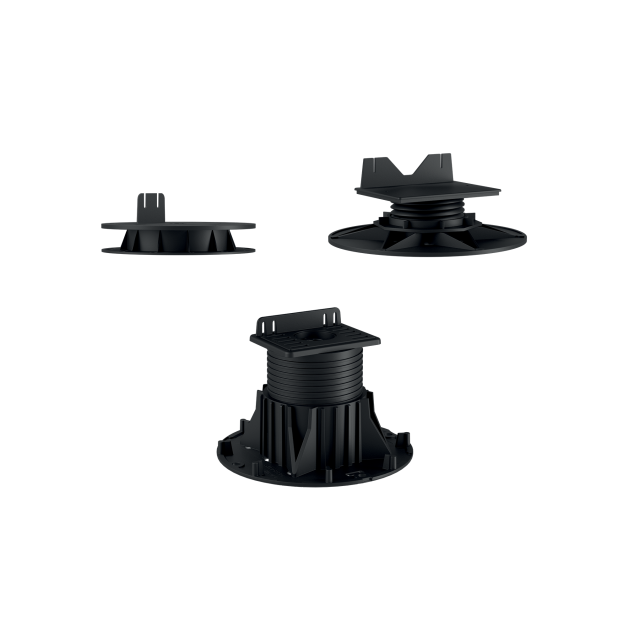

ALU TERRACE is ideal in combination with SUPPORT, fixed laterally with KKA wood screws. System with excellent durability.
Versions in aluminium and in anodized aluminium (class 15) in graphite black. Exterior use; appropriate for service classes 1, 2 and 3.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
File BIM.ifc
|
|
File BIM.rfa
|
|
Calculator Spreadsheet_DeckDesigner
|
ALU TERRACE
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| ALUTERRA30 | 53 | 2200 | 30 | 1.8 | 1 |
| ALUTERRA50 | 60 | 2200 | 50 | 2.5 | 1 |
