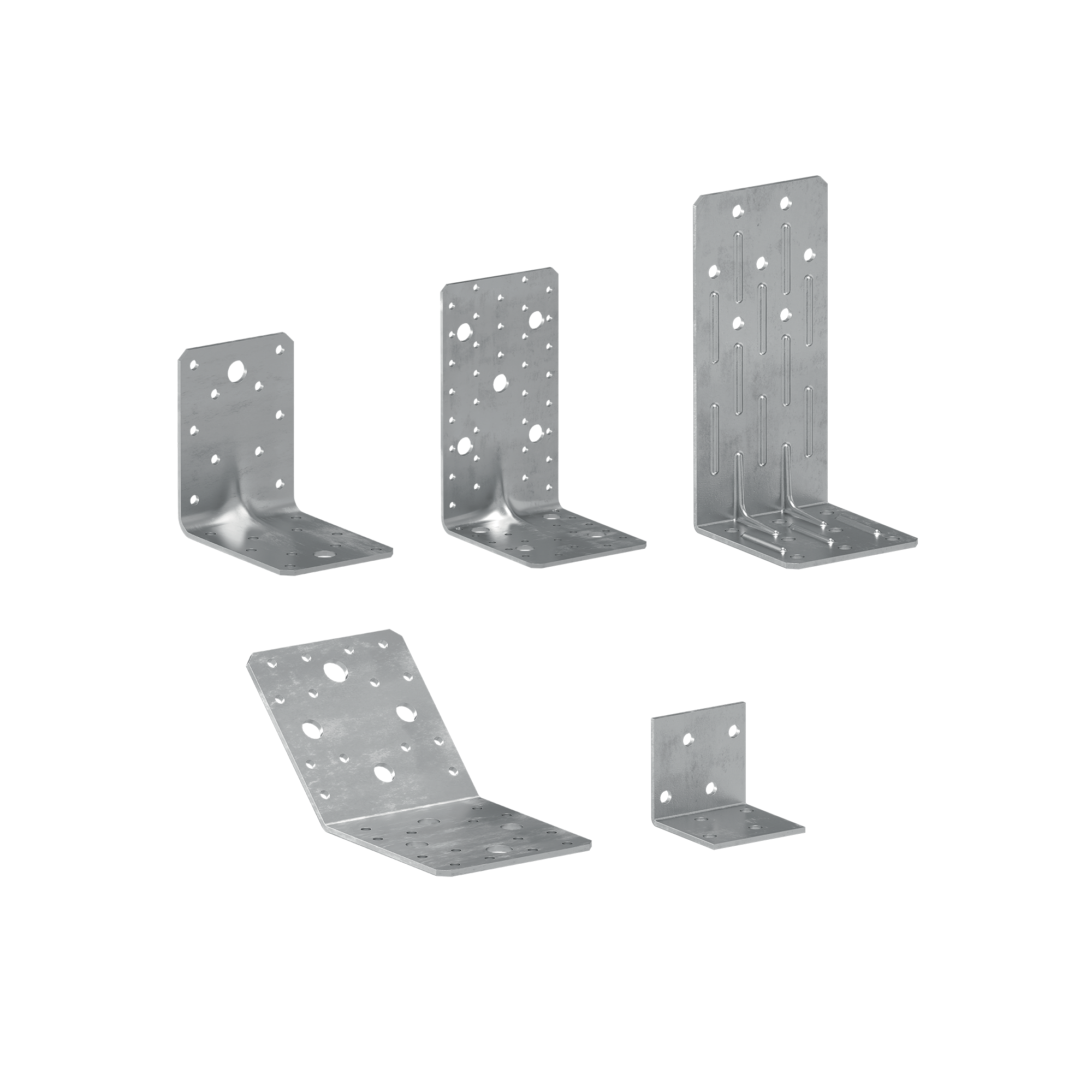

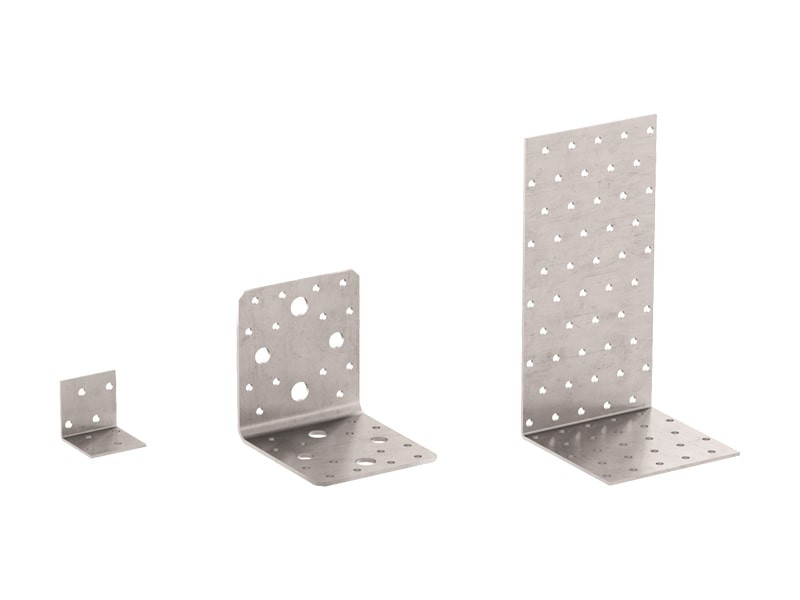

VARIOUS ANGLE BRACKETS
WBR - WBO - WVS - WHO
Bright zinc plated carbon steel three dimensional perforated plate.
Various shapes and sizes are available for all manner of applications.
Suitability of use is guaranteed by the CE marking according to ETA.
Documents
Technical data sheets
|
|
|---|---|
| Declaration of performance (DOP) | Download |
WBR 70-90-100
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBR07015 | 55 | 70 | 70 | 100 |
| WBR09015 | 65 | 90 | 90 | 100 |
| WBR10020 | 90 | 100 | 100 | 50 |
WBR A2 70-90-100
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| AI7055 | 55 | 70 | 70 | 100 |
| AI9065 | 65 | 90 | 90 | 100 |
| AI10090 | 90 | 105 | 105 | 50 |
WBR 90110-170
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBR90110 | 110 | 50 | 90 | 50 |
| WBR170 | 95 | 114 | 174 | 25 |
WBO 50-60-90
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBO5040 | 40 | 50 | 50 | 150 |
| WBO6045 | 45 | 60 | 60 | 50 |
| WBO9040 | 40 | 90 | 90 | 100 |
WBO 135°
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBO13509 | 65 | 90 | 90 | 100 |
| WBO13510 | 90 | 100 | 100 | 40 |
WVS 80-120
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WVS8060 | 55 | 60 | 80 | 100 |
| WVS12060 | 55 | 60 | 120 | 100 |
WVS 90
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WVS9050 | 50 | 50 | 90 | 100 |
| WVS9060 | 60 | 60 | 90 | 100 |
| WVS9080 | 80 | 50 | 90 | 100 |
WHO 40-60
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WHO4040 | 40 | 40 | 40 | 200 |
| WHO4060 | 60 | 40 | 40 | 150 |
| WHO6040 | 40 | 60 | 60 | 150 |
WHO 120-160-200
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WHO12040 | 40 | 95 | 120 | 100 |
| WHO16060 | 60 | 80 | 160 | 50 |
| WHO200100 | 100 | 100 | 200 | 25 |
WHO A2 | AISI304 - LBV A2 | AISI304
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WHOI1540 | 15 | 40 | 40 | 50 |
| LBVI15100 | 15 | 100 | - | 50 |
Specifications
WHO
Supply and installation of various perforated angle brackets, Type WHO.
CE marking in accordance with ETA
Field of use:

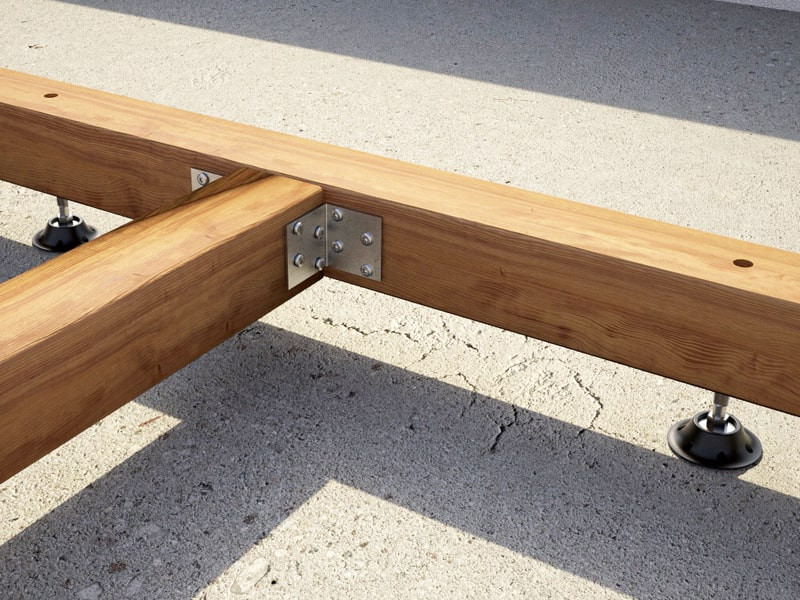

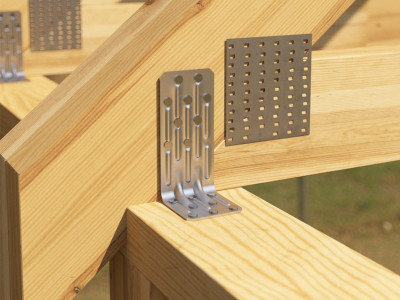

- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
Angle bracket: :
- H (mm) = :
- Bottom plate (mm) = :
-Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WVS 9050
Supply and installation of standard angle bracket with reinforcement for timber structures, Type WVS 9050.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
– B (mm) = :
– P (mm) = :
– H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
