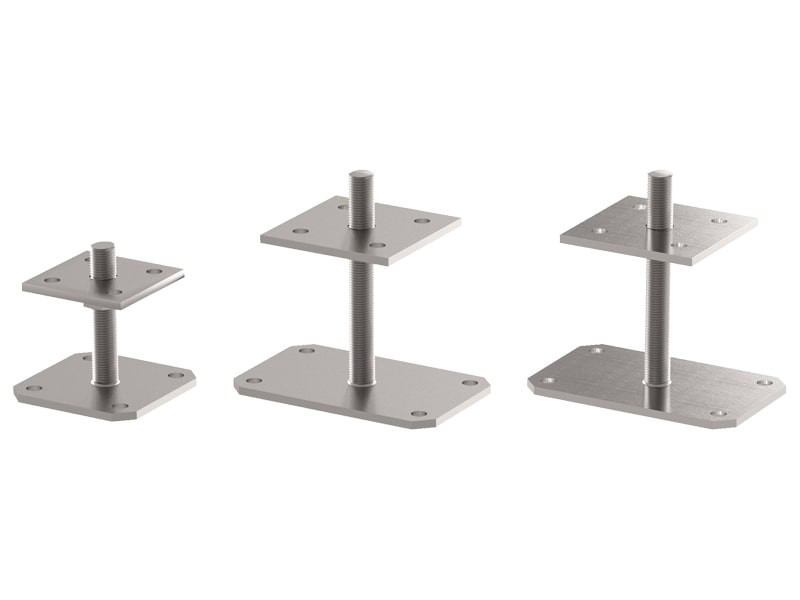

ADJUSTABLE POST BASE
R40

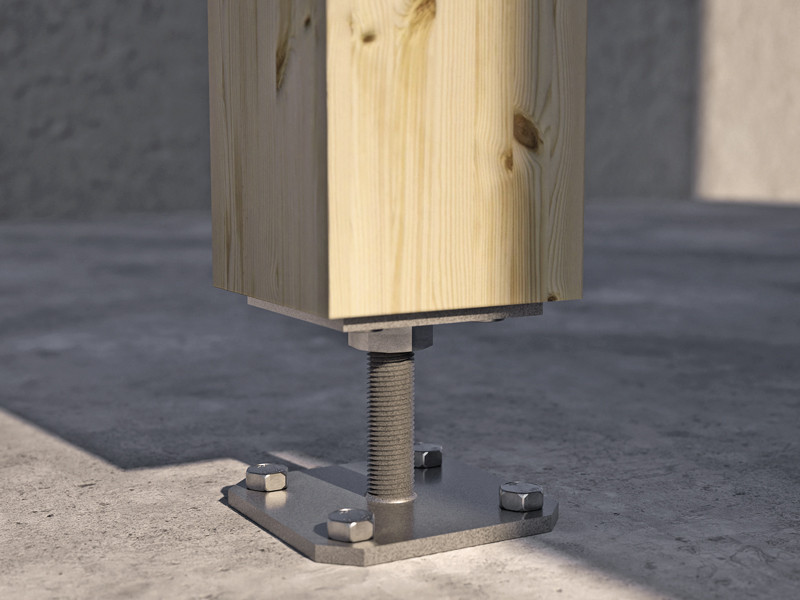

The height can also be adjusted after assembly is completed, according to functional or aesthetic requirements.
Outdistanced from the ground to avoid water splash and stagnation and guarantee high durability. Concealed fastening on the timber element.
Available in both DAC COAT and AISI304 stainless steel to ensure durability in all situation.
Documents
Technical data sheets
|
|
|---|---|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
R40 S - SQUARE
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R40S70 | 70 | 70 | 100 | 6 | 1 |
| R40S80 | 80 | 80 | 100 | 6 | 1 |
R40 L - LONG
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| R40L150 | 100 | 100 | 150 | 6 | 1 |
| R40L250 | 100 | 100 | 250 | 6 | 1 |
RI40 L A2 | AISI304 - LONG
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| RI40L150 | 100 | 100 | 150 | 6 | 1 |
| RI40L250 | 100 | 100 | 250 | 6 | 1 |
