PERFORATED PLATES

LBV

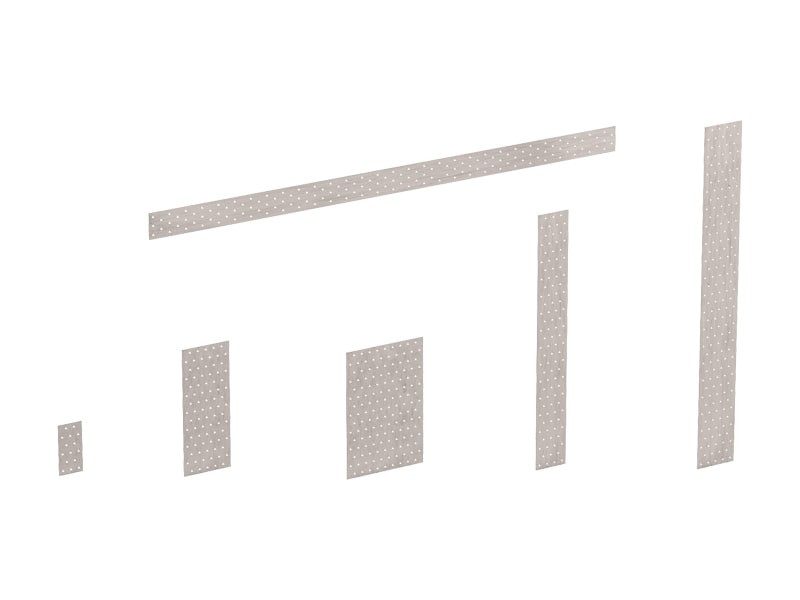

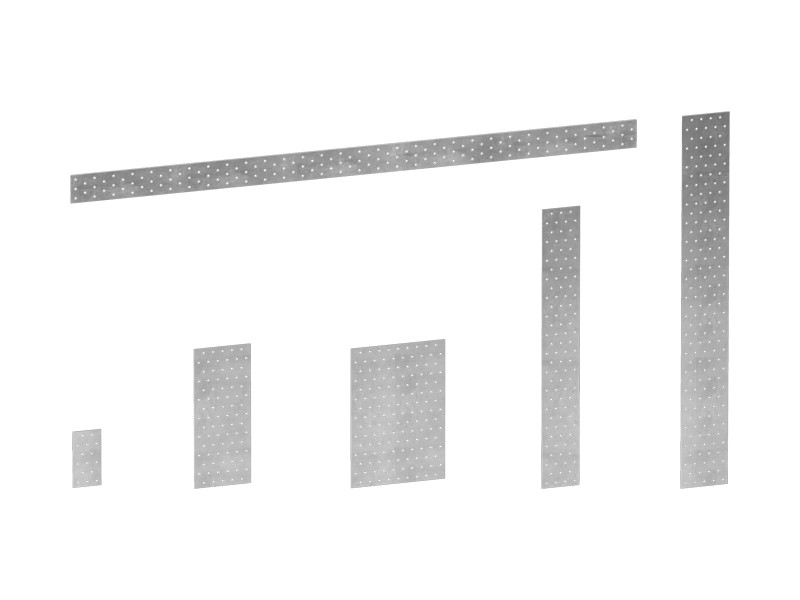

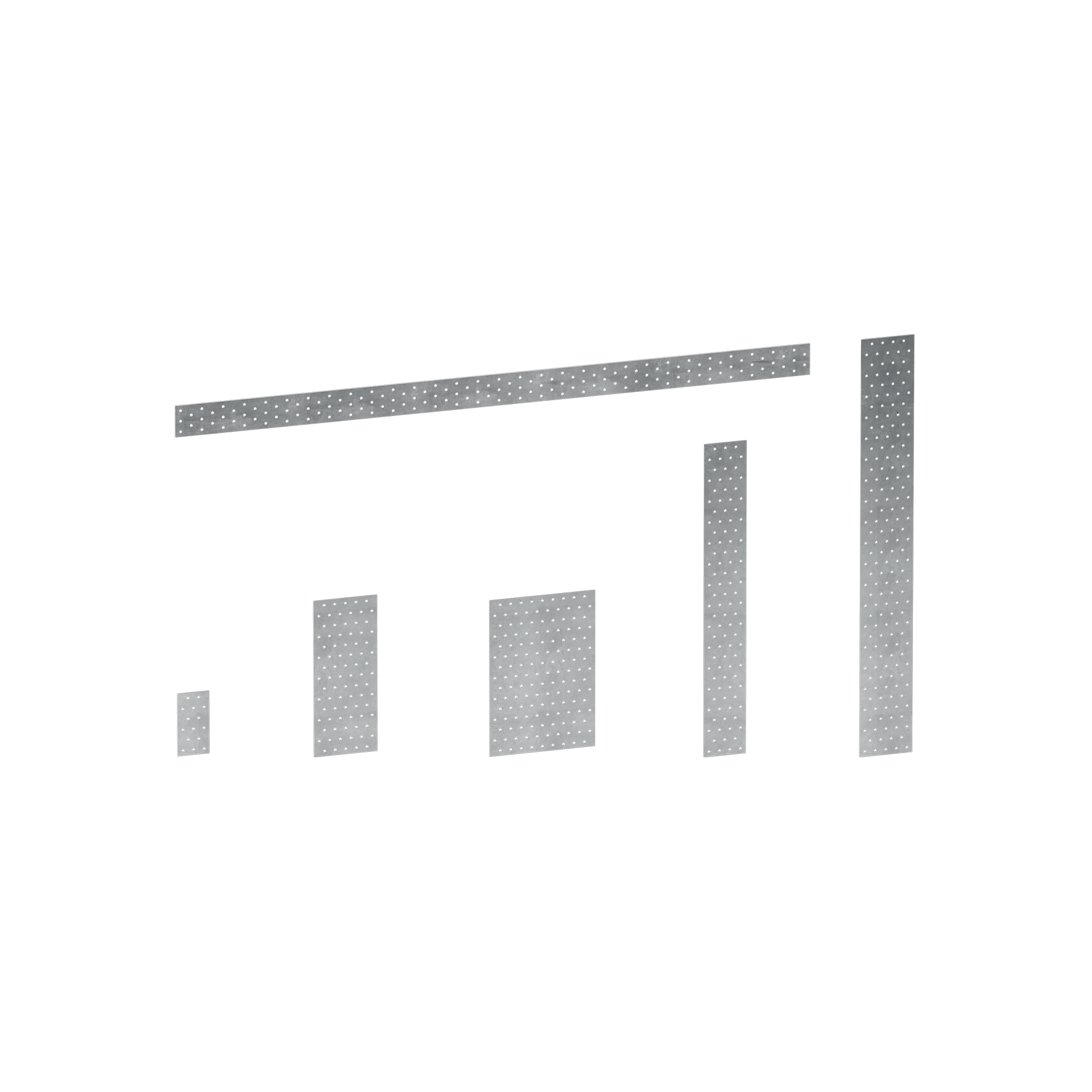

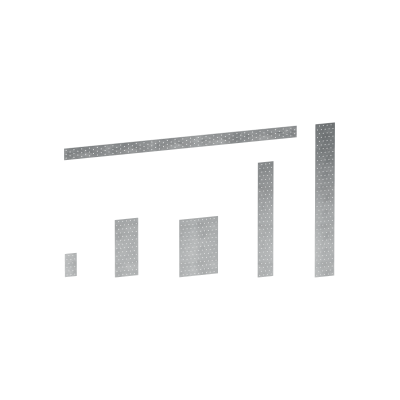

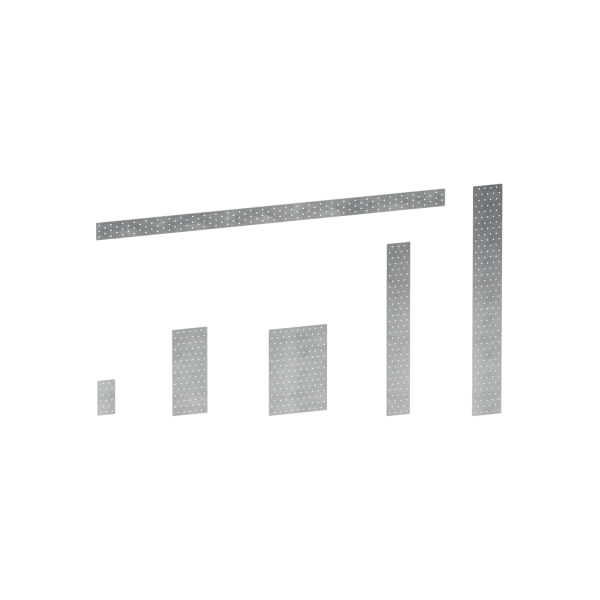

Several versions are available, designed to face all timber construction needs.

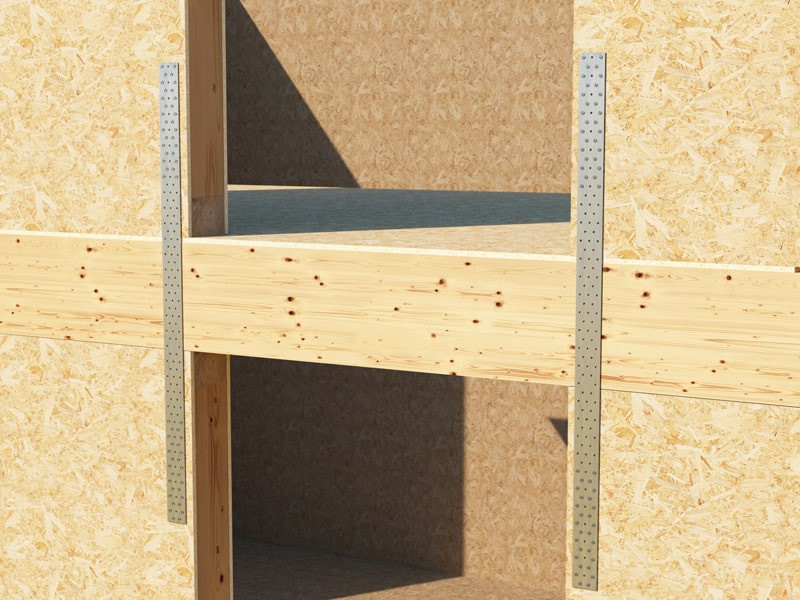

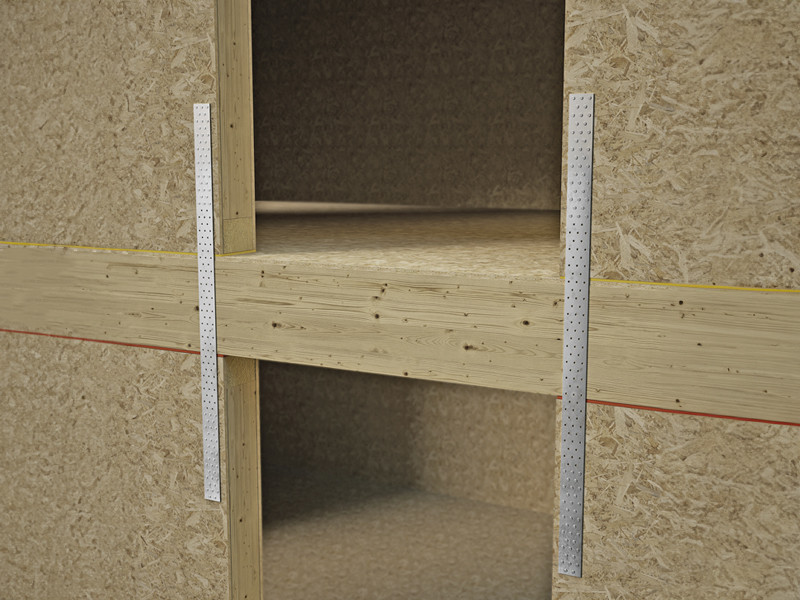

The LBV plates can realise simple beam and joist joints through to the most important inter-story connections.

An ""off the shelf solution"" that meets the most common requirements and minimises installation times. It offers an excellent cost to performance ratio. Perfect for wide range of structural joints in timber that require tensile strength.

The geometry and material characteristics are guaranteed by the CE marking.

LBV
Documents
Codes and dimensions
Technical Data
Composition
Specifications

Documents

Technical data sheets	Choose a Language
Technical data sheets USA	Choose a Language
Declaration of performance (DOP)	Download
Item specification	Choose a Language
File CAD	Choose a Language
File BIM.ifc	Choose a Language
File BIM.rfa	Choose a Language

Find the nearest agent Download the catalogue

LBV 1,5 mm

CODE	B [mm]	H [mm]	s [mm]	pcs.
LBV60600	60	600	1.5	10
LBV60800	60	800	1.5	10
LBV80600	80	600	1.5	10
LBV80800	80	800	1.5	10
LBV100800	100	800	1.5	10

LBV 2,0 mm

CODE	B [mm]	H [mm]	s [mm]	pcs.
LBV40120	40	120	2	200
LBV40160	40	160	2	50
LBV60140	60	140	2	50
LBV60200	60	200	2	100
LBV60240	60	240	2	100
LBV80200	80	200	2	50
LBV80240	80	240	2	50
LBV80300	80	300	2	50
LBV100140	100	140	2	50
LBV100200	100	200	2	50
LBV100240	100	240	2	50
LBV100300	100	300	2	50
LBV100400	100	400	2	20
LBV100500	100	500	2	20
LBV120200	120	200	2	50
LBV120240	120	240	2	50
LBV120300	120	300	2	50
LBV140400	140	400	2	15
LBV160400	160	400	2	15
LBV200300	200	300	2	15

LBV 2,0 x 1200 mm

CODE	B [mm]	H [mm]	s [mm]	pcs.
LBV401200	40	1200	2	20
LBV601200	60	1200	2	20
LBV801200	80	1200	2	20
LBV1001200	100	1200	2	10
LBV1201200	120	1200	2	10
LBV1401200	140	1200	2	10
LBV1601200	160	1200	2	10
LBV1801200	180	1200	2	10
LBV2001200	200	1200	2	5
LBV2201200	220	1200	2	5
LBV2401200	240	1200	2	5
LBV2601200	260	1200	2	5
LBV2801200	280	1200	2	5
LBV3001200	300	1200	2	5
LBV4001200	400	1200	2	5

Specifications

Supply and installation of perforated plate for timber structures, Type LBV.
CE marking in accordance with EN 14545

Field of use:

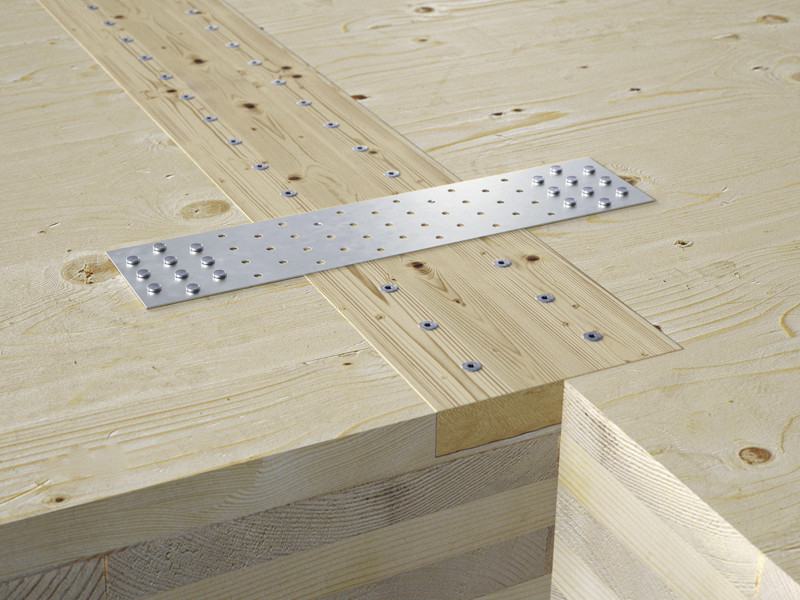

Timber-to-timber joint

Material:

Carbon steel with bright zinc plated perforated plate

Geometry:

– B (mm) = :
– H (mm) = :

Thickness s (mm) = :

Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
