CONCEALED HOOK TIMBER-TO-TIMBER CONNECTOR
UV T

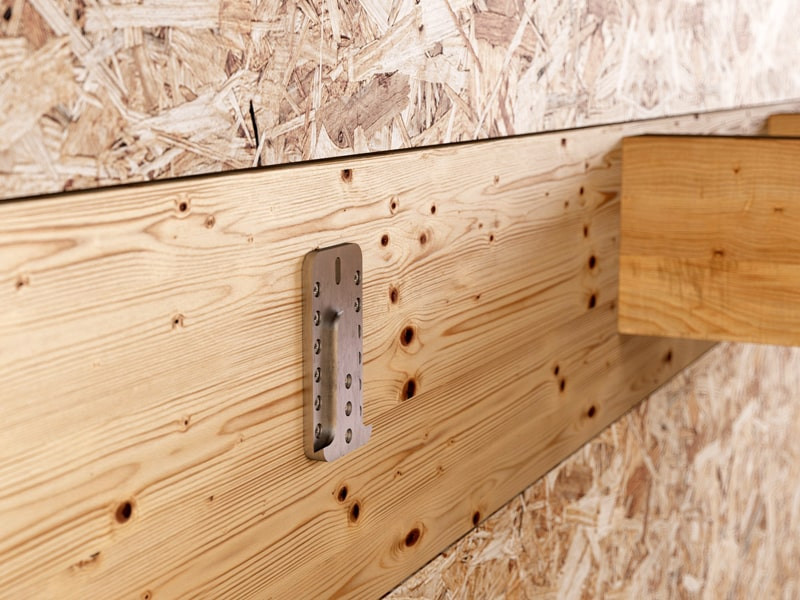

The hook connector is quick to install and can be easily removed; ideal for the construction of temporary structures.
Available in five versions, to adapt to the secondary beam and the applied load. Strength over 60 kN.

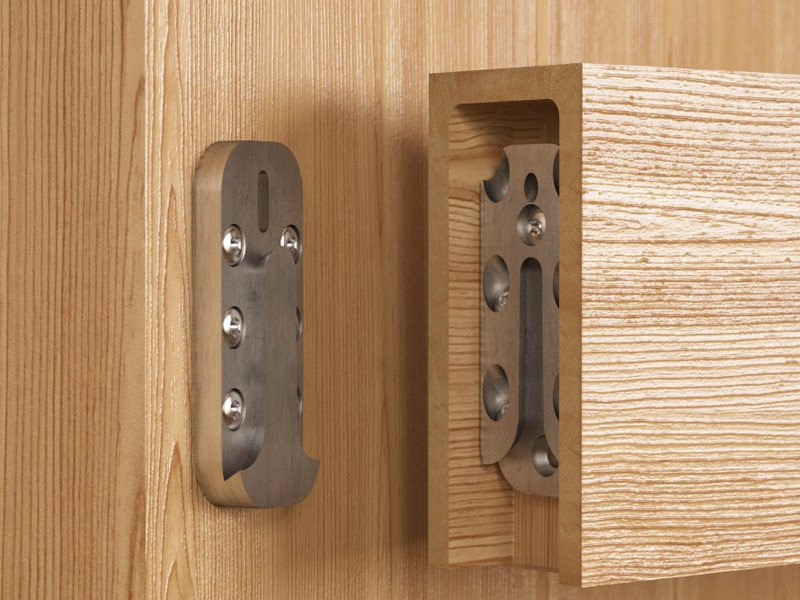

UV-T, the concealed connector for removable timber-to-timber connections.
Videos
Certified strengths in all load directions, for safe fastening even under lateral, axial and lifting forces, such as earthquake or wind.

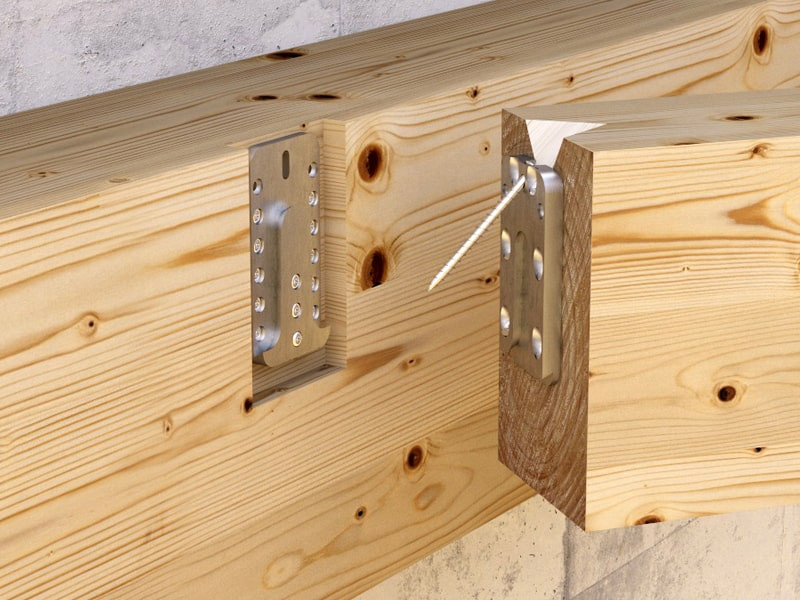

The aluminium alloy three dimensional perforated plate is ideal for timber-to-timber shear joints and applications requiring strength in all directions; it is also suitable for use with solid timber and glulam, CLT and LVL.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
UV T

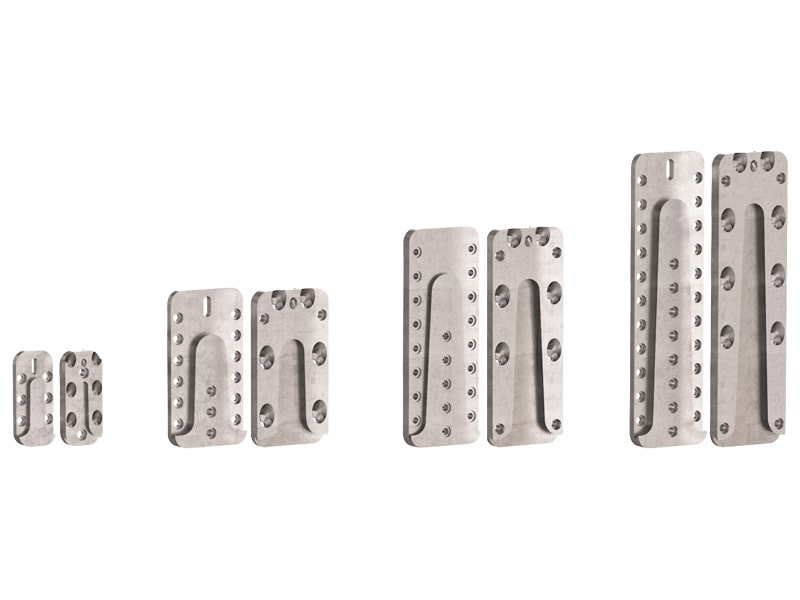

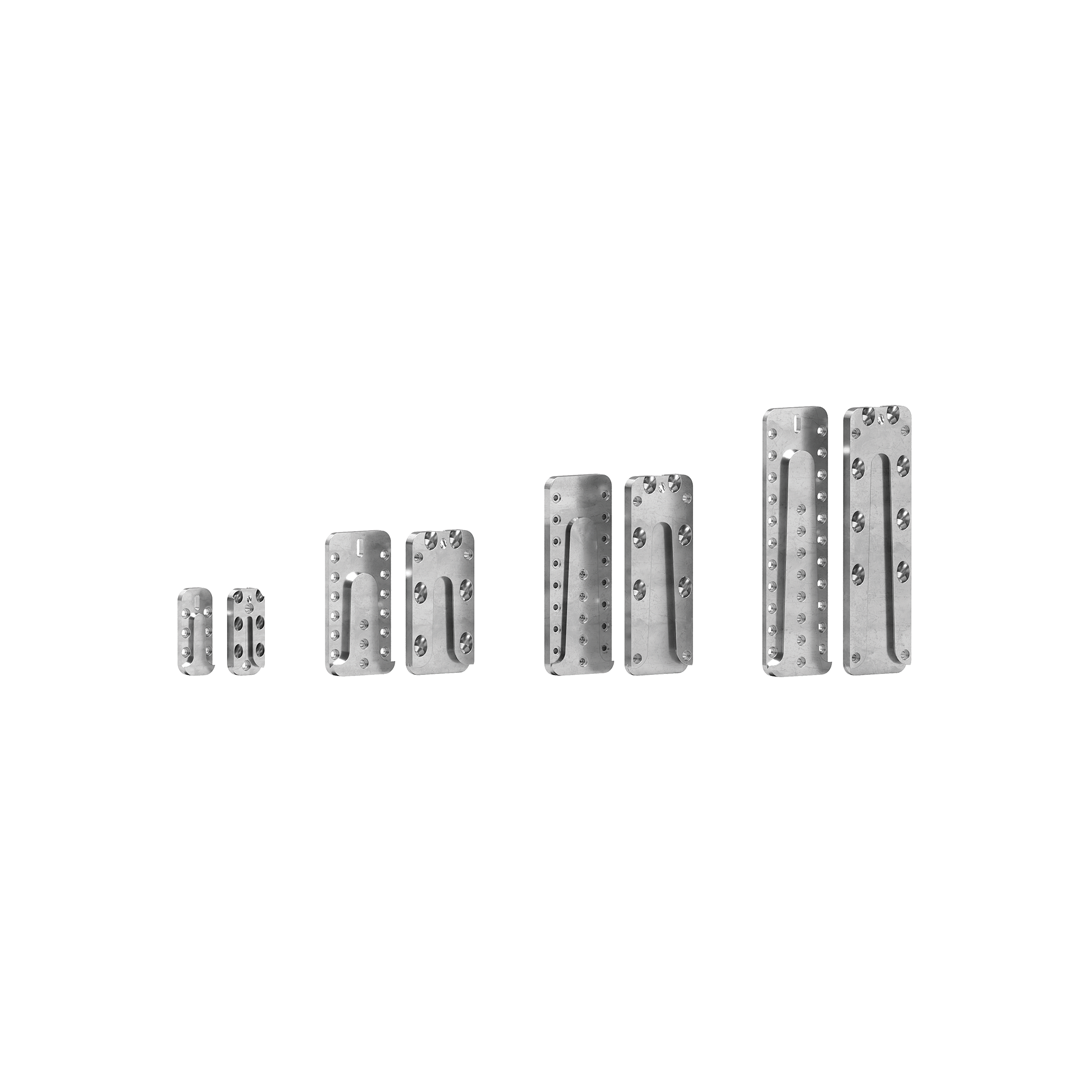

| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| UVT3070 | 30 | 70 | 16 | 25 |
| UVT4085 | 40 | 85 | 16 | 25 |
| UVT60115 | 60 | 115 | 16 | 25 |
| UVT60160 | 60 | 160 | 16 | 10 |
| UVT60215 | 60 | 215 | 16 | 10 |
Specifications
Supply and installation of concealed hook timber-to-timber connector, Type UV-T.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber joint
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
Angle bracket: :
-
H (mm) = :
-Bottom plate (mm) = : -
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
