JOINT PROFILE FOR CLT PANELS
LOCK FLOOR

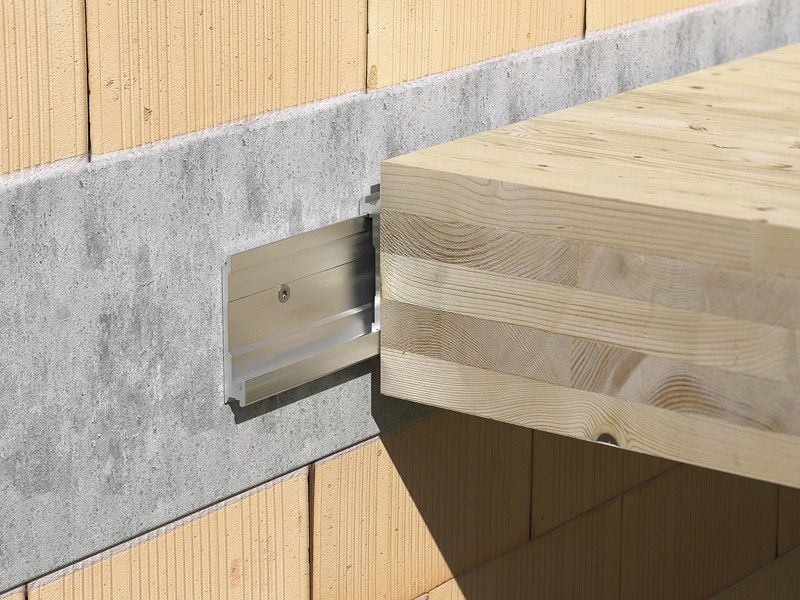

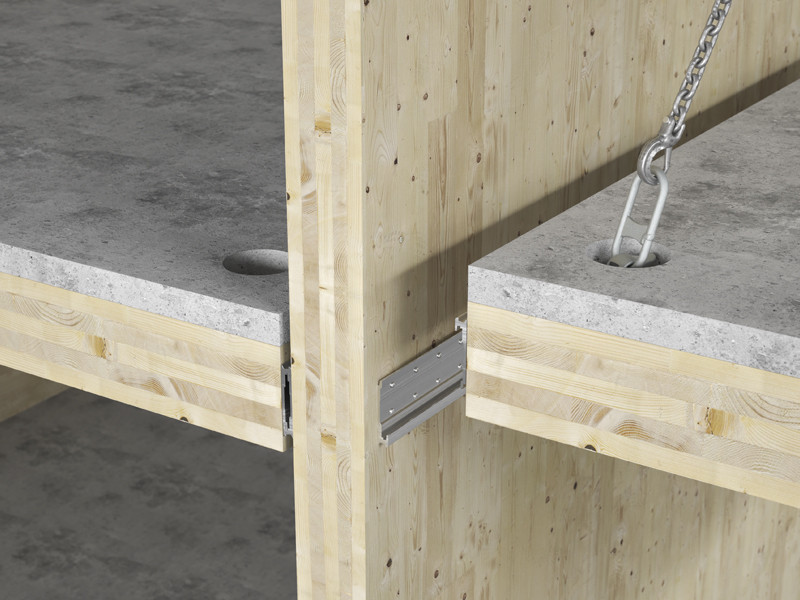

LOCK FLOOR is the innovative aluminium profile for timber-to-timber and timber-to-concrete joints that provides exceptional strength. Quickly removable, it is ideal for the construction of CLT floors with support on concrete or CLT walls. Also suitable for hooking to the timber structure of prefabricated infill walls, stair ramps or canopies.
Videos
THE INNOVATIVE LOCK FLOOR PROFILE JOINT: SOLID, GUARANTEED, DETACHABLE.

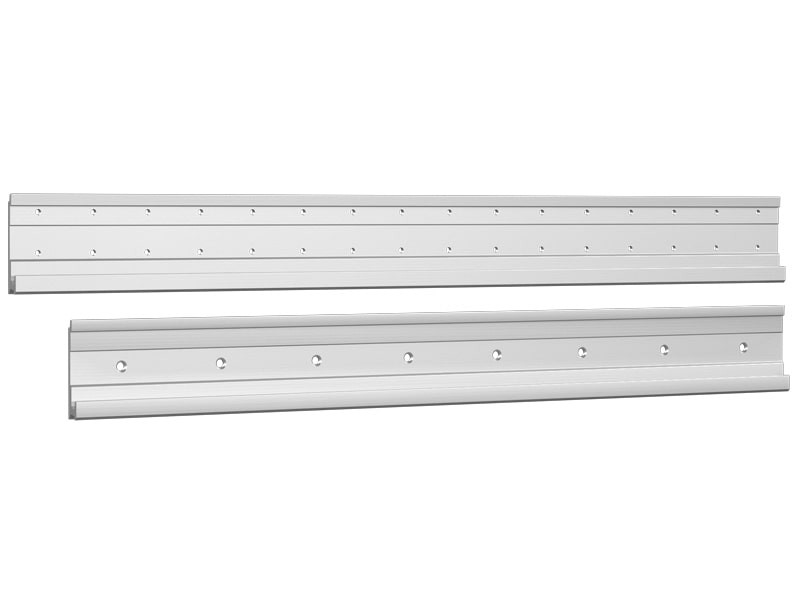

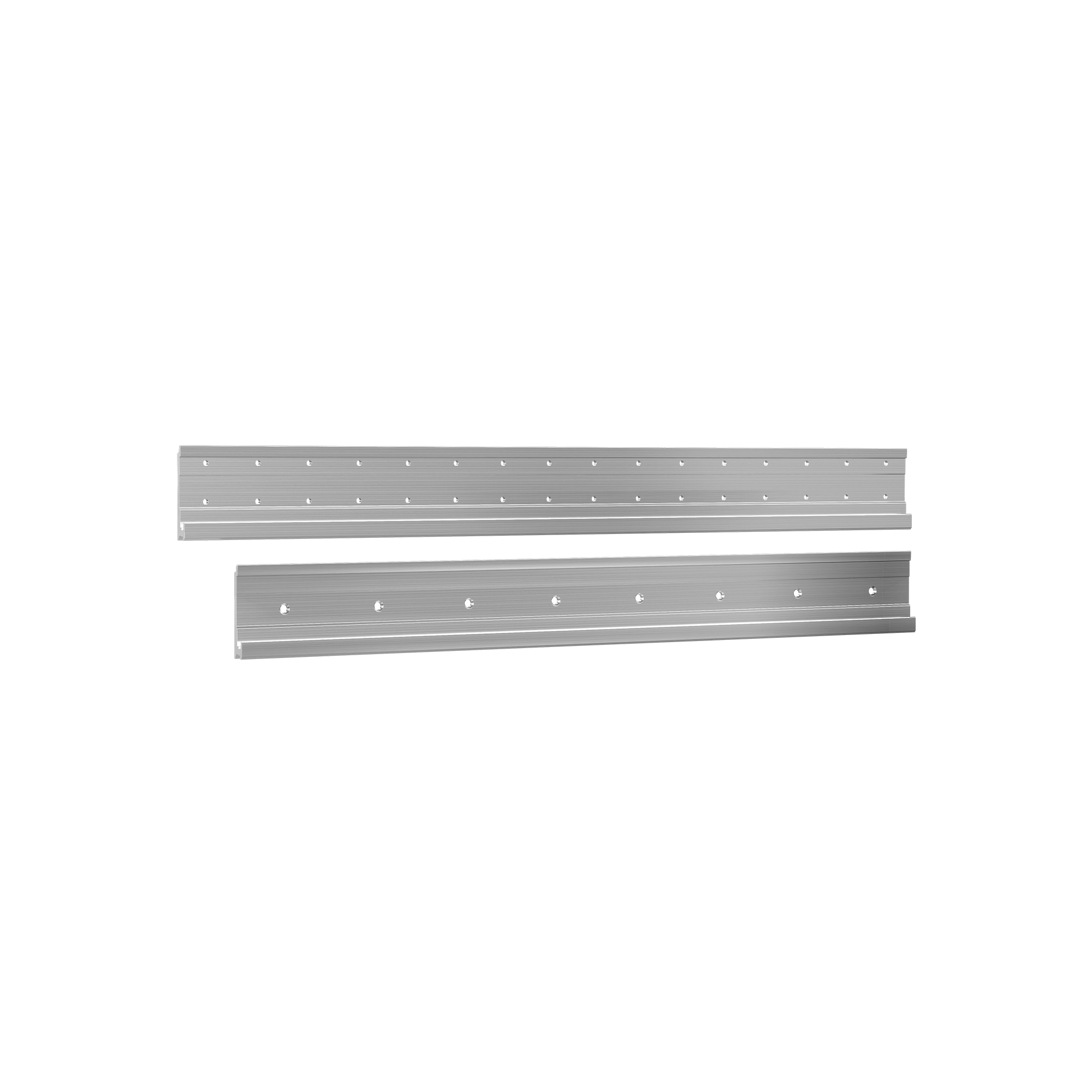

LOCK FLOOR consists of an aluminium alloy profile. Available in two versions: for connections on an CLT wall or on a concrete wall. Thanks to the assembly with only one type of screw, installation of LOCK FLOOR is quick and easy. The two parts of the connector can be pre-installed on the CLT panel and on the wall, without the need for fastening during installation.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
LOCK T FLOOR
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| LOCKTFLOOR135 | 1200 | 135 | 22 | 1 |
LOCK C FLOOR
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| LOCKCFLOOR135 | 1200 | 135 | 22 | 1 |
Specifications
Supply and installation of concealed hook timber-to-timber connector, type LOCK T FLOOR, and timber-to-concrete type LOCK C FLOOR.
CE marking in accordance with ETA-19/0831
Field of use:
-Timber-to-timber joint
-Timber to concrete joints
Material:
-Aluminium alloy three dimensional perforated plate
Geometry:
Angle bracket:
– H (mm):
- Bottom plate (mm):
- Thickness s (mm):
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
