CONCEALED BRACKET WITHOUT HOLES
ALUMINI

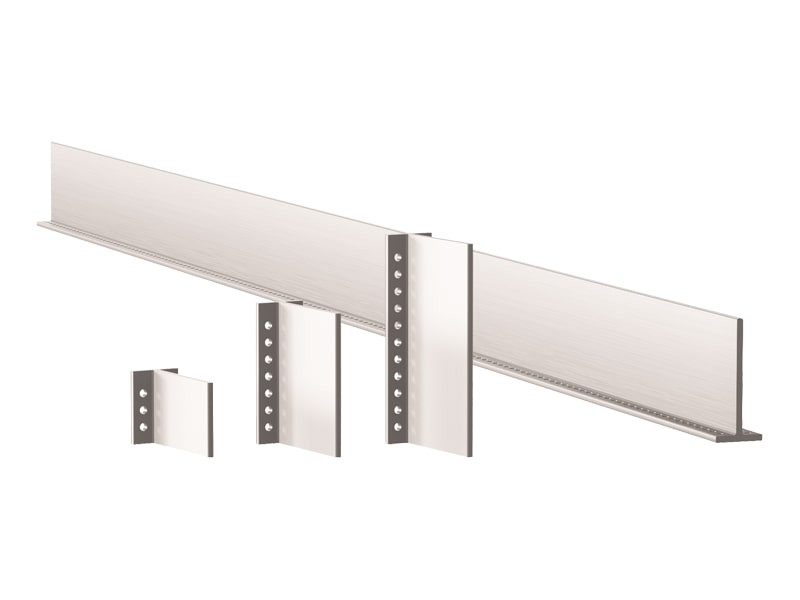

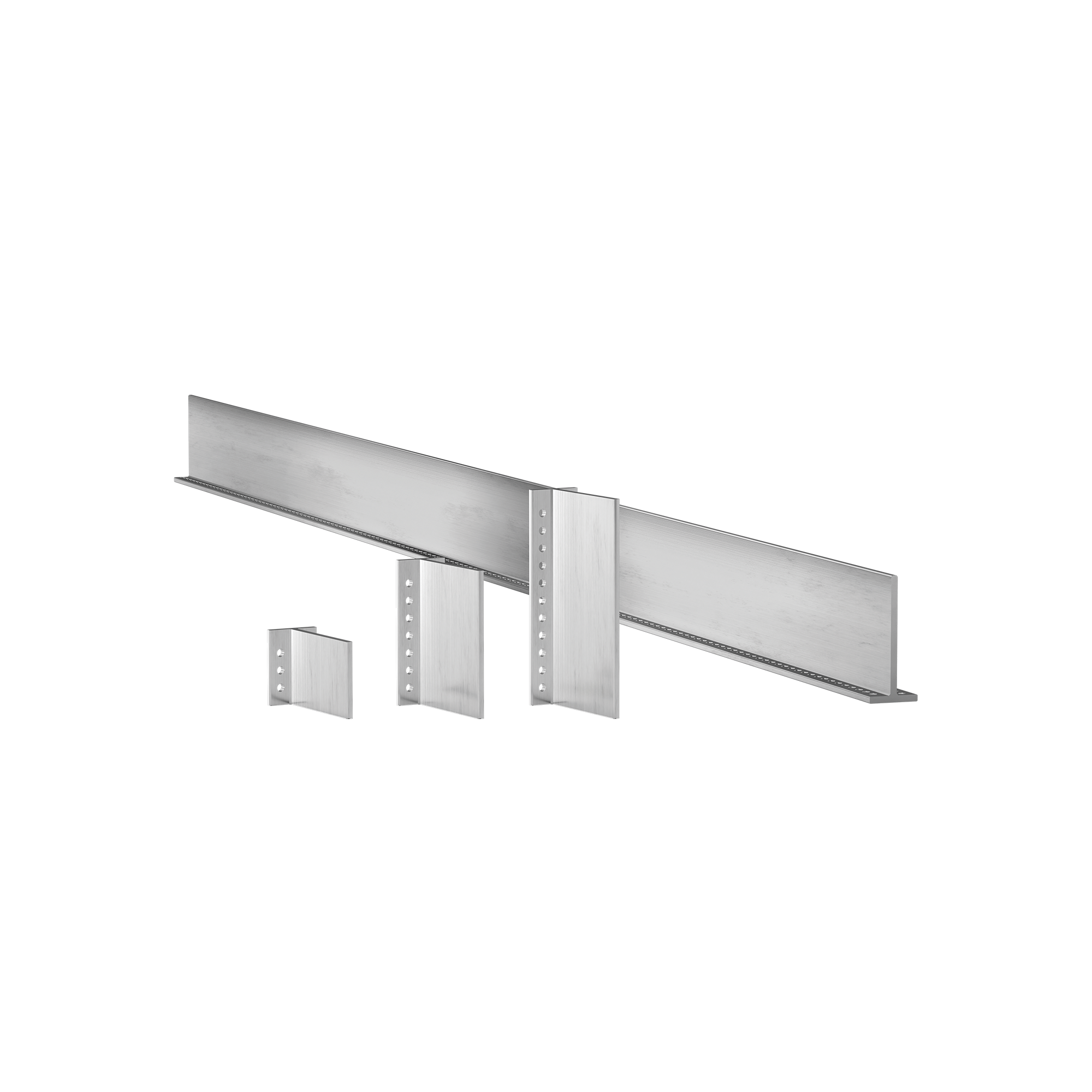

ALUMINI is the aluminium alloy bracket designed for the construction of concealed connections in slender structures.
The small dimensions of the side allows to connect secondary beams with limited width, starting from only 45 mm.
Produced by extrusion, it is without welds.
Videos
WITH THE ALUMINI BRACKETS FOR GLULAM OR SOLID TIMBER IT IS POSSIBLE TO MAKE LARGE CONNECTIONS WITH SMALL BEAMS.

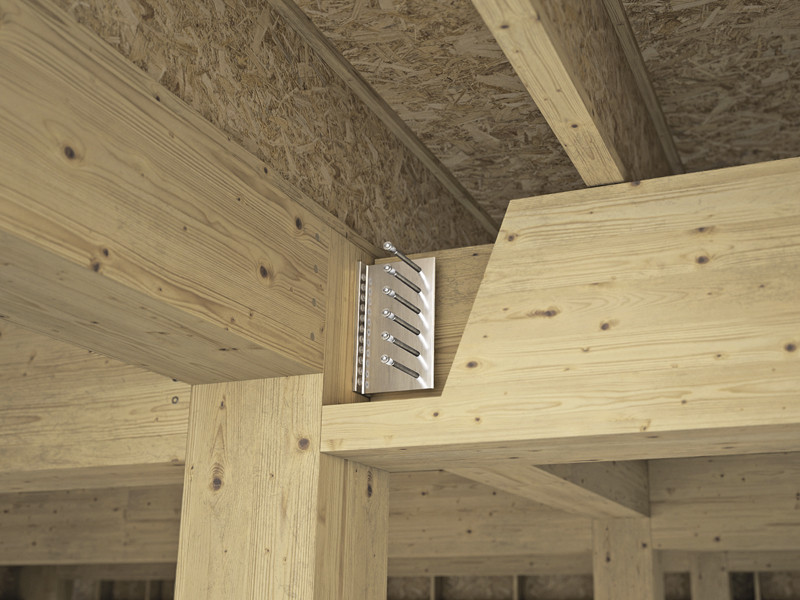

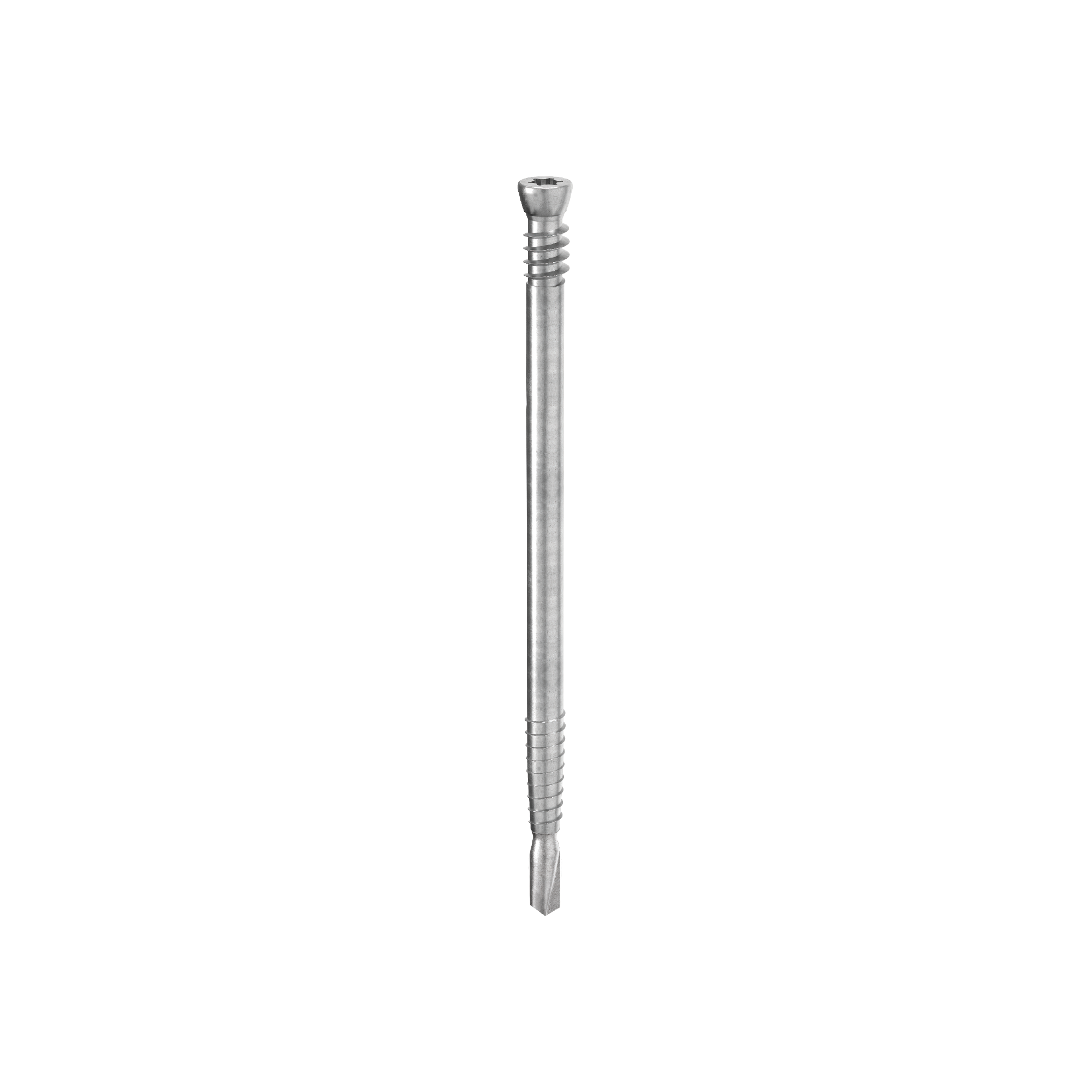

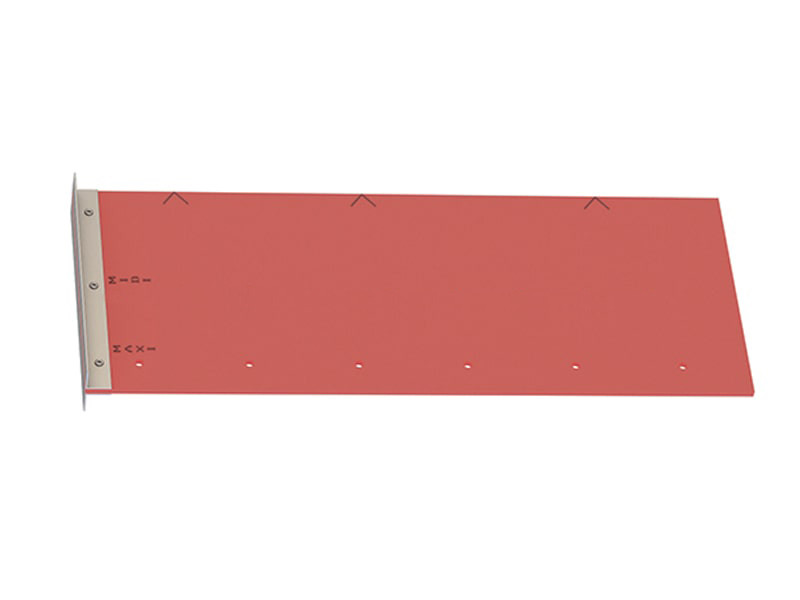

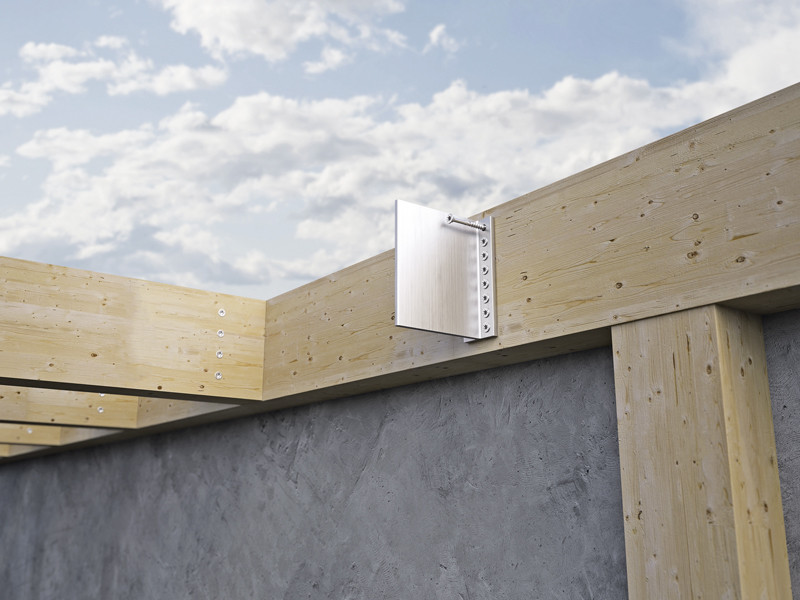

ALUMINI fastening brackets are certified T-profile plates calculated in all loading directions (vertical, horizontal and axial) and allow the construction of inclined joints.The fastening, simple and fast, is made through screws HBS PLATE EVO on the main beam and self-drilling SBD or smooth dowels on the secondary beam.

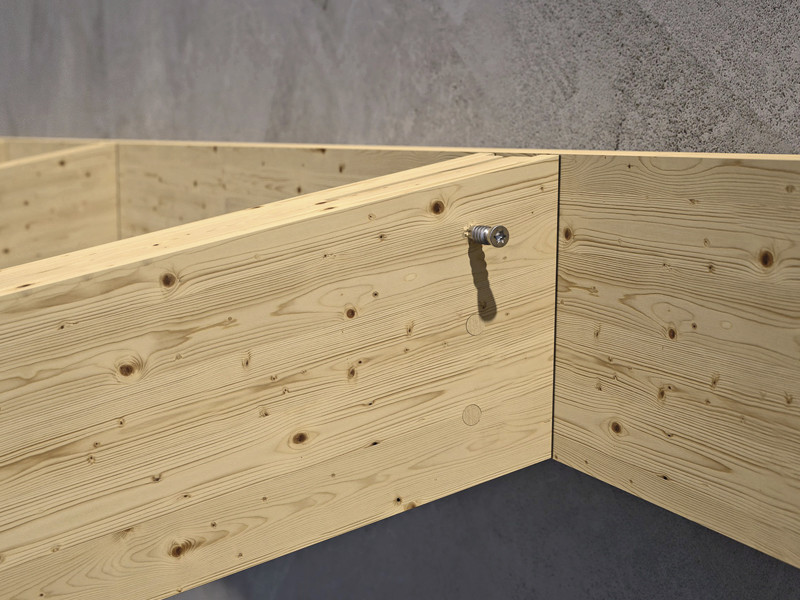

The concealed connection provides a satisfying appearance to the joint and fulfils the fire safety requirements.When adequately protected by timber, it is suitable for outdoor use.

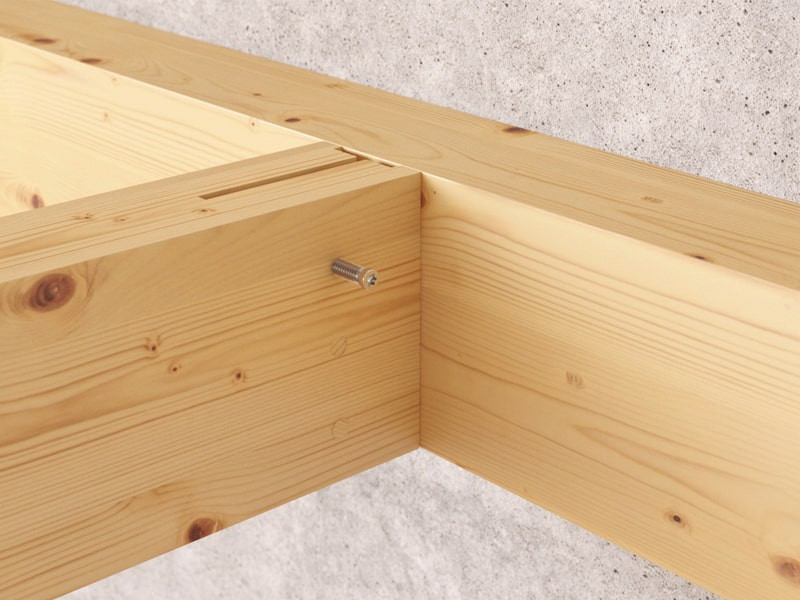

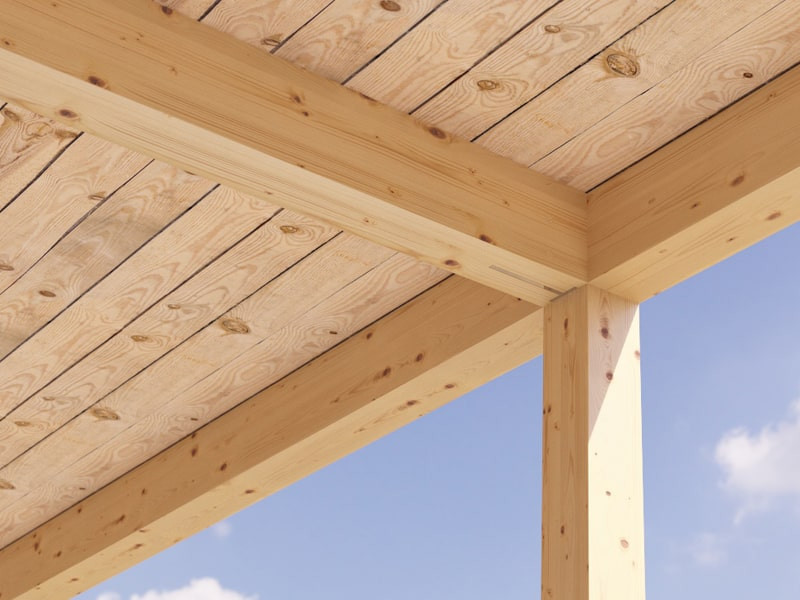

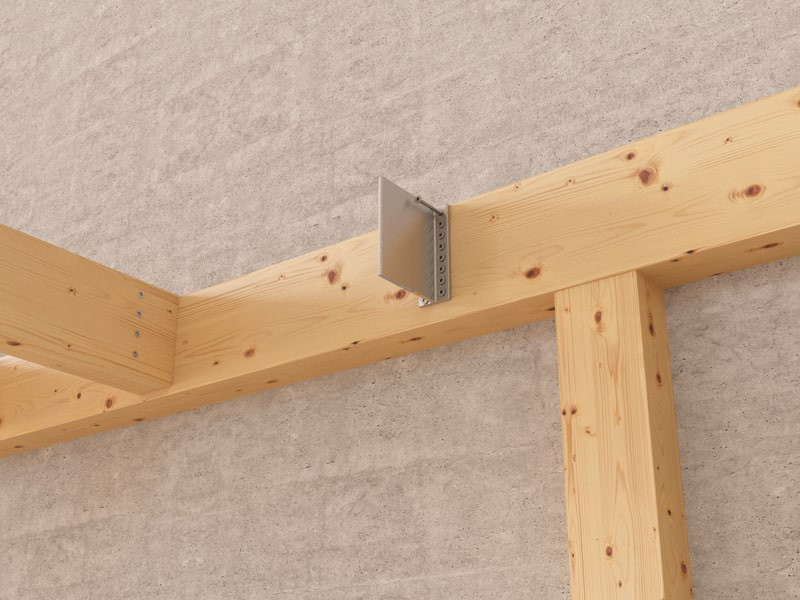

ALUMINI brackets for glulam or solid timber can be used for timber-to-timber and timber-to-concrete joints, both perpendicular and inclined. Suitable for use with solid timber and glulam, CLT, LVL and timber-based panels.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
ETA Certificate
|
|
| Declaration of performance (DOP) | Download |
Item specification
|
|
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|
ALUMINI
| CODE | H
[mm]
|
pcs. |
|---|---|---|
| ALUMINI65 | 65 | 25 |
| ALUMINI95 | 95 | 25 |
| ALUMINI125 | 125 | 25 |
| ALUMINI155 | 155 | 15 |
| ALUMINI185 | 185 | 15 |
| ALUMINI215 | 215 | 15 |
| ALUMINI2165 | 2165 | 1 |
Specifications
Supply and installation of concealed bracket without holes for timber structures, Type ALUMINI.
CE marking in accordance with ETA 09/0361
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Aluminium alloy three dimensional perforated plate
Geometry:
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
