PLATES FOR TIMBER
TITAN PLATE T

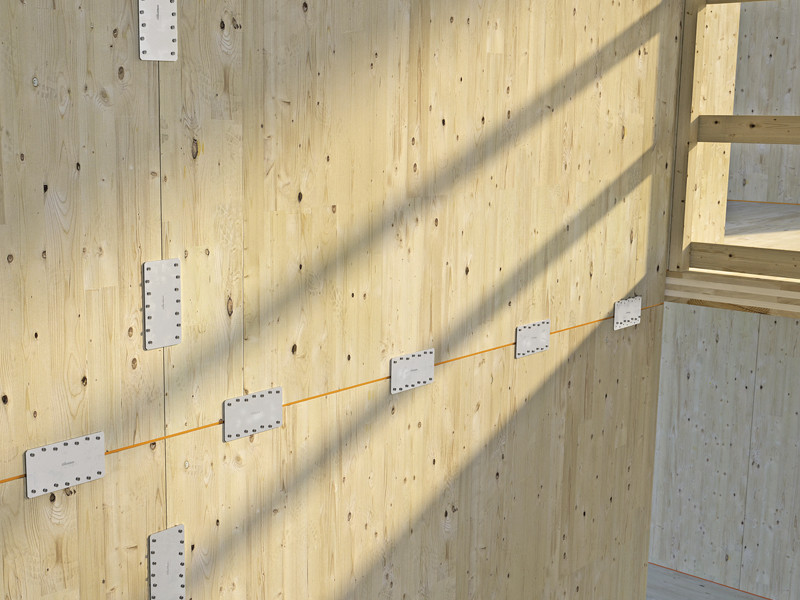

The TITAN PLATE T plate for timber series, designed to withstand shear forces, is ideal for creating timber-to-timber joints, such as the flat connection of timber platform beams to load-bearing timber panels.
Each TITAN PLATE T plate for timber puts the strength of a titan at the service of timber.
The plates for solid timber, glulam and CLT beams
The shear strengths of TITAN PLATE T perforate metal plates are calculated with both partial and total fastening for solid timber, glulam and CLT.
CE marking according to European standard EN 14545. Available in 2 versions: the 200 mm version also allows fastening the platform beams in the foundation (height higher than 8 cm) to the upper supporting panel, both in CLT and TIMBER FRAME structures.

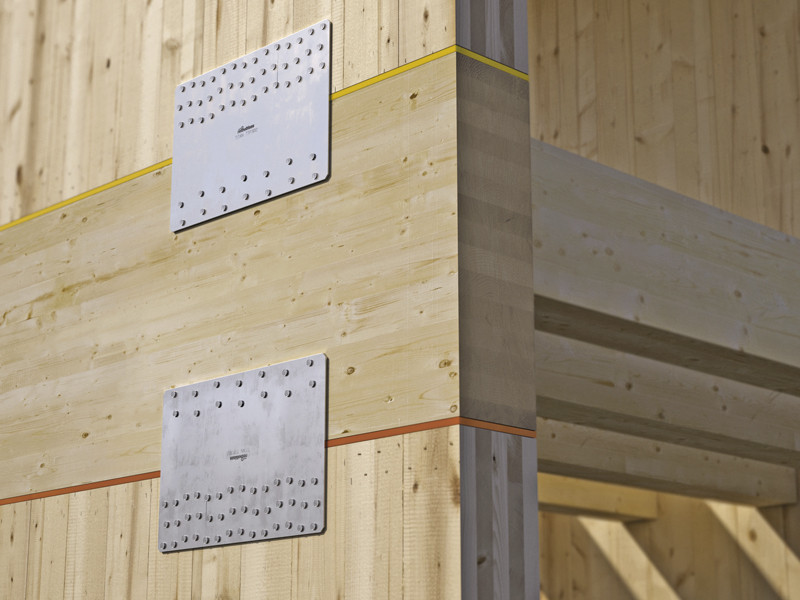

Unlike other plates for glulam, the 300 mm version is specially designed to maximise shear strength in CLT structures.
The TITAN PLATE T two-dimensional fastening plate made of bright zinc plated carbon steel is ideal for making timber-to-timber shear joints with timber panels and beams and for use on CLT, LVL, solid timber, glulam and platform frames.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets CANADA
|
|
| Declaration of performance (DOP) | Download |
File CAD
|
|
File BIM.ifc
|
|
File BIM.rfa
|

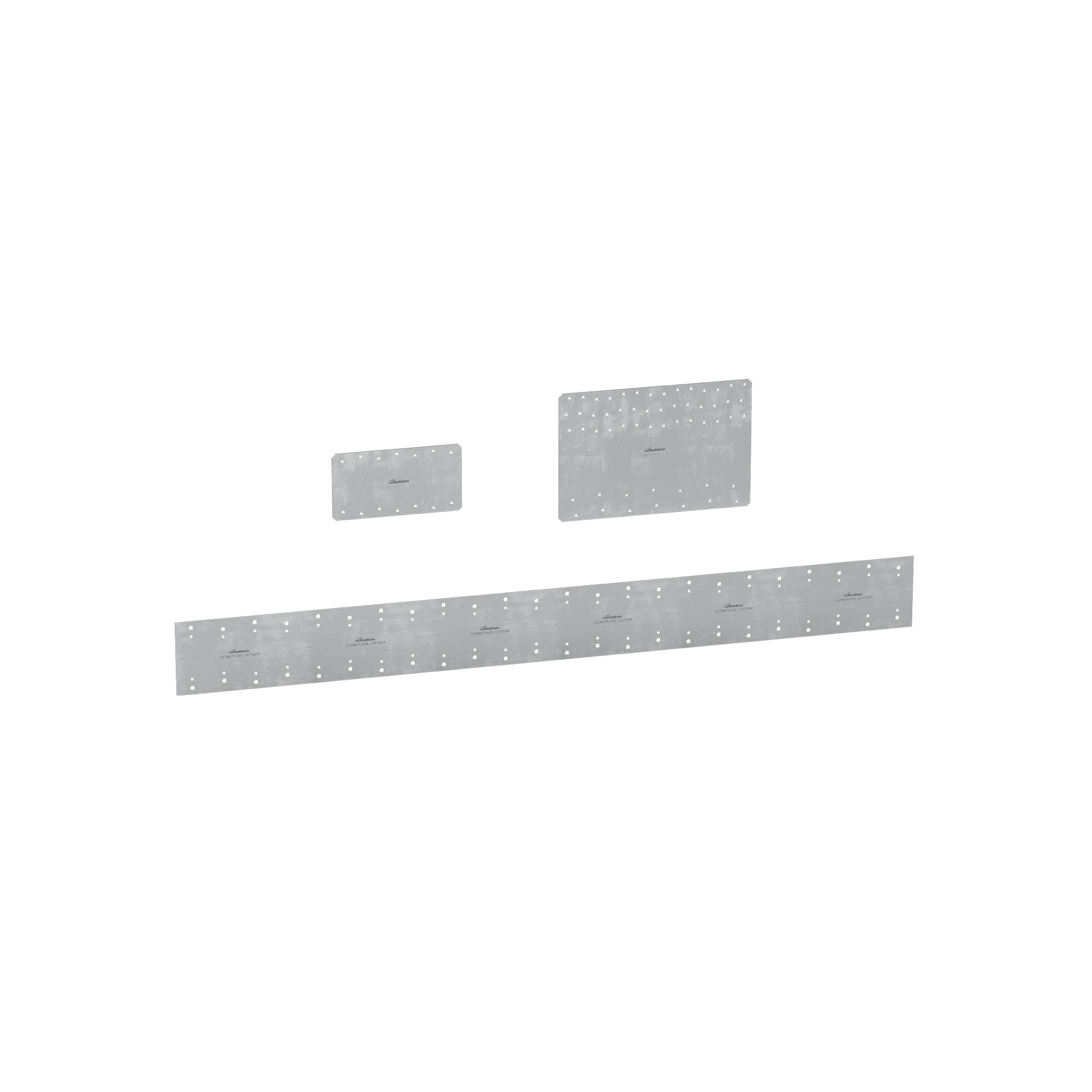

TITAN PLATE TTP
| CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |

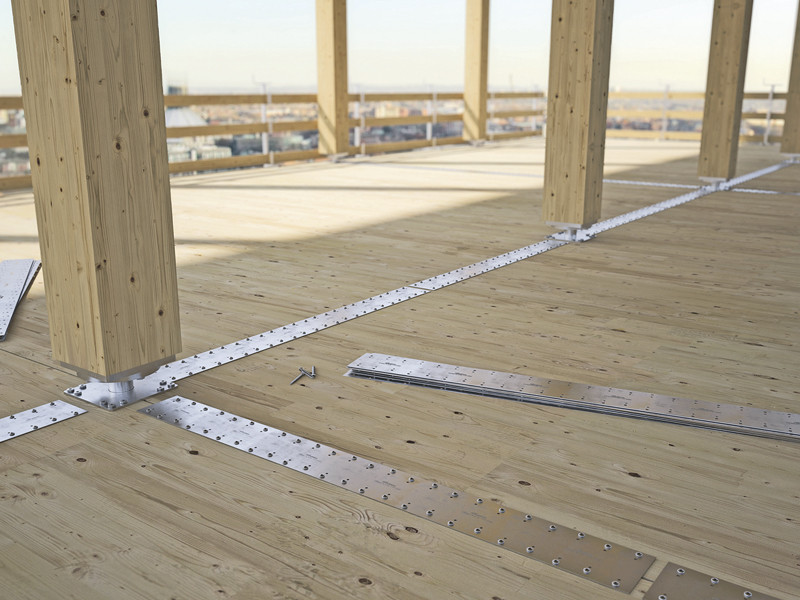

|---|---|---|---|---|
| TTP200 | 200 | 105 | 3 | 10 |
| TTP300 | 300 | 200 | 3 | 10 |
| TTP1200 | 1200 | 120 | 1.5 | 10 |
Specifications
Supply and installation of pate for shear forces for timber structures, Type TITAN PLATE.
CE marking in accordance with EN 14545
Field of use:
- Timber-to-concrete or timber to-steel joints
Material:
- Z275 Bright zinc plated carbon steel, two dimensional perforated plate
Geometry:
- B (mm) = :
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
