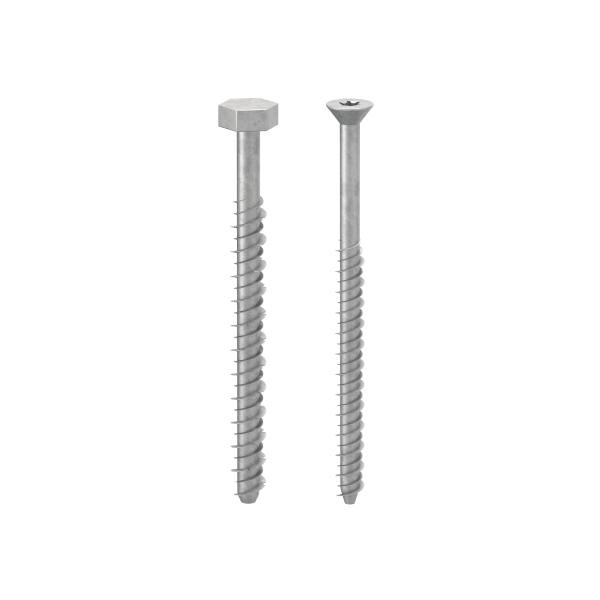

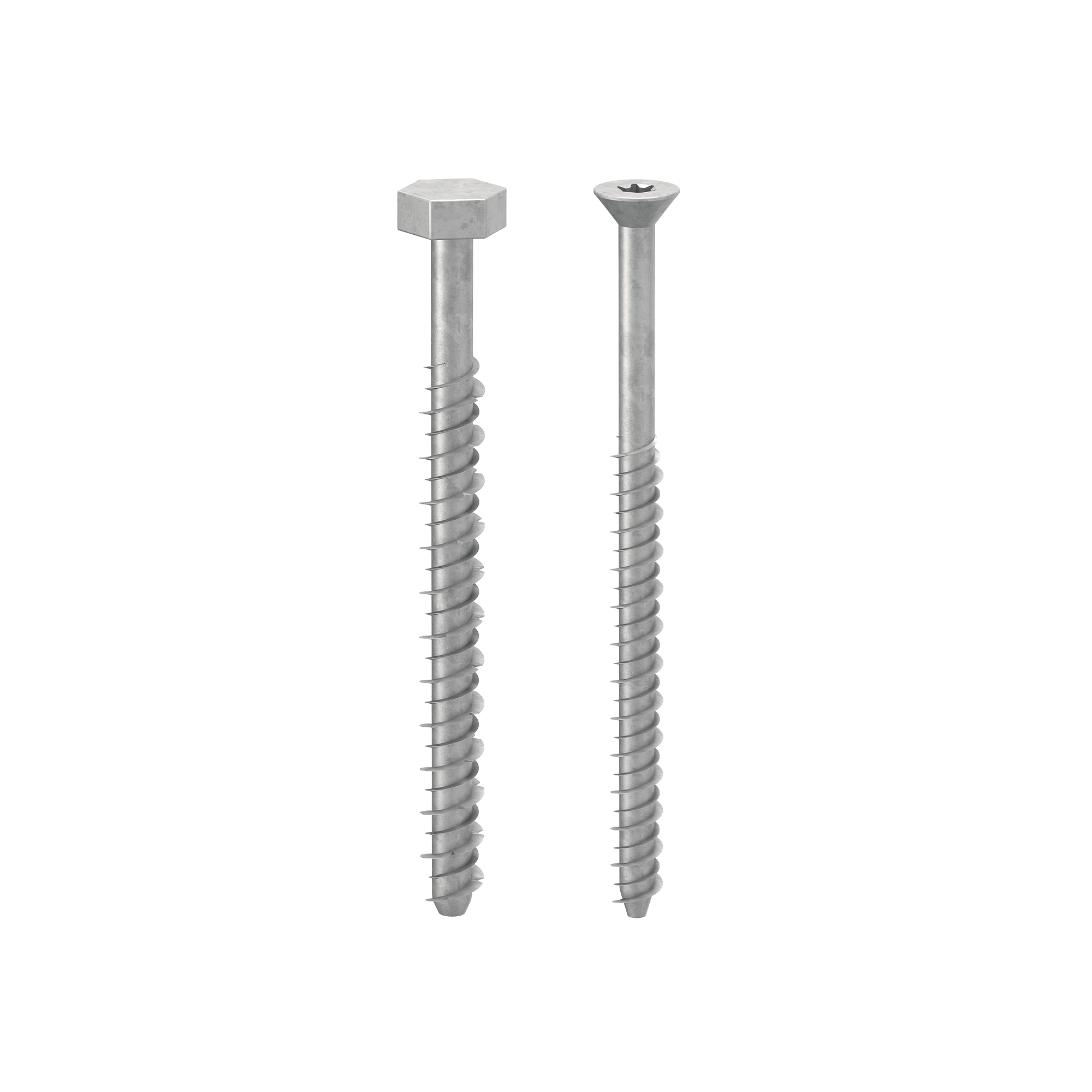

SCREW ANCHOR FOR CONCRETE
SKR EVO | SKS EVO
New
Fast and easy operation. The special threading requires a small predrill and guarantees fastening on concrete without creating expansion stresses in the concrete. Reduced minimum distances.
Inorganic-based multilayer coating with a functional outer layer of epoxy matrix with aluminium flakes. Suitability for atmospheric corrosivity class C4 and service class 3.

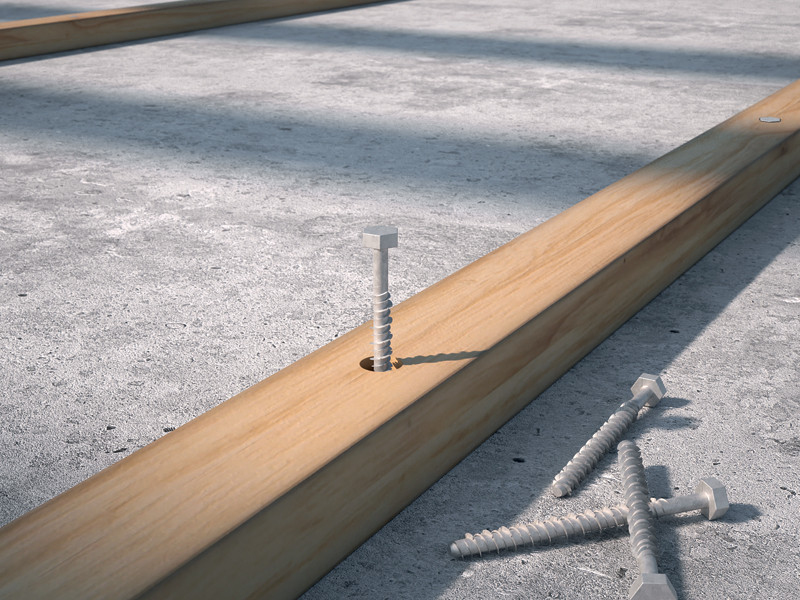

Robust and easy to install, thanks to the increased geometry of the SKR hexagonal head.
Documents
Technical data sheets
|
|
|---|---|
Technical data sheets USA
|
|
File CAD
|
SKR EVO
| CODE | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
SW | pcs. |
|---|---|---|---|---|---|---|
| SKREVO7560 | 7.5 | 60 | 0.3 | 2 3/8'' | SW13 | 50 |
| SKREVO7580 | 7.5 | 80 | 0.3 | 3 1/8'' | SW13 | 50 |
| SKREVO75100 | 7.5 | 100 | 0.3 | 4'' | SW13 | 50 |
| SKREVO1080 | 10 | 80 | 0.4 | 3 1/8'' | SW16 | 50 |
| SKREVO10100 | 10 | 100 | 0.4 | 4'' | SW16 | 25 |
| SKREVO10120 | 10 | 120 | 0.4 | 4 3/4'' | SW16 | 25 |
| SKREVO10140 | 10 | 140 | 0.4 | 5 1/2'' | SW16 | 25 |
| SKREVO10160 | 10 | 160 | 0.4 | 6 1/4'' | SW16 | 25 |
| SKREVO12100 | 12 | 100 | 0.48 | 4'' | SW18 | 25 |
| SKREVO12120 | 12 | 120 | 0.48 | 4 3/4'' | SW18 | 25 |
| SKREVO12140 | 12 | 140 | 0.48 | 5 1/2'' | SW18 | 25 |
| SKREVO12160 | 12 | 160 | 0.48 | 6 1/4'' | SW18 | 25 |
| SKREVO12200 | 12 | 200 | 0.48 | 8'' | SW18 | 25 |
| SKREVO12240 | 12 | 240 | 0.48 | 9 1/2'' | SW18 | 25 |
| SKREVO12280 | 12 | 280 | 0.48 | 11'' | SW18 | 25 |
| SKREVO12320 | 12 | 320 | 0.48 | 12 5/8'' | SW18 | 25 |
| SKREVO12400 | 12 | 400 | 0.48 | 15 3/4'' | SW18 | 25 |
SKS EVO
| CODE | info | d₁
[mm]
|
L
[mm]
|
d₁
[in]
|
L
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|
| SKSEVO7560 | - | 7.5 | 60 | 0.3 | 2 3/8'' | TX40 | 50 |
| SKSEVO7580 | - | 7.5 | 80 | 0.3 | 3 1/8'' | TX40 | 50 |
| SKSEVO75100 | - | 7.5 | 100 | 0.3 | 4'' | TX40 | 50 |
| SKSEVO75120 | - | 7.5 | 120 | 0.3 | 4 3/4'' | TX40 | 50 |
| SKSEVO75140 | - | 7.5 | 140 | 0.3 | 5 1/2'' | TX40 | 50 |
| SKSEVO75160 | - | 7.5 | 160 | 0.3 | 6 1/4'' | TX40 | 50 |
