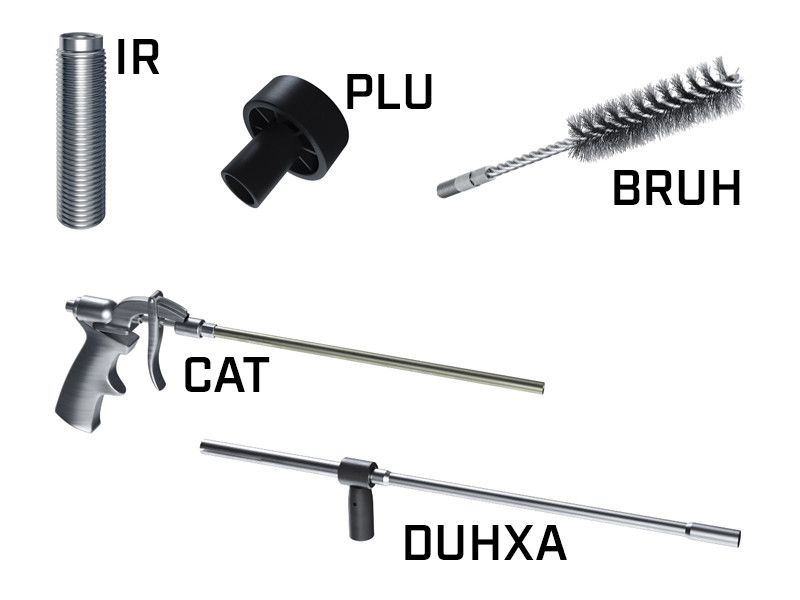

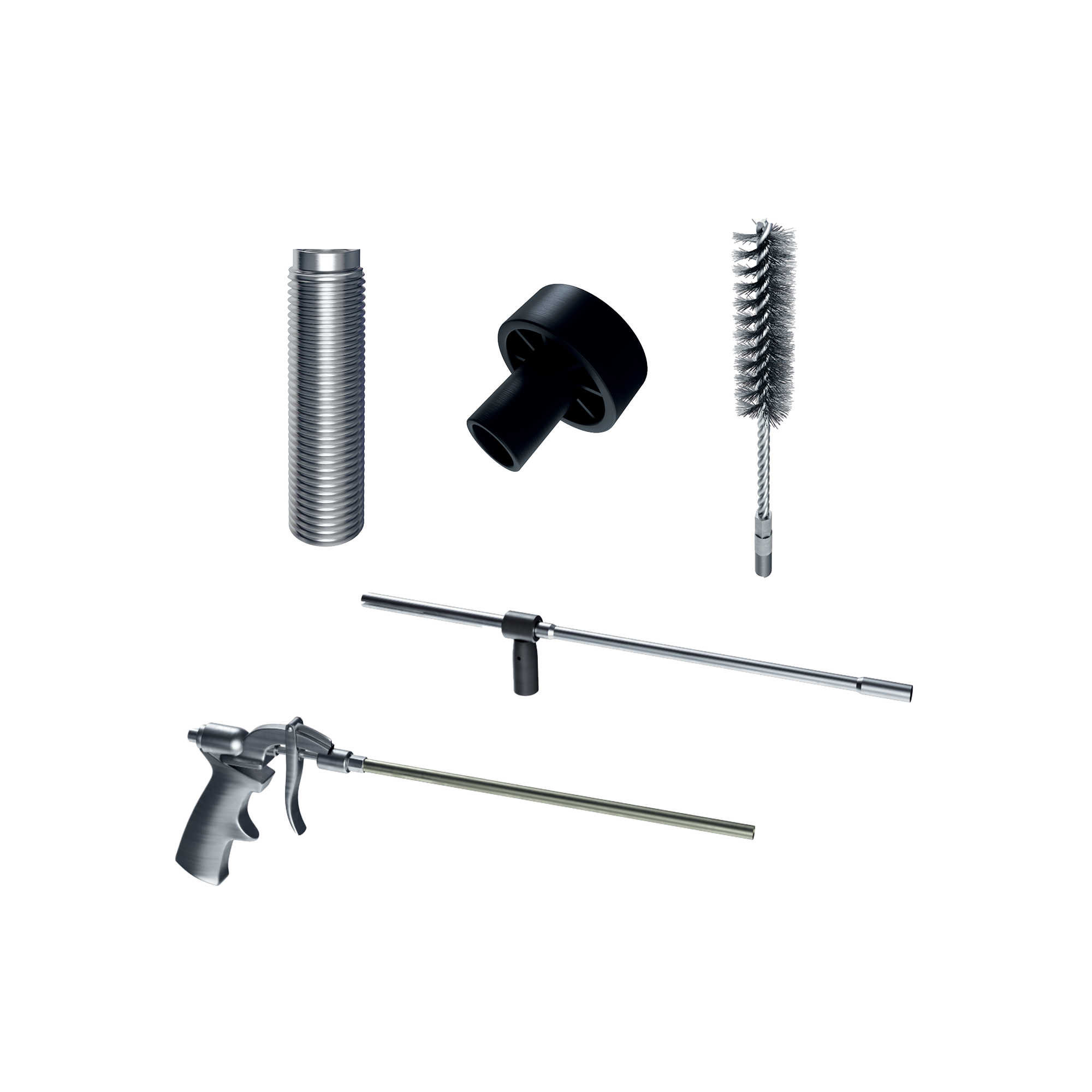

ACCESSORIES FOR CHEMICAL ANCHORS
IR-PLU-BRUH-DUHXA-CAT
IR
Bushing with internal metric thread
PLU
Injection nozzlebruh
BRUH
Steel pipe cleaner
DUHXA
Hollow drill bit for concrete
CAT
Compressed air tool
Documents
Technical data sheets
|
|---|
IR
| CODE | d₁
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| IRM880 | M12 | 80 | 10 |
| IRM1080 | M16 | 80 | 10 |
| IRM12125 | M20 | 125 | 10 |
| IRM16170 | M24 | 170 | 5 |
PLU
| CODE | d₁
[mm]
|
pcs. |
|---|---|---|
| PL14 | 14 | 20 |
| PL18 | 18 | 20 |
| PL24 | 24 | 20 |
| PL28 | 28 | 20 |
| PL32 | 32 | 20 |
| PL35 | 35 | 20 |
FILL
| CODE | d₁
[mm]
|
pcs. |
|---|---|---|
| FILL8 | int Ø9 | ext Ø23 | 20 |
| FILL10 | int Ø12 | ext Ø26 | 20 |
| FILL12 | int Ø14| ext Ø28 | 20 |
| FILL16 | int Ø17 | ext Ø34 | 10 |
| FILL20 | int Ø21 | ext Ø41 | 10 |
| FILL24 | int Ø25 | ext Ø48 | 4 |
BRUH
| CODE | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
pcs. |
|---|---|---|---|---|---|---|---|
| BRUH10 | 10 | 150 | - | 0.4 | 6'' | - | 1 |
| BRUH12 | 12 | 150 | - | 0.48 | 6'' | - | 1 |
| BRUH14 | 14 | 150 | - | 0.56 | 6'' | - | 1 |
| BRUH18 | 18 | 150 | - | 0.71 | 6'' | - | 1 |
| BRUH22 | 22 | 150 | - | 0.87 | 6'' | - | 1 |
| BRUH28 | 28 | 150 | - | 1.11 | 6'' | - | 1 |
| BRUH30 | 30 | 150 | - | 1.19 | 6'' | - | 1 |
| BRUH35 | 35 | 150 | - | 1.38 | 6'' | - | 1 |
